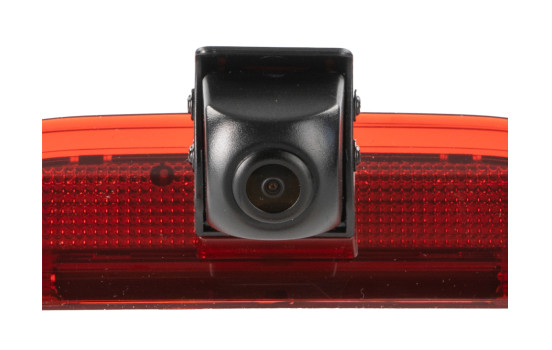

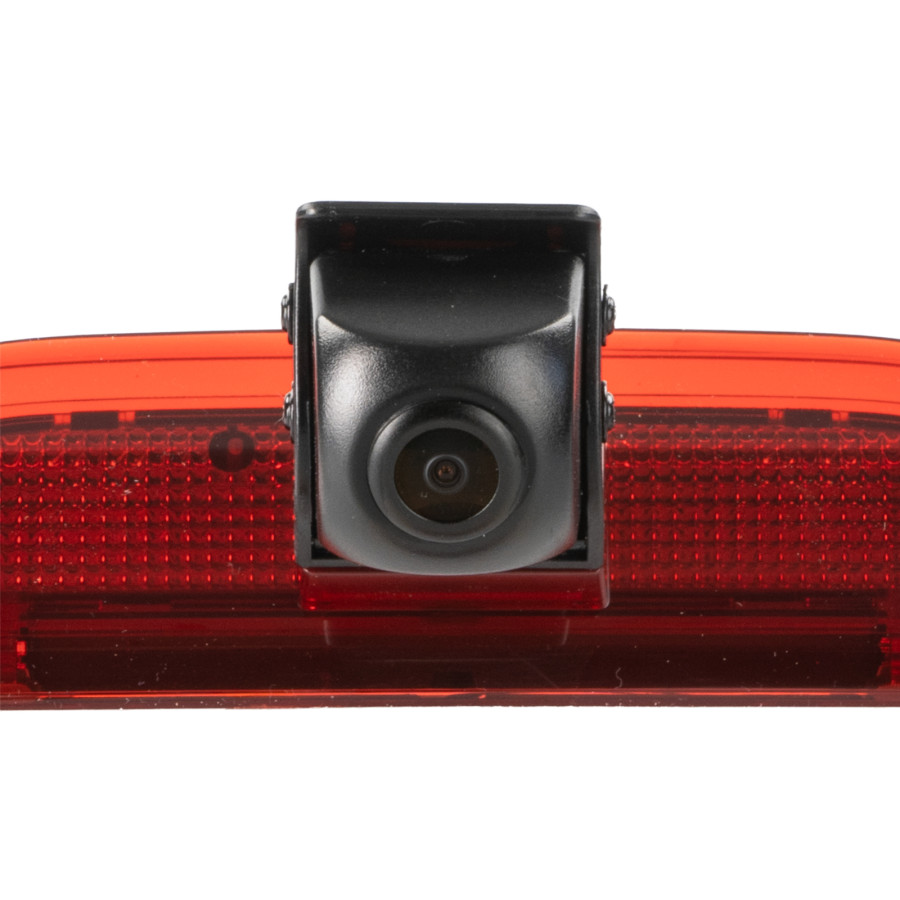

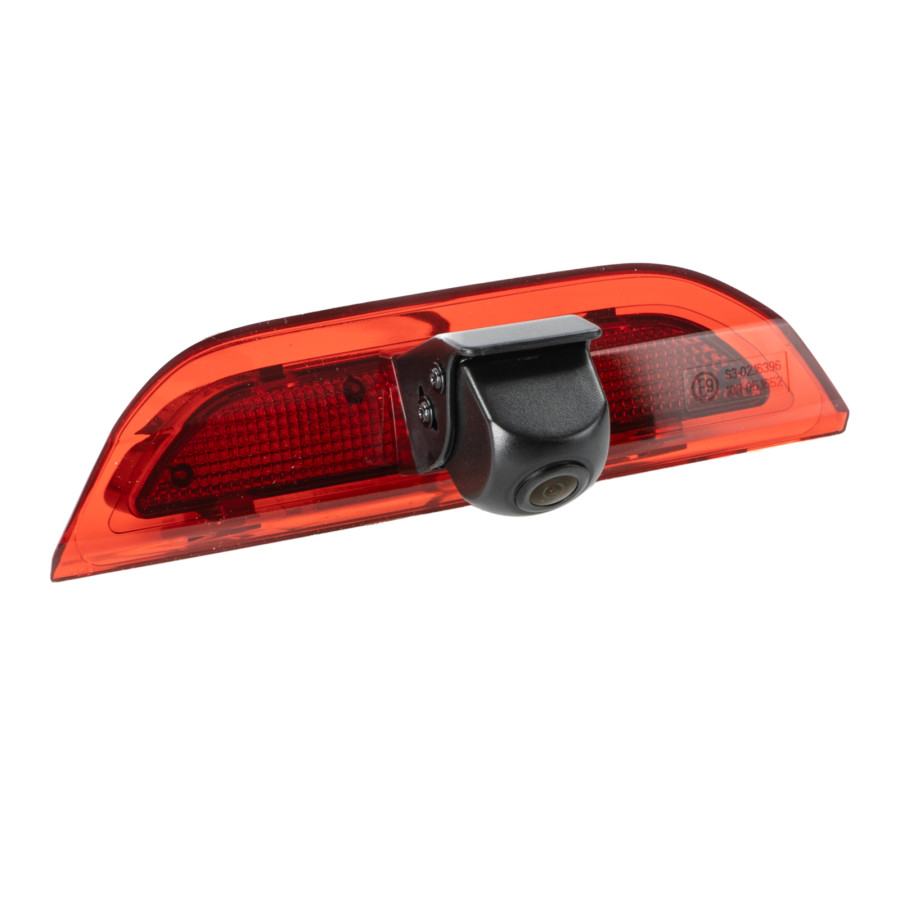

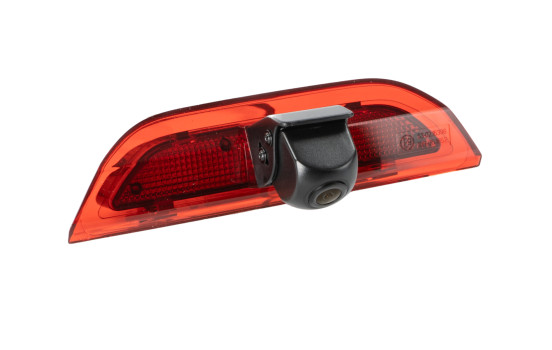

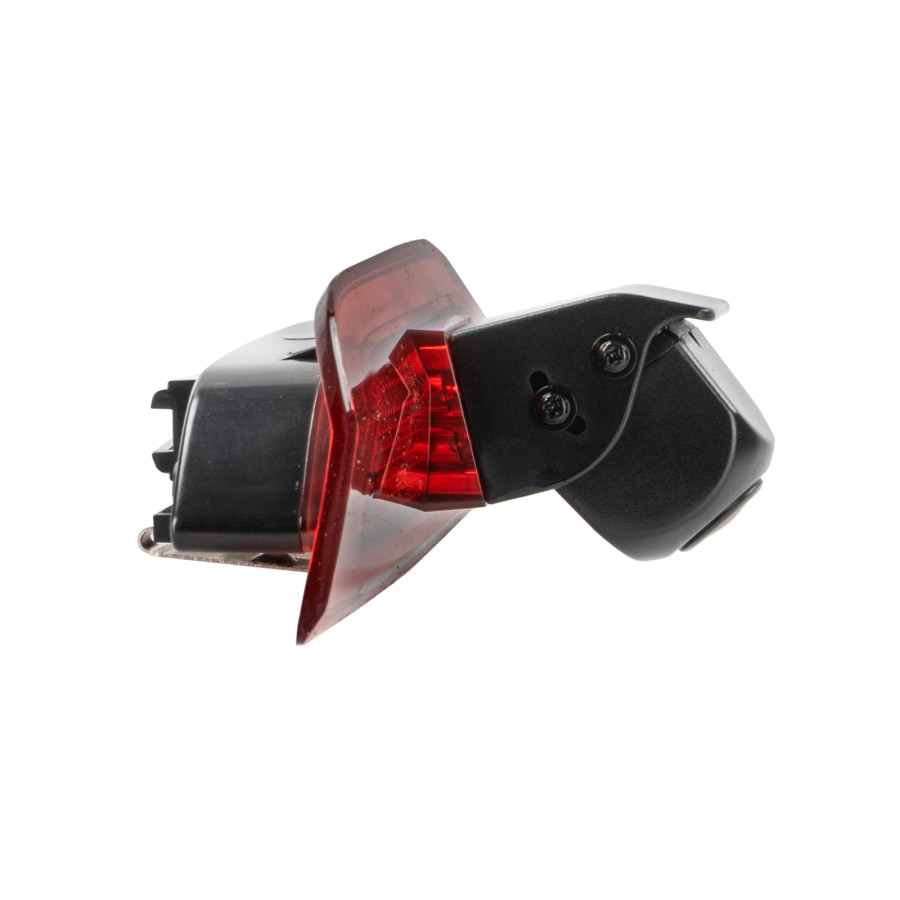

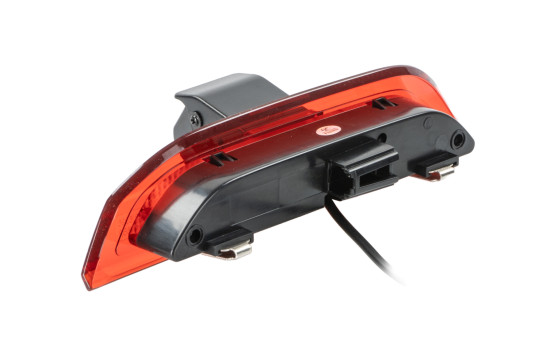

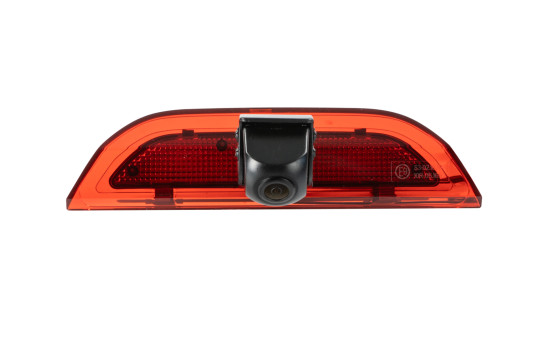

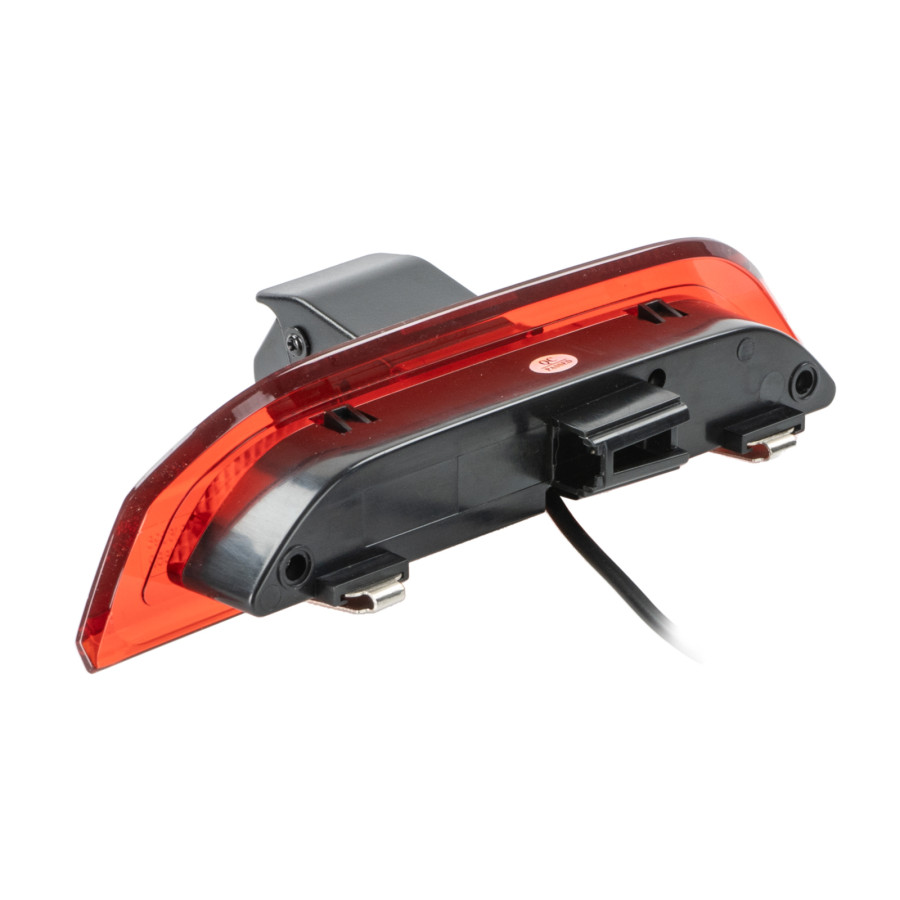

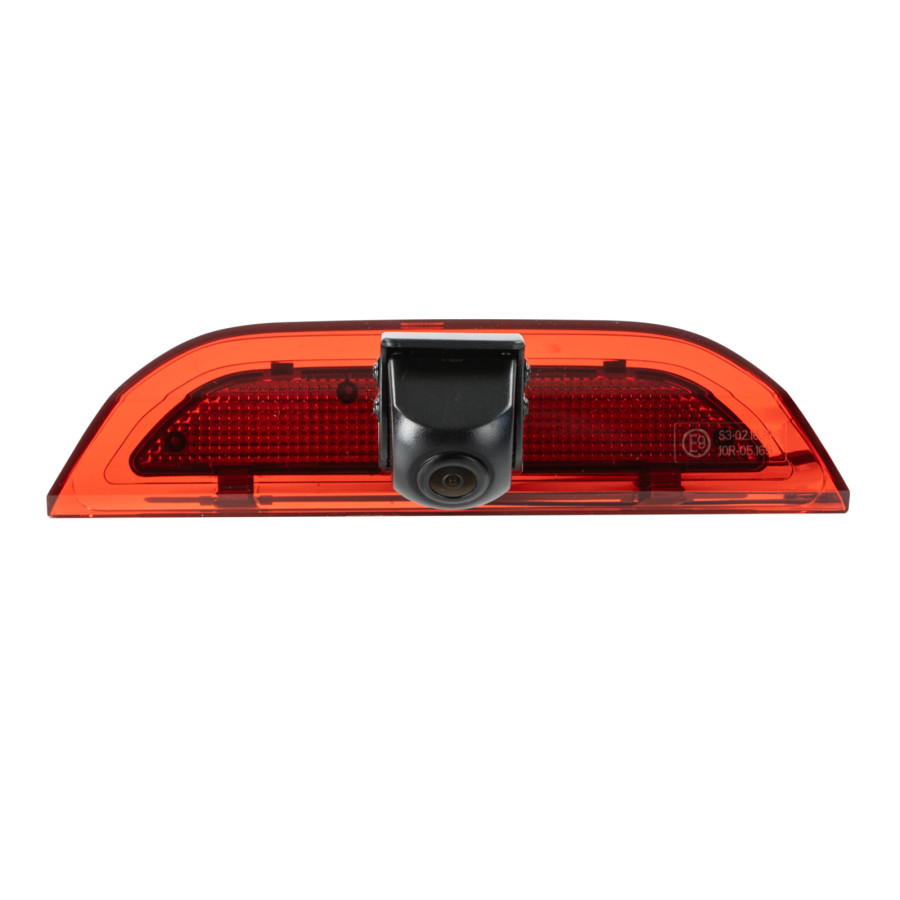

Rear View Camera Ford Transit Connect/Courier 2023-2025

Rear view camera Ford

Ford Transit Connect (SK) 05/2024 - 2025
Ford Transit Courier (N3P) 10/2023 - 2025
Ford E-Transit Courier (N3P) 03/2025 - 2025

to replace the OEM 3rd brake light

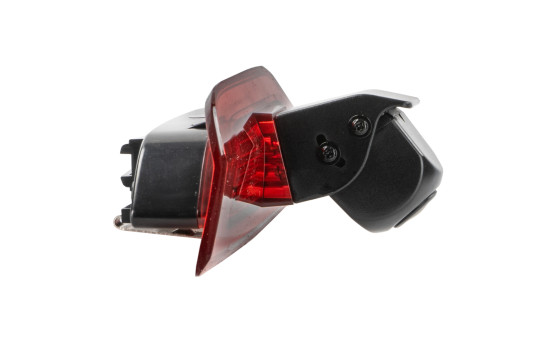

with guide lines / adjustable viewing angle

Remark:

Before installation > check the viewing angle and alignment of the camera at the installation location using a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

Connection without voltage converter +3V included in delivery will damage the camera

connection:
red: +12V switched, load stable, secured
black: body directly grounded/GND

RCA(m) yellow: video

jumper:
white: activate/deactivate guides

Camera product features:

Design: plastic
Color: black/red
Extras: guide lines via jumper / adjustable viewing angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 12.6 mm
Min. Lux: 0.1 Lux
Resolution: 600 TV lines
Viewing angle: horizontal 115° vertical 75° +5°
IP rating: IP67
Connection: 4-pin ACV system connector (m) Ø5.2 mm
Operating voltage: +12 V DC
Power supply: +3 V DC
Current consumption: 100 mA
Operating temperature: -20 °C - 70 °C
Storage temperature: -40 °C - 80 °C
Dimensions: OEM 3rd brake light

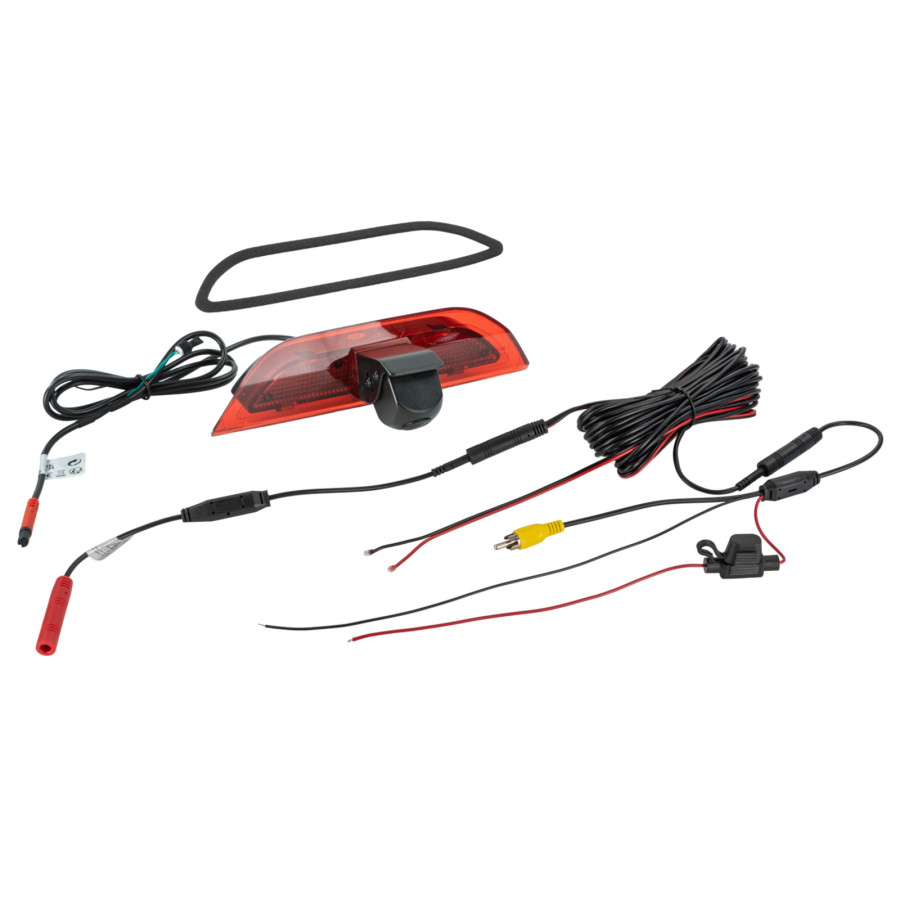

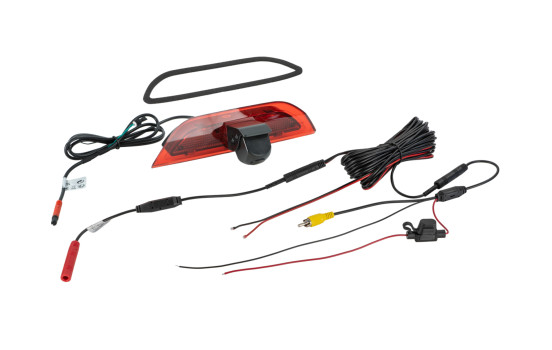

Pigtail at the camera 3.3 m +/-:
4-pin acv system connector (m) Ø5.2 mm
1 jumper

Voltage converter +3 V:
4-pin acv system connector (v) Ø10 mm / 4-pin acv system connector (m) Ø5.2 mm

Extension cable 10 m +/-:
4-pin ACV system connector (female) Ø 10 mm / 4-pin ACV system connector (male) Ø 5.2 mm
power cable red 3 m +/- insertion cable: connection to camera / connection reversing light on monitor
black grounding cable 3 m +/- insertion cable: connection body direct/GND on camera / body direct/GND on monitor

Connection cable 20 cm +/-:
4-pin ACV system connector (female) Ø10 mm
red: food
black: GND
RCA(m) yellow: video

Installation accessories:

camera connection with interfaces:
Solid state closing relay 2V-12V/1.5A max > article: 40-AD-REMOTE
camera connection with reversing light:
Rear-view camera voltage stabilizer reversing signal > article: 771000-6100

Optional accessory:

Camera cable extension for ACV camera 5 m > article: 771000-6305
Camera cable extension for ACV camera 10 m > article: 771000-6310
Camera cable extension for ACV camera 15 m > article: 771000-6315

Suitable for:
Ford Transit Connect 2024-2025
Ford Transit Courier 2023-2025

---

application	Ready
Warranty	2 years
