Brembo

Brake Disc 09.3023.20 Brembo

Brake Disc 09.3023.20 Brembo Brake Disc 09.3023.20 Brembo, Image 2 Brake Disc 09.3023.20 Brembo, Image 3 Brake Disc 09.3023.20 Brembo, Image 4

Product number: 0166096

Manufacturer number: 09.3023.20

EAN: 8020584302323

£ 43.75

Incl. VAT
View product specifications
In stock
Delivery 01-04-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

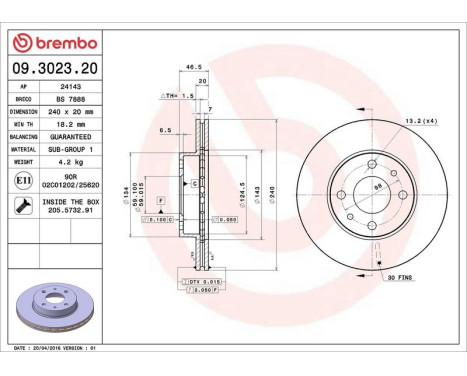

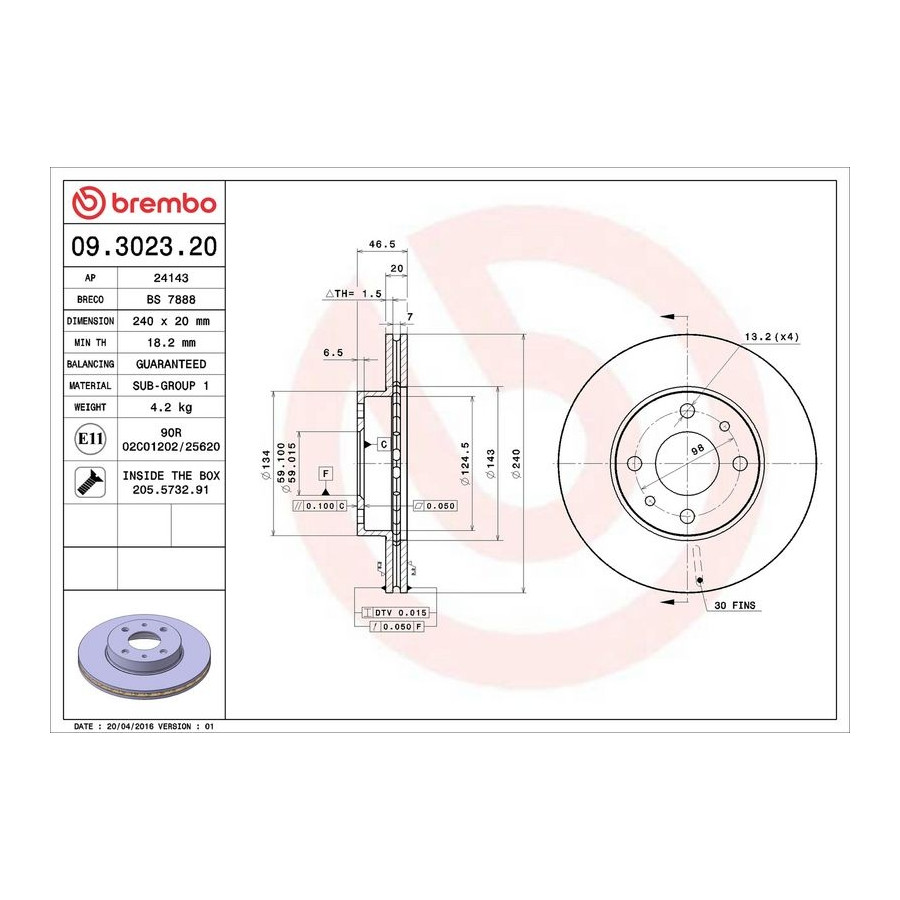

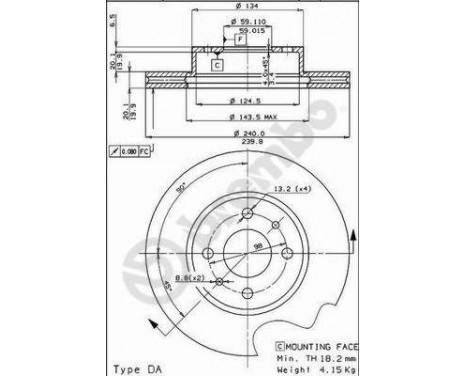

  • Specifications

    torque [Nm]: 8.6
    Outer diameter [mm]240
    Brake Disc TypeInternally Vented
    Internal ventilation
    Diameter [mm]240
    SurfaceNo coating
    Number of Holes4
    Brake padsExclusive
    Centering Diameter [mm]59
    Warranty2 years
    Height [mm]47
    Additional informationWith screws
    Brake disc thickness (mm)20
    Minimum thickness (mm)18,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 15047
    £ 43.47
    AISIN P6F1612S
    ASHIKA 60-00-0246C
    ATE 24.0120-0143.1
    BORG & BECK BBD4915
    BREMBO 09.3023.20 (this product)
    BREMSI CD6148V
    CAR HPD 195
    CAR 142.195
    CIFAM 800-157
    DELPHI BG2330
    DJ PARTS BD1898
    EUROBRAKE 5815202313
    FERODO DDF148
    FTE 9072453
    FTE 9082321
    GIRLING 6017361
    ICER 78BD0178-2
    JAPANPARTS DI-0246C
    JAPKO 600246C
    JURID 561325J
    KAWE 6107 10
    LPR F2051V
    MAGNETI MARELLI 360406021200
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 353611512240
    MAXGEAR 19-3512
    MAXGEAR 19-3512SPORT
    MAXTECH 877208
    METELLI 23-0157
    MINTEX MDC358
    NATIONAL NBD283
    NK 202313
    OPTIMAL BS-1070
    OPTIMAL BS-1070C
    PILENGA V032
    R BRAKE 78RBD20178
    REMSA 6107.10
    ROADHOUSE 6107.10
    ROTINGER RT 2855
    ROTINGER RT 2855-GL T9
    ROTINGER RT 2855-GL
    ROTINGER RT 2855-GL T6
    ROTINGER RT 2855-GL T5
    ROTINGER RT 2855-GL T3
    TEXTAR 92034300
    TRUSTING DF640
    TRW DF1736
    WOKING D6107.10

  • Applicability

    FIAT
    UNO
    UNO (146_, 158_) | 01.1983-06.2006 1.3 Turbo i.e. - 1301ccm, 105pk, 77kw - 146 A2.000
    UNO (146_, 158_) | 01.1983-06.2006 1.3 Turbo i.e. - 1301ccm, 99pk, 73kw - 146 A2.146
    UNO (146_, 158_) | 01.1983-06.2006 1.3 Turbo i.e. - 1301ccm, 101pk, 74kw - 146 A2.246
    UNO (146_, 158_) | 01.1983-06.2006 1.4 Turbo i.e. - 1372ccm, 118pk, 87kw - 146 A8.000
    UNO (146_, 158_) | 01.1983-06.2006 1.4 Turbo i.e. - 1372ccm, 112pk, 82kw - 146 A8.046
    UNO (146_, 158_) | 01.1983-06.2006 1.6 - 1581ccm, 88pk, 65kw - 159 A3.046
    UNO (146_, 158_) | 01.1983-06.2006 1.6 R - 1581ccm, 90pk, 66kw - 159 A3.048

  • Original part numbers

    7550923 FIAT
    7650707 FIAT
