ATE

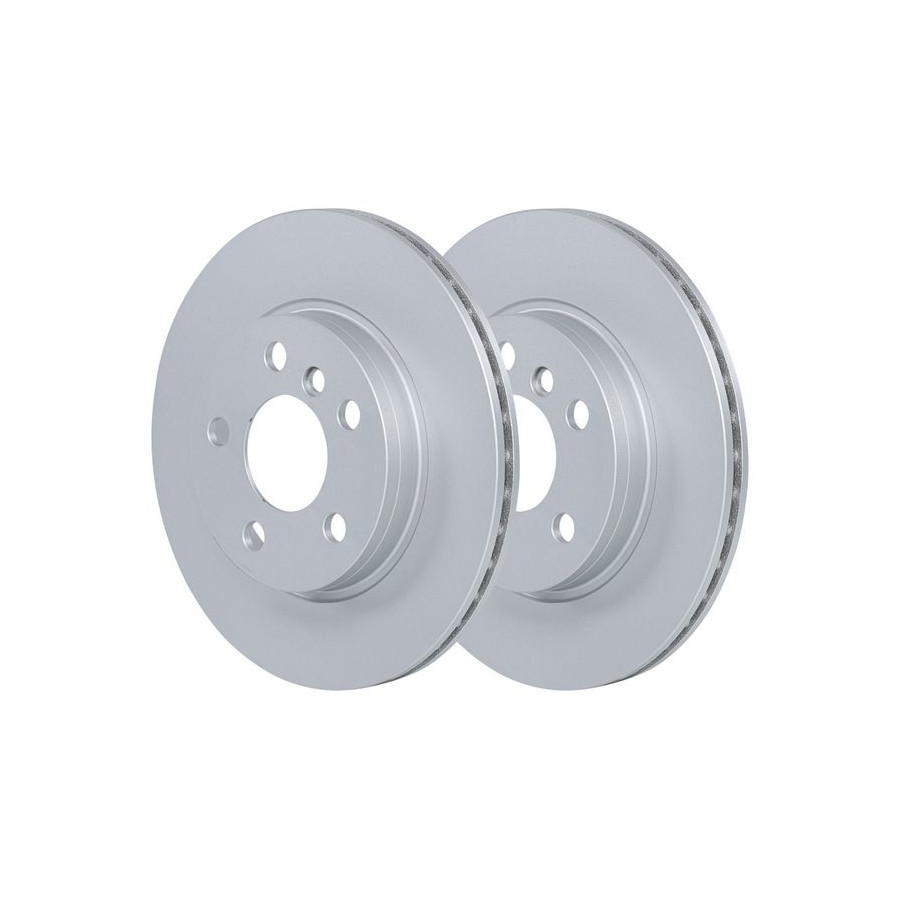

Brake disc 24.0120-0265.1 ATE

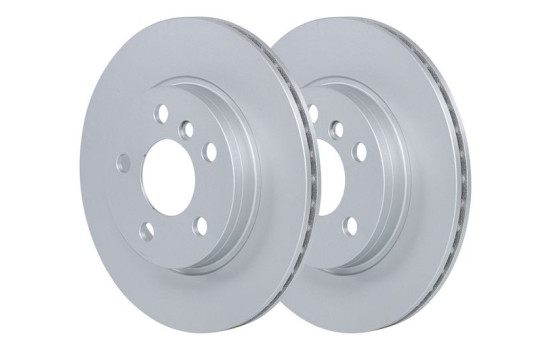

Brake disc 24.0120-0265.1 ATE Brake disc 24.0120-0265.1 ATE, Image 2

Product number: 2136141

Manufacturer number: 24.0120-0265.1

EAN: 4006633507240

£ 39.44

Incl. VAT
View product specifications
Not available

Free Shipping

  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

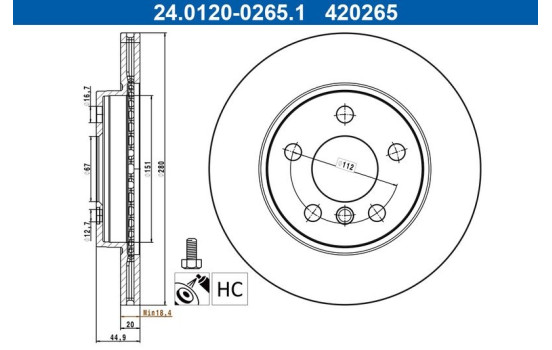

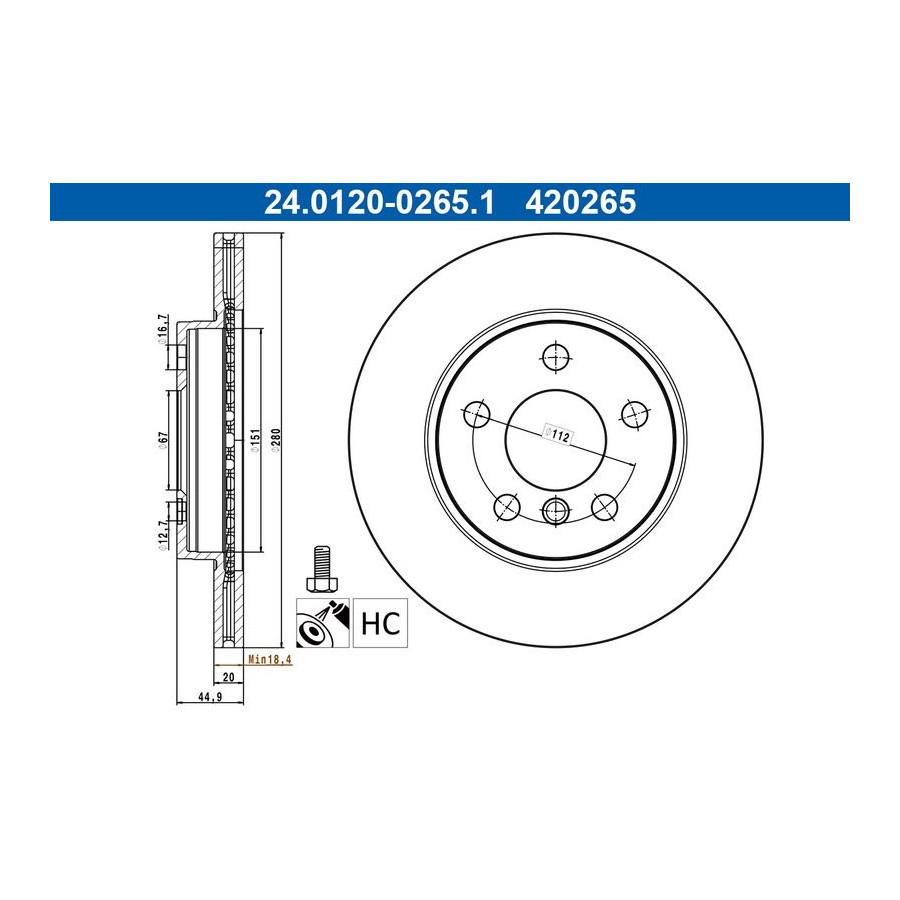

  • Specifications

    Outer diameter [mm]280,0
    Brake Disc TypeVented
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]151,0
    Bolt Hole Circle Ø [mm]112,0
    Centering Diameter [mm]67,0
    MachiningHigh-carbon
    Inspection TagE1 90R-02C0115 / 1043
    MAPP code available
    Warranty2 years
    Height [mm]44,9
    Additional informationWith screws
    Brake disc thickness (mm)20,0
    Minimum thickness (mm)18,4
    Hole diameter [mm]16,7

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18496
    £ 48.91
    A.Z. Meisterteile AZMT-44-024-2428
    ATE 24.0120-0265.1 (this product)
    BELACO BDS2199
    BLUE PRINT ADBP430107
    £ 34.05
    DACO 600300
    DELPHI BG4993C
    DENCKERMANN B130973
    DON PCD20172
    FEBI BILSTEIN 176803
    £ 33.03
    FERODO DDF2769C
    £ 93.70
    Manufacturer Manufacturer number Price
    MINTEX MDC2900C
    MINTEX MDC2900CMX
    OPTIMAL BS-9432HC
    PAGID 56053NC
    RIDEX 82B1690
    RIDEX 82B1690P
    STARK SKBD-0023834
    SWAG 33 10 3753
    £ 34.27
    TEXTAR 92305303
    £ 44.48
    goCORE GCH20925

  • Applicability

    BMW
    i3
    i3 (I01) | 08.2013-??? Electric - ccm, 170pk, 125kw - IB1P25B
    i3 (I01) | 08.2013-??? Range Extender - 647ccm, 170pk, 125kw - IB1P25B, W20K06A
    i3 (I01) | 08.2013-??? s Electric - 0ccm, 184pk, 135kw - IB1P25B
    i3 (I01) | 08.2013-??? s Range Extender - 647ccm, 184pk, 135kw - IB1P25B, W20K06A

  • Original part numbers

    34 11 6 866 293 BMW

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
