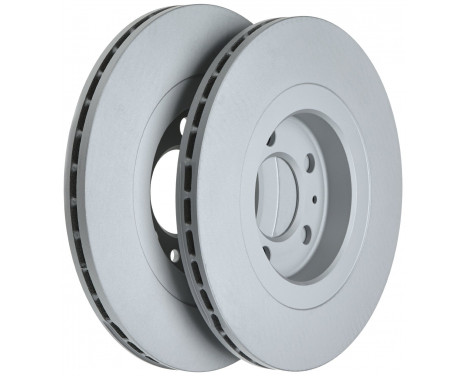

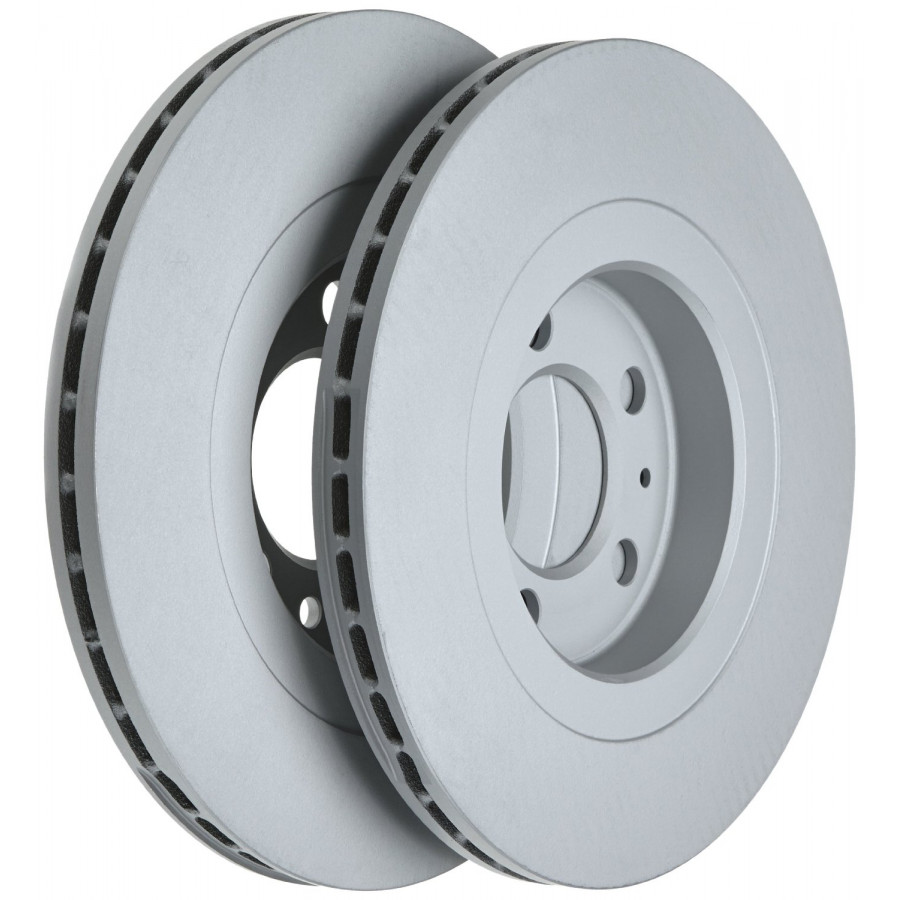

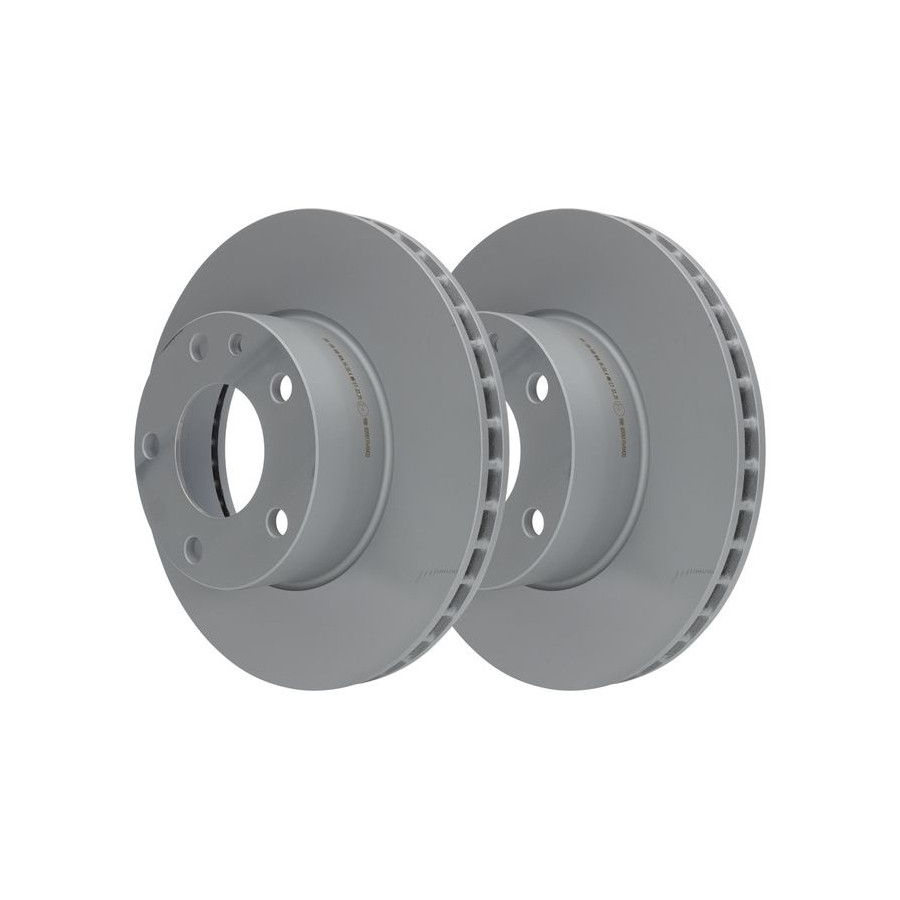

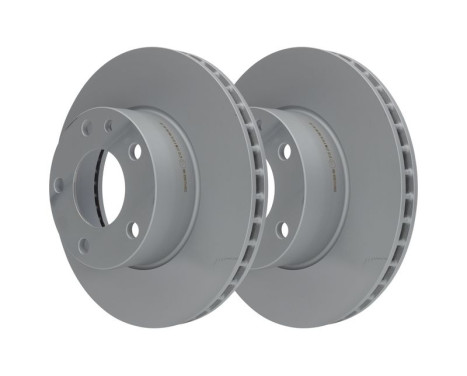

Brake Disc 24.0125-0100.1 ATE
Product number: 0383851
Manufacturer number: 24.0125-0100.1
EAN: 4006633057073
£ 54.48
Incl. VAT
In stock
Delivery 14-03-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Application: brake disc

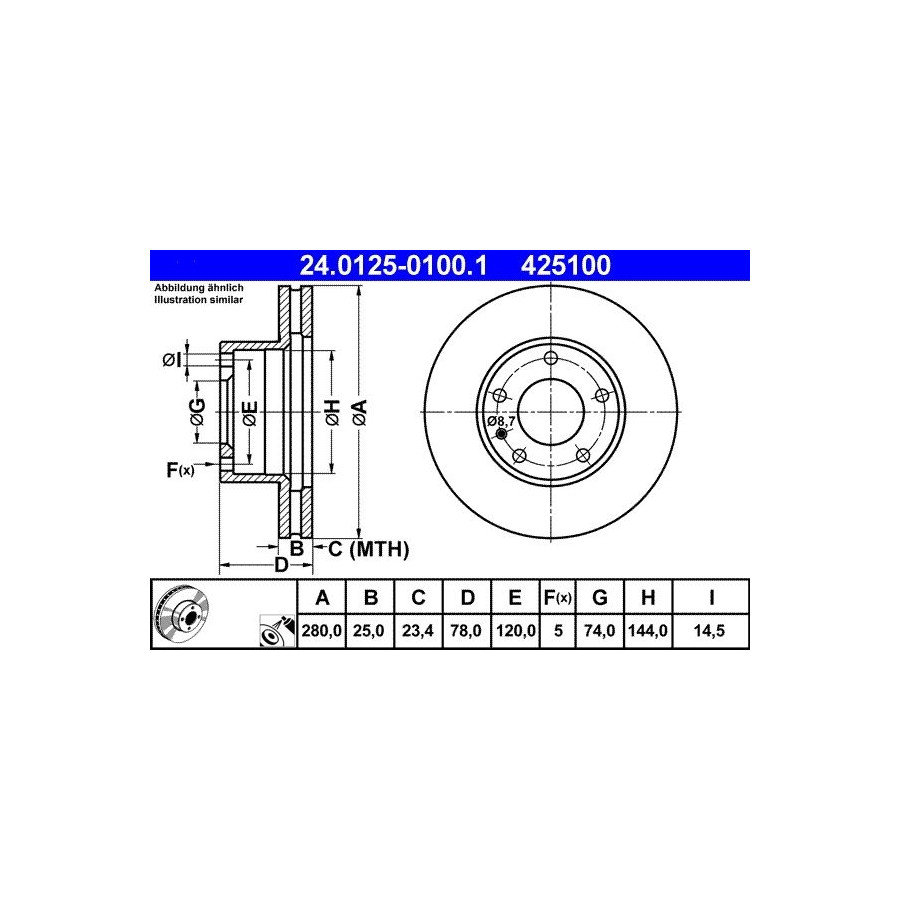

Outer diameter [mm] 280,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 144,0 Bolt Hole Circle Ø [mm] 120,0 Centering Diameter [mm] 74,0 Machining High-carbon Inspection Tag E1 90R-02C0115 / 0432 MAPP code available Warranty 2 years Height [mm] 78,0 Brake disc thickness (mm) 25,0 Minimum thickness (mm) 23,4 Hole diameter [mm] 14,5 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 15744 AP 24386 ATE 24.0125-0100.1 (this product) BRECO BS 8068 BREMBO 09.5588.10 CAR 142.081 CAR HPD 081 DELPHI BG2366 EUROBRAKE 5815201528 MAGNETI MARELLI 360406015400 MAXGEAR 19-2659 MAXGEAR 19-2659SPORT Manufacturer Manufacturer number Price NK 201528 PILENGA V114 QUINTON HAZELL BDC3478 ROTINGER RT 2046-GL T5 ROTINGER RT 2046-GL T6 ROTINGER RT 2046-GL T3 ROTINGER RT 2046 ROTINGER RT 2046-GL ROTINGER RT 2046-GL T9 TRW DF2551 VAICO V20-80034 -
Applicability
BMW 5 5 (E12) | 03.1972-06.1981 M535 i - 3453ccm, 218pk, 160kw - M30 B35 (356EA) 7 7 (E23) | 05.1977-09.1986 728 i - 2788ccm, 184pk, 135kw - M30 B28 7 (E23) | 05.1977-09.1986 732 i - 3210ccm, 197pk, 145kw - M30 B32 7 (E23) | 05.1977-09.1986 733 i - 3210ccm, 197pk, 145kw - M30 B32 7 (E23) | 05.1977-09.1986 735 i - 3430ccm, 192pk, 141kw - M30 B34 (346EC) 7 (E23) | 05.1977-09.1986 735 i - 3430ccm, 218pk, 160kw - M30 B34 (346EC) 7 (E23) | 05.1977-09.1986 735 i - 3430ccm, 185pk, 136kw - M30 B34 (346KA) 7 (E23) | 05.1977-09.1986 735 i - 3453ccm, 218pk, 160kw - M30 B35 (346EC) 7 (E23) | 05.1977-09.1986 745 i - 3210ccm, 252pk, 185kw - M30 B32 (326TA) 7 (E23) | 05.1977-09.1986 745 i - 3430ccm, 252pk, 185kw - M30 B34 (346TA) -
Original part numbers
34 11 1 121 902 BMW 34 11 1 152 296 BMW 34 11 1 152 297 BMW 34 11 1 154 974 BMW 34 11 1 163 141 BMW 34 11 1 163 142 BMW -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
