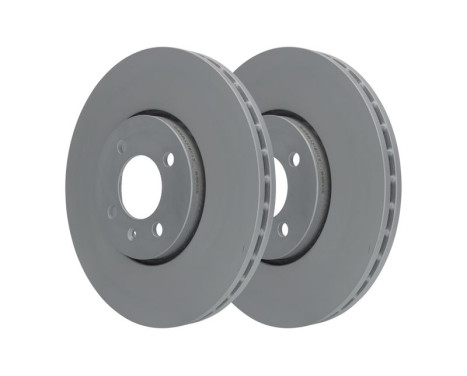

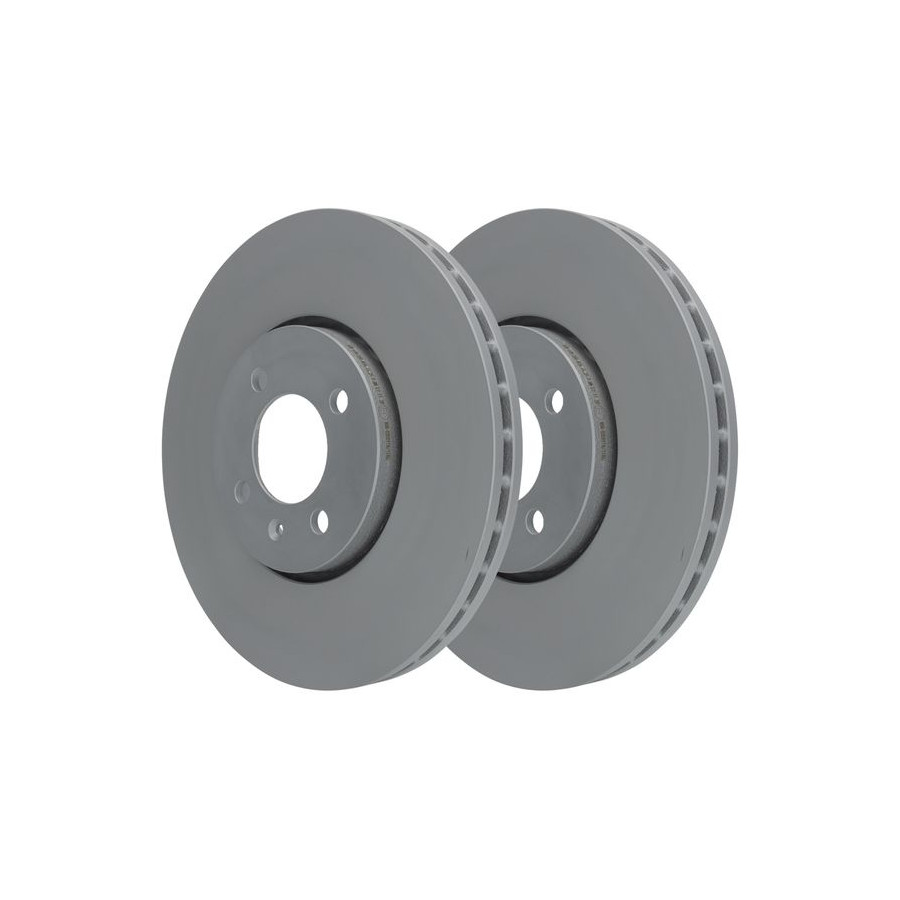

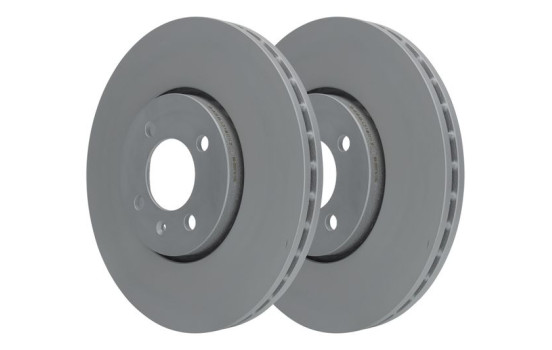

Brake Disc 24.0125-0220.1 ATE
Product number: 1438755
Manufacturer number: 24.0125-0220.1
EAN: 4006633479820
£ 56.03
Incl. VAT
In stock
Delivery 30-03-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

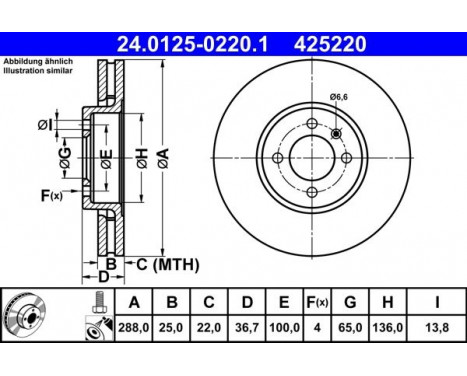

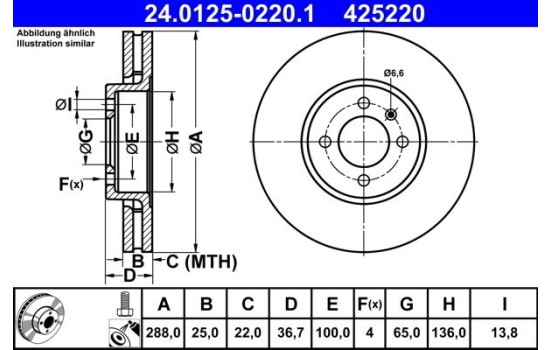

Outer diameter [mm] 288,0 Brake Disc Type Vented Surface Coated Number of Holes 4 Brake pads Exclusive Inner diameter [mm] 136,0 Bolt Hole Circle Ø [mm] 100,0 Centering Diameter [mm] 65,0 Machining High-carbon Inspection Tag E1 90R-02C0118/1183 Warranty 2 years Height [mm] 36,7 Additional information With screws Brake disc thickness (mm) 25,0 Minimum thickness (mm) 22,0 Hole diameter [mm] 13,8 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18790 AP 20042 V ATE 24.0125-0220.1 (this product) BELACO BDS1587 BLUE PRINT ADBP430278 BORG & BECK BBD5599 BOSCH 0 986 479 E81 BRECO BV 7853 BREMBO 09.D720.11 CAR 142.2037 DELPHI BG5070C EUROBRAKE 58153147196 FEBI BILSTEIN 1000750 FERODO DDF3321C Manufacturer Manufacturer number Price FREMAX BD-9610 HELLA 8DD 355 131-991 KAMOKA 103658 LPR V2039V MAXGEAR 19-4823 MINTEX MDC2863C NK 3147196 PAGID 56023NC SWAG 33 11 3759 TEXTAR 92302303 TRW DF6030 ZIMMERMANN 600.3265.52 ZIMMERMANN 600.3265.20 -
Applicability
VOLKSWAGEN LOAD UP! LOAD UP! (121, 122, BL1, BL2) | 11.2012-08.2020 1.0 - 999ccm, 60pk, 44kw - CHYA, DAFA LOAD UP! (121, 122, BL1, BL2) | 11.2012-08.2020 1.0 EcoFuel - 999ccm, 68pk, 50kw - CPGA LOAD UP! (121, 122, BL1, BL2) | 11.2012-08.2020 e-Load Up - 0ccm, 82pk, 60kw - EABA UP! UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 - 999ccm, 60pk, 44kw - CHYA, DAFA, CHYE UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 - 999ccm, 75pk, 55kw - CHYB UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 - 999ccm, 65pk, 48kw - DSGC UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 EcoFuel - 999ccm, 68pk, 50kw - CPGA UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 GTI - 999ccm, 115pk, 85kw - DKRA UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 1.0 TSI - 999ccm, 90pk, 66kw - CHZA, DKLC UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 e-Up - 0ccm, 82pk, 60kw - EABA UP! (121, 122, BL1, BL2, BL3, 123) | 08.2011-11.2023 e-Up - ccm, 83pk, 61kw - EBMA -
Original part numbers
1S0 615 301 K VAG -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
