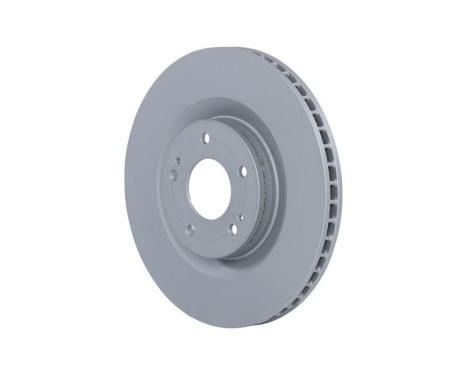

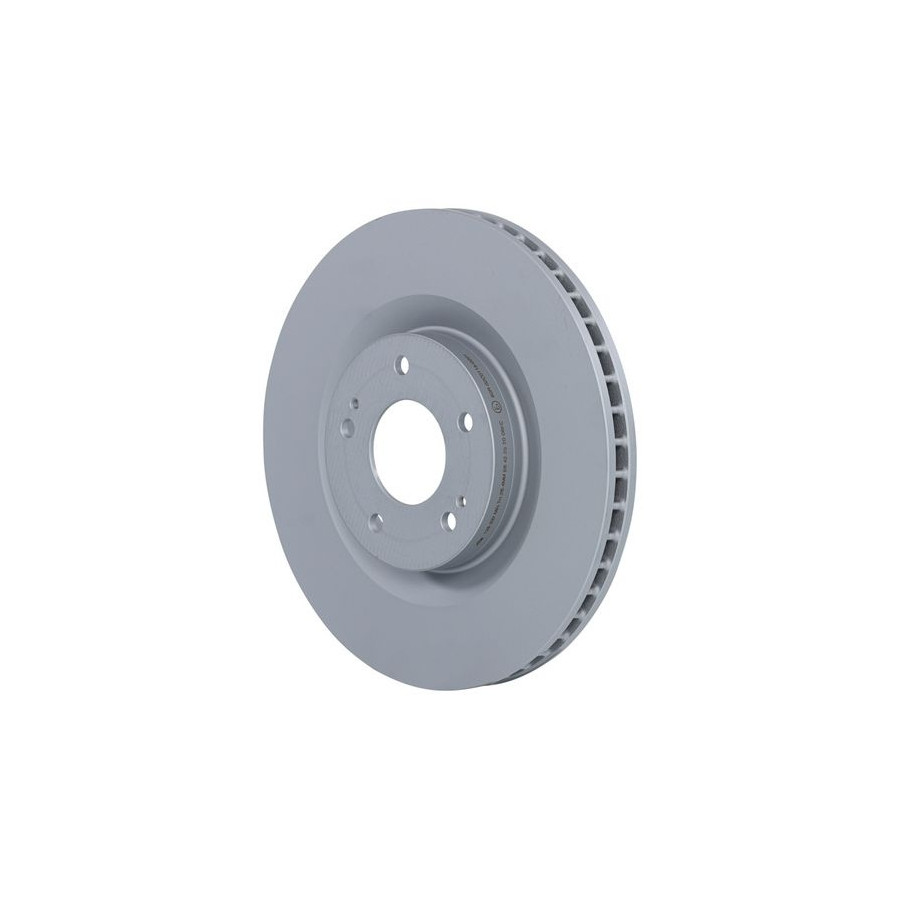

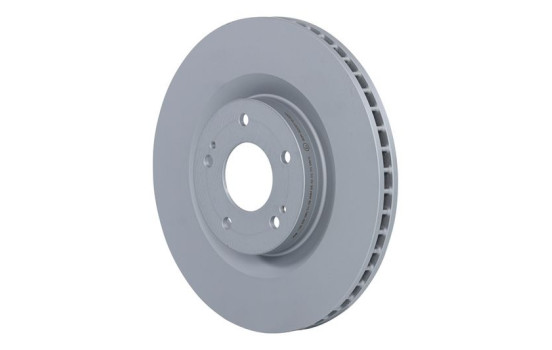

Brake disc 24.0128-0332.1 ATE
Product number: 1986514
Manufacturer number: 24.0128-0332.1
EAN: 4006633470063
£ 52.65
Incl. VAT
In stock
Delivery 01-07-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

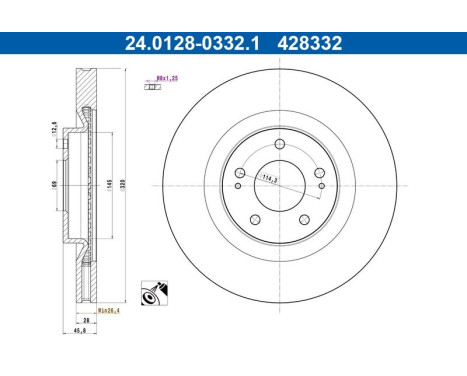

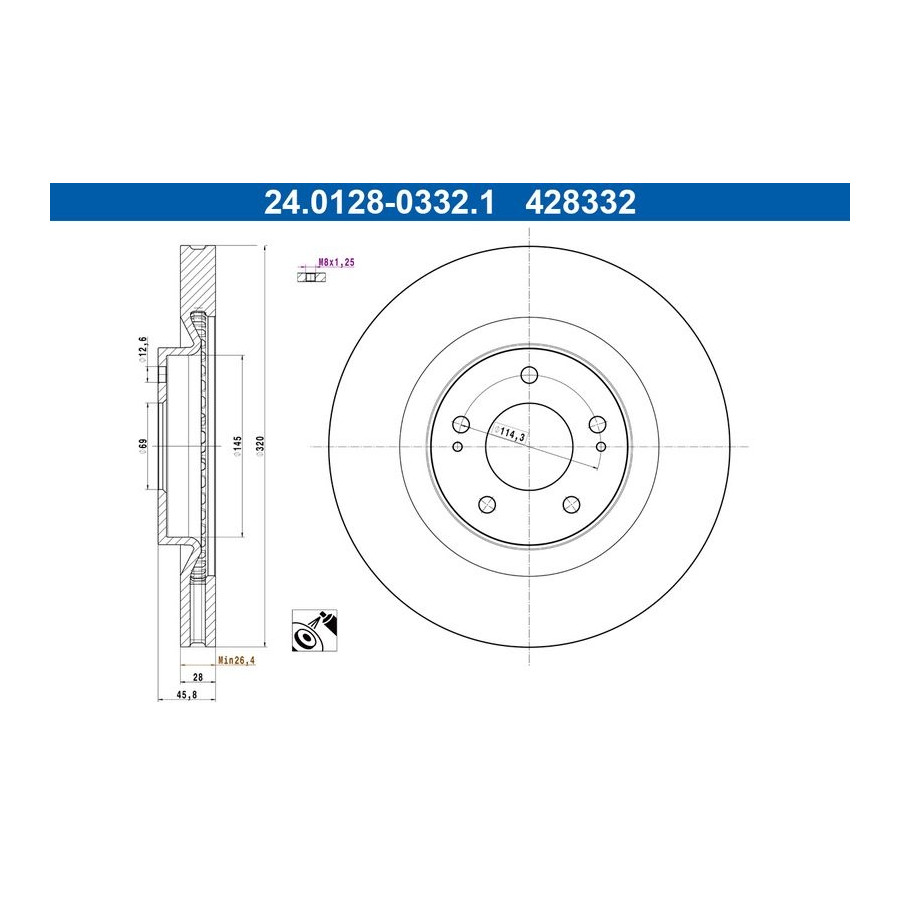

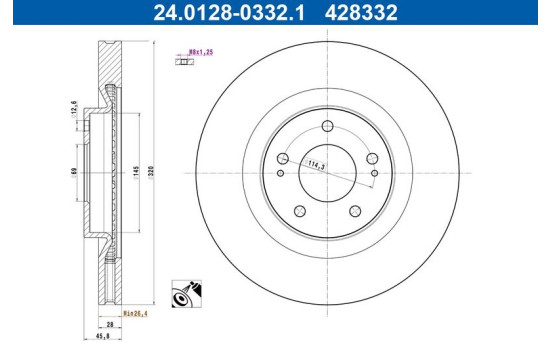

Outer diameter [mm] 320,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 145,0 Bolt Hole Circle Ø [mm] 114,3 Centering Diameter [mm] 69,0 Inspection Tag E1 90R-02C0115 / 0201 MAPP code available Warranty 2 years Height [mm] 45,8 Brake disc thickness (mm) 28,0 Minimum thickness (mm) 26,4 Hole diameter [mm] 12,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18755 A.Z. Meisterteile AZMT-44-024-2568 ASHIKA 60-0H-H17C ATE 24.0128-0332.1 (this product) BELACO BDS2134 BLUE PRINT ADG043180 BORG & BECK BBD5623 BOSCH 0 986 479 J92 BREMSI CD8805V DELPHI BG5116C DON PCD19302 FEBI BILSTEIN 108489 FERODO DDF2805C HERTH+BUSS JAKOPARTS J3305079 ICER 78BD5271-2 JAPANPARTS DI-H17C JAPKO 60H17C Manufacturer Manufacturer number Price KAVO PARTS BR-10321-C MAPCO 45146C MAXGEAR 19-4913 MINTEX MDC2890C OPTIMAL BS-9558C PAGID 56065NC R BRAKE 78RBD25271 ROTINGER RT 22386 ROTINGER RT 22386-GL T9 ROTINGER RT 22386-GL ROTINGER RT 22386-GL T3 ROTINGER RT 22386-GL T6 ROTINGER RT 22386-GL T5 SWAG 33 10 7212 TEXTAR 92306503 ZIMMERMANN 380.2118.20 ZIMMERMANN 380.2118.53 -
Applicability
MITSUBISHI ECLIPSE CROSS ECLIPSE CROSS (GK_, GL_) | 10.2017-??? 1.5 T-Mivec - 1499ccm, 163pk, 120kw - 4B40 ECLIPSE CROSS (GK_, GL_) | 10.2017-??? 1.5 T-Mivec 4WD - 1499ccm, 163pk, 120kw - 4B40 ECLIPSE CROSS (GK_, GL_) | 10.2017-??? 2.2 DiD 4WD (GK9W) - 2268ccm, 148pk, 109kw - 4N14 ECLIPSE CROSS (GK_, GL_) | 10.2017-??? Plug-in Hybrid 4WD (GL3W) - 2360ccm, 188pk, 138kw - 4B12 OUTLANDER III OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2022 2.4 Hybrid 4WD - 2360ccm, 224pk, 165kw - 4B12 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2022 2.4 Hybrid 4WD (GG3W) - 2360ccm, 208pk, 153kw - 4B12 OUTLANDER III Van (GF_W, GG_W) | 04.2013-??? Hybrid 4WD (GG3W) - 2360ccm, 208pk, 153kw - 4B12 -
Original part numbers
4615A230 MITSUBISHI -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
