Hazet

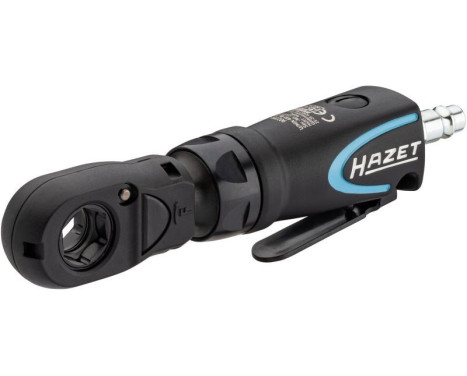

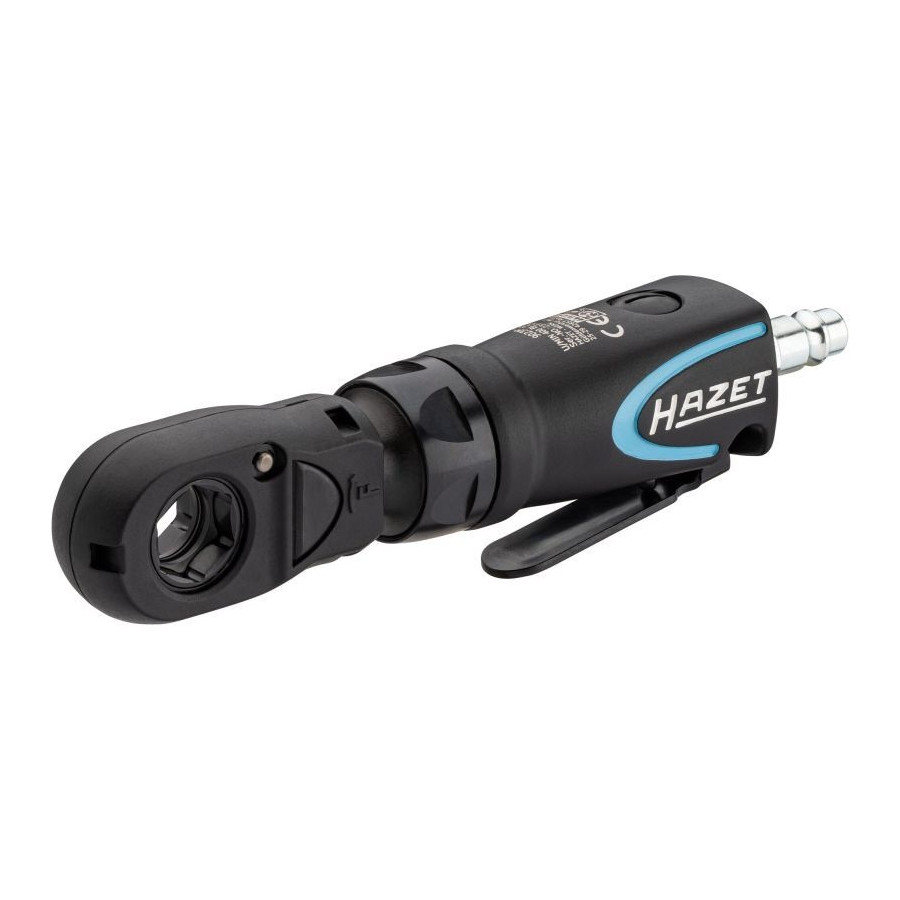

Ratchet wrench (compressed air)

Universally applicable

Ratchet wrench (compressed air) Ratchet wrench (compressed air), Image 2 Ratchet wrench (compressed air), Image 3 Ratchet wrench (compressed air), Image 4 Ratchet wrench (compressed air), Image 5 Ratchet wrench (compressed air), Image 6 Ratchet wrench (compressed air), Image 7 Ratchet wrench (compressed air), Image 8 Ratchet wrench (compressed air), Image 9 Ratchet wrench (compressed air), Image 10 Ratchet wrench (compressed air), Image 11 Ratchet wrench (compressed air), Image 12
  • Ratchet wrench (compressed air)
  • Ratchet wrench (compressed air), Thumbnail 2
  • Ratchet wrench (compressed air), Thumbnail 3
  • Ratchet wrench (compressed air), Thumbnail 4
  • Ratchet wrench (compressed air), Thumbnail 5
  • Ratchet wrench (compressed air), Thumbnail 6
  • Ratchet wrench (compressed air), Thumbnail 7
  • Ratchet wrench (compressed air), Thumbnail 8
  • Ratchet wrench (compressed air), Thumbnail 9
  • Ratchet wrench (compressed air), Thumbnail 10
  • Ratchet wrench (compressed air), Thumbnail 11
  • Ratchet wrench (compressed air), Thumbnail 12

Product number: 1643554

Manufacturer number: 9023M-1

EAN: 4000896227112

£ 336.41

Incl. VAT
View product specifications
In stock
Delivery 17-01-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications


    HAZET Multi-function Mini Ratchet Screwdriver 9023M-1 ∙
    1/4 inch (6.3 mm) square solid, 3/8 inch (10 mm)
    Square Solid, 1/4 inch (6.3 mm) Hex Hollow ∙ 4 pcs
    applicationRattle
    Thread TypeInner Thread
    Rotation DirectionCan be used both right and left
    Nominal Size [mm]7,2
    Warranty2 years
    Operating Pressure [bar]6,3

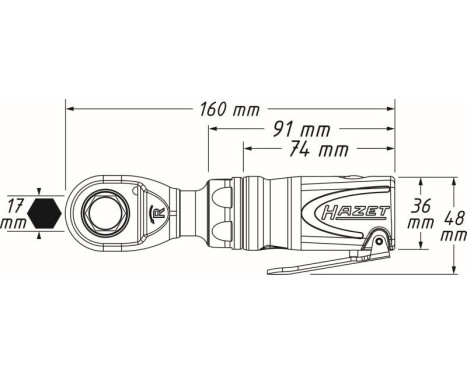

    Length [mm]159
    Net weight [kg]0,48
    Tightening torque to [Nm]54
    39,83
    Air Consumption [l/min]84
    Tool handle typeCold-insulating handle
    Hose diameter [mm]10
    Number of tools4
    Drive side (profile)Square
    Hexagon
    Square Drive Tang Size [mm (inch)]6,3 (1/4")
    10 (3/8")
    Noise Level [dB]82,8
    Net Weight [g]480
    Air connection wire6.959-204.0
    Hexagon Drive Dimensions [mm (inch)]6,3 (1/4")
    Sound power level [dB]93,8
    Vibrational acceleration [m/s²]3,20
    Speed up to [1/min]400

  • Applicability

    Universally applicable

  • Manufacturer

    Hazet
    HAZET was founded in 1868 by Hermann Zerver. With 3 factories in Germany, Hazet is a major player in the automotive market in Europe.
    These factories work with CNC milling, the latest logistics tools and computer-controlled machines, among other things.
