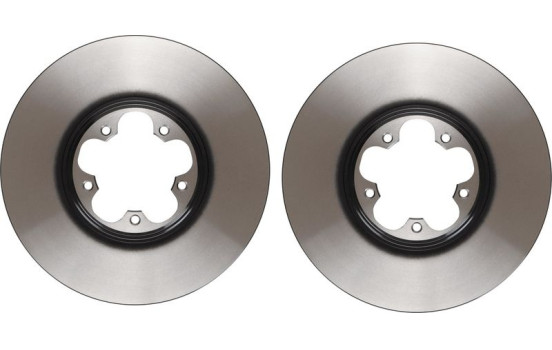

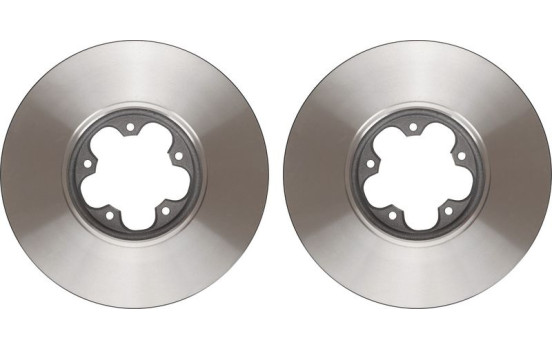

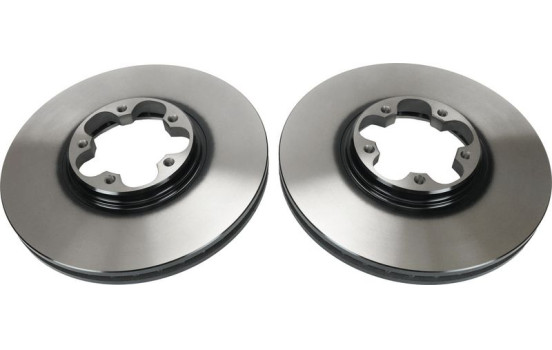

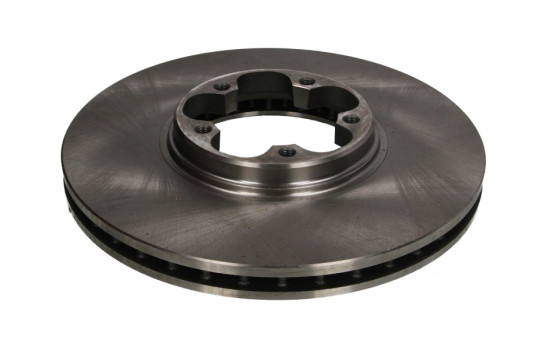

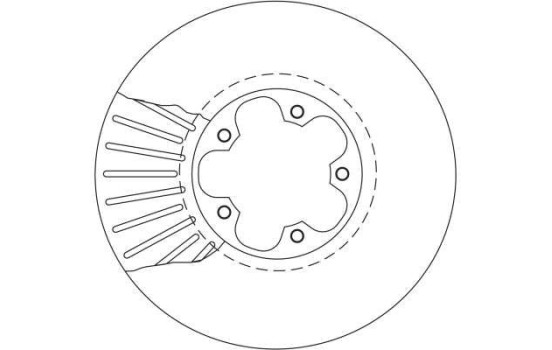

Brake Disc DF4216 TRW
Product number: 0168104
Manufacturer number: DF4216
EAN: 3322937321131
£ 36.29
Incl. VAT
In stock
Delivery 09-05-2024
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

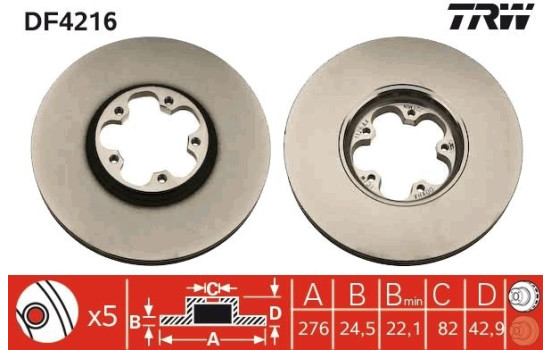

Outer diameter [mm] 276 Brake Disc Type Vented Colour Black Surface Painted Number of Holes 5 Assembly Front Brake pads Exclusive Bolt Hole Circle Ø [mm] 100 Centering Diameter [mm] 82 Thread Size M10 x 1,25 Inspection Tag E1 90R-02 C0176/0028 Warranty 2 years Height [mm] 43 Brake disc thickness (mm) 24,5 Minimum thickness (mm) 22,1 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17356 A.B.S. 09.8960.10 ABE C3G034ABE AP 24829 ASAM 74903 ASHIKA 60-00-0356 ASHIKA 60-00-0356C ASHUKI P330-136 ATE 24.0124-0167.1 BARUM BAR24167 BELACO BDS1336 BLUE PRINT ADF124346 BORG & BECK BBD4241 BOSCH 0 986 479 B28 BOSCH 0 986 478 299 BRAXIS AE0139 BRECK BR 401 VA100 BRECO BS 8390 BREMBO 09.8960.10 BREMSI CD7113V BSG BSG 30-210-006 CAR 142.229 CASALS 55254 CHAMPION 562141CH CIFAM 800-714 COMLINE ADC1214V COMLINE AND6087 DELPHI BG3676 DENCKERMANN B130152 DJ PARTS BD1475 DON PCD18132 DT Spare Parts 13.31003 Dr!ve+ DP1010.11.0751 E.T.F. 19-5612 EUROBRAKE 5815202554 EUROBRAKE 5815312554 FAST FT31156 FEBI BILSTEIN 19514 FERODO DDF1113C FERODO DDF1113 FI.BA FBD488 FTE 9082135 FTE 9072206 FTE BS5342 FTE BS5342B GIRLING 6042161 HELLA 8DD 355 108-121 HELLA PAGID 8DD 355 108-121 ICER 78BD5612-2 JAPANPARTS DI-0356 JAPANPARTS DI-0356C JAPKO 600356C JAPKO 600356 JURATEK FOR108 JURID 562141JC JURID 562141J KAMOKA 1032226 KAWE 6609 10 KEY PARTS KBD4241 KRAFT AUTOMOTIVE 6042360 Manufacturer Manufacturer number Price LORO 231-03-118 LPR F1003V MAGNETI MARELLI 360406026200 MAGNETI MARELLI 361302040288 MALÒ 1110175 MAPCO 15821 MAPCO 15821C MASTER-SPORT 24012401671-PCS-MS MASTER-SPORT 24012401671-SET-MS MASTER-SPORT 24012401671-SET-MSP MASTER-SPORT 24012401671-PCS-MSP MAXGEAR 19-0814MAX MAXGEAR 19-0814SPORT MAXGEAR 19-0814 MAXTECH 827026 METELLI 23-0714 METZGER 6110314 MEYLE 715 521 7022 MINTEX MDC1527 MINTEX MDC1527C MOTAQUIP LVBE222Z NATIONAL NBD1114 NK 202554 NK 312554 OPEN PARTS BDA1947.20 OPTIMAL BS-6170 OPTIMAL BS-6170HC PILENGA V253 PROTECHNIC PRD2448 QUARO QD0341 QUINTON HAZELL BDC5342 R BRAKE 78RBD25612 RAICAM RD00263 REMSA 6609.10 ROADHOUSE 6609.10 ROTINGER RT 2591-GL T3 ROTINGER RT 2591-GL T5 ROTINGER RT 2591-GL ROTINGER RT 2591 ROTINGER RT 2591-GL T6 ROTINGER RT 2591-GL T9 SASIC 9004909J SBP 02-FO001 SKF VKBD 80255 V2 ST-TEMPLIN 03.110.2600.160 STELLOX 6020-2554V-SX STELLOX 6020-2554VK-SX SWAG 50 91 9514 TEXTAR 92110003 TRISCAN 8120 16140C TRUSTING DF723 TRW DF4216 (this product) VAICO V25-80014 VALEO 186709 WAGNER WGR1113-1 WOKING D6609.10 ZIMMERMANN 250.1348.20 sbs 1815312554 sbs 1815202554 -
Applicability
FORD TRANSIT Bus TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 100pk, 74kw - ABFA TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 75pk, 55kw - D3FA TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 86pk, 63kw - F3FA TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 TDCi (F_F_, F_E_, F_G_) - 1998ccm, 125pk, 92kw - FIFA TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA TRANSIT Platform/Chassis TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 100pk, 74kw - ABFA TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 75pk, 55kw - D3FA TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 86pk, 63kw - F3FA TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 TDCi (F_E_, F_F_) - 1998ccm, 125pk, 92kw - FIFA TRANSIT TOURNEO TRANSIT TOURNEO Bus (FC_ _) | 06.2000-03.2006 2.0 - 1998ccm, 101pk, 74kw - ABFA TRANSIT TOURNEO Bus (FC_ _) | 06.2000-03.2006 2.0 - 1998ccm, 75pk, 55kw - D3FA TRANSIT TOURNEO Bus (FC_ _) | 06.2000-03.2006 2.0 - 1998ccm, 125pk, 92kw - FIFA TRANSIT Van TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 100pk, 74kw - ABFA TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 75pk, 55kw - D3FA TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 86pk, 63kw - F3FA TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 TDCi - 1998ccm, 125pk, 92kw - FIFA RENAULT SUPER 5 SUPER 5 (B/C40_) | 10.1984-12.1996 1.7 i (C409) - 1721ccm, 94pk, 69kw - F3N 702, F3N 722 -
Original part numbers
4041427 FORD 4395257 FORD 1456667 FORD 1738807 FORD 1473008 FORD 1520371 FORD 1568654 FORD 1C1J-1125-A2D FORD 1C1J-1125-AD FORD 1C1J-1125-AC FORD 1C1J-1125-A1D FORD 1C1J-1125-AB FORD 1C1W-1125-AA FORD -
Manufacturer
TRW aftermarket is one of the largest suppliers of original car parts and OE quality parts. TRW is the ideal partner for the initial installation on vehicles for many car brands. TRW has become known for producing exceptional quality brake system, steering and chassis components.
TRW invests in its own production lines, which means that the majority of the products are manufactured within the EU. Because TRW stands for quality, the products are not only tested in-house, but independent external parties are also engaged to guarantee the quality of the TRW products.
TRW products are characterized on the following points:
• Originally supplied on over 250 car models
• 40 major car manufacturers underline TRW quality at first installation
• Very high quality, equal to original
We currently have the following TRW products in our range:
-
