Mahle

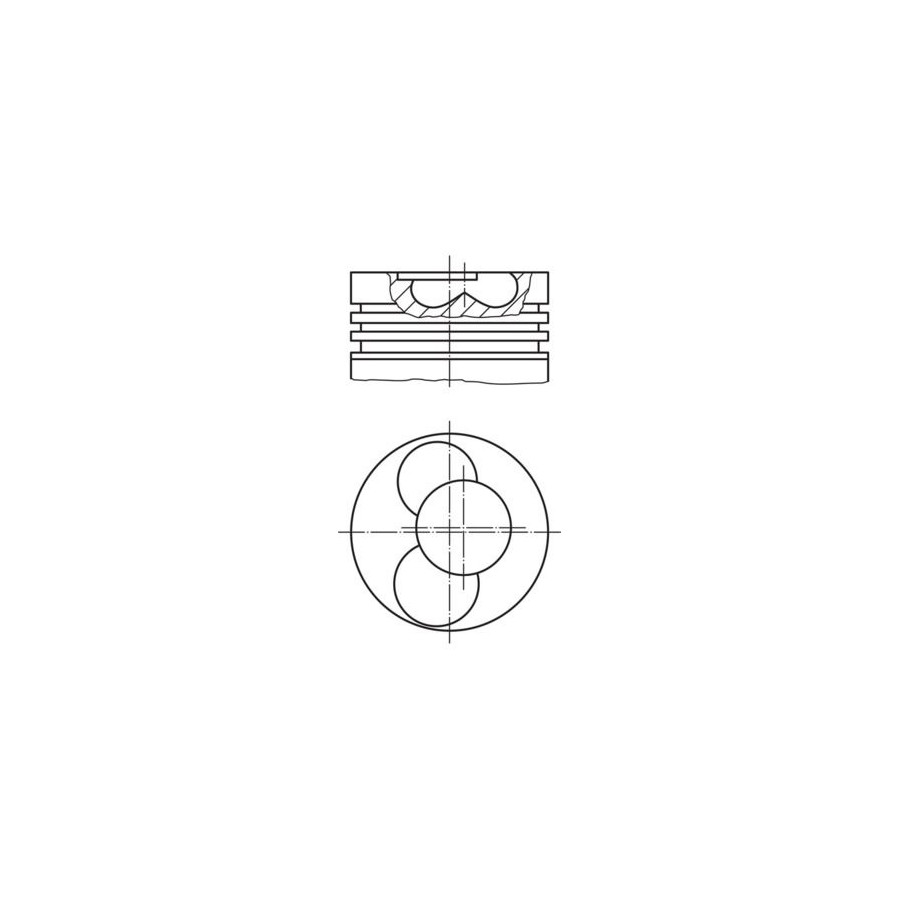

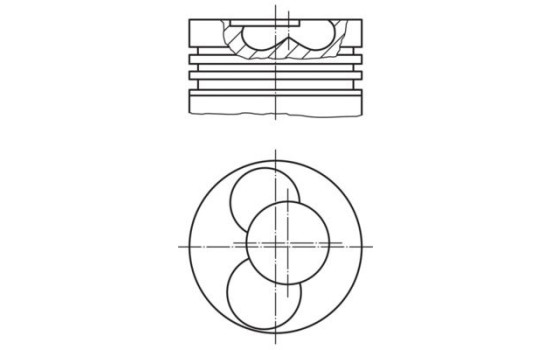

Piston

Piston

Product number: 1184404

Manufacturer number: 030 40 00

EAN: 4009026524909

£ 103.12

Incl. VAT
View product specifications
In stock
Delivery 07-01-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Fitting PositionTo cylinder 1
    To cylinder 2
    For cylinder 1 - 2
    Supplementary Article/Info 2With piston ring carrier
    Without cooling channel
    SurfaceCoated
    Mechanically processedWith recess for oil sprayer
    Production Number79 L 46
    Packaging length [cm]9,5
    Packaging width [cm]9,50
    Packaging height [cm]12,80
    Recess Diameter [mm]37,9
    Recess Depth 1 [mm]17,65
    Warranty2 years
    Bolt length [mm]66,0
    Component Number1. R 1.75 Cr P
    2.M2.0 IFU Cr P
    3. DSF 3.0 Cr
    Length [mm]71,8
    Standard Size [STD]
    Compression Height [mm]45,8
    Valve pocket depth 1 [mm]1,1
    Top land height [mm]9,1
    Net Weight [g]776
    Piston clearance [mm]0,07
    Cylinder bore [mm]79,51
    Bolt diameter [mm]26,0

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    IPSA PI003000
    KOLBENSCHMIDT 94427700
    £ 86.86
    MAHLE 030 40 00 (this product)
    NE 130050001100
    Manufacturer Manufacturer number Price
    NÜRAL 87-114900-90
    WILMINK GROUP WG1212106
    WILMINK GROUP WG1023130
    WILMINK GROUP WG1175157

  • Original part numbers

    028107065AB AUDI
    028107065BC AUDI
    028107065DC AUDI
    028107065K AUDI
    028107101AJ AUDI
    028107065H AUDI
    028107065BS AUDI
    028107065BT AUDI
    038107065AA001 AUDI
    038107065DC AUDI
    028107065AL AUDI
    028107065AJ AUDI
    038107065H AUDI
    28107065H AUDI
    038107065K AUDI
    028107065AB CUPRA
    028107065BC CUPRA
    028107065DC CUPRA
    028107065K CUPRA
    028107101AJ CUPRA
    028107065H CUPRA
    028107065BS CUPRA
    028107065BT CUPRA
    038107065AA001 CUPRA
    038107065DC CUPRA
    028107065AL CUPRA
    028107065AJ CUPRA
    038107065H CUPRA
    28107065H CUPRA
    038107065K CUPRA
    028 107 065 A J VW
    028 107 065 DC VW
    28107065H VW
    028 107 101 A J VW
    028 107 065 B T VW
    028 107 065 B C VW
    028 107 065 B S VW
    038 107 065 K VW
    028 107 065 K VW
    038 107 065 AA001 VW
    038 107 065 H VW
    028 107 065 A L VW
    038 107 065 D C VW
    028 107 065 H VW
    028 107 065 A B VW

  • Manufacturer

    Mahle

    Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment

    More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
