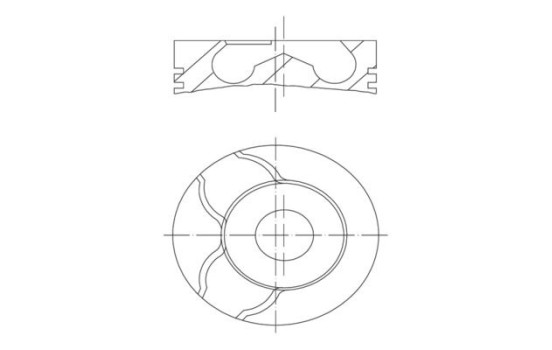

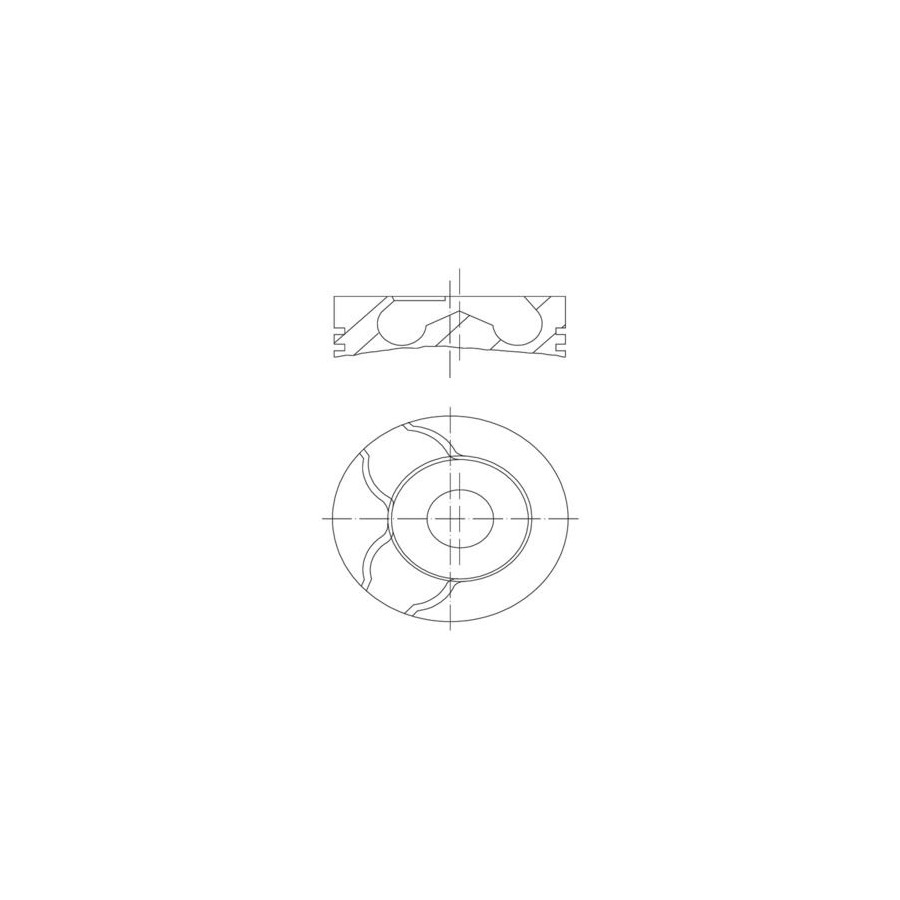

Piston

Piston

Product number: 1184755

Manufacturer number: 010 15 00

EAN: 4009026608692

£ 129.³⁹

Incl. VAT

View product specifications

In stock

Delivery 01-01-2026

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

1.
2.
3.

Specifications

Supplementary Article/Info 2	With piston ring carrier
Supplementary Article/Info 2	Without cooling channel
Surface	Coated
Mechanically processed	With recess for oil sprayer
Production Number	82 L 117
Packaging length [cm]	9,5
Packaging width [cm]	9,50
Packaging height [cm]	12,80
Recess Diameter [mm]	37,5
Recess Depth 1 [mm]	17,5
Warranty	2 years
Bolt length [mm]	61,0
Component Number	1. R 2.0 CrK
	2.NM 2.0 P
	3. DSF2.0 CrP
Length [mm]	72,5
Standard Size [STD]
Compression Height [mm]	46,5
Valve pocket depth 1 [mm]	0,5
Top land height [mm]	8,25
Net Weight [g]	820
Piston clearance [mm]	0,07
Cylinder bore [mm]	82,0
Bolt diameter [mm]	26,0

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
IPSA	PI027600
KOLBENSCHMIDT	41795600
MAHLE	010 15 00	(this product)
NE	130020001000
NÜRAL	87-124000-30

Manufacturer	Manufacturer number	Price
WILMINK GROUP	WG1888764
WILMINK GROUP	WG2022281
WILMINK GROUP	WG1201467
WILMINK GROUP	WG1175202

Original part numbers

0623552	FIAT
93178376	FIAT
93178375	FIAT
5623221	FIAT
71734218	FIAT
71718119	FIAT
71718118	FIAT
71734219	FIAT
5623222	FIAT
55181764	FIAT
55181762	FIAT
55181767	FIAT
55181765	FIAT
55181766	FIAT
55185531	OPEL
55185532	OPEL
55185533	OPEL
55180251	OPEL
55180253	OPEL
0000071734219	FIAT
0000071734218	FIAT
0000055181766	FIAT
0000055181764	FIAT
0000055181762	FIAT

Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
