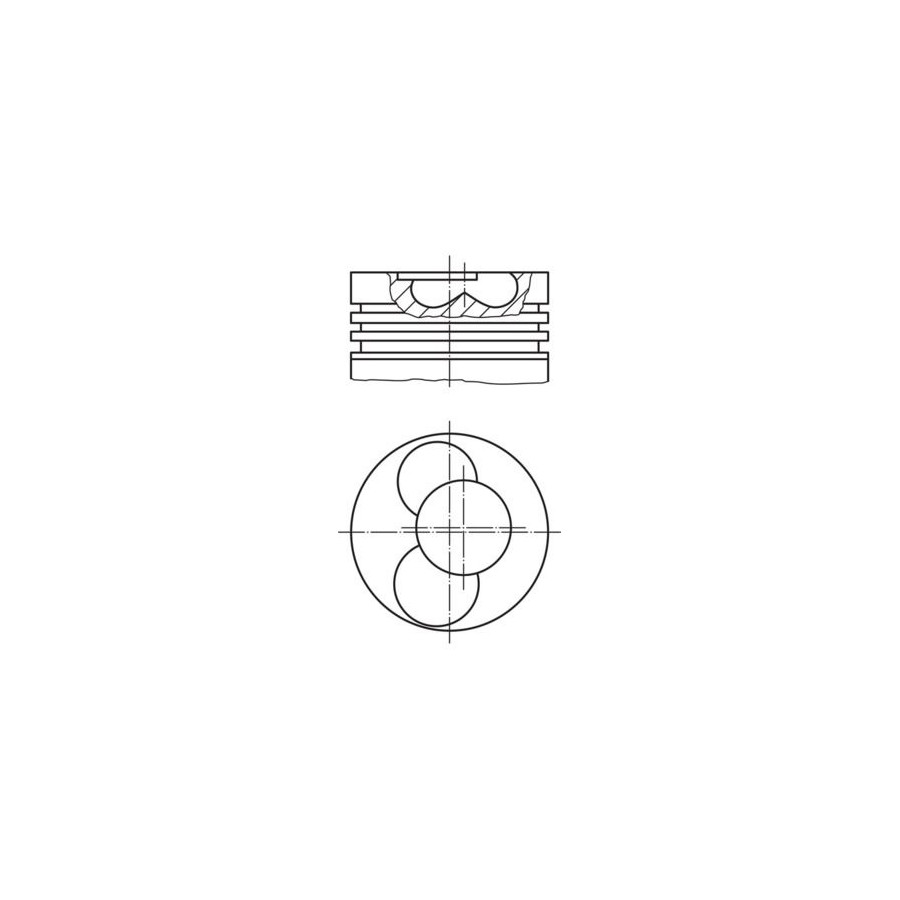

Piston
Product number: 1185244
Manufacturer number: 030 55 00
EAN: 4009026549582
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Fitting Position To cylinder 3 For cylinder 3 Supplementary Article/Info 2 With piston ring carrier Without cooling channel Surface Coated Mechanically processed With recess for oil sprayer Production Number 79 L 52 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 37,9 Recess Depth 1 [mm] 17,6 Warranty 2 years Bolt length [mm] 63,0 Component Number 1. R 1.75 CrK 2. M 2.0 IFU 3. DSF 3.0 Cr Length [mm] 69,8 Standard Size [STD] Compression Height [mm] 45,8 Valve pocket depth 1 [mm] 1,1 Top land height [mm] 9,1 Net Weight [g] 769 Piston clearance [mm] 0,07 Cylinder bore [mm] 79,51 Bolt diameter [mm] 26,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price ET ENGINETEAM PM003300 ET ENGINETEAM PM013800 KOLBENSCHMIDT 41158600 MAHLE 030 55 00 (this product) NE 130050001000 Manufacturer Manufacturer number Price NÜRAL 87-114900-85 WILMINK GROUP WG1104400 WILMINK GROUP WG1175156 WILMINK GROUP WG1726271 WILMINK GROUP WG2022577 -
Original part numbers
045107065AP AUDI 045107065AK AUDI 045107065S AUDI 045107101S AUDI 045107065G AUDI 045107065AP CUPRA 045107065AK CUPRA 045107065S CUPRA 045107101S CUPRA 045107065G CUPRA 045 107 101 S VW 045 107 065 G VW 045 107 065 A P VW 045 107 065 A K VW 045 107 065 S VW -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
