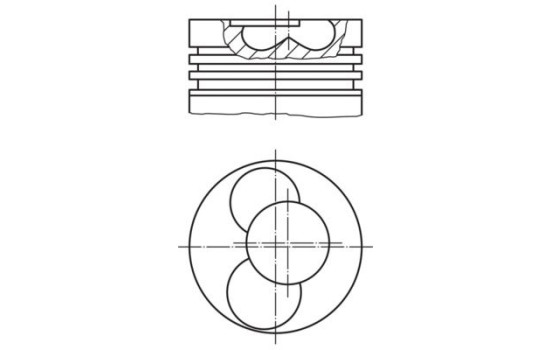

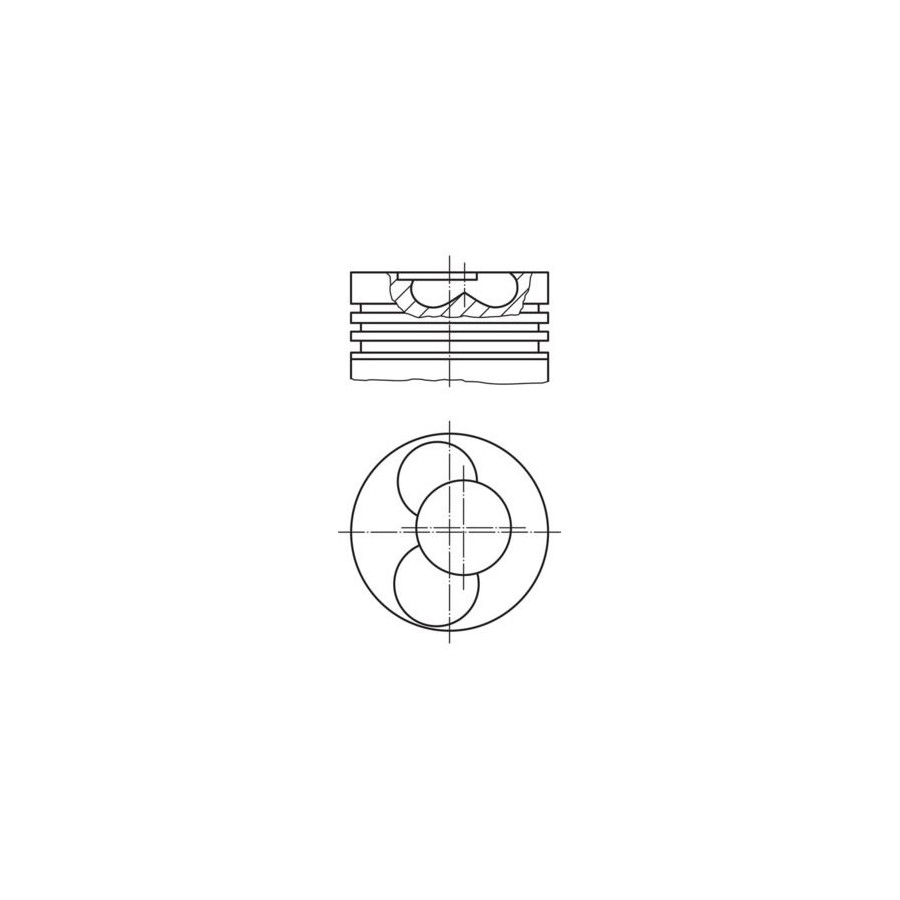

Piston
Product number: 1188744
Manufacturer number: 030 40 02
EAN: 4009026524886
£ 105.76
Incl. VAT
In stock
Delivery 11-04-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Fitting Position To cylinder 1 To cylinder 2 For cylinder 1 - 2 Supplementary Article/Info 2 With piston ring carrier Without cooling channel Surface Coated Mechanically processed With recess for oil sprayer Production Number 79 L 46 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 37,9 Recess Depth 1 [mm] 17,65 Warranty 2 years Bolt length [mm] 66,0 Component Number 1. R 1.75 Cr P 2.M2.0 IFU Cr P 3. DSF 3.0 Cr Length [mm] 71,8 Compression Height [mm] 45,55 Valve pocket depth 1 [mm] 1,1 Top land height [mm] 8,8 Net Weight [g] 765 Piston clearance [mm] 0,07 Cylinder bore [mm] 80,01 Bolt diameter [mm] 26,0 -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
Delivery time
Expected delivery date:
11-04-2026
-
