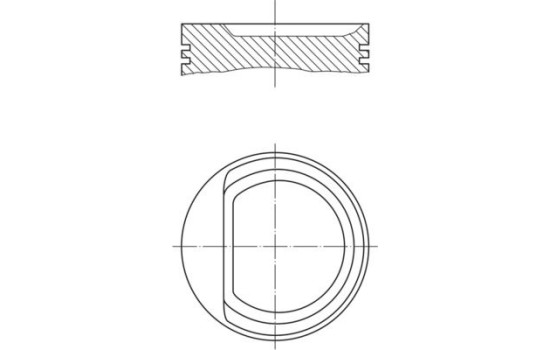

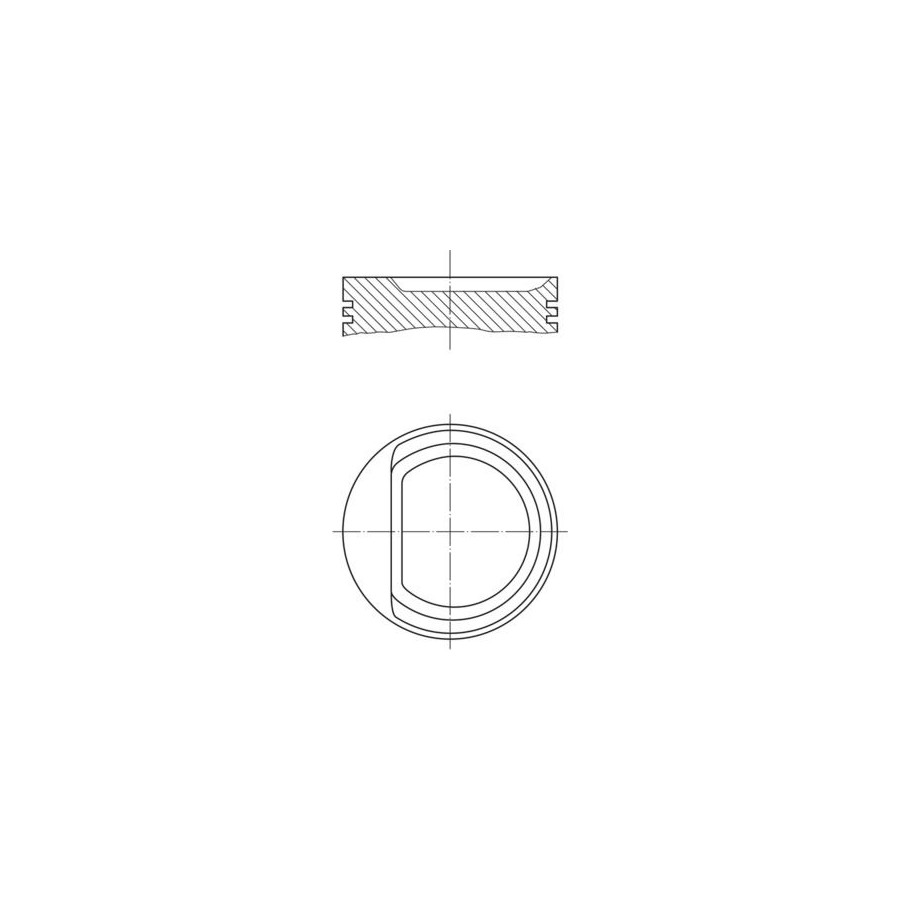

Piston
Product number: 1317027
Manufacturer number: 030 71 00
EAN: 4009026549193
£ 105.55
Incl. VAT
In stock
Delivery 05-01-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Supplementary Article/Info 2 Without cooling channel Surface Coated Production Number 76 L 82 Packaging length [cm] 9,1 Packaging width [cm] 9,10 Packaging height [cm] 9,60 Recess Diameter [mm] 61,6 Recess Depth 1 [mm] 7,3 Warranty 2 years Bolt length [mm] 46,0 Component Number 2. M 1.5 3. 3S 2.5 Cr Length [mm] 48,7 Standard Size [STD] Compression Height [mm] 28,7 Top land height [mm] 5 Net Weight [g] 297 Piston clearance [mm] 0,04 Cylinder bore [mm] 76,51 Bolt diameter [mm] 17,0 -
Original part numbers
03D107065F AUDI 03D107065D AUDI 03D107065E AUDI 03D107065C AUDI 03D107103G AUDI 03D107103E AUDI 03D107065F CUPRA 03D107065D CUPRA 03D107065E CUPRA 03D107065C CUPRA 03D107103G CUPRA 03D107103E CUPRA 03D 107 065 E VW 03D 107 103 G VW 03D 107 065 F VW 03D 107 103 E VW 03D 107 065 C VW 03D 107 065 D VW -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
