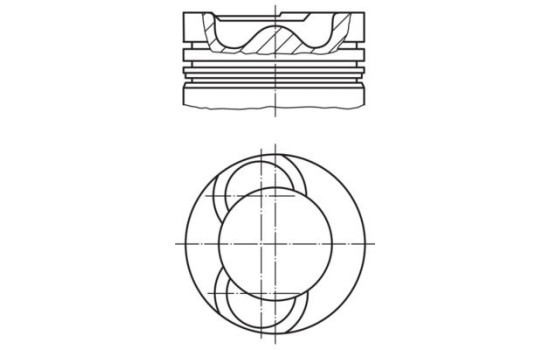

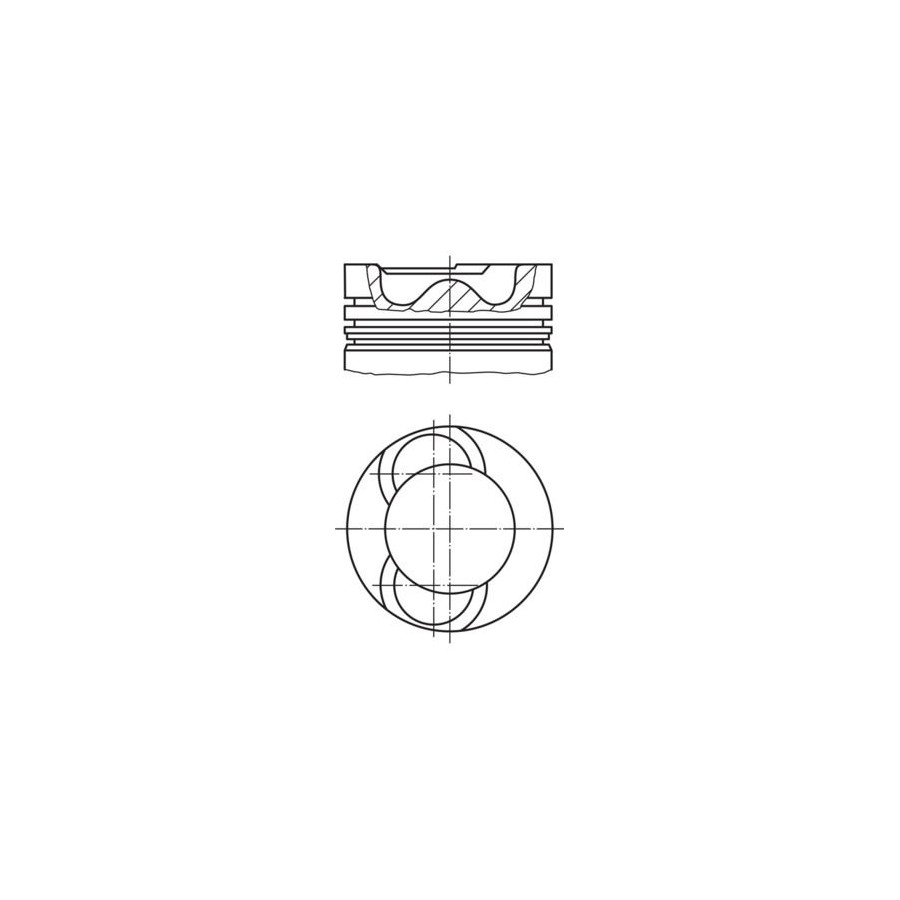

Piston
Product number: 1546215
Manufacturer number: 028 09 02
EAN: 4009026927526
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Supplementary Article/Info 2 With piston ring carrier With cooling channel Surface Coated Mechanically processed With recess for oil sprayer Production Number 81L 98 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 46 Recess Depth 1 [mm] 16,6 Warranty 2 years Bolt length [mm] 66,0 Component Number 1. R2.5 NW CrK 2. M 2.0 IFU P 3. DSF 3.0 Cr Length [mm] 69,8 Compression Height [mm] 45,75 Valve pocket depth 1 [mm] 1,3 Top land height [mm] 12 Valve pocket depth 2 [mm] 1,3 Net Weight [g] 890 Piston clearance [mm] 0,05 Cylinder bore [mm] 81,51 Bolt diameter [mm] 26,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price MAHLE 028 09 02 (this product) NE 130050002021 WILMINK GROUP WG2258889 Manufacturer Manufacturer number Price WILMINK GROUP WG1202402 WILMINK GROUP WG1094124 WILMINK GROUP WG1016710 -
Original part numbers
076 107 065 C VW 076107065A CUPRA 076107065C AUDI 076 107 065 A VW 076107065A AUDI 076107065C CUPRA -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
