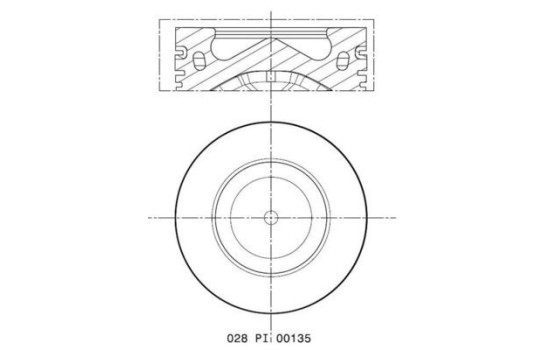

Piston
Product number: 1770574
Manufacturer number: 028 PI 00135 000
EAN: 4009026968093
£ 124.00
Incl. VAT
On order
Delivery 23-03-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Supplementary Article/Info 2 With piston ring carrier With cooling channel Surface EvoGlide® coating Mechanically processed With recess for oil sprayer Production Number 83 L 110 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 48 Recess Depth 1 [mm] 14,1 Warranty 2 years Bolt length [mm] 68 Component Number 1. R 1.75 CrK 2. M2.0 IFU Mo 3. DSF 2.0 Cr Length [mm] 71,3 Compression Height [mm] 46,75 Top land height [mm] 10 Connecting Rod Design Trapezoidal connecting rod Net Weight [g] 822 Piston clearance [mm] 0,08 Cylinder bore [mm] 83 Bolt diameter [mm] 30 Similar products of other manufacturers
Manufacturer Manufacturer number Price MAHLE 028 PI 00135 000 (this product) Manufacturer Manufacturer number Price WILMINK GROUP WG2325809 -
Original part numbers
059107065FD AUDI 059 107 065 DF VW 059107075DG AUDI 059107065DF CUPRA 059 107 065 FD VW 059107065DF AUDI 059107075DG CUPRA -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
