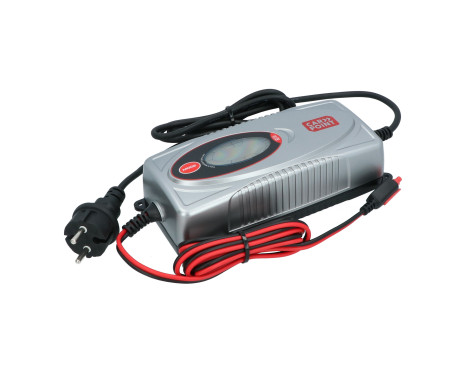

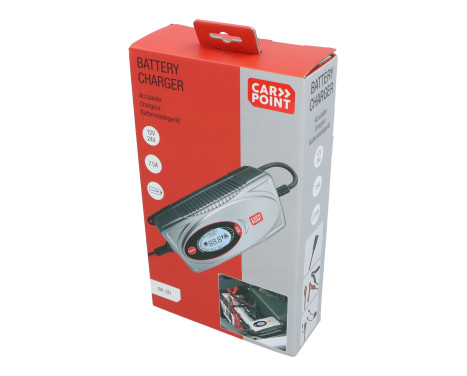

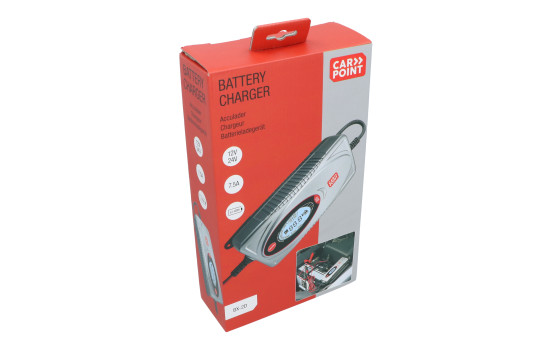

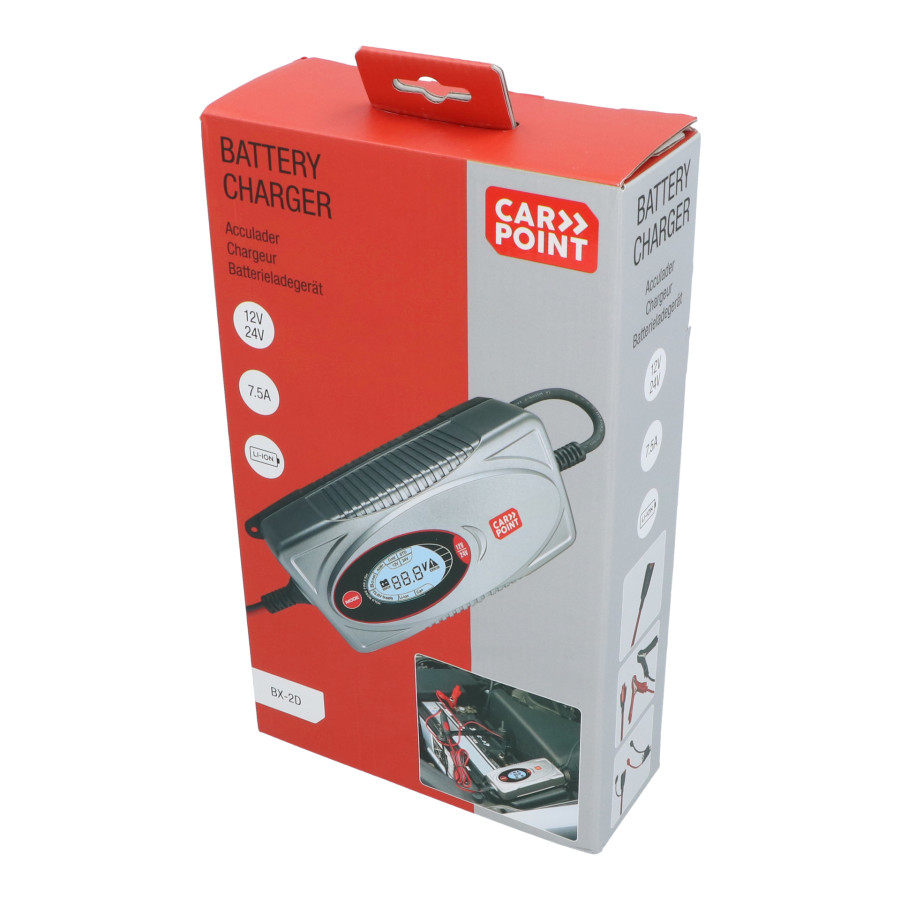

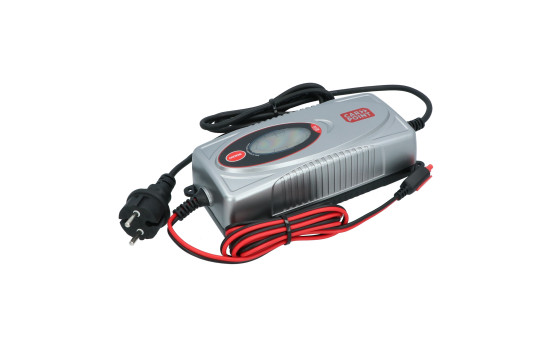

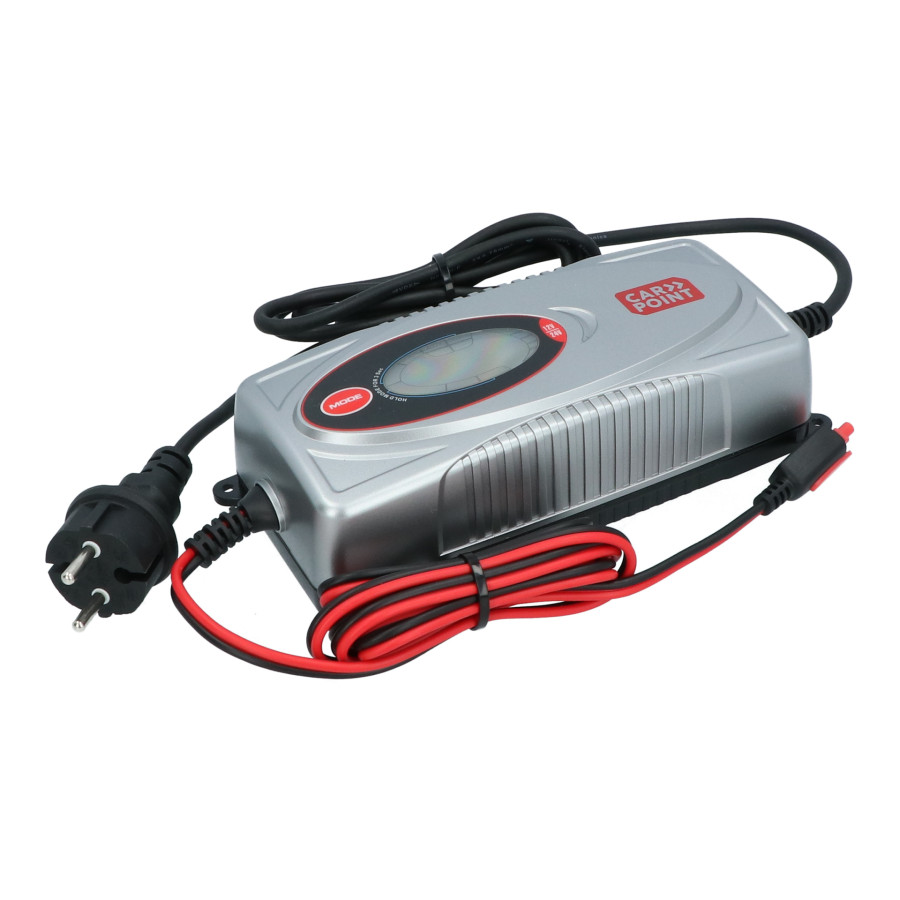

Carpoint BX-2D 12V/24V Battery Charger 7.5 Ampere Lithium

This Carpoint BX-2D battery charger is suitable for charging 12 and 24 Volt with 10 to 240 Ampere rechargeable lead-acid batteries and 10-80 Ampere lithium batteries.

The battery charger runs through a fully automatic 8-step charging cycle. The diagnostic phase checks the battery's condition and/or its ability to accept the charge. The recovery and soft start phase recovers severely discharged batteries above 2 volts under low charge conditions or pulse charging. The fast charge phase recovers deeply discharged batteries with high charging voltage. The bulk phase delivers a maximum charge current of 80% of the energy being charged. The absorption phase achieves a charge of nearly 100%. The analysis phase checks the state of charge. The float phase fully charges the battery and maintains it at its maximum level with a low charge current. The maximum charge current is 7.5 amps.

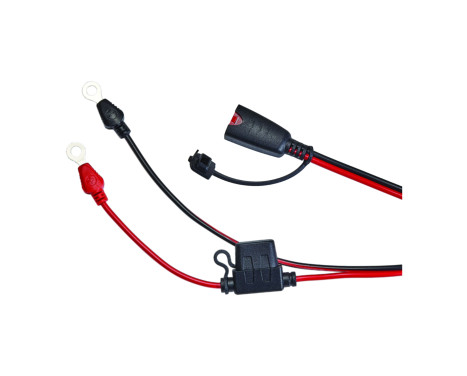

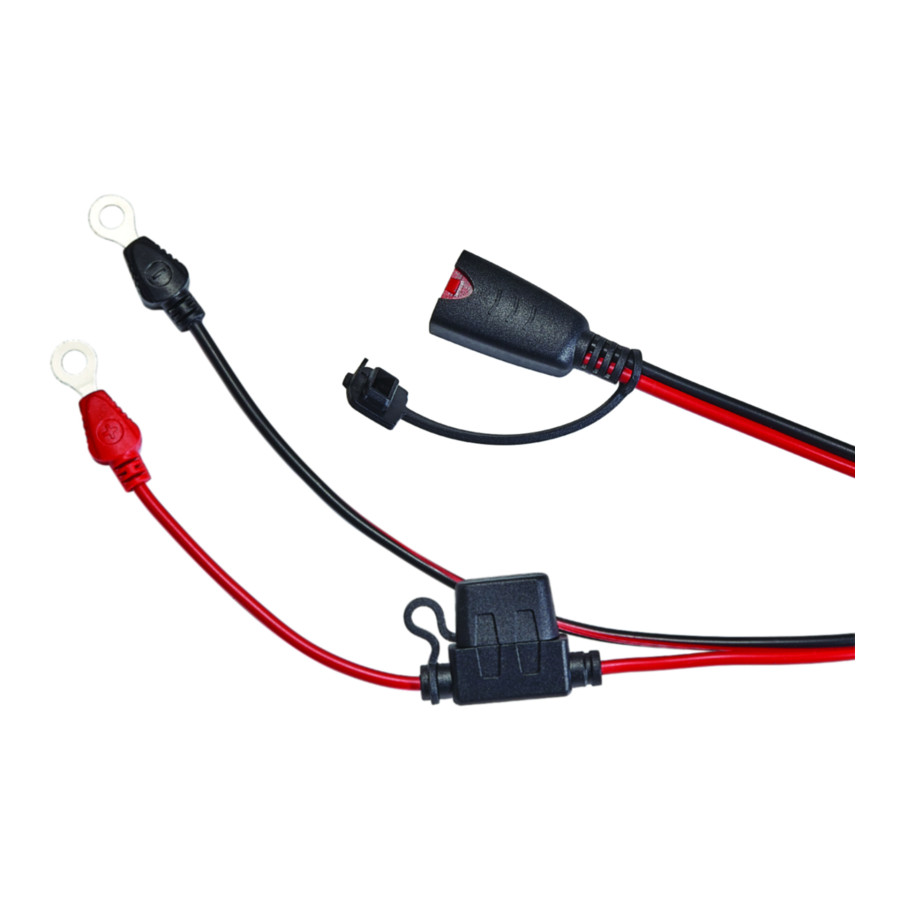

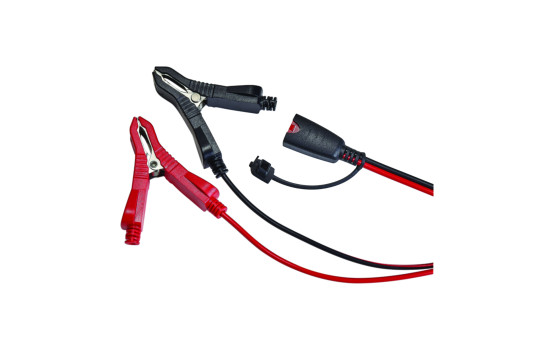

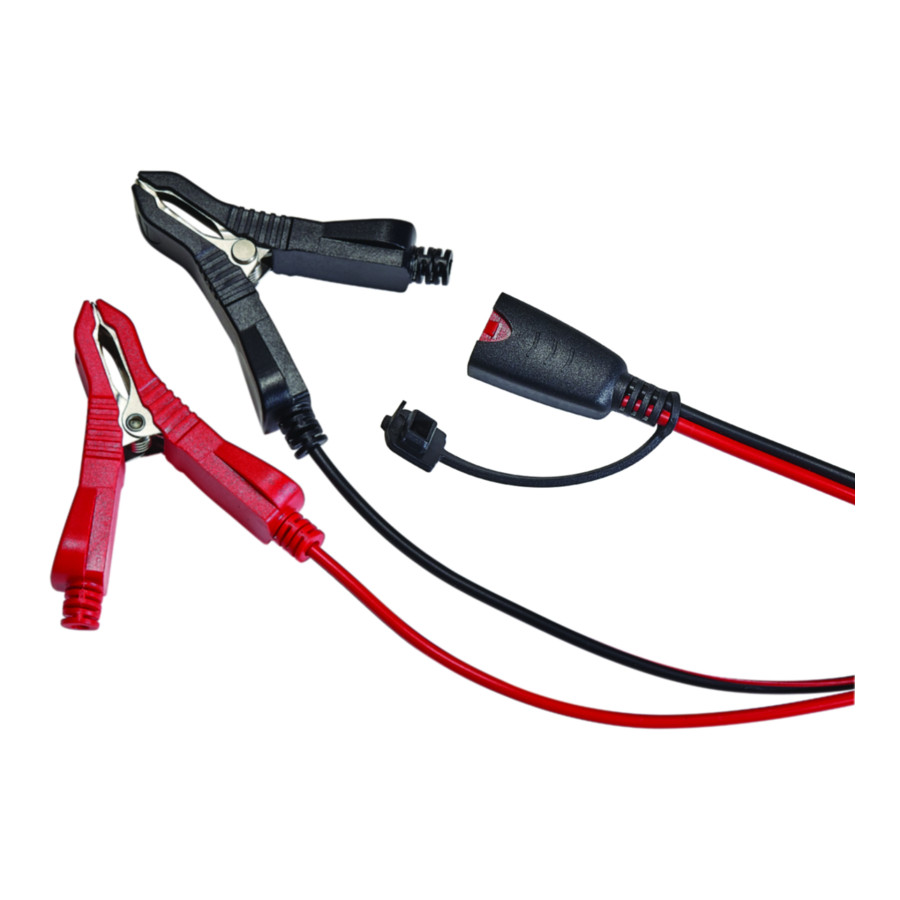

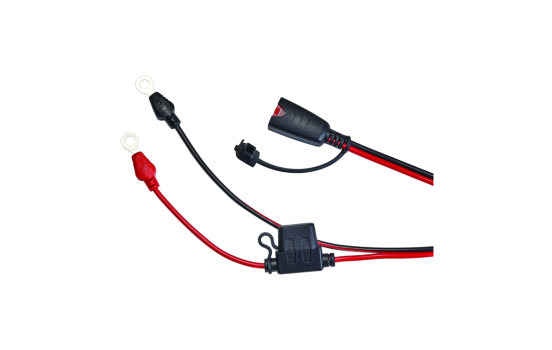

The CP-2D battery charger comes with two different color-coded cables. One cable is equipped with battery clamps for charging disconnected batteries, and the other has eyelet terminals (Ø6.3mm) and a 10-amp fuse for permanently connected batteries. Both cables are equipped with a quick-release connector.

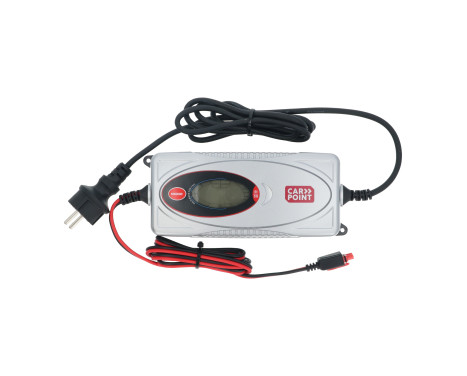

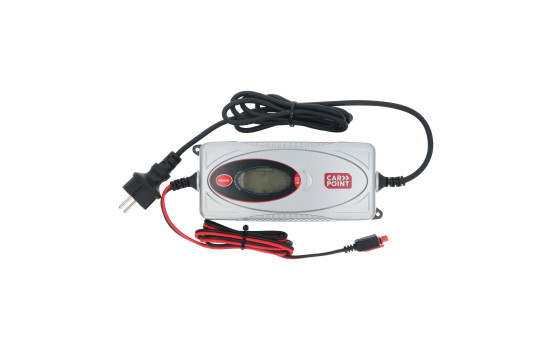

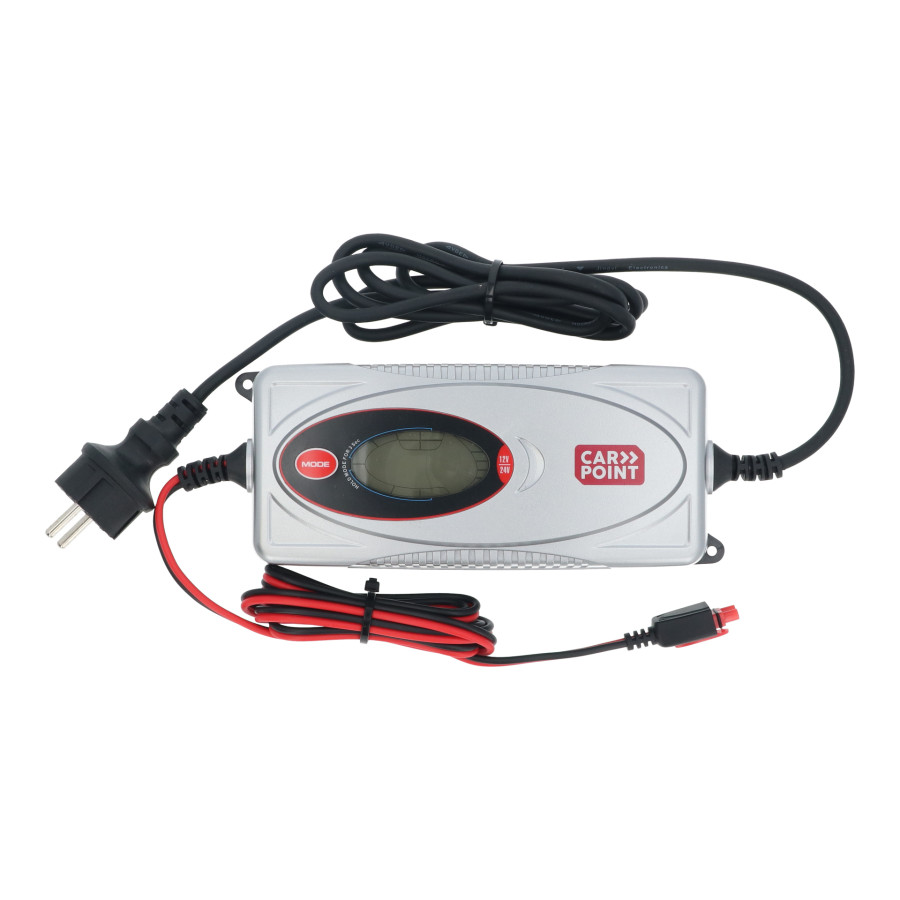

Clear display with: mode button to switch between different battery types and amperage, fast charging mode. Indicator lights for error messages, reverse polarity, and power mode. Indicator lights for fully charged or ready to use.

• Technical data:
• Input voltage AC: 220-240VAC 50Hz
• Output Voltage: Nominal: 12V/24V
• Input Current: Maximum 1.33A RMS
• Minimum battery voltage: >2.0V
• Output power: 110W
• Efficiency: 80%
• Charging current: 7.5A 12 Volt battery / 3.75A 24 Volt battery / 5A for 13.6V power supply
• Backflow current: <10 mA
• Standby power: < 1W
• Ambient temperature: 0°C to 40°C
• Charger Type: Eight steps, fully automatic, multi-mode charging
• Battery types: 12V rechargeable lead-acid batteries (WET, MF, VRLA, AGM and GEL and Calcium) Lithium: 12.8V, 4 cells LiFePO4
• Battery capacity: Lead-acid batteries 12Volt 18-240Ah / 24Volt 10-120Ah / Lithium 10-80Ah
• Dimensions (L x W x H): 219.3 x 90.8 x 60.8 mm
• Housing protection: IP65 (dust and splash proof) for indoor use only
• Weight: 0.95kg
• Noise level: <50 dB (tested at a distance of 50 cm)
