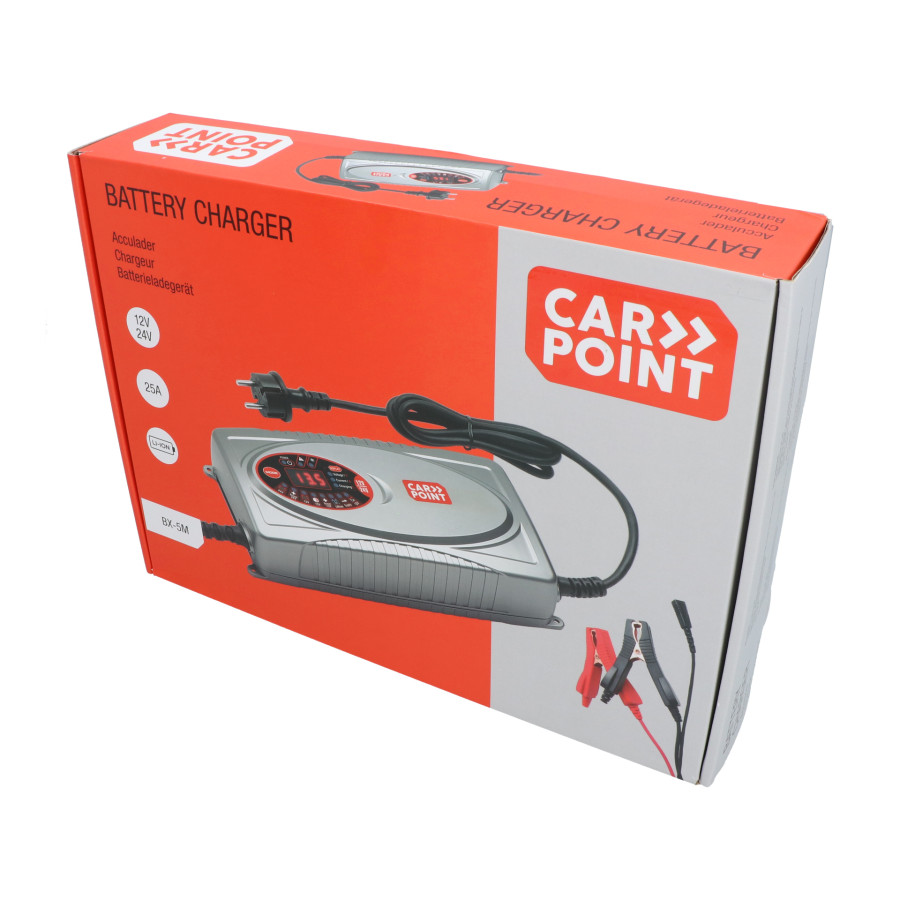

Carpoint BX-5M 12V/24V Battery Charger 25 Ampere Lithium

This Carpoint BX-5M battery charger is suitable for charging 12 and 24 Volt with 50 to 500 Ampere (12V) and 25-100 Ampere (24V) rechargeable lead-acid batteries and 25-100 Ampere lead-calcium batteries and 12 Volt 50-500 Ampere Lithium-ion batteries.

The battery charger runs through a fully automatic 9-step charging cycle. A diagnostic and bulk charge phase checks the battery's condition, and for deeply discharged batteries, it uses pulse charging with high and low currents to restore the battery. The bulk phase delivers a maximum charging current of 80% of the energy. The absorption phase achieves a charging capacity of nearly 100%. The analysis phase monitors the charge status. The float charge phase maintains the battery at its maximum level. The maintenance charge phase starts when the battery voltage falls below a certain level. The fast charge phase restores deeply discharged batteries with high charging voltage. The manual special maintenance phase performs a float charge with constant voltage and current. The power supply phase serves as a power supply with maximum capacity when the output voltage drops below 12V. The maximum charging current is 25 amps.

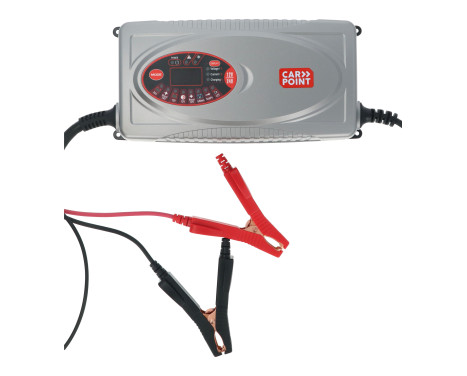

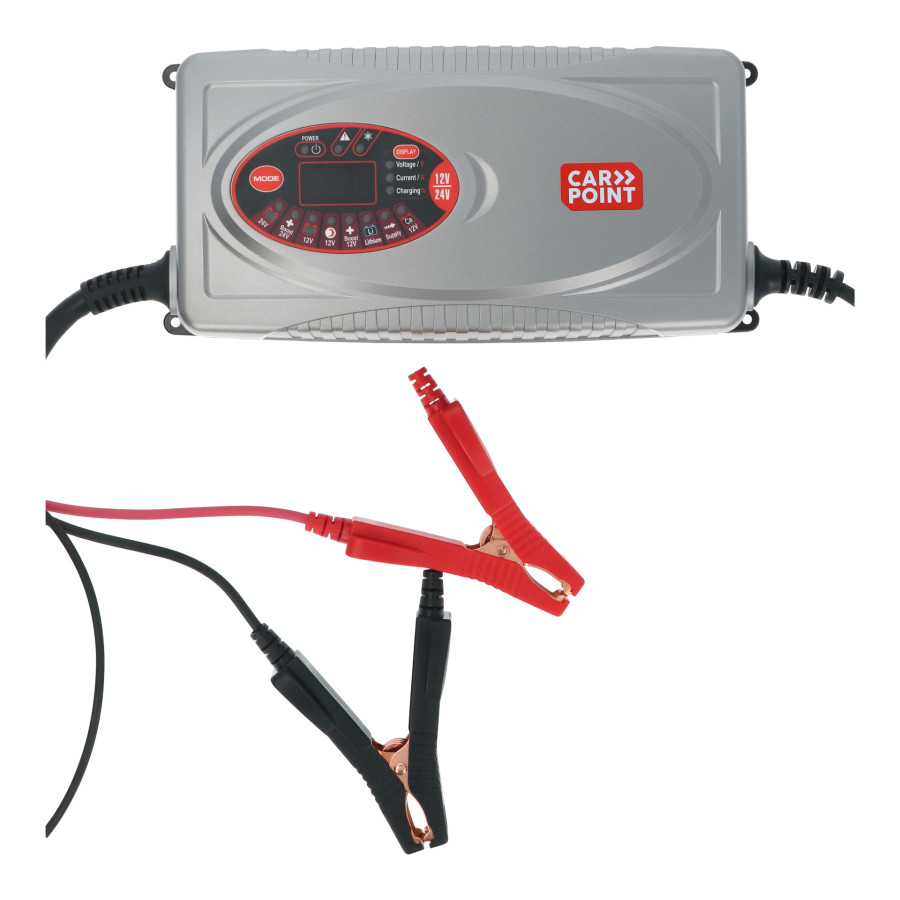

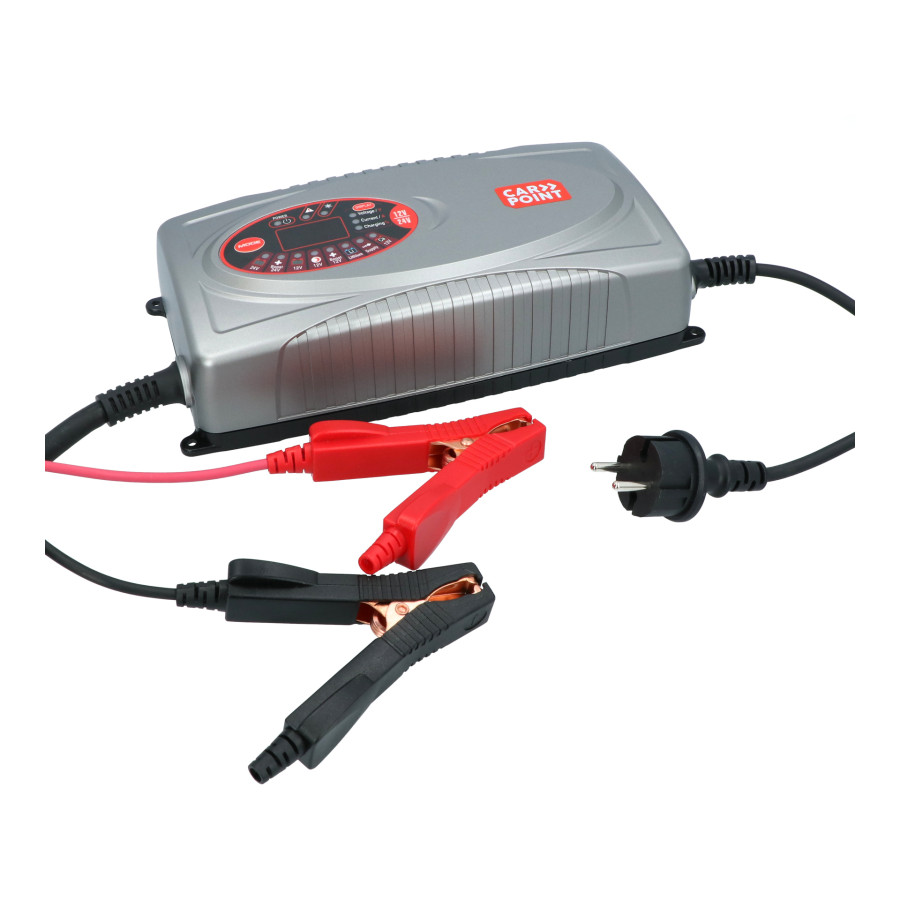

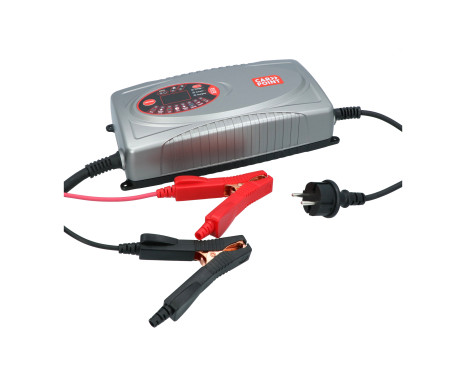

The CP-5M battery charger comes with two different color-coded cables. One cable is equipped with battery clamps for charging disconnected batteries, and the other has eyelet terminals (Ø8.5mm) for permanently connected batteries. Both cables are equipped with a quick-release connector.

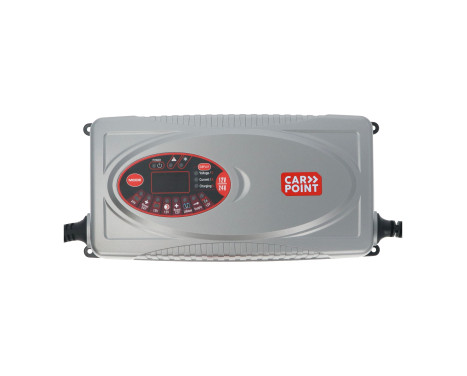

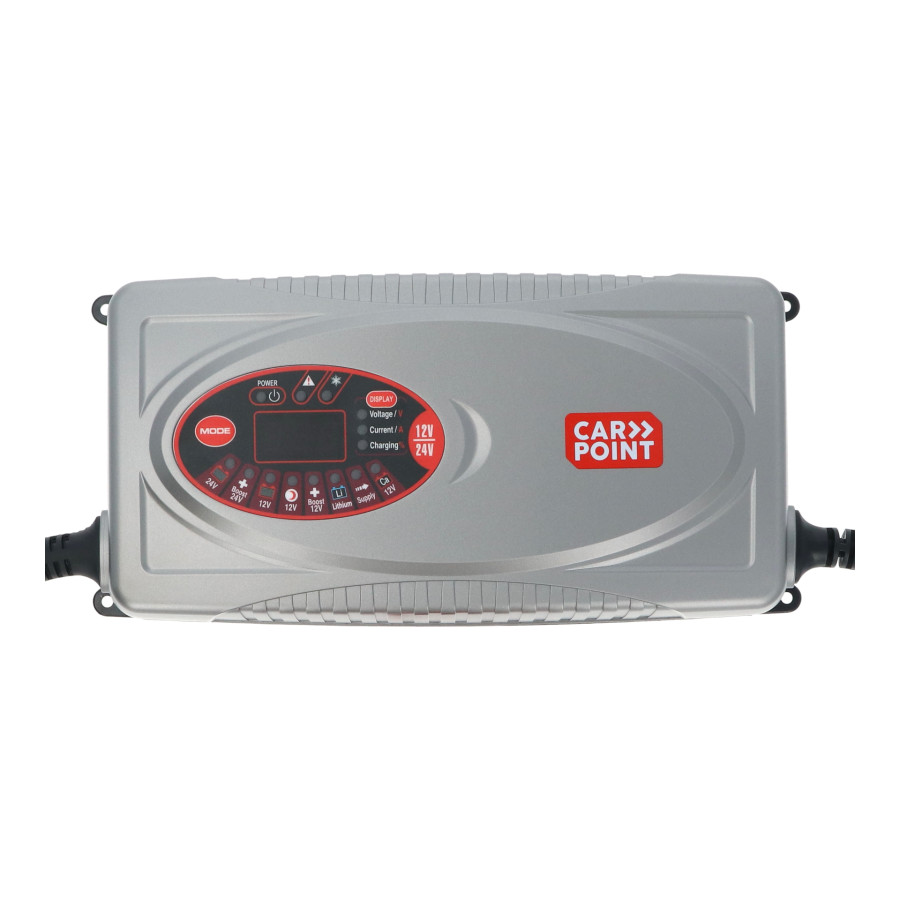

Clear display with: Mode button to switch between different battery types and between amperage/voltage and charge percentage. Indicator lights for error messages. Also equipped with fast charge and memory functions, night charge mode, and power mode.

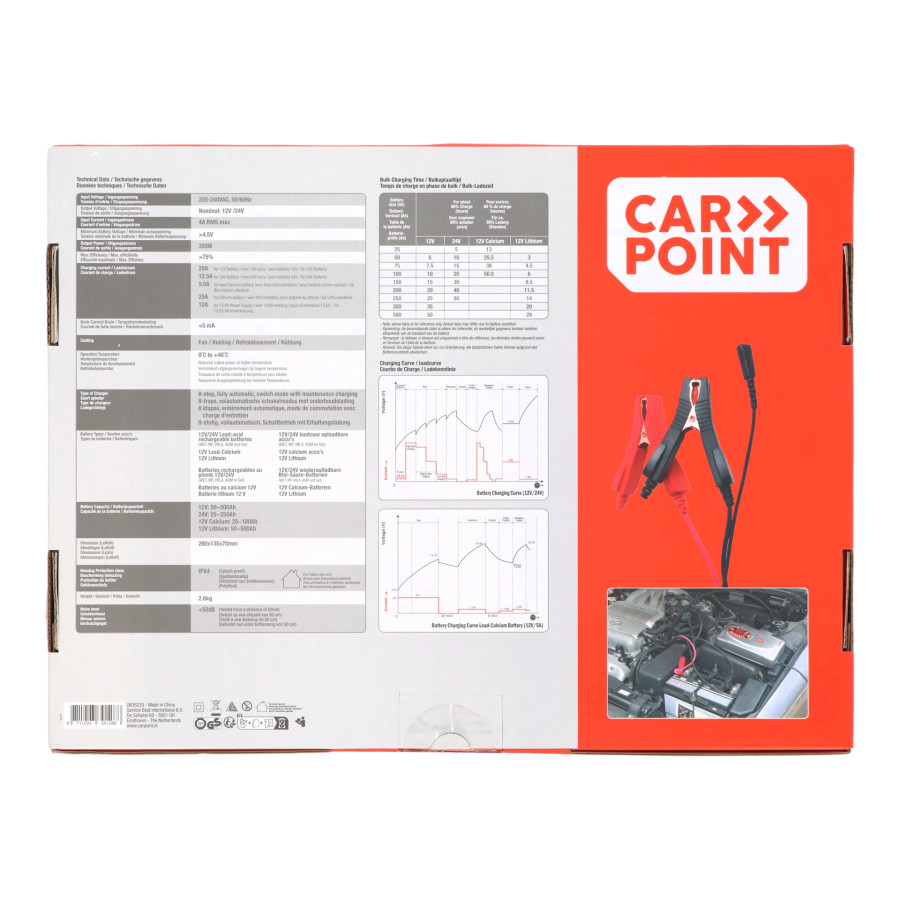

Technical data:

• Input voltage AC: 220-240VAC 50/60Hz
• Output Voltage: Nominal: 12V/24V
• Input Current: Maximum 4A RMS
• Minimum battery voltage: >4.5V
• Output power: 320W
• Efficiency: 75%
• Charging current: 25A 12 Volt battery / 12.5A 24 Volt battery / 5A Lead-calcium battery / 25A Lithium-Ion battery / 12.5A for 13.6V power supply
• Backflow current: <5 mA
• Cooling: Fan
• Ambient temperature: 0°C to 40°C, reduced output power at higher temperatures
• Charger Type: Nine-step, fully automatic, Switching mode with maintenance charge
• Battery types: 12 and 24V rechargeable lead-acid batteries (WET, MF, VRLA, AGM and GEL) 12V lead-calcium and lithium-ion batteries
• Battery capacity: 50-500Ah (12V) 25-250Ah (24V) 25-100Ah (12V lead-calcium batteries) 50-500Ah (12V Lithium-Ion batteries)
• Dimensions (lxwxh): 260x135x70mm
• Housing protection: IPX4 (splash-proof)
• Weight: 2.6kg
• Noise level: <50 dB (Night mode, tested at a distance of 50 cm)
