Weber Tools

Compression gauge Diesel XL 18-piece

Universally applicable

Compression gauge Diesel XL 18-piece Compression gauge Diesel XL 18-piece, Image 2 Compression gauge Diesel XL 18-piece, Image 3 Compression gauge Diesel XL 18-piece, Image 4
  • Compression gauge Diesel XL 18-piece
  • Compression gauge Diesel XL 18-piece, Thumbnail 2
  • Compression gauge Diesel XL 18-piece, Thumbnail 3
  • Compression gauge Diesel XL 18-piece, Thumbnail 4

Product number: 1746759

Manufacturer number: WT-1030A

EAN: 8719558500444

£ 71.84

Incl. VAT
View product specifications
In stock
Delivery 08-07-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

  • Specifications

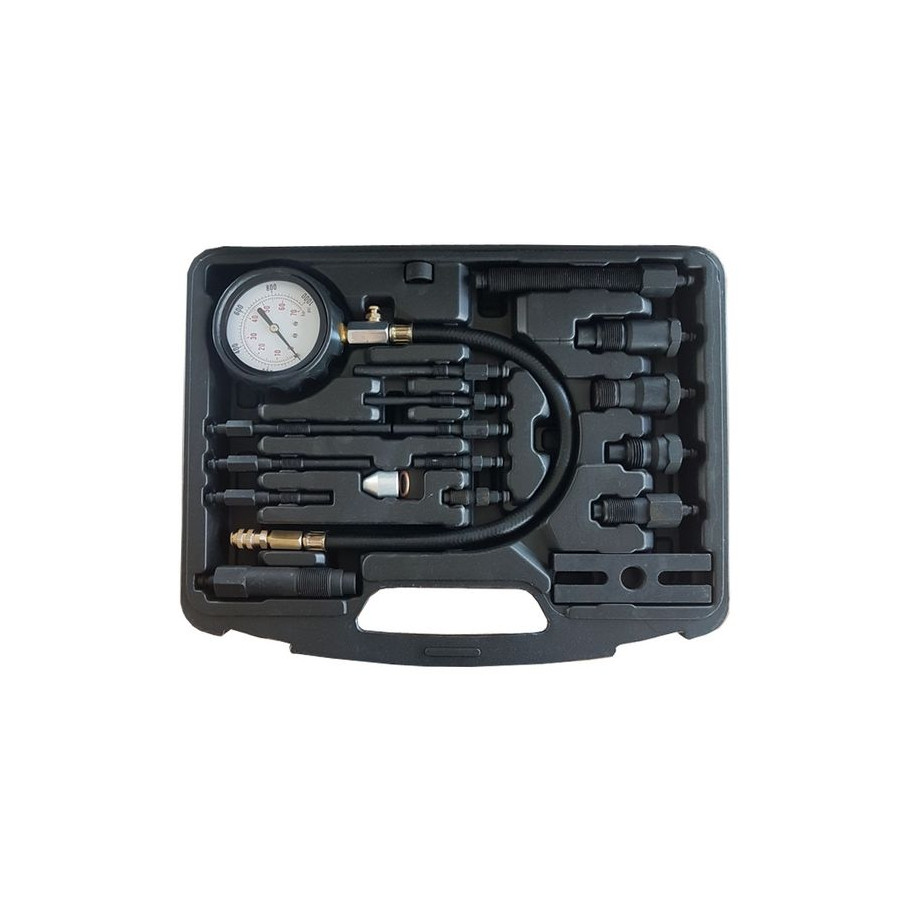

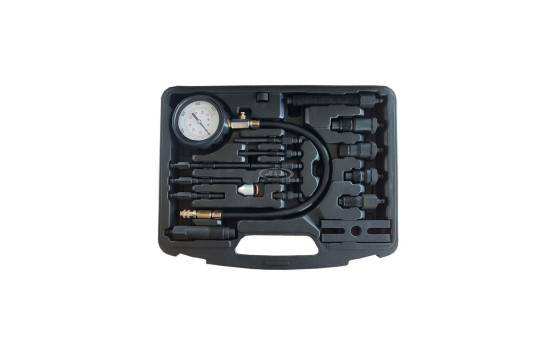

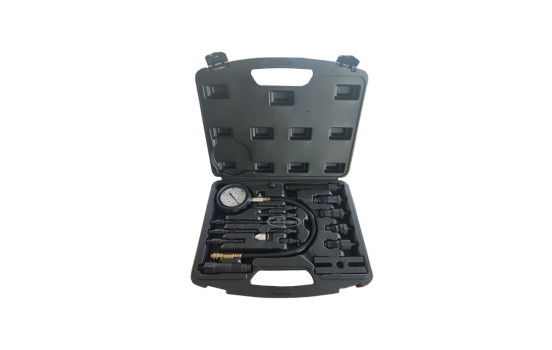

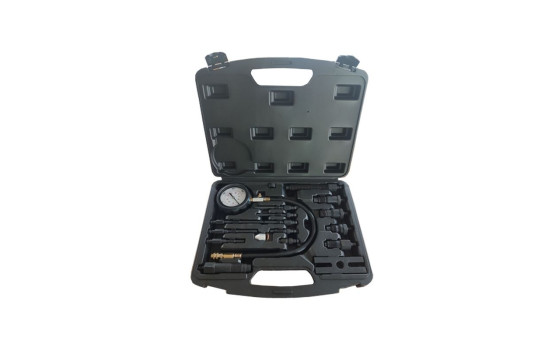

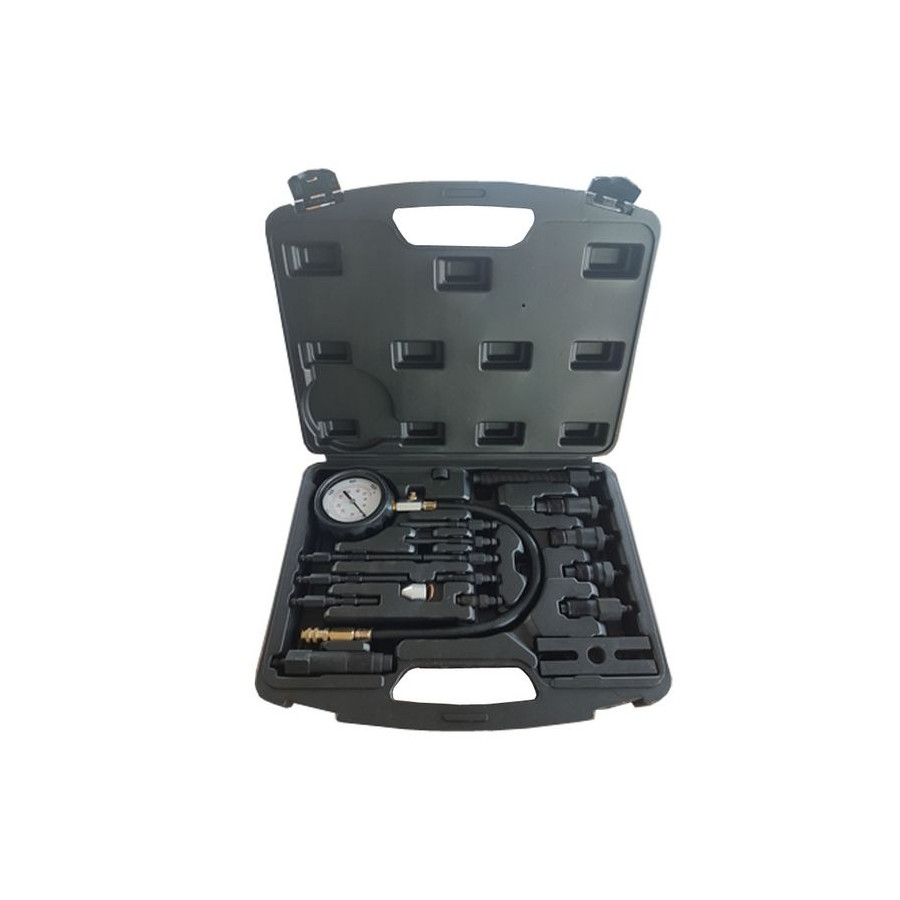

    Weber Tools Compression Gauge Diesel XL

    Compression gauge for checking worn valves and piston rings of diesel engines in cars, trucks and tractors.

    With this compression meter you can quickly see if a diesel engine has compression loss. This way you can track down problems such as worn piston rings, burnt valves, worn valve guides or a broken cylinder head gasket. This extensive set is suitable for diesel engines in cars, trucks and tractors.

    The set contains a lot of accessories which makes it usable for almost every diesel engine. The meter is clear and is protected by a sturdy rubber casing. On the side of the meter is a valve to release the pressure after a measurement. With the flexible hose you can also reach the difficult places and at the end there is a quick coupling. The quick coupling you easily click on one of the adapters and you are ready to measure.

    The set offers a wide range of adapters. There are 4 adapters available for diesel injectors and 9 adapters for connection via the glow plug shaft. The latter type of adapters are suitable for diesel engines without injection, such as pump injectors. The set is delivered in a sturdy case to store all to protect components and make them easily accessible.

    Contents:

    1. Manometer 0 - 70 Bar / 0 - 1000 Psi
    2. Screw adapter 160 mm
    3. H-fitting
    4. Drain valve
    5. Adapter for atomizer M12x1.5 L= 73 mm
    6. Adapter for atomizer M20x1.5 L= 75 mm
    7. Adapter for atomizer M24x1.5 L= 88 mm
    8. Adapter for atomizer M24x2 L= 63 mm
    9. Adapter for glow plug M8x1 L= 102mm
    10. Adapter for glow plug M10x1 L= 83 mm
    11. Adapter for glow plug M10x1 L= 91 mm
    12. Adapter for glow plug M10x1 L= 102 mm
    13. Adapter for glow plug M10x1 L= 113 mm
    14. Adapter for glow plug M10x1 L= 119 mm
    15. Adapter for glow plug M10x1.25 L= 64 mm
    16. Adapter for glow plug M10x1.25 L= 135 mm
    17. Adapter for glow plug M12x1.25 L= 47 mm
    18. Adapter for glow plug M22x1.5 L= 118 mm
    applicationStuffed
    Weight [g]3,1
    Warranty2 years
    Width [cm]25
    Length [cm]29
    Height [cm]9
