Compression gauge Petrol Engines Small

Weber Tools Compression Gauge Petrol Engines Small

With this compression tester for petrol engines you can quickly assess whether you have compression loss. This way you can track down problems such as worn piston rings, burnt valves, worn valve guides or a leaking cylinder head gasket.

This set is very complete and suitable for both small and large shaft connections. The pressure gauge (range: 300 Psi / 20 Bar) is easy to read and has a vent valve on the side to release the pressure after measuring. A flexible hose is available for hard-to-reach places. Screw the end of the hose into the spark plug hole. When the hose is in place, you can easily click the meter into place via the quick coupling. When you have finished measuring, you can easily click the hose loose again.

If you have easy to reach shafts, use the fixed rod provided. This works firmly and quickly, because you do not have to screw. There is a rubber conical connection that closes the shaft.

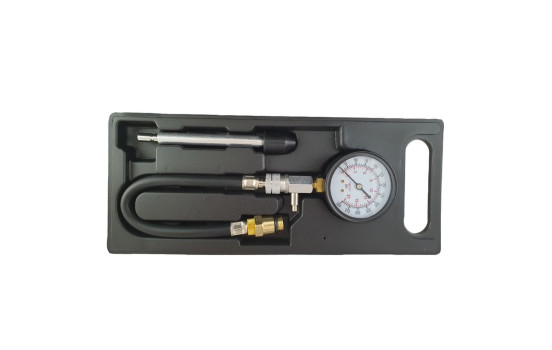

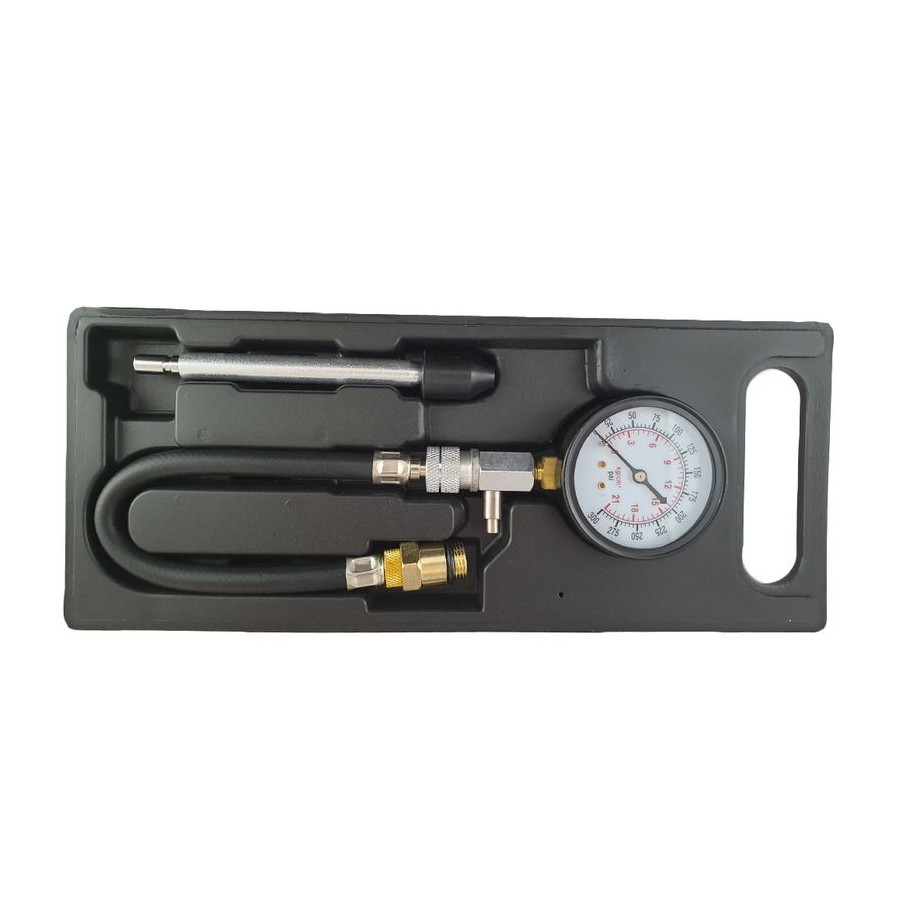

Contents:

1. Pressure gauge 300 Psi / 20 Bar with air release valve
2. Flexible pressure hose 330mmL with 2 connections (14 & 18 mm)
3. Straight adapter with rubber conical connection
