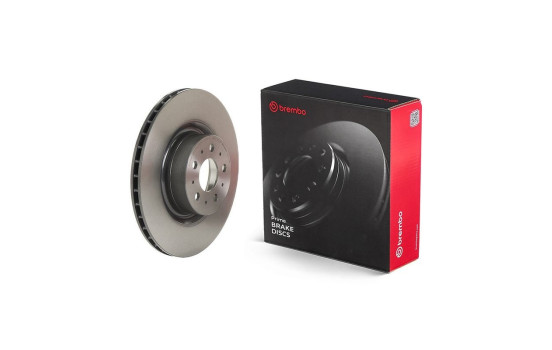

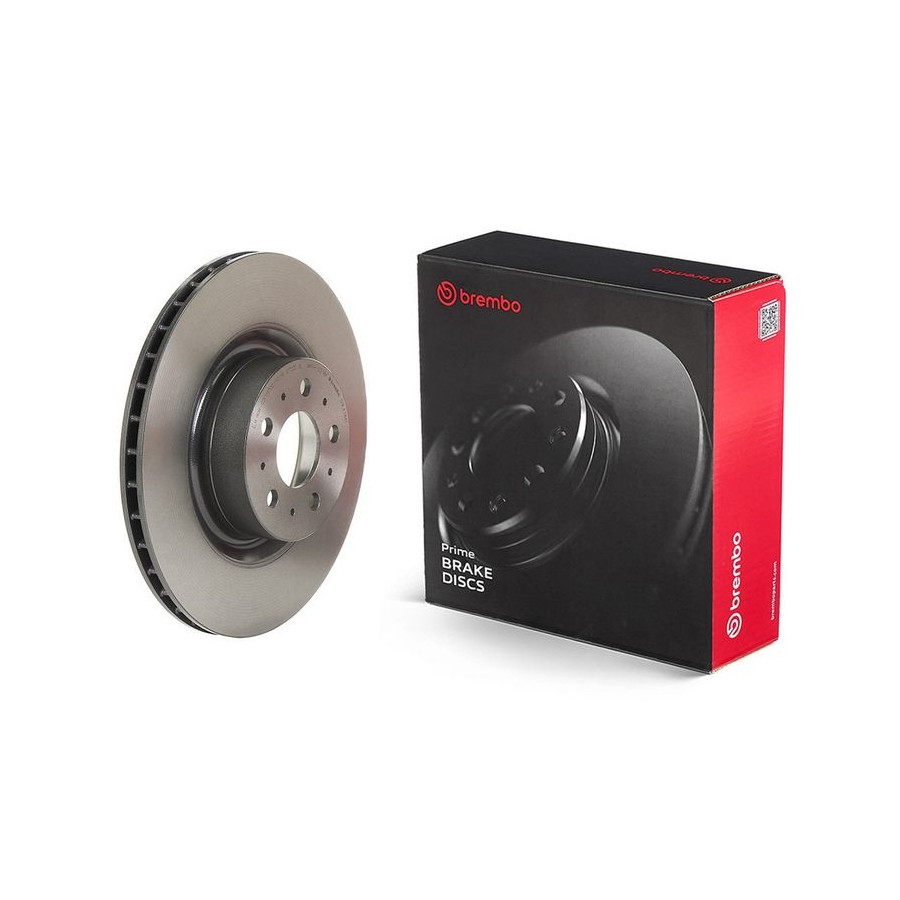

Brake disc 09.E478.41 Brembo
Product number: 1765452
Manufacturer number: 09.E478.41
EAN: 8020584318904
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

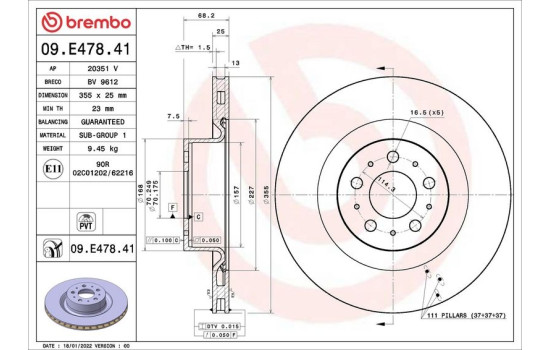

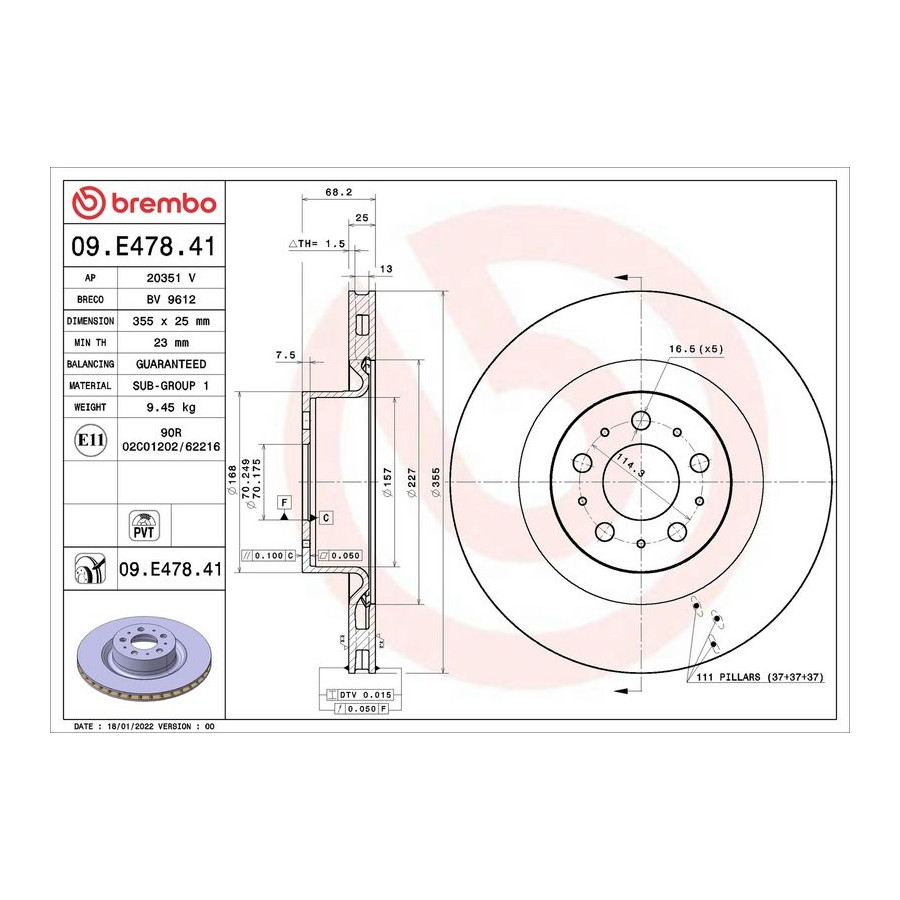

Outer diameter [mm] 355 Fitting Position Front Axle Brake Disc Type Internal ventilation Surface Coated Number of Holes 5 Brake pads Exclusive Centering Diameter [mm] 70 Warranty 2 years Height [mm] 68 Brake disc thickness (mm) 25 Minimum thickness (mm) 23 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 19070 BREMBO 09.E478.41 (this product) BREMSI CD6308V CAR 142.2308 Manufacturer Manufacturer number Price EUROBRAKE 58153166012 MAGNETI MARELLI 360406212201 NK 3166012 TRISCAN 8120 81010C -
Applicability
TESLA MODEL Y MODEL Y | 03.2019-01.2025 EV - ccm, 261pk, 192kw - 3D1, 3D6 MODEL Y | 03.2019-01.2025 EV - ccm, 347pk, 255kw - 3D6 MODEL Y | 03.2019-01.2025 EV - 0ccm, 299pk, 220kw - 3D6, 3D7 MODEL Y | 03.2019-01.2025 EV All-wheel Drive - ccm, 351pk, 258kw - 3D3, 3D5, 3D7 MODEL Y | 03.2019-01.2025 EV All-wheel Drive - 0ccm, 450pk, 331kw - 3D3, 3D7 MODEL Y | 03.2019-01.2025 EV Performance All-wheel Drive - ccm, 462pk, 340kw - 3D3, 3D1, 3D6 MODEL Y | 03.2019-01.2025 EV Rear-Wheel Drive - 0ccm, 299pk, 220kw - 4D1 MODEL Y | 03.2019-01.2025 Long Range All-wheel Drive - ccm, 514pk, 378kw - 3D3, 4D1 MODEL Y | 03.2019-01.2025 Long Range All-wheel Drive - 0ccm, 514pk, 378kw - 3D3, 4D3 MODEL Y | 03.2019-01.2025 Long Range Rear-Wheel Drive - 0ccm, 347pk, 255kw - 4D3 -
Original part numbers
118861200D TESLA -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
