ATE

Brake Disc 24.0122-0297.1 ATE

Brake Disc 24.0122-0297.1 ATE Brake Disc 24.0122-0297.1 ATE, Image 2

Product number: 1146449

Manufacturer number: 24.0122-0297.1

EAN: 4006633429825

£ 85.76

Incl. VAT
View product specifications
In stock
Delivery 12-02-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

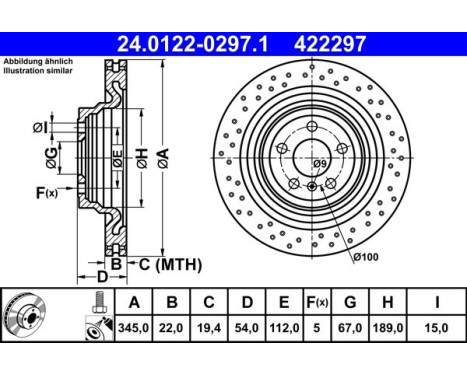

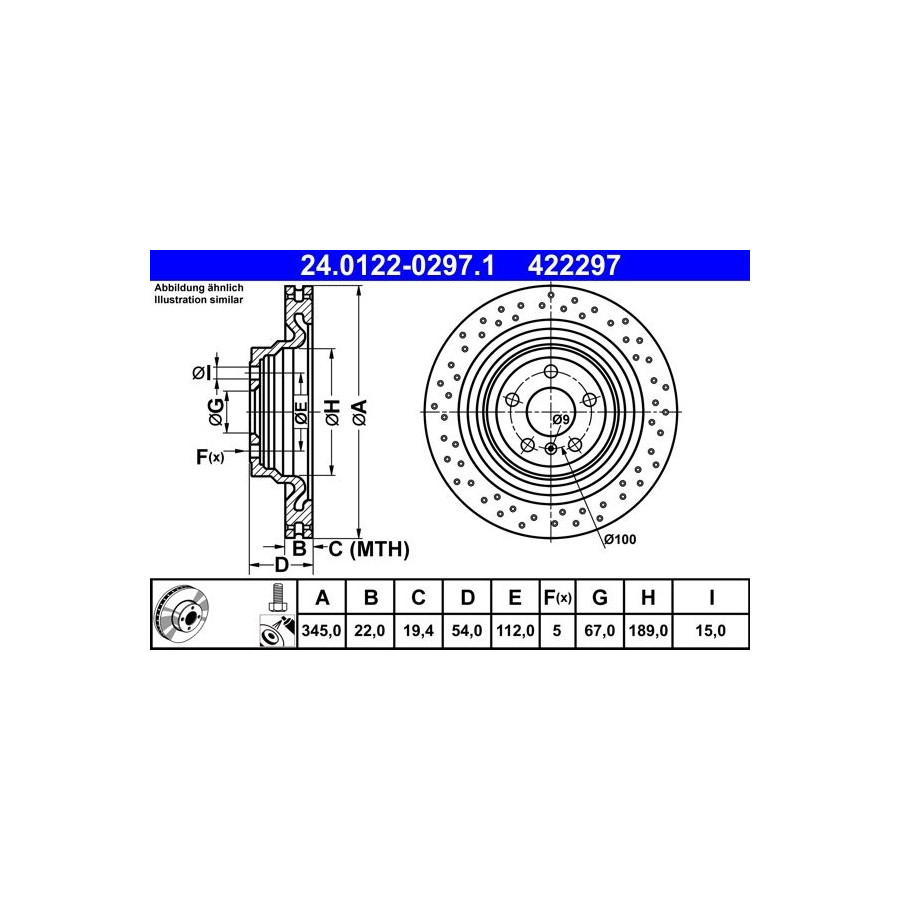

  • Specifications

    Outer diameter [mm]345,0
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]189,0
    Bolt Hole Circle Ø [mm]112,0
    Brake Disc TypePerforated/internal ventilation
    Centering Diameter [mm]67,0
    MachiningAlloyed / High-carbon
    MAPP code available
    Warranty2 years
    Height [mm]54,0
    Additional informationWith screws
    Brake disc thickness (mm)22,0
    Minimum thickness (mm)19,4
    Hole diameter [mm]15,0

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18255
    £ 65.73
    ABE C3M119ABE
    AP 25305 V
    ASHIKA 61-00-0520C
    ATE 24.0122-0297.1 (this product)
    BELACO BDS1987
    BLUE PRINT ADU174385
    £ 53.46
    BORG & BECK BBD6139S
    BOSCH 0 986 479 D62
    £ 61.29
    BRECO BV 8915
    BREMBO 09.A961.21
    £ 70.67
    CAR 142.2070
    DELPHI BG5207C
    FEBI BILSTEIN 106606
    £ 52.77
    FERODO DDF2209C
    £ 67.90
    FREMAX BD-3613
    FTE 9081347
    Manufacturer Manufacturer number Price
    HELLA 8DD 355 126-281
    JAPANPARTS DP-0520C
    JAPKO 610520C
    JP GROUP 1363204700
    JURID 563017JC
    LPR M4004VR
    MAGNETI MARELLI 360406122801
    METZGER 6110969
    MINTEX MDC2778C
    NATIONAL NBD2309
    PAGID 55837NC
    SWAG 10 10 6606
    TEXTAR 92283703
    £ 79.78
    TRISCAN 8120 231050C
    TRW DF6849S
    £ 57.45
    VALEO 673428
    ZIMMERMANN 400.3688.20
    £ 72.94

  • Applicability

    MERCEDES-BENZ
    GL-CLASS
    GL-CLASS (X166) | 07.2012-10.2015 GL 350 CDI / BlueTec 4-matic (166.823, 166.824) - 2987ccm, 258pk, 190kw - OM 642.826
    GL-CLASS (X166) | 07.2012-10.2015 GL 400 4-matic (166.856) - 2996ccm, 333pk, 245kw - M 276.821
    GL-CLASS (X166) | 07.2012-10.2015 GL 500 4-matic (166.873) - 4663ccm, 435pk, 320kw - M 278.928
    M-CLASS
    M-CLASS (W166) | 06.2011-12.2015 ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) - 2143ccm, 204pk, 150kw - OM 651.960
    M-CLASS (W166) | 06.2011-12.2015 ML 350 4-matic (166.057) - 3498ccm, 306pk, 225kw - M 276.955
    M-CLASS (W166) | 06.2011-12.2015 ML 350 BlueTEC 4-matic (166.024, 166.023) - 2987ccm, 258pk, 190kw - OM 642.826, OM 642.864
    M-CLASS (W166) | 06.2011-12.2015 ML 500 4-matic (166.073) - 4663ccm, 408pk, 300kw - M 278.928

  • Original part numbers

    A 166 423 03 12 MERCEDES-BENZ
    166 423 03 12 MERCEDES-BENZ

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
