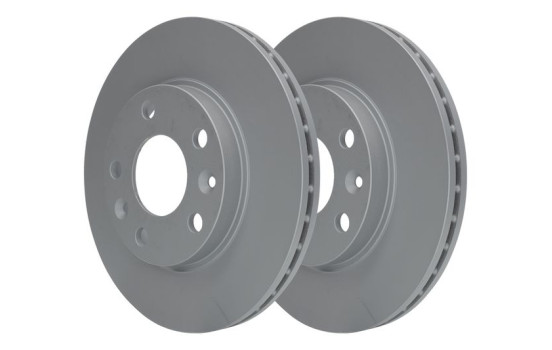

Brake Disc 24.0122-0308.1 ATE
Product number: 1423358
Manufacturer number: 24.0122-0308.1
EAN: 4006633471770
£ 61.41
Incl. VAT
In stock
Delivery 05-02-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

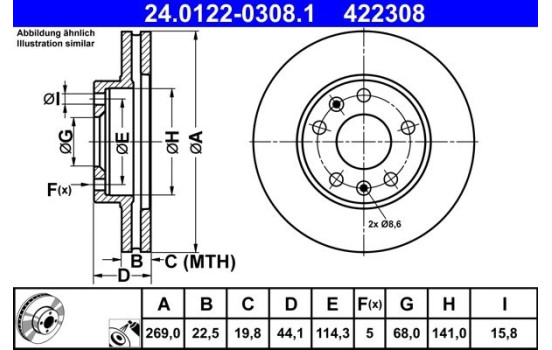

Outer diameter [mm] 269,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 141,0 Bolt Hole Circle Ø [mm] 114,3 Centering Diameter [mm] 68,0 Machining High-carbon Inspection Tag E1 90R-02C0115 / 1019 MAPP code available Warranty 2 years Height [mm] 44,1 Brake disc thickness (mm) 22,5 Minimum thickness (mm) 19,8 Hole diameter [mm] 15,8 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18161 AP 25329 V AP 25329 AP 25329 X ASHIKA 60-00-032C ASHUKI P330-281 ATE 24.0122-0308.1 (this product) BELACO BDS1240 BLUE PRINT ADR164330 BOSCH 0 986 479 F65 BRECO BV 8939 BRECO BS 8939 BREMBO 09.B463.10 BREMBO 09.B463.11 BREMBO 09.B463.1X COMLINE ADC2730V DELPHI BG4455 DON PCD13132 Dr!ve+ DP1010.11.1579 FEBI BILSTEIN 40075 FERODO DDF2078C GIRLING 6062001 HELLA 8DD 355 122-431 HERTH+BUSS JAKOPARTS J3301109 JAPANPARTS DI-032C JAPKO 60032C MAGNETI MARELLI 360406110300 Manufacturer Manufacturer number Price MAGNETI MARELLI 360406176602 MAGNETI MARELLI 361302040773 MAPCO 45035C MAXGEAR 19-2236 MAXGEAR 19-2236MAX MAXGEAR 19-2236SPORT MEYLE 16-15 521 0028 MINTEX MDC2657 MOTAQUIP LVBD1815 OPTIMAL BS-9680HC PAGID 55726NC QUARO QD5233 QUARO QD5233HC ROTINGER RT 21333-GL ROTINGER RT 21333-GL T5 ROTINGER RT 21333-GL T9 ROTINGER RT 21333 ROTINGER RT 21333-GL T6 ROTINGER RT 21333-GL T3 SKF VKBD 81052 V2 STELLOX 6020-9972K-SX STELLOX 6020-9972-SX SWAG 70 94 0075 TEXTAR 92272603 TRW DF6200 VALEO 672772 -
Applicability
RENAULT MEGANE IV MEGANE IV Grand Coupe (LVA/M/N) | 10.2016-??? 1.5 dCi 90 (LVA1) - 1461ccm, 90pk, 66kw - K9K 656 MEGANE IV Grand Coupe (LVA/M/N) | 10.2016-??? 1.6 SCe (LVM0) - 1598ccm, 115pk, 84kw - H4M 738, H4M 750, H4M 751 MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.2 TCe 100 (B9MS) - 1197ccm, 101pk, 74kw - H5F 408 MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.5 dCi 90 (B9A1) - 1461ccm, 90pk, 66kw - K9K 656 MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.6 16V - 1598ccm, 115pk, 84kw - H4M 738, H4M 748, H4M 749, H4M 750, H4M 751 -
Original part numbers
40 20 617 15R RENAULT -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
