Brake Disc ADW194339 Blue Print
No specifications available yet
Back to category
View product specifications
Secure payment

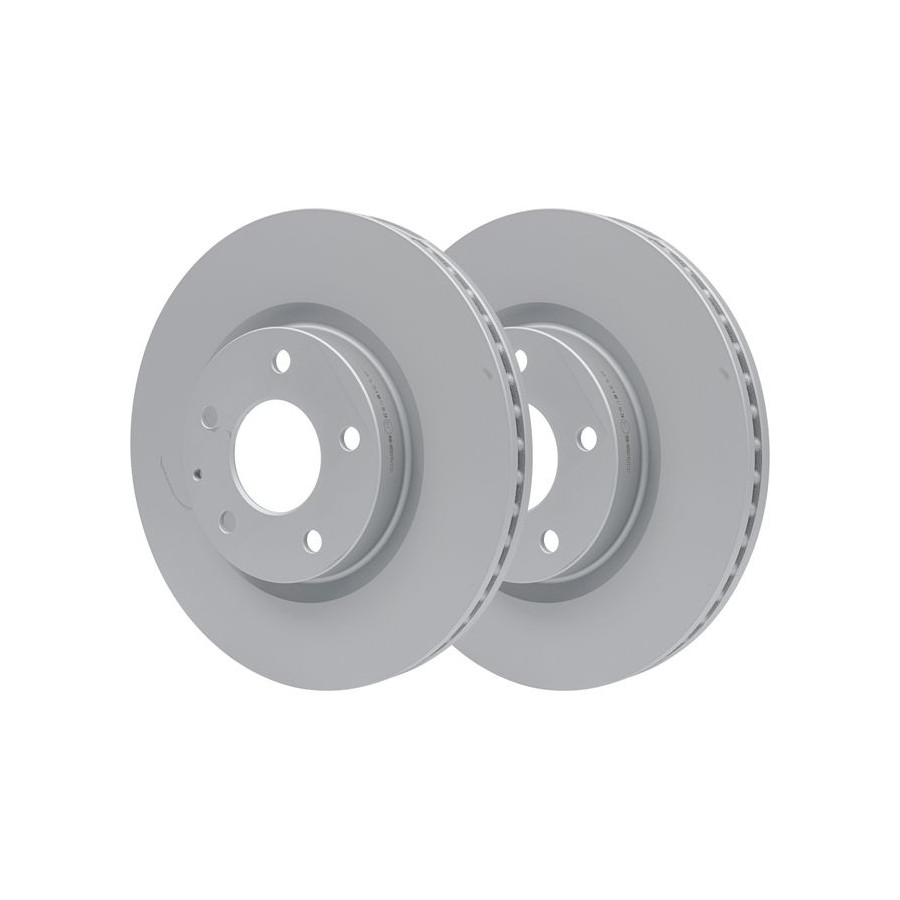

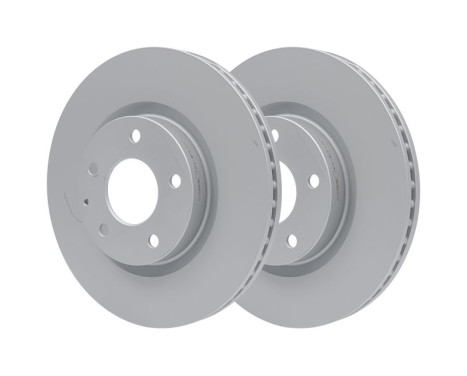

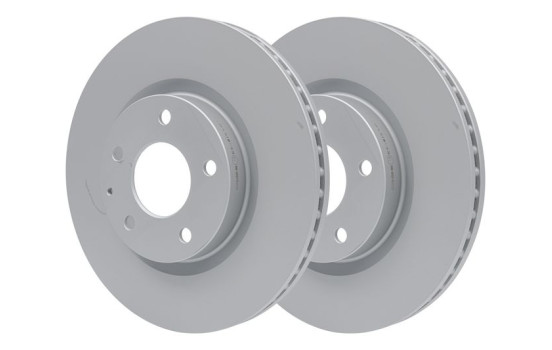

Brake disc 24.0125-0233.1 ATE
Product number: 1986494
Manufacturer number: 24.0125-0233.1
EAN: 4006633468794
£ 69.03
Incl. VAT
In stock
Delivery 13-04-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

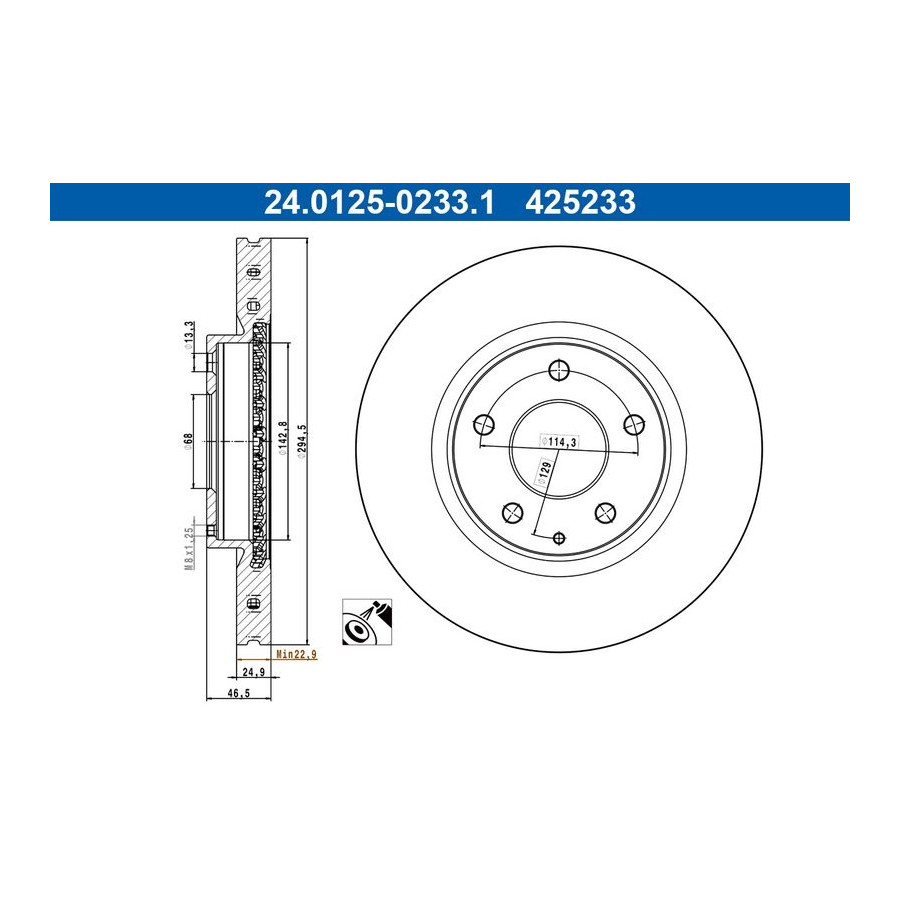

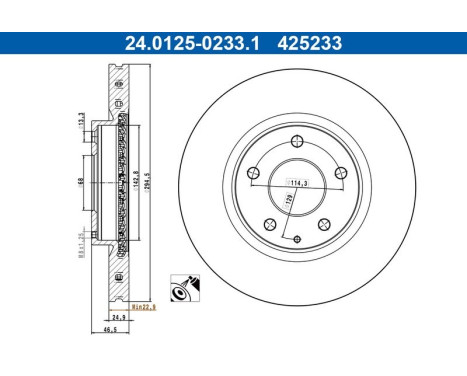

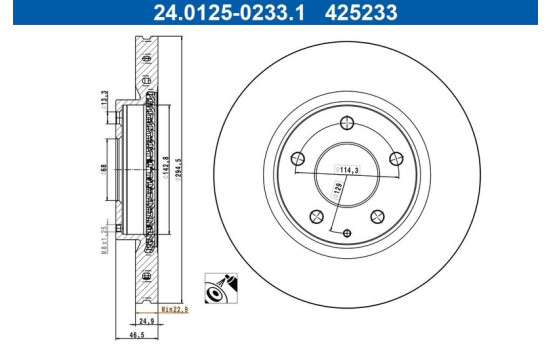

Outer diameter [mm] 294,5 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 142,8 Bolt Hole Circle Ø [mm] 114,3 Centering Diameter [mm] 68,0 Inspection Tag E1 90R-02C0115 / 1127 MAPP code available Warranty 2 years Height [mm] 46,5 Brake disc thickness (mm) 24,9 Minimum thickness (mm) 22,9 Hole diameter [mm] 13,3 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18776 ASHIKA 60-03-369C ATE 24.0125-0233.1 (this product) BELACO BDS2184 BLUE PRINT ADBP430143 BORG & BECK BBD5627 BOSCH 0 986 479 H23 CAR 142.2272 COMLINE ADC5075V COMLINE ADC5192V DELPHI BG5055C DON PCD21822 FEBI BILSTEIN 180008 -
Applicability
MAZDA 3 Hatchback 3 Hatchback (BP) | 11.2018-??? 1.5 SKYACTIV-G (BP5H, BP6H) - 1496ccm, 120pk, 88kw - P5X4 3 Hatchback (BP) | 11.2018-??? 1.8 SKYACTIV-D (BP8P) - 1759ccm, 116pk, 85kw - S8Y1 3 Hatchback (BP) | 11.2018-??? 2.0 SKYACTIV-G (BP5H, BP6H) - 1998ccm, 150pk, 110kw - PEXP, PEXN 3 Hatchback (BP) | 11.2018-??? 2.0 SKYACTIV-G M Hybrid - 1998ccm, 122pk, 90kw - PEXN 3 Hatchback (BP) | 11.2018-??? 2.0 SKYACTIV-G M Hybrid - 1998ccm, 150pk, 110kw - PEXN 3 Hatchback (BP) | 11.2018-??? 2.5 e-SKYACTIV-G (BP5H) - 2488ccm, 140pk, 103kw - PYZC 3 Hatchback (BP) | 11.2018-??? SKYACTIV-X M Hybrid - 1998ccm, 186pk, 137kw - HFY7 3 Hatchback (BP) | 11.2018-??? SKYACTIV-X M Hybrid (BP2H) - 1998ccm, 179pk, 132kw - HFY1 3 Hatchback (BP) | 11.2018-??? SKYACTIV-X M Hybrid AWD - 1998ccm, 186pk, 137kw - HFY7 3 Hatchback (BP) | 11.2018-??? SKYACTIV-X M Hybrid AWD (BP2H) - 1998ccm, 179pk, 132kw - HFY1 3 Saloon 3 Saloon (BP_) | 11.2018-??? 1.5 SKYACTIV-G (BP5S, BP6S) - 1496ccm, 120pk, 88kw - P5X4 3 Saloon (BP_) | 11.2018-??? 1.8 SKYACTIV-D (BP8P) - 1759ccm, 116pk, 85kw - S8Y1, S8Y2 3 Saloon (BP_) | 11.2018-??? 2.0 SKYACTIV-G M Hybrid - 1998ccm, 122pk, 90kw - PEXN 3 Saloon (BP_) | 11.2018-??? 2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) - 1998ccm, 150pk, 110kw - PEXN 3 Saloon (BP_) | 11.2018-??? 2.0 SKYACTIV-X M Hybrid - 1998ccm, 186pk, 137kw - HFY7 3 Saloon (BP_) | 11.2018-??? 2.0 SKYACTIV-X M Hybrid (BP2S) - 1998ccm, 179pk, 132kw - HFY1 3 Saloon (BP_) | 11.2018-??? 2.5 e-SKYACTIV-G (BP5S) - 2488ccm, 140pk, 103kw - PYZC CX-30 CX-30 (DM, DT, ED) | 07.2019-??? 1.8 SKYACTIV-D - 1759ccm, 116pk, 85kw - S8Y1 CX-30 (DM, DT, ED) | 07.2019-??? 1.8 SKYACTIV-D AWD - 1759ccm, 116pk, 85kw - S8Y1 CX-30 (DM, DT, ED) | 07.2019-??? 2.5 e-SKYACTIV-G (ED5W) - 2488ccm, 140pk, 103kw - PYZC, PXY5 CX-30 (DM, DT, ED) | 07.2019-??? e-SKYACTIV-X M Hybrid - 1998ccm, 186pk, 137kw - HFY7 CX-30 (DM, DT, ED) | 07.2019-??? e-SKYACTIV-X M Hybrid AWD - 1998ccm, 186pk, 137kw - HFY7 CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-G M Hybrid - 1998ccm, 122pk, 90kw - PEXN CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-G M Hybrid (DM5W, DM6W) - 1998ccm, 150pk, 110kw - PEXW CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-G M Hybrid AWD - 1998ccm, 122pk, 90kw - PEXN CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-G M Hybrid AWD (DMEW, DMFW) - 1998ccm, 150pk, 110kw - PEXW CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-X M Hybrid (DMFP) - 1998ccm, 179pk, 132kw - HFY1 CX-30 (DM, DT, ED) | 07.2019-??? SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) - 1998ccm, 179pk, 132kw - HFY1 -
Original part numbers
BEET-33-251 MAZDA BDWK-33-251 MAZDA -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
