ATE

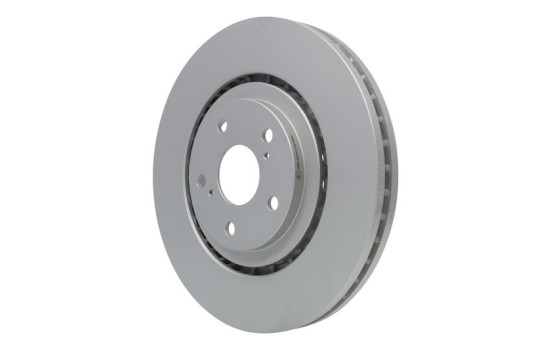

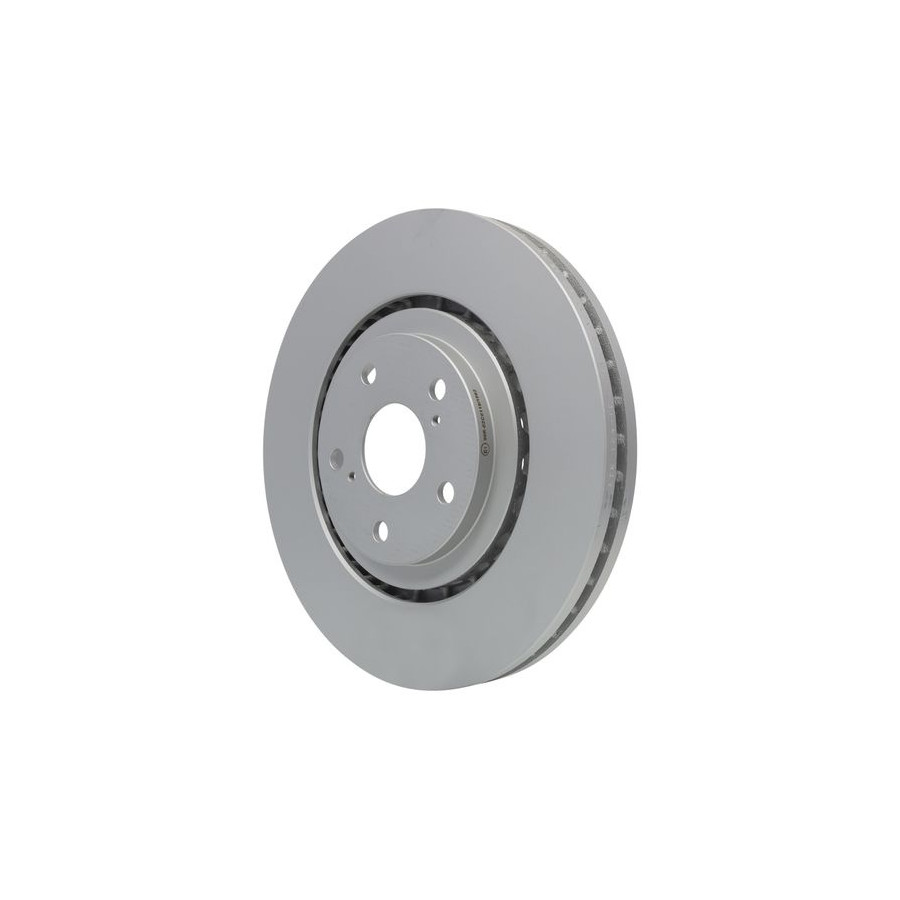

Brake Disc 24.0134-0104.1 ATE

Brake Disc 24.0134-0104.1 ATE Brake Disc 24.0134-0104.1 ATE, Image 2

Product number: 0767006

Manufacturer number: 24.0134-0104.1

EAN: 4006633417532

£ 58.52

Incl. VAT
View product specifications
In stock
Delivery 18-06-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

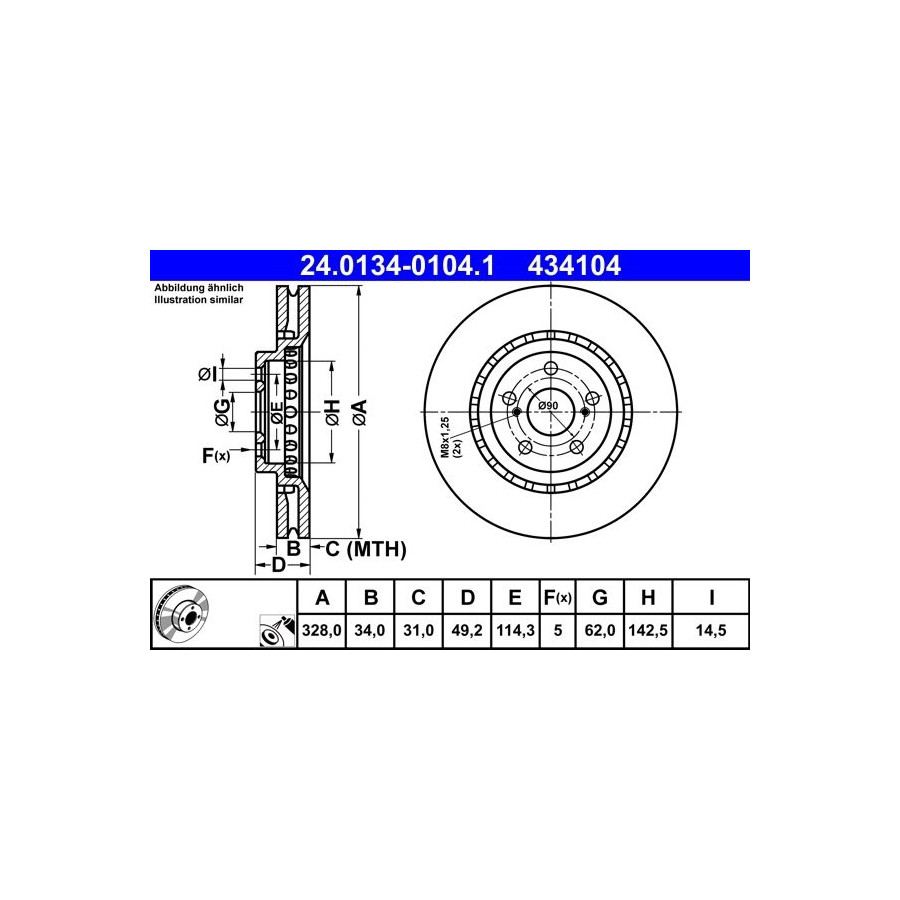

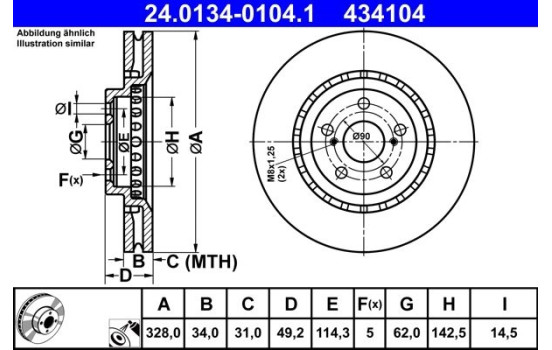

  • Specifications

    Outer diameter [mm]328,0
    Brake Disc TypeVented
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]142,5
    Bolt Hole Circle Ø [mm]114,3
    Centering Diameter [mm]62,0
    Inspection TagE1 90R-02C0118 / 1062
    MAPP code available
    Warranty2 years
    Height [mm]49,2
    Brake disc thickness (mm)34,0
    Minimum thickness (mm)31,0
    Hole diameter [mm]14,5

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18681
    £ 80.06
    AP 20419 V
    ASHIKA 60-02-2048C
    ATE 24.0134-0104.1 (this product)
    BLUE PRINT ADT343289
    £ 57.52
    BORG & BECK BBD6000S
    BRECO BV 9679
    BREMBO 09.E835.11
    £ 69.71
    BREMSI CD6633V
    Burig B011340
    DELPHI BG9219C
    DJ PARTS BD2677
    FEBI BILSTEIN 108442
    £ 56.41
    FERODO DDF3307C
    HERTH+BUSS JAKOPARTS J3302188
    JAPANPARTS DI-2048C
    £ 51.22
    JAPKO 602048C
    KAMOKA 103453
    Manufacturer Manufacturer number Price
    KAVO PARTS BR-9522-C
    £ 51.31
    MAXGEAR 19-4684
    MAXGEAR 19-4684SPORT
    NATIONAL NBD2176
    NPS T330A178
    QUARO QD1112
    ROTINGER RT 21832-GL
    ROTINGER RT 21832
    ROTINGER RT 21832-GL T6
    ROTINGER RT 21832-GL T3
    ROTINGER RT 21832-GL T9
    ROTINGER RT 21832-GL T5
    STELLOX 6020-1935V-SX
    SWAG 33 10 5632
    VALEO 673710
    ZIMMERMANN 590.2844.52
    ZIMMERMANN 590.2844.20
    £ 64.94
    ZentParts Z06379

  • Applicability

    LEXUS
    RX
    RX (_L1_) | 12.2008-09.2015 350 AWD (GGL15_, GGL15R) - 3456ccm, 277pk, 204kw - 2GR-FE, 2GR-FXE
    RX (_L1_) | 12.2008-09.2015 450h (GYL10, GYL10_, GYL10R) - 3456ccm, 299pk, 220kw - 2GR-FXE
    RX (_L1_) | 12.2008-09.2015 450h AWD (GYL15, GYL15_, GYL15R, GYL16W) - 3456ccm, 299pk, 220kw - 2GR-FXE

  • Original part numbers

    43512-48120 LEXUS

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
