Delphi

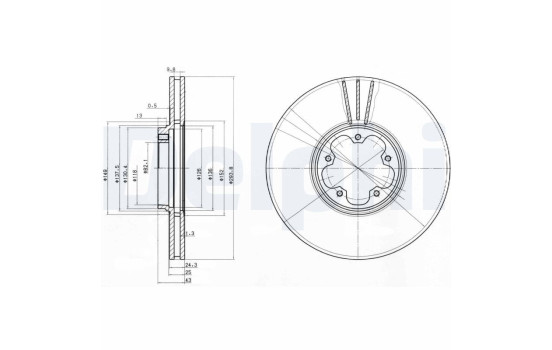

Brake Disc BG3504 Delphi

Brake Disc BG3504 Delphi

Product number: 1286183

Manufacturer number: BG3504

EAN: 5012759140406

£ 32.54

Incl. VAT
View product specifications
In stock
Delivery 29-05-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]294
    Fitting PositionFront Axle
    Brake Disc TypeVented
    SurfaceNo coating
    Oiled
    Number of Holes5
    Brake padsExclusive
    Centering Diameter [mm]82,1
    Inspection TagE1 90R-02C0957/2544
    Warranty2 years
    Height [mm]43
    Additional informationWithout ABS sensor ring
    Brake disc thickness (mm)24,5
    Minimum thickness (mm)22,1

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17115
    £ 29.14
    AP 24806 E
    ASHIKA 60-00-0330C
    ASHIKA 60-00-0330
    ATE 24.0124-0168.1
    £ 50.03
    BELACO BDS1308
    BLUE PRINT ADF124341
    £ 31.14
    BORG & BECK BBD4221
    BOSCH 0 986 478 303
    £ 34.37
    BOSCH 0 986 479 B29
    BRAXIS AE0080
    BRECO BS 8430
    BREMBO 09.8837.14
    £ 36.49
    BREMSI CD7112V
    BSG BSG 30-210-005
    CAR HPD 228
    CAR 142.228
    CASALS 55256
    CHAMPION 562140CH
    CIFAM 800-702
    COMLINE ADC1213V
    DELPHI BG3504 (this product)
    DENCKERMANN B130153
    DON PCD18072
    DT Spare Parts 13.31002
    Dr!ve+ DP1010.11.0764
    EUROBRAKE 5815202544
    FAST FT31157
    FEBI BILSTEIN 19515
    £ 30.47
    FERODO DDF1112C
    FERODO DDF1112
    £ 43.49
    FI.BA FBD260
    FREMAX BD-5613
    GALFER B1.G224-0168.1
    GIRLING 6042171
    HELLA 8DD 355 127-541
    HELLA 8DD 355 107-311
    HELLA PAGID 8DD 355 127-541
    HELLA PAGID 8DD 355 107-311
    JAPANPARTS DI-0330
    JAPANPARTS DI-0330C
    JAPANPARTS DI0330JM
    JAPKO 600330
    JAPKO 600330C
    JURATEK FOR109
    JURID 562140JC
    KAMOKA 1032224
    KEY PARTS KBD4221
    KRAFT AUTOMOTIVE 6042350
    Manufacturer Manufacturer number Price
    LPR F1002V
    LYNXauto BN-1474
    MAGNETI MARELLI 360406026300
    MAGNETI MARELLI 361302040170
    MAPCO 15819
    MASTER-SPORT 24012401681-PCS-MS
    MASTER-SPORT 24012401681-SET-MSP
    MASTER-SPORT 24012401681-PCS-MSP
    MASTER-SPORT 24012401681-SET-MS
    MAXGEAR 19-0841
    £ 29.78
    MAXGEAR 19-0841SPORT
    MAXGEAR 19-0841MAX
    £ 27.16
    MAXTECH 827027
    METELLI 23-0702
    METZGER 6110405
    MEYLE 715 521 7021
    £ 38.37
    MEYLE 783 521 7021/PD
    £ 38.93
    MINTEX MDC1082C
    MINTEX MDC1082
    MOTAQUIP LVBE221Z
    NATIONAL NBD994
    NK 202544
    OPEN PARTS BDA1946.20
    OPTIMAL BS-6040
    OPTIMAL BS-6040HC
    PILENGA V252
    PROTECHNIC PRD2602
    QUARO QD4053
    QUINTON HAZELL BDC5214
    RAICAM RD00254
    ROTINGER RT 2711-GL T5
    ROTINGER RT 2711-GL T6
    ROTINGER RT 2711-GL T3
    ROTINGER RT 2711-GL T9
    ROTINGER RT 2711
    ROTINGER RT 2711-GL
    SASIC 9004827J
    SKF VKBD 80279 V2
    STELLOX 6020-2544VK-SX
    STELLOX 6020-2544V-SX
    SWAG 50 91 9515
    TEXTAR 92103803
    £ 48.77
    TOPRAN 302 087
    TRUSTING DF810
    TRW DF4217
    £ 34.14
    VAICO V25-80015
    VALEO 186710
    ZIMMERMANN 250.1349.20
    £ 38.54

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 100pk, 74kw - ABFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.3 16V RWD (F_B_, F_C_, F_A_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI (F_B_, F_C_, F_A_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_, F_A_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE (F_C_, F_B_, F_A_) - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 TDCi (F_E_, F_F_) - 1998ccm, 125pk, 92kw - FIFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 16V (F_A_, F_B_, F_C_, F_D_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 90pk, 66kw - D2FA, D2FB, D2FE
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 75pk, 55kw - D3FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 86pk, 63kw - F3FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 TDCi - 1998ccm, 125pk, 92kw - FIFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 16V RWD (FAA_, FAB_, FAC_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TD - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA

  • Original part numbers

    YC1W1125BA FORD
    1520373 FORD
    YC1J1125B2B FORD
    YC1W1125B1A FORD
    YC1W1125B1B FORD
    1568640 FORD
    4041428 FORD
    1738815 FORD
    1387781 FORD
    2C161125AA FORD
    4494021 FORD
    YC1W1125BB FORD

  • Manufacturer

    Delphi

    Delphi has over 50 years of experience in OE supply, designing, developing and manufacturing a wide range of components for automotive manufacturers on a global basis.


    Present in more than 150 countries and a global network of more than 2,750 service centers, Delphi Technologies provides aftermarket end-to-end solutions with OE specifications, from parts to advanced software solutions.


    With a broad portfolio of gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, supported by OE level diagnostic and testing equipment, training and technical information, Delphi Technologies enables you to service and repair vehicles at the right time .
