Zimmermann

Brake Disc BLACK Z 400.3663.53 Zimmermann

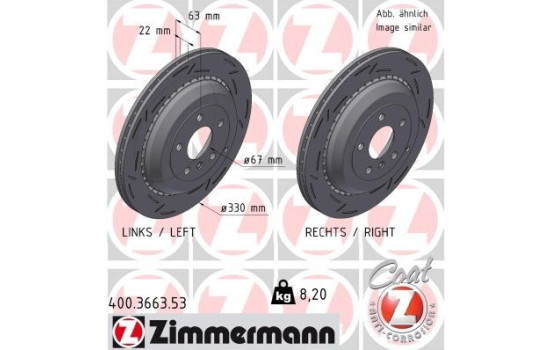

Brake Disc BLACK Z 400.3663.53 Zimmermann Brake Disc BLACK Z 400.3663.53 Zimmermann, Image 2

Product number: 0848297

Manufacturer number: 400.3663.53

EAN: 4250238777922

£ 120.86

Incl. VAT
View product specifications
In stock
Delivery 24-01-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your car a sportier performance and a sportier appearance with the Zimmermann Black Z brake discs.

    These brake discs feature a patented grooved brake disc design, derived directly from racing experience. The grooved design ensures improved water and dirt drainage and prevents brake fade. These brake discs are also ideal for colder and wet conditions.

    Grooved design:

    • Grooves for better gas drainage
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less brake fading
    • Even wear pattern on brake pads

    Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.


    The article is delivered in sets (2pcs)
    (1x right / 1x left side).
    Outer diameter [mm]330
    Fitting PositionRear Axle
    Rim Hole Number5
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]112
    Brake Disc TypeVentilated outside
    Notched
    Centering Diameter [mm]67
    Hole Arrangement / Number7/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Directional
    Warranty2 years
    Height [mm]63
    Brake disc thickness (mm)22
    Minimum thickness (mm)19,4
    Weight [kg]8,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17785
    £ 49.67
    AP 25275 V
    BELACO BDS1459
    BLUE PRINT ADU174373
    £ 40.85
    BOSCH 0 986 479 285
    £ 57.62
    BRECO BV 8885
    BREMBO 09.R124.21
    £ 54.43
    BREMSI CD7531V
    CAR 142.2057
    DELPHI BG4030
    Dr!ve+ DP1010.11.1377
    FEBI BILSTEIN 24748
    £ 41.64
    FERODO DDF1531C
    £ 83.46
    HELLA 8DD 355 113-231
    HELLA 8DD 355 128-611
    JURID 562326JC
    MAGNETI MARELLI 360406113601
    Manufacturer Manufacturer number Price
    METZGER 6110696
    MINTEX MDC2065
    PAGID 54509NC
    QUARO QD3021
    ROTINGER RT 20398-GL T6
    ROTINGER RT 20398
    ROTINGER RT 20398-GL T3
    ROTINGER RT 20398-GL T5
    ROTINGER RT 20398-GL T9
    ROTINGER RT 20398-GL
    STELLOX 6020-1456-SX
    SWAG 10 92 4748
    TEXTAR 92150903
    £ 62.48
    VALEO 197633
    ZIMMERMANN 400.3663.52
    £ 86.26
    ZIMMERMANN 400.3663.20
    £ 59.43
    ZIMMERMANN 400.3663.53 (this product)

  • Applicability

    MERCEDES-BENZ
    GL-CLASS
    GL-CLASS (X164) | 09.2006-12.2012 GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) - 2987ccm, 211pk, 155kw - OM 642.820
    GL-CLASS (X164) | 09.2006-12.2012 GL 320 CDI 4-matic (164.822) - 2987ccm, 224pk, 165kw - OM 642.940
    GL-CLASS (X164) | 09.2006-12.2012 GL 350 CDI 4-matic (164.822) - 2987ccm, 224pk, 165kw - OM 642.940
    GL-CLASS (X164) | 09.2006-12.2012 GL 350 CDI 4-matic (164.823) - 2987ccm, 265pk, 195kw - OM 642.822
    GL-CLASS (X164) | 09.2006-12.2012 GL 420 CDI 4-matic (164.828) - 3996ccm, 306pk, 225kw - OM 629.912
    GL-CLASS (X164) | 09.2006-12.2012 GL 450 4-matic (164.871) - 4663ccm, 340pk, 250kw - M 273.923
    GL-CLASS (X164) | 09.2006-12.2012 GL 450 CDI 4-matic (164.828) - 3996ccm, 306pk, 225kw - OM 629.912
    GL-CLASS (X164) | 09.2006-12.2012 GL 500 4-matic (164.886) - 5461ccm, 388pk, 285kw - M 273.963
    M-CLASS
    M-CLASS (W164) | 02.2005-12.2011 ML 280 CDI 4-matic (164.120) - 2987ccm, 190pk, 140kw - OM 642.940
    M-CLASS (W164) | 02.2005-12.2011 ML 320 CDI 4-matic (164.122) - 2987ccm, 224pk, 165kw - OM 642.940
    M-CLASS (W164) | 02.2005-12.2011 ML 350 4-matic (164.186) - 3498ccm, 272pk, 200kw - M 272.967
    M-CLASS (W164) | 02.2005-12.2011 ML 420 CDI 4-matic (164.128) - 3996ccm, 306pk, 225kw - OM 629.912
    M-CLASS (W164) | 02.2005-12.2011 ML 450 CDI 4-matic (164.128) - 3996ccm, 306pk, 225kw - OM 629.912
    M-CLASS (W164) | 02.2005-12.2011 ML 500 4-matic (164.172) - 5461ccm, 388pk, 285kw - M 273.963
    M-CLASS (W164) | 02.2005-12.2011 ML 500 4-matic (164.175) - 4966ccm, 306pk, 225kw - M 113.964
    R-CLASS
    R-CLASS (W251, V251) | 07.2005-12.2014 R 280 (251.054, 251.154) - 2996ccm, 231pk, 170kw - M 272.945
    R-CLASS (W251, V251) | 07.2005-12.2014 R 280 CDI (251.121, 251.026, 251.126) - 2987ccm, 190pk, 140kw - OM 642.872, OM 642.950, OM 642.870
    R-CLASS (W251, V251) | 07.2005-12.2014 R 280 CDI 4-matic (251.020) - 2987ccm, 190pk, 140kw - OM 642.950
    R-CLASS (W251, V251) | 07.2005-12.2014 R 300 (251.054, 251.154) - 2996ccm, 231pk, 170kw - M 272.945
    R-CLASS (W251, V251) | 07.2005-12.2014 R 300 CDI (251.021, 251.121, 251.026, 251.126) - 2987ccm, 190pk, 140kw - OM 642.872, OM 642.950, OM 642.870
    R-CLASS (W251, V251) | 07.2005-12.2014 R 300 CDI 4-matic (251.020) - 2987ccm, 190pk, 140kw - OM 642.950
    R-CLASS (W251, V251) | 07.2005-12.2014 R 320 CDI 4-matic (251.022, 251.122) - 2987ccm, 224pk, 165kw - OM 642.950
    R-CLASS (W251, V251) | 07.2005-12.2014 R 320 CDI 4-matic (251.125) - 2987ccm, 211pk, 155kw - OM 642.950, OM 642.870
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 (251.056, 251.156) - 3498ccm, 272pk, 200kw - M 272.967
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 4-matic (251.065, 251.165) - 3498ccm, 272pk, 200kw - M 272.967
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 CDI 4-matic (251.022, 251.122) - 2987ccm, 224pk, 165kw - OM 642.950
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 CDI 4-matic (251.023, 251.123) - 2987ccm, 265pk, 195kw - OM 642.872
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 CDI 4-matic (251.124, 251.125) - 2987ccm, 211pk, 155kw - OM 642.950, OM 642.870
    R-CLASS (W251, V251) | 07.2005-12.2014 R 350 CGI 4-matic (251.057, 251.157) - 3498ccm, 306pk, 225kw - M 276.958
    R-CLASS (W251, V251) | 07.2005-12.2014 R 500 4-matic (251.072, 251.172) - 5461ccm, 388pk, 285kw - M 273.963
    R-CLASS (W251, V251) | 07.2005-12.2014 R 500 4-matic (251.075, 251.175) - 4966ccm, 306pk, 225kw - M 113.971

  • Original part numbers

    164 423 0612 MERCEDES-BENZ
    164 423 1112 MERCEDES-BENZ
    164 423 1312 MERCEDES-BENZ
    A 164 423 1312 MERCEDES-BENZ
    A 164 423 0612 MERCEDES-BENZ
    A 164 423 1112 MERCEDES-BENZ

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
