Zimmermann

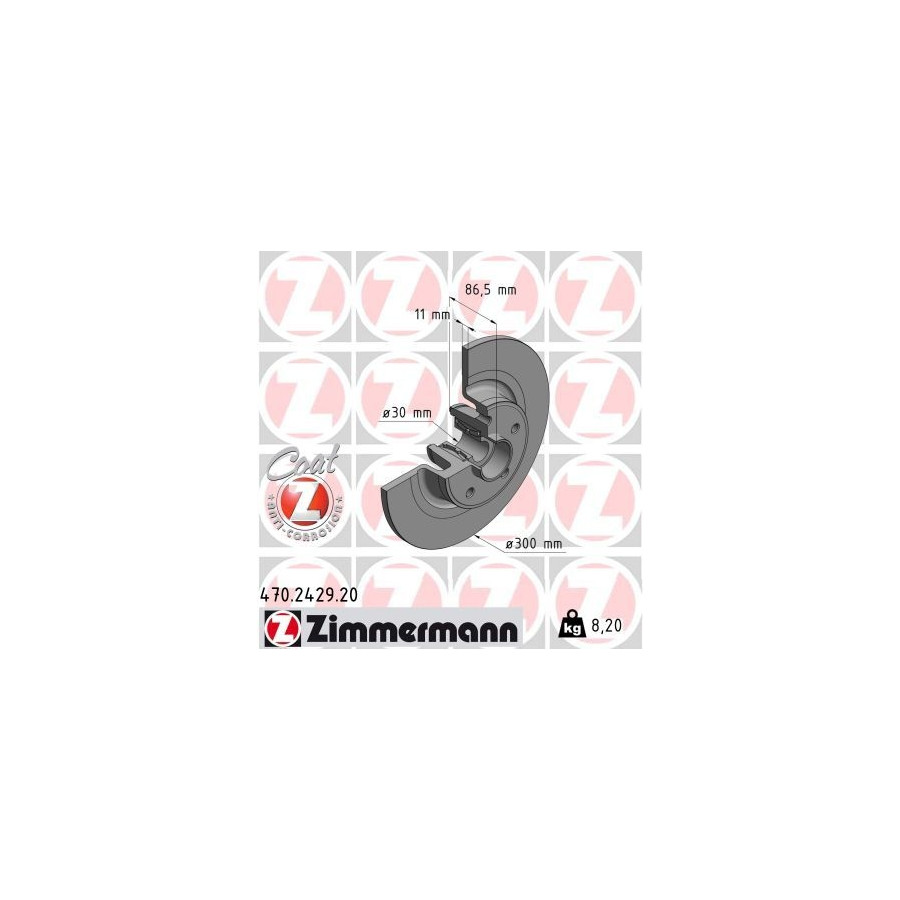

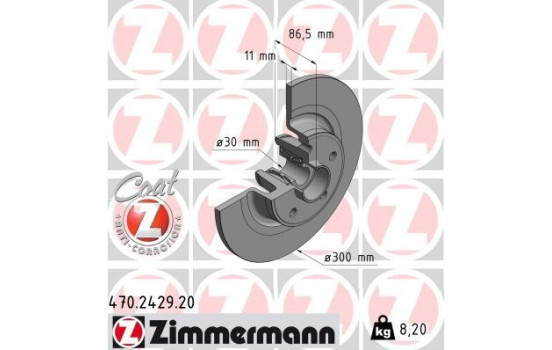

Brake disc COAT Z 470.2429.20 Zimmermann

Brake disc COAT Z 470.2429.20 Zimmermann

Product number: 2137243

Manufacturer number: 470.2429.20

EAN: 4250238720782

£ 102.37

Incl. VAT
View product specifications
In stock
Delivery 26-06-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]300
    Fitting PositionRear Axle
    Rim Hole Number5
    Brake Disc TypeSolid
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Centering Diameter [mm]52
    Hole Arrangement / Number5/5
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Axle Stub Diameter [mm]30
    Height [mm]86
    Additional informationWith wheel bearing
    With ABS sensor ring
    Brake disc thickness (mm)11
    Minimum thickness (mm)9,5
    Weight [kg]8,2
    Hole diameter for wheel bolt [inch]14

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17451
    BELACO BDS1383
    BLUE PRINT ADR164336
    £ 55.14
    Burig B010358
    CIFAM 800-1396
    DACO 603027
    DACO 603025
    DAVID VASCO T4413
    DELPHI BG3686
    Dr!ve+ DP1010.11.1675
    FEBI BILSTEIN 44018
    £ 54.43
    Manufacturer Manufacturer number Price
    FERODO DDF1654-1
    £ 120.59
    HELLA 8DD 355 123-321
    £ 69.72
    METELLI 23-1396
    MINTEX MDC1889
    MJA MB101078
    NATIONAL NBD1644
    QUARO QD7845
    £ 70.95
    SWAG 60 94 4018
    £ 64.69
    TEXTAR 92159803
    £ 84.61
    TRUSTING DF1142A
    ZIMMERMANN 470.2429.20 (this product)

  • Applicability

    RENAULT
    ESPACE Mk
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 1.9 dCi (JK0U) - 1870ccm, 116pk, 85kw - F9Q 820
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 1.9 dCi (JK0U, JK0G) - 1870ccm, 120pk, 88kw - F9Q 680, F9Q 820, F9Q 826
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 (JK09) - 1998ccm, 136pk, 100kw - F4R 792
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 (JK0A, JK1D, JK0N) - 1998ccm, 170pk, 125kw - F4R 796, F4R 797, F4R 896, F4R 897
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 (JK0K) - 1998ccm, 133pk, 98kw - F4R 790
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 dCi (JK01, JK02, JK1J, JK1K, JK1H) - 1995ccm, 150pk, 110kw - M9R 740, M9R 750, M9R 815, M9R 814, M9R 858
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 dCi (JK02, JK03) - 1995ccm, 131pk, 96kw - M9R 740, M9R 760, M9R 750, M9R 761, M9R 762, M9R 763
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) - 1995ccm, 173pk, 127kw - M9R 760, M9R 815, M9R 761, M9R 762, M9R 763, M9R 812, M9R 859
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.0 Turbo (JK0A, JK0B, JK0N) - 1998ccm, 163pk, 120kw - F4R 794, F4R 795, F4R 796, F4R 797
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.2 dCi (JK07) - 2188ccm, 139pk, 102kw - G9T 645
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 2.2 dCi (JK0H) - 2188ccm, 150pk, 110kw - G9T 742, G9T 743
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 3.0 dCi - 2958ccm, 163pk, 120kw - P9X 701, P9X 715
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 3.0 dCi (JK0E, JK0Y) - 2958ccm, 181pk, 133kw - P9X 715
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 3.0 dCi (JK0J, JK0V) - 2958ccm, 177pk, 130kw - P9X 701
    ESPACE Mk IV (JK0/1_) | 11.2002-12.2015 3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W) - 3498ccm, 241pk, 177kw - V4Y 711, V4Y 715
    VEL SATIS
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.0 16 V Turbo - 1998ccm, 170pk, 125kw - F4R 766, F4R 767
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.0 16V Turbo (BJ0K) - 1998ccm, 163pk, 120kw - F4R 762, F4R 763
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.0 dCi (BJ03) - 1995ccm, 150pk, 110kw - M9R 760
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.0 dCi (BJ03, BJ0B) - 1995ccm, 173pk, 127kw - M9R 760, M9R 762, M9R 763
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.2 dCi (BJ0E, BJ0F) - 2188ccm, 150pk, 110kw - G9T 702, G9T 703
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) - 2188ccm, 140pk, 102kw - G9T 600, G9T 700, G9T 702, G9T 703, G9T 606, G9T 607
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.2 dCi (BJ0H) - 2188ccm, 116pk, 85kw - G9T 600, G9T 606, G9T 607
    VEL SATIS (BJ0_) | 06.2002-08.2009 2.2 dCi (BJ0M) - 2188ccm, 113pk, 83kw - G9T 700, G9T 702
    VEL SATIS (BJ0_) | 06.2002-08.2009 3.0 dCi (BJ0J, BJ0N) - 2958ccm, 177pk, 130kw - P9X 701
    VEL SATIS (BJ0_) | 06.2002-08.2009 3.0 dCi (BJ0S) - 2958ccm, 181pk, 133kw - P9X 715
    VEL SATIS (BJ0_) | 06.2002-08.2009 3.5 (BJ01) - 3498ccm, 231pk, 170kw - V4Y 715
    VEL SATIS (BJ0_) | 06.2002-08.2009 3.5 V6 (BJ0R, BJ0V, BJ0U) - 3498ccm, 241pk, 177kw - V4Y 701, V4Y 711, V4Y 715

  • Original part numbers

    8200 018 407 RENAULT
    8671 019 319 RENAULT
    8200 244 108 RENAULT
    4320 259 45R RENAULT
    8200 663 193 RENAULT
    4320 290 79R RENAULT
    8200 649 353 RENAULT

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
