Zimmermann

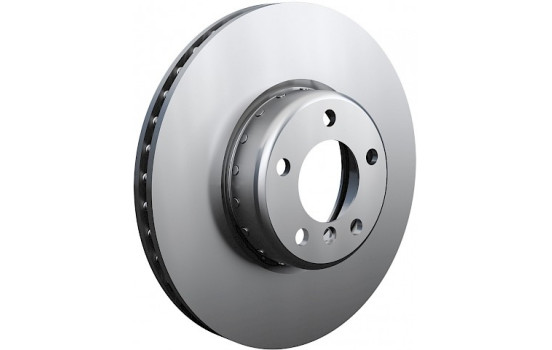

Brake Disc FORMULA F COAT Z 150.3483.32 Zimmermann

Brake Disc FORMULA F COAT Z 150.3483.32 Zimmermann Brake Disc FORMULA F COAT Z 150.3483.32 Zimmermann, Image 2

Product number: 0848388

Manufacturer number: 150.3483.32

EAN: 4250238769521

£ 133.06

Incl. VAT
View product specifications
In stock
Delivery 09-05-2024

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    These Zimmermann Formula F brake discs have been specially developed for the newer BMWs. The brake discs are made of lightweight material in combination with a protective coating.

    Specially developed:

    • Specially developed for new BMWs
    • Developed for sporting use
    • 15% lower sprung weight, so more comfort
    • Do not deform at extreme temperatures

    Key benefits:

    • Equipped with lightweight aluminum hub
    • Equipped with rust-resistant Coat Z coating
    • High carbon alloy
    • Better cooling

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

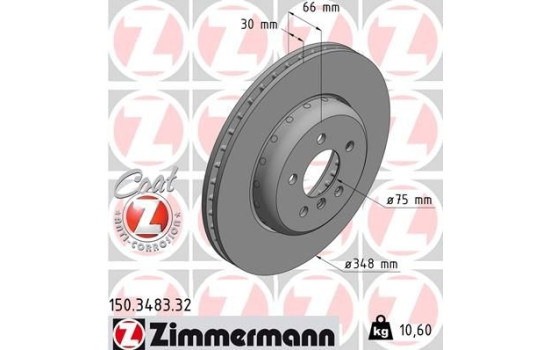

    Outer diameter [mm]348
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]120
    Brake Disc TypeTwo-piece brake disc
    QualityAlu-Topf is enjoying
    Alu hub riveted
    Centering Diameter [mm]75
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]66
    Brake disc thickness (mm)30
    Minimum thickness (mm)28,4
    Weight [kg]10,60

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18261
    £ 84.15
    AP 25519 Z
    ASAM 102139
    ASHIKA 60-00-0131C
    ATE 24.0130-0218.2
    £ 216.55
    BLUE PRINT ADB114384
    £ 68.23
    BOSCH 0 986 479 E16
    £ 169.10
    BRAXIS AE1038
    BRECO BZ 9129
    BREMBO 09.C409.13
    £ 183.64
    BREMSI CD8047V
    EUROBRAKE 58153415122
    EUROBRAKE 5815341593
    FEBI BILSTEIN 105723
    £ 78.19
    FERODO DDF2047C-1
    FTE BS7845HB
    HELLA 8DD 355 120-651
    HELLA PAGID 8DD 355 120-651
    £ 163.12
    JAPANPARTS DI-0131C
    JAPKO 600131C
    JURID 562679JC-1
    KAWE 61842 10
    LPR B2070VBR
    MAGNETI MARELLI 361302040804
    MAPCO 15004C
    MASTER-SPORT 24013002181-SET-MSP
    MASTER-SPORT 24013002181-SET-MS
    MASTER-SPORT 24013002181PR-PCS-MS
    MASTER-SPORT 24013002181-PCS-MS
    Manufacturer Manufacturer number Price
    MASTER-SPORT 24013002181PR-PCS-MSP
    MASTER-SPORT 24013002181-PCS-MSP
    MAXGEAR 19-2200
    £ 83.28
    METZGER 6110675
    MEYLE 383 521 1008/PD
    £ 104.97
    NK 3415122
    NK 341593
    QUARO QD0016HC
    ROTINGER RT 71006HP-GL
    ROTINGER RT 71006HP-GL T3
    ROTINGER RT 71006HP-GL T5
    ROTINGER RT 4557-GL T6
    ROTINGER RT 71006HP-GL T6
    ROTINGER RT 4557-GL T3
    ROTINGER RT 4557-GL
    ROTINGER RT 4557-GL T9
    ROTINGER RT 4557-GL T5
    ROTINGER RT 4557
    ROTINGER RT 71006HP-GL T9
    ROTINGER RT 71006HP
    SWAG 20 10 5723
    TEXTAR 92265725
    £ 144.11
    TOPRAN 503 161
    ZIMMERMANN 150.3483.55
    £ 139.27
    ZIMMERMANN 150.3483.20
    £ 86.04
    ZIMMERMANN 150.3483.54
    £ 122.61
    ZIMMERMANN 150.3483.52
    £ 101.21
    ZIMMERMANN 150.3483.32 (this product)

  • Applicability

    BMW
    5
    5 (F10) | 06.2009-10.2016 525 d - 1995ccm, 211pk, 155kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 525 d - 1995ccm, 218pk, 160kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 525 d - 2993ccm, 204pk, 150kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 525 d xDrive - 1995ccm, 211pk, 155kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 525 d xDrive - 1995ccm, 218pk, 160kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 528 i - 1997ccm, 245pk, 180kw - N20 B20 A
    5 (F10) | 06.2009-10.2016 528 i - 2996ccm, 258pk, 190kw - N53 B30 A
    5 (F10) | 06.2009-10.2016 528 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A
    5 (F10) | 06.2009-10.2016 530 d - 2993ccm, 245pk, 180kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d - 2993ccm, 258pk, 190kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 i - 2996ccm, 258pk, 190kw - N52 B30 A, N52 B30 BF, N52 B30 AF
    5 (F10) | 06.2009-10.2016 530 i - 2996ccm, 272pk, 200kw - N53 B30 A
    5 (F10) | 06.2009-10.2016 535 i - 2979ccm, 306pk, 225kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i - 2979ccm, 326pk, 240kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i xDrive - 2979ccm, 306pk, 225kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i xDrive - 2979ccm, 326pk, 240kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 ActiveHybrid - 2979ccm, 340pk, 250kw - N55 B30 A
    5 Touring
    5 Touring (F11) | 11.2009-02.2017 520 d - 1995ccm, 190pk, 140kw - B47 D20 A
    5 Touring (F11) | 11.2009-02.2017 525 d - 1995ccm, 211pk, 155kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d - 1995ccm, 218pk, 160kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d - 2993ccm, 204pk, 150kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 525 d xDrive - 1995ccm, 211pk, 155kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d xDrive - 1995ccm, 218pk, 160kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 528 i - 1997ccm, 245pk, 180kw - N20 B20 A
    5 Touring (F11) | 11.2009-02.2017 528 i - 2996ccm, 258pk, 190kw - N53 B30 A
    5 Touring (F11) | 11.2009-02.2017 528 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A
    5 Touring (F11) | 11.2009-02.2017 530 d - 2993ccm, 245pk, 180kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 i - 2996ccm, 272pk, 200kw - N53 B30 A
    5 Touring (F11) | 11.2009-02.2017 535 i - 2979ccm, 306pk, 225kw - N55 B30 A
    5 Touring (F11) | 11.2009-02.2017 535 i xDrive - 2979ccm, 306pk, 225kw - N55 B30 A
    6 Convertible
    6 Convertible (F12) | 12.2010-06.2018 640 i - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Convertible (F12) | 12.2010-06.2018 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Coupe
    6 Coupe (F13) | 07.2011-10.2017 640 i - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Coupe (F13) | 07.2011-10.2017 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Gran
    6 Gran Coupe (F06) | 03.2012-10.2018 640 i - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Gran Coupe (F06) | 03.2012-10.2018 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A

  • Original part numbers

    3411 6 775 277 BMW
    3411 6 884 301 BMW
    3410 6 898 723 BMW

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
