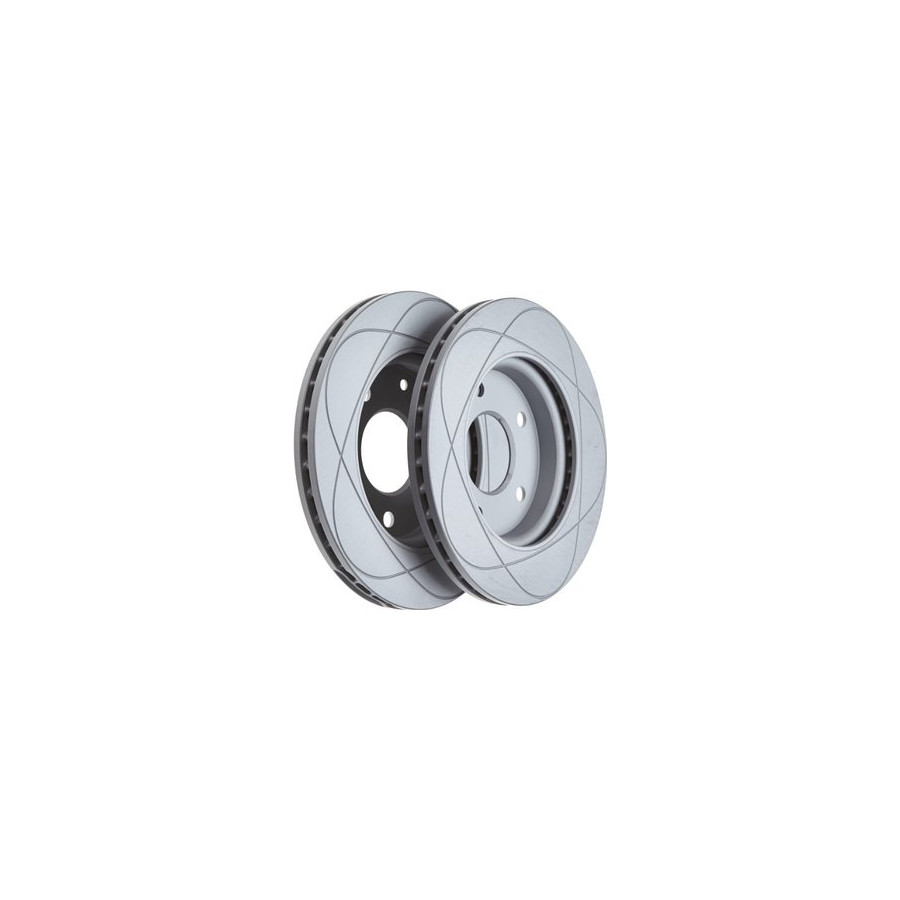

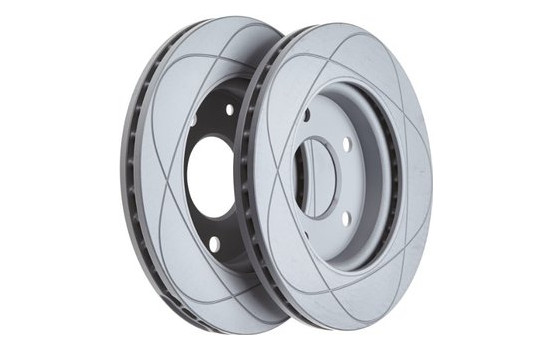

Brake Disc PowerDisc 24.0328-0198.1 ATE
Product number: 0384954
Manufacturer number: 24.0328-0198.1
EAN: 4006633332071
£ 98.37
Incl. VAT
In stock
Delivery 24-06-2026
Free Shipping
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

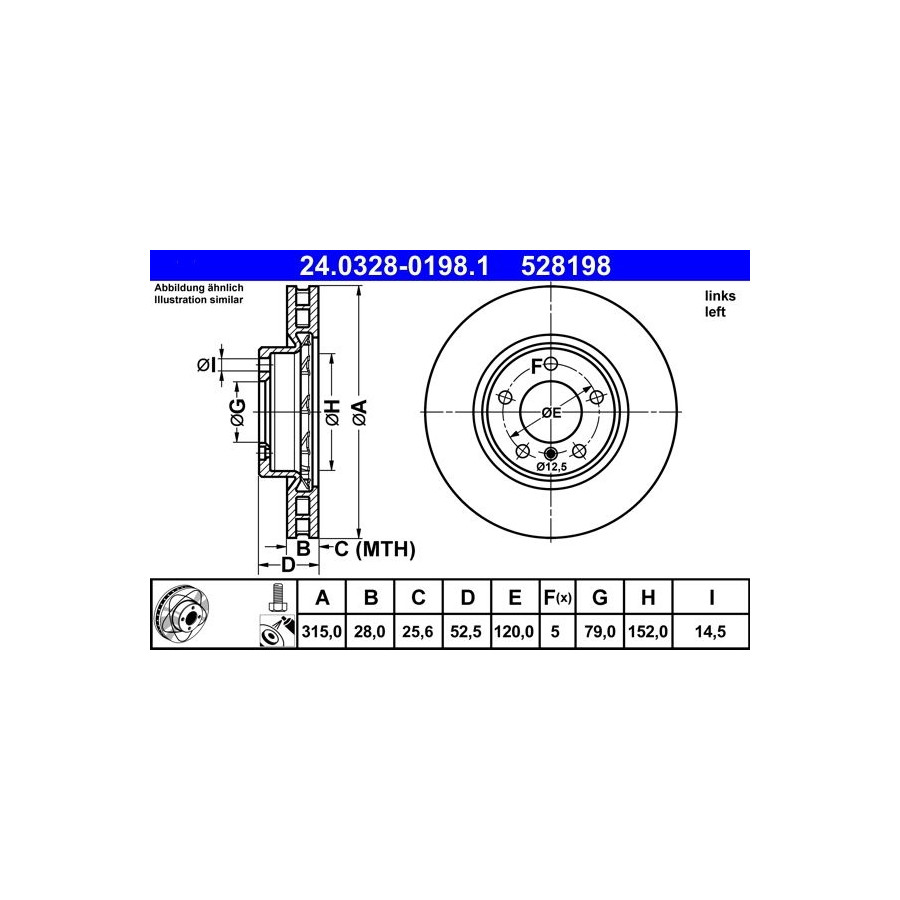

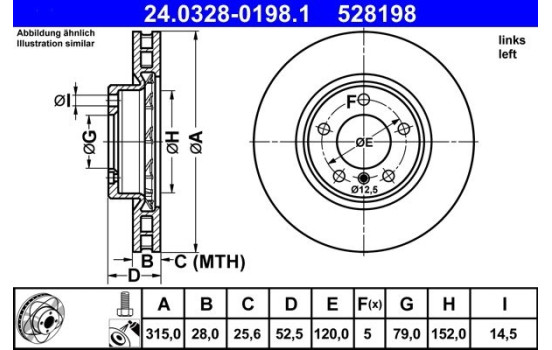

Outer diameter [mm] 315,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 152,0 Paired article numbers 24.0328-0199.1 Bolt Hole Circle Ø [mm] 120,0 Centering Diameter [mm] 79,0 Machining High-carbon Bore Ø [mm] 14,5 MAPP code available Warranty 2 years application Ventilated disc PowerDisc Height [mm] 52,5 Additional information With screws Brake disc thickness (mm) 28,0 Minimum thickness (mm) 25,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 16334 A.B.S. 09.5934.11 AIC 51990 AP 24548 V AP 24548 ATE 24.0328-0198.1 (this product) BOSCH 0 986 478 748 BRECO BV 8174 BRECO BS 8174 BREMBO 09.5934.10 BREMBO 09.5934.11 FEBI BILSTEIN 43970 GIRLING 6027315 HELLA 8DD 355 104-091 HELLA PAGID 8DD 355 104-091 MAXGEAR 19-2291SPORT MAXGEAR 19-2291 MAXTECH 873103.0000 MAXTECH 873103.6060 MAXTECH 873103.0060 MAXTECH 873103.0080 Manufacturer Manufacturer number Price MAXTECH 873103.6980 MAXTECH 873103.6880 MEYLE 315 521 0026/PD MEYLE 315 521 0026 MINTEX MDC1524 MINTEX MDC1524L OPTIMAL BS-5080 OPTIMAL BS-5080C ROTINGER RT 20011-GL T6 ROTINGER RT 20011 ROTINGER RT 20011-GL T3 ROTINGER RT 20011-GL ROTINGER RT 20011-GL T9 ROTINGER RT 20011-GL T5 SWAG 20 94 3970 TEXTAR 92071103 TRW DF2731S VAICO V20-80030 VALEO 197353 ZIMMERMANN 150.1290.20 ZIMMERMANN 150.1290.52 -
Applicability
BMW 3 Convertible 3 Convertible (E36) | 03.1993-11.1999 M3 3.0 - 2990ccm, 286pk, 210kw - S50 B30 (306S1) 3 Coupe 3 Coupe (E36) | 10.1991-04.1999 M3 3.0 - 2990ccm, 286pk, 210kw - S50 B30 (306S1) 3 Coupe (E36) | 10.1991-04.1999 M3 3.0 - 2990ccm, 295pk, 217kw - S50 B30 (306S1) -
Original part numbers
34 11 2 227 171 BMW -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
