Brake Disc SPORT BRAKE DISC COAT Z 400.3603.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 400.3603.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 400.3603.52 Zimmermann, Image 2

Product number: 0846802

Manufacturer number: 400.3603.52

EAN: 4250238745754

£ 69.93

Incl. VAT
View product specifications
In stock
Delivery 22-05-2024

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

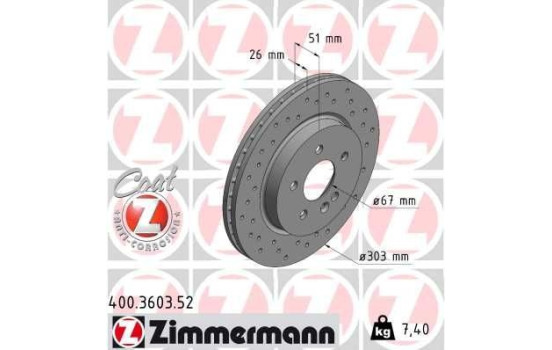

    Outer diameter [mm]303
    Rim Hole Number5
    Brake Disc TypePerforated
    Internal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]112
    Centering Diameter [mm]67
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]51
    Brake disc thickness (mm)26
    Minimum thickness (mm)23
    Weight [kg]7,40

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17109
    £ 43.37
    AP 24767 V
    AP 24767
    ASHIKA 60-00-0554
    ASHIKA 60-00-0554C
    BELACO BDS1422HC
    BLUE PRINT ADU174339
    £ 33.83
    BORG & BECK BBD4140
    BOSCH 0 986 478 468
    £ 46.75
    BRECO BV 8352
    BRECO BS 8352
    BREMBO 09.7823.10
    BREMBO 09.7823.11
    £ 47.83
    BREMSI CD7036V
    CHAMPION 562099CH
    DENCKERMANN B130708
    Dr!ve+ DP1010.11.1242
    EUROBRAKE 5815343347
    EUROBRAKE 5815203347
    EUROBRAKE 5815313347
    FEBI BILSTEIN 21921
    £ 33.21
    FERODO DDF1036C
    £ 57.99
    FERODO DDF1036
    FI.BA FBD303
    FTE 9071138
    FTE BS4817
    GIRLING 6041501
    HELLA 8DD 355 129-751
    HELLA PAGID 8DD 355 129-751
    £ 47.79
    JAPANPARTS DI-0554
    JAPANPARTS DI-0554C
    JAPKO 600554C
    JAPKO 600554
    JURID 562099J
    Manufacturer Manufacturer number Price
    JURID 562099JC
    MAGNETI MARELLI 361302040396
    MASTER-SPORT 24012601161-PCS-MS
    MASTER-SPORT 24012601161-SET-MS
    MASTER-SPORT 24012601161-SET-MSP
    MASTER-SPORT 24012601161-PCS-MSP
    MAXGEAR 19-0947SPORT
    MAXGEAR 19-0947
    £ 35.61
    MAXTECH 873549
    METZGER 6110480
    MEYLE 083 521 2041/PD
    £ 42.26
    MEYLE 015 521 2041
    £ 42.55
    MINTEX MDC1359
    NK 343347
    NK 313347
    NK 203347
    OPTIMAL BS-7330
    OPTIMAL BS-7330C
    QUARO QD2016
    RAICAM RD00461
    ROTINGER RT 2712-GL
    ROTINGER RT 2712-GL T5
    ROTINGER RT 2712-GL T9
    ROTINGER RT 2712-GL T6
    ROTINGER RT 2712-GL T3
    ROTINGER RT 2712
    SWAG 10 92 1921
    TEXTAR 92089905
    £ 67.53
    TRW DF4150
    £ 38.62
    VAICO V30-80041
    VALEO 197237
    ZIMMERMANN 400.3603.53
    £ 78.99
    ZIMMERMANN 400.3603.20
    £ 42.55
    ZIMMERMANN 400.3603.52 (this product)

  • Applicability

    MERCEDES-BENZ
    M-CLASS
    M-CLASS (W163) | 02.1998-06.2005 ML 230 (163.136) - 2295ccm, 150pk, 110kw - M 111.977
    M-CLASS (W163) | 02.1998-06.2005 ML 270 CDI (163.113) - 2685ccm, 163pk, 120kw - OM 612.963
    M-CLASS (W163) | 02.1998-06.2005 ML 320 (163.154) - 3199ccm, 218pk, 160kw - M 112.942

  • Original part numbers

    163 421 0012 MERCEDES-BENZ
    163 421 0212 MERCEDES-BENZ
    163 421 0412 MERCEDES-BENZ
    A 163 421 0412 MERCEDES-BENZ
    A 163 421 0012 MERCEDES-BENZ
    A 163 421 0212 MERCEDES-BENZ

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
