EBC

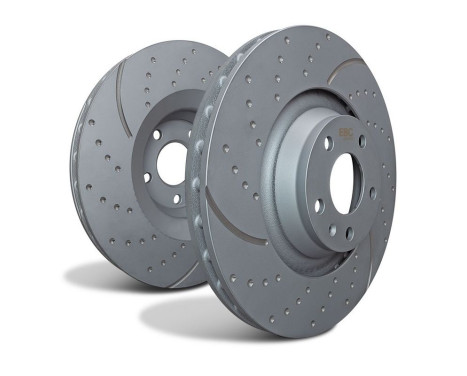

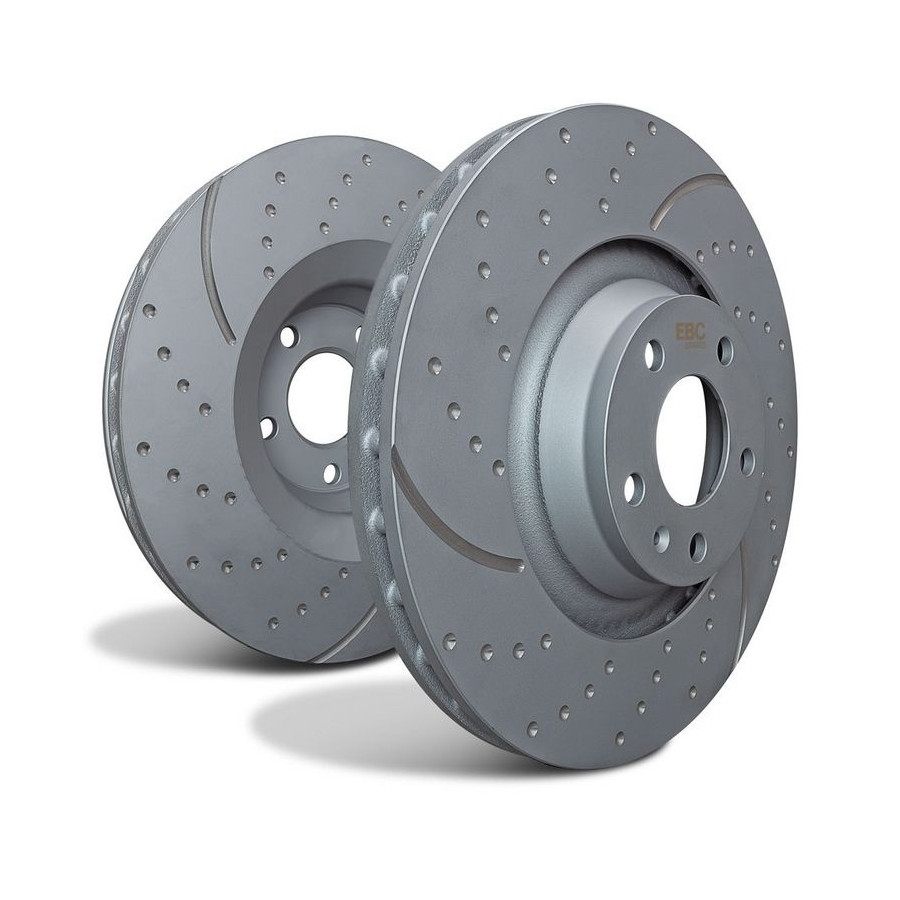

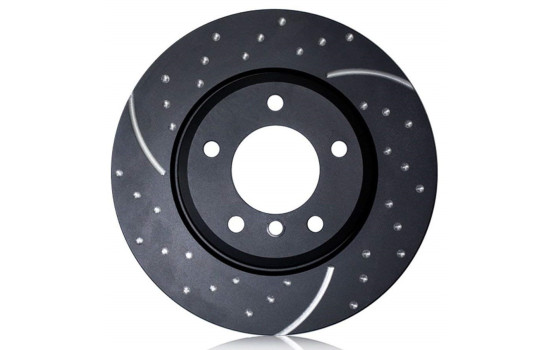

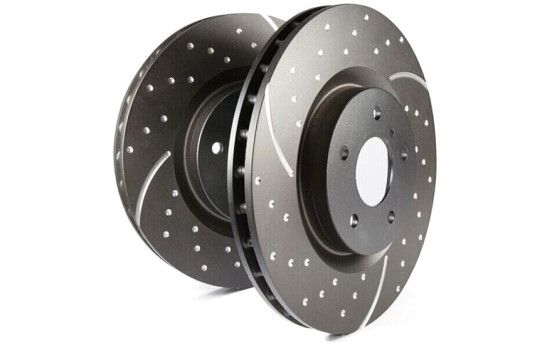

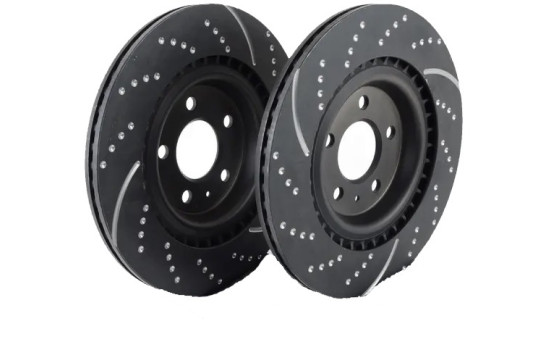

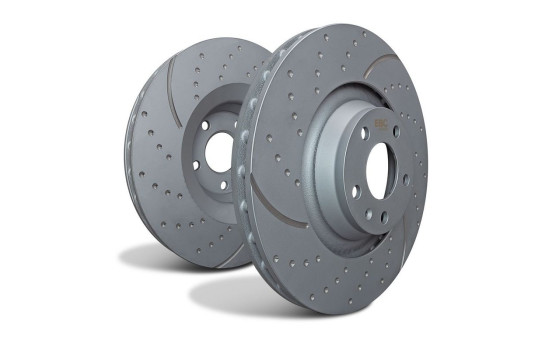

Brake Disc Turbo Grooved GD774 EBC

Brake Disc Turbo Grooved GD774 EBC Brake Disc Turbo Grooved GD774 EBC, Image 2 Brake Disc Turbo Grooved GD774 EBC, Image 3 Brake Disc Turbo Grooved GD774 EBC, Image 4

Product number: 1038812

Manufacturer number: GD774

EAN: 5050953015120

£ 156.35

Incl. VAT
View product specifications
In stock
Delivery 06-02-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    EBC Grooved Brake Disc GD series

    These brake discs from the English EBC are entirely designed to ensure optimal braking power during sporty use!

    1. Manufactured from high quality (G3000) steel in England
    2. Grooved and provided with ground holes
    3. Approved for public roads
    4. Optimal cooling of the brakes (up to 100ºC cooler than OE brake disc)
    5. Provided with a high-quality coating against corrosion

    The discs are provided with grooves and ground points.
    The grooves and points ensure optimal drainage of dirt, gases and heat.

    Please note : you must order 2 discs, you will then automatically receive a left and right disc.

    The brake discs can generate more wind noise than original equipment. For less noise, we recommend EBC Utlimax (USR) brake discs.


    The latest sports brake discs have slots with a large
    diaphragm die
    draw cool air into the brake contact area and
    temperatures that prevent the brake from fading.
    Outer diameter [mm]280
    Brake Disc TypeVented
    Number of Holes5
    Brake padsExclusive
    MaterialGrey Cast Iron
    SurfaceSports disk grooved
    Warranty2 years
    Height [mm]51
    Brake disc thickness (mm)24
    26

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    BELACO BDS1730
    BLUE PRINT ADF124352
    £ 32.20
    DON PCD12892
    EBC GD774 (this product)
    FEBI BILSTEIN 11454
    £ 31.30
    HELLA 8DD 355 103-681
    Manufacturer Manufacturer number Price
    METZGER 6110253
    MINTEX MDC825
    PAGID 54018NC
    QUARO QD6195
    SWAG 55 91 1454
    TEXTAR 92066703
    £ 44.70

  • Applicability

    VOLVO
    850
    850 (854) | 06.1991-10.1997 2.0 - 1984ccm, 126pk, 93kw - B 5202 S
    850 (854) | 06.1991-10.1997 2.0 - 1984ccm, 143pk, 105kw - B 5204 FS
    850 (854) | 06.1991-10.1997 2.0 Turbo - 1984ccm, 210pk, 155kw - B 5204 FT, B 5204 T
    850 (854) | 06.1991-10.1997 2.0 Turbo - 1984ccm, 179pk, 132kw - B 5204 T2
    850 (854) | 06.1991-10.1997 2.4 - 2435ccm, 140pk, 103kw - B 5252
    850 (854) | 06.1991-10.1997 2.4 - 2435ccm, 170pk, 125kw - B 5254 S
    850 (854) | 06.1991-10.1997 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    850 (854) | 06.1991-10.1997 T5 - 2319ccm, 226pk, 166kw - B 5234 FT
    850 (854) | 06.1991-10.1997 T5 R - 2319ccm, 239pk, 176kw - B 5234 T2
    850 (854) | 06.1991-10.1997 T5-R - 2319ccm, 250pk, 184kw - B 5234 T4
    850 Estate
    850 Estate (855) | 08.1992-10.1997 2.0 - 1984ccm, 126pk, 93kw - B 5202 S
    850 Estate (855) | 08.1992-10.1997 2.0 - 1984ccm, 143pk, 105kw - B 5204 FS
    850 Estate (855) | 08.1992-10.1997 2.0 Turbo - 1984ccm, 210pk, 155kw - B 5204 FT, B 5204 T
    850 Estate (855) | 08.1992-10.1997 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    850 Estate (855) | 08.1992-10.1997 T5 - 2319ccm, 226pk, 166kw - B 5234 FT
    850 Estate (855) | 08.1992-10.1997 T5 R - 2319ccm, 239pk, 176kw - B 5234 T2
    850 Estate (855) | 08.1992-10.1997 T5-R - 2319ccm, 250pk, 184kw - B 5234 T4
    C70 I
    C70 I Convertible (873) | 03.1998-10.2005 2.0 - 1984ccm, 180pk, 132kw - B 5204 T2
    C70 I Convertible (873) | 03.1998-10.2005 2.0 T - 1984ccm, 163pk, 120kw - B 5204 T4
    C70 I Convertible (873) | 03.1998-10.2005 2.4 - 2435ccm, 170pk, 125kw - B 5254 S
    C70 I Convertible (873) | 03.1998-10.2005 2.4 T - 2435ccm, 193pk, 142kw - B 5254 T, B 5244 T
    C70 I Coupe (872) | 03.1997-09.2002 2.0 - 1984ccm, 180pk, 132kw - B 5204 T2
    C70 I Coupe (872) | 03.1997-09.2002 2.4 - 2435ccm, 165pk, 121kw - B 5254 S
    C70 I Coupe (872) | 03.1997-09.2002 2.4 - 2435ccm, 170pk, 125kw - B 5254 S, B 5244 S
    C70 I Coupe (872) | 03.1997-09.2002 2.4 T - 2435ccm, 193pk, 142kw - B 5254 T, B 5244 T
    S70
    S70 (874) | 11.1996-11.2000 2.0 - 1984ccm, 126pk, 93kw - B 5202 S, B 5202 FS
    S70 (874) | 11.1996-11.2000 2.0 - 1984ccm, 143pk, 105kw - B 5204 F
    S70 (874) | 11.1996-11.2000 2.0 - 1984ccm, 180pk, 132kw - B 5204 T2
    S70 (874) | 11.1996-11.2000 2.0 - 1984ccm, 163pk, 120kw - B 5204 T4
    S70 (874) | 11.1996-11.2000 2.0 Turbo - 1984ccm, 210pk, 155kw - B 5204 T
    S70 (874) | 11.1996-11.2000 2.0 Turbo - 1984ccm, 226pk, 166kw - B 5204 T3
    S70 (874) | 11.1996-11.2000 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2, B 5244 SG
    S70 (874) | 11.1996-11.2000 2.4 - 2435ccm, 144pk, 106kw - B 5252 FS
    S70 (874) | 11.1996-11.2000 2.4 - 2435ccm, 165pk, 121kw - B 5254 S
    S70 (874) | 11.1996-11.2000 2.4 - 2435ccm, 170pk, 125kw - B 5254 S, B 5244 S
    S70 (874) | 11.1996-11.2000 2.4 AWD - 2435ccm, 170pk, 125kw - B 5244 S
    S70 (874) | 11.1996-11.2000 2.4 AWD - 2435ccm, 140pk, 103kw - B 5244 S2
    S70 (874) | 11.1996-11.2000 2.4 AWD - 2435ccm, 144pk, 106kw - B 5252 FS
    S70 (874) | 11.1996-11.2000 2.4 AWD - 2435ccm, 165pk, 121kw - B 5254 S
    S70 (874) | 11.1996-11.2000 2.4 Bifuel - 2435ccm, 140pk, 103kw - B 5244 SG
    S70 (874) | 11.1996-11.2000 2.4 Bifuel - 2435ccm, 144pk, 106kw - GB 5252 S
    S70 (874) | 11.1996-11.2000 2.4 Blu-Fuel - 2435ccm, 140pk, 103kw - B 5244 S2, B 5244 SG
    S70 (874) | 11.1996-11.2000 2.4 T5 AWD - 2435ccm, 193pk, 142kw - B 5254 T
    S70 (874) | 11.1996-11.2000 2.4 Turbo - 2435ccm, 193pk, 142kw - B 5254 T, B 5244 T
    S70 (874) | 11.1996-11.2000 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    S90 I
    S90 I (964) | 01.1997-05.1998 2.9 - 2922ccm, 204pk, 150kw - B 6304 GS
    S90 I (964) | 01.1997-05.1998 2.9 - 2922ccm, 180pk, 132kw - B 6304 S2, B 6304 FS2
    V70
    V70   (875, 876) | 12.1995-12.2000 2.0 - 1984ccm, 126pk, 93kw - B 5202 S, B 5202 FS
    V70   (875, 876) | 12.1995-12.2000 2.0 - 1984ccm, 143pk, 105kw - B 5204 F
    V70   (875, 876) | 12.1995-12.2000 2.0 - 1984ccm, 180pk, 132kw - B 5204 T2
    V70   (875, 876) | 12.1995-12.2000 2.0 - 1984ccm, 163pk, 120kw - B 5204 T4
    V70   (875, 876) | 12.1995-12.2000 2.0 Turbo - 1984ccm, 211pk, 155kw - B 5204 T
    V70   (875, 876) | 12.1995-12.2000 2.0 Turbo - 1984ccm, 226pk, 166kw - B 5204 T3
    V70   (875, 876) | 12.1995-12.2000 2.0 Turbo AWD - 1984ccm, 226pk, 166kw - B 5204 T3
    V70   (875, 876) | 12.1995-12.2000 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2, B 5244 SG2
    V70   (875, 876) | 12.1995-12.2000 2.4 - 2435ccm, 144pk, 106kw - B 5252 FS
    V70   (875, 876) | 12.1995-12.2000 2.4 - 2435ccm, 165pk, 121kw - B 5254 S
    V70   (875, 876) | 12.1995-12.2000 2.4 - 2435ccm, 170pk, 125kw - B 5254 S, B 5244 S, B 5254 FS
    V70   (875, 876) | 12.1995-12.2000 2.4 AWD - 2435ccm, 165pk, 121kw - B 5254 S
    V70   (875, 876) | 12.1995-12.2000 2.4 Bifuel - 2435ccm, 140pk, 103kw - B 5244 SG
    V70   (875, 876) | 12.1995-12.2000 2.4 Bifuel - 2435ccm, 144pk, 106kw - GB 5252 S
    V70   (875, 876) | 12.1995-12.2000 2.4 Turbo - 2435ccm, 193pk, 142kw - B 5254 T, B 5244 T
    V70   (875, 876) | 12.1995-12.2000 2.4 Turbo AWD - 2435ccm, 265pk, 195kw - B 5244 T2
    V70   (875, 876) | 12.1995-12.2000 2.4 Turbo AWD - 2435ccm, 193pk, 142kw - B 5254 T, B 5244 T
    V70   (875, 876) | 12.1995-12.2000 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    V70   (875, 876) | 12.1995-12.2000 2.5 TDi AWD - 2460ccm, 140pk, 103kw - D 5252 T
    V70 Mk
    V70 Mk II (285) | 11.1999-12.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    V70 Mk II (285) | 11.1999-12.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    V90 I
    V90 I Estate (965) | 01.1997-12.1998 2.9 - 2922ccm, 204pk, 150kw - B 6304 FS, B 6304 GS
    V90 I Estate (965) | 01.1997-12.1998 2.9 - 2922ccm, 180pk, 132kw - B 6304 S2, B 6304 FS2

  • Original part numbers

    271788 VOLVO

  • Manufacturer

    EBC
    EBC Brakes is independent and leader in the brake parts industry. With a worldwide staff of more than 400 people, they are proud of its customers and product. EBC Brakes produces the largest range of brake pads and brake discs in the world. EBC Brakes are made in one of two specialized factories in the UK and the US.
