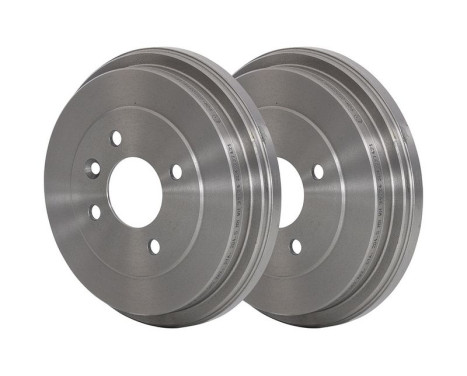

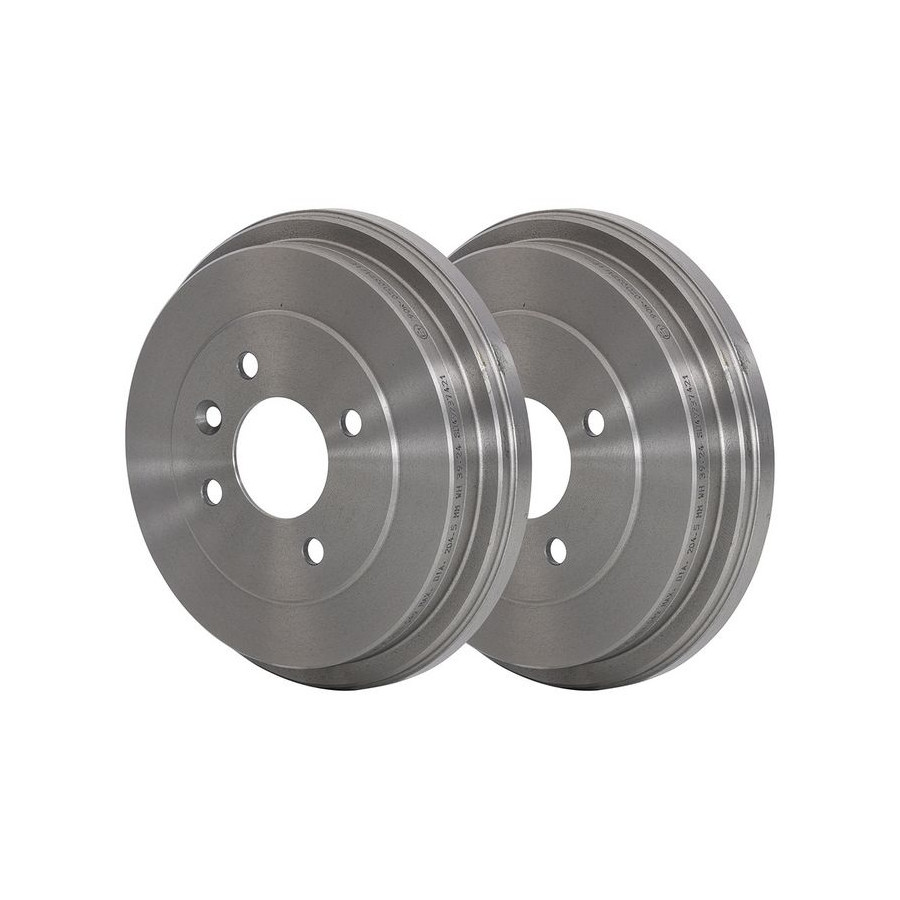

Brake drum 24.0220-3049.1 ATE

Name: Brake drum 24.0220-3049.1 ATE | Winparts.co.uk - Brake drums
Brand: ATE
SKU: 2029137
Price: 55.17 GBP
Availability: InStock

Product number: 2029137

Manufacturer number: 24.0220-3049.1

EAN: 4006633503556

Incl. VAT

In stock

Delivery 01-05-2026

Free Shipping

Quantity:

Secure payment

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Enter your number plate or select your vehicle.

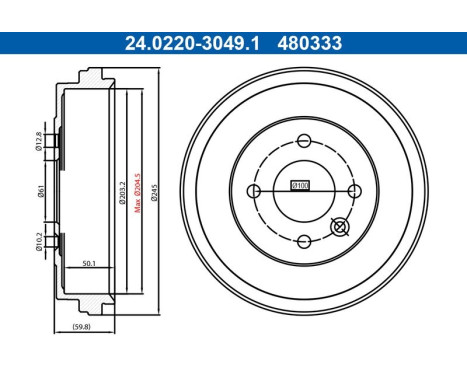

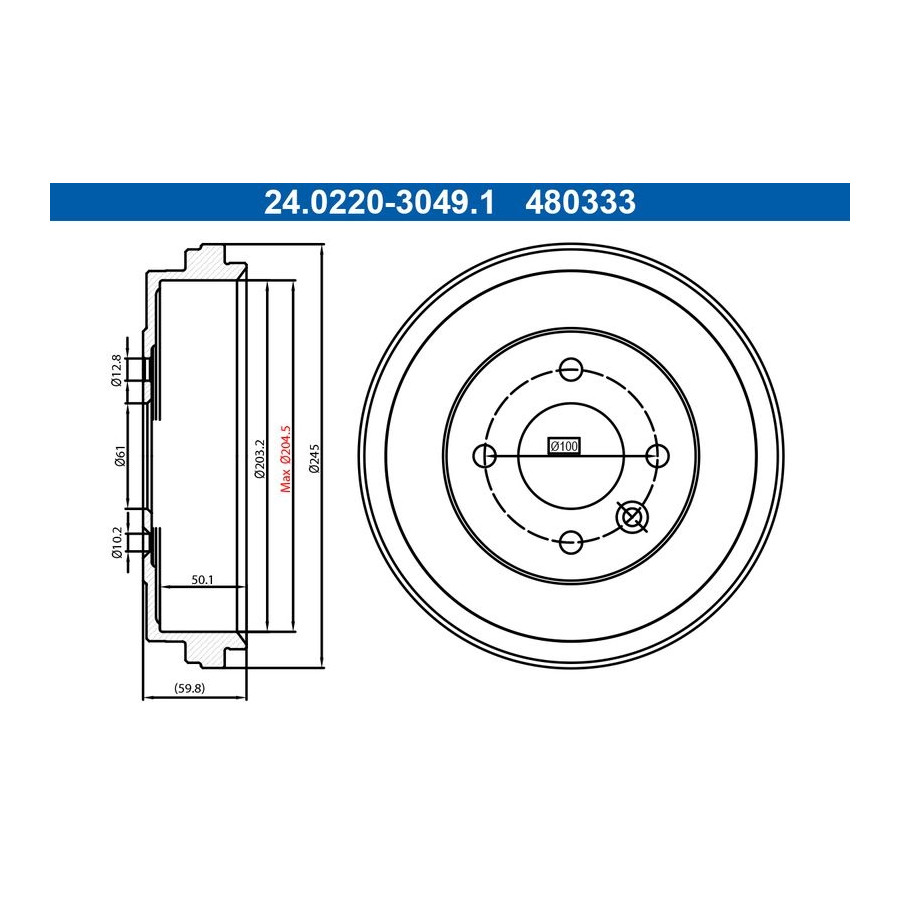

Number of Holes	4
Bolt Hole Circle Ø [mm]	100,0
Support plate diameter [mm]	61,0
Inspection Tag	E1 90R-02D0324/1876
MAPP code available
Warranty	2 years
Brake drum diameter outside [mm]	245,0
Brake drum diameter inside [mm]	203,2
Hole diameter [mm]	12,8
Brake drum height total [mm]	59,8
Internal brake drum height [mm]	50,1
max. brake drum turn-out size [mm]	204,5

NISSAN

Original part numbers

43206-5FA0B NISSAN
Manufacturer

When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
