Swag

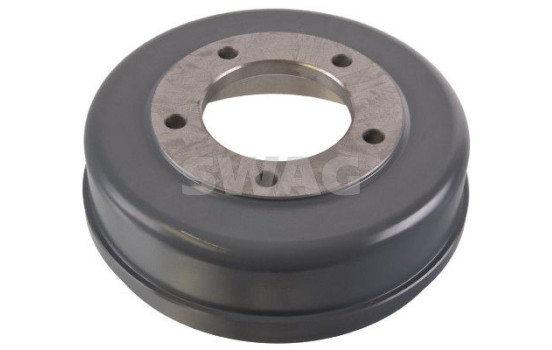

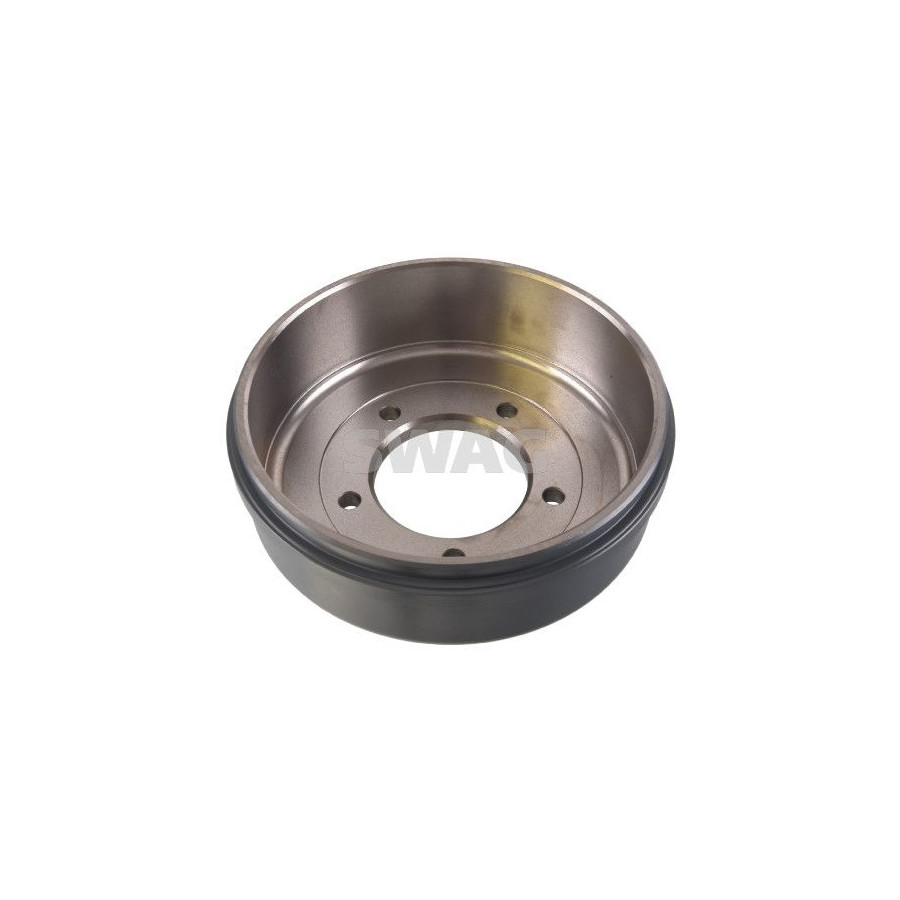

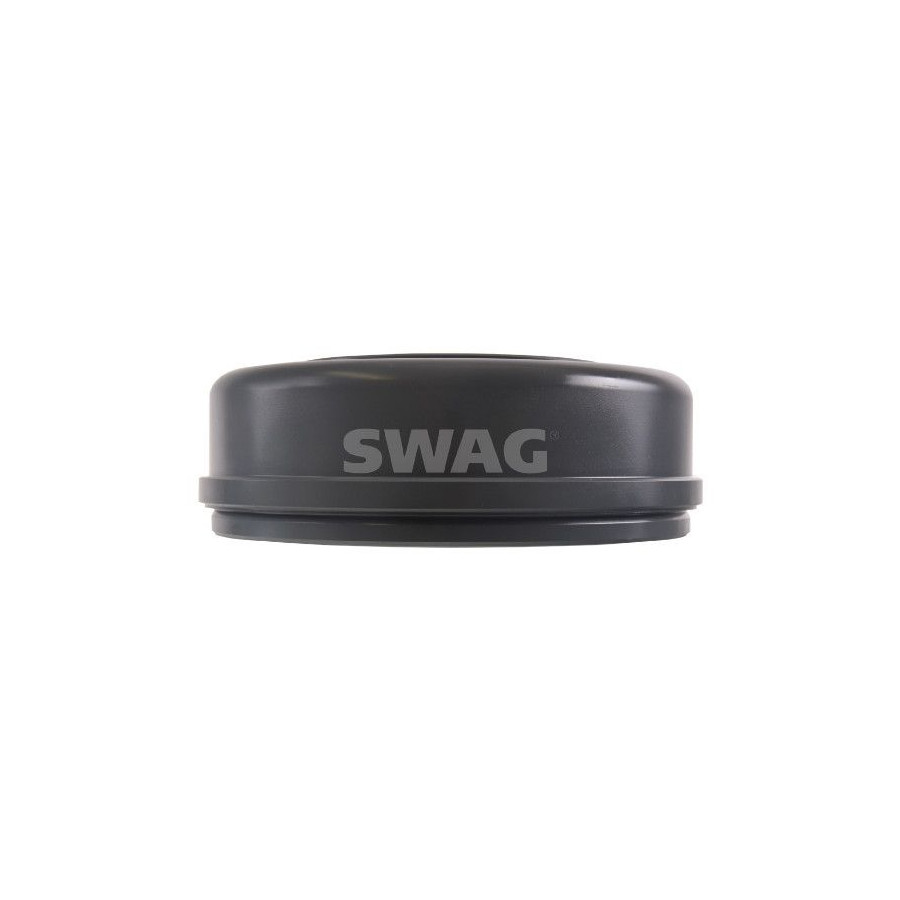

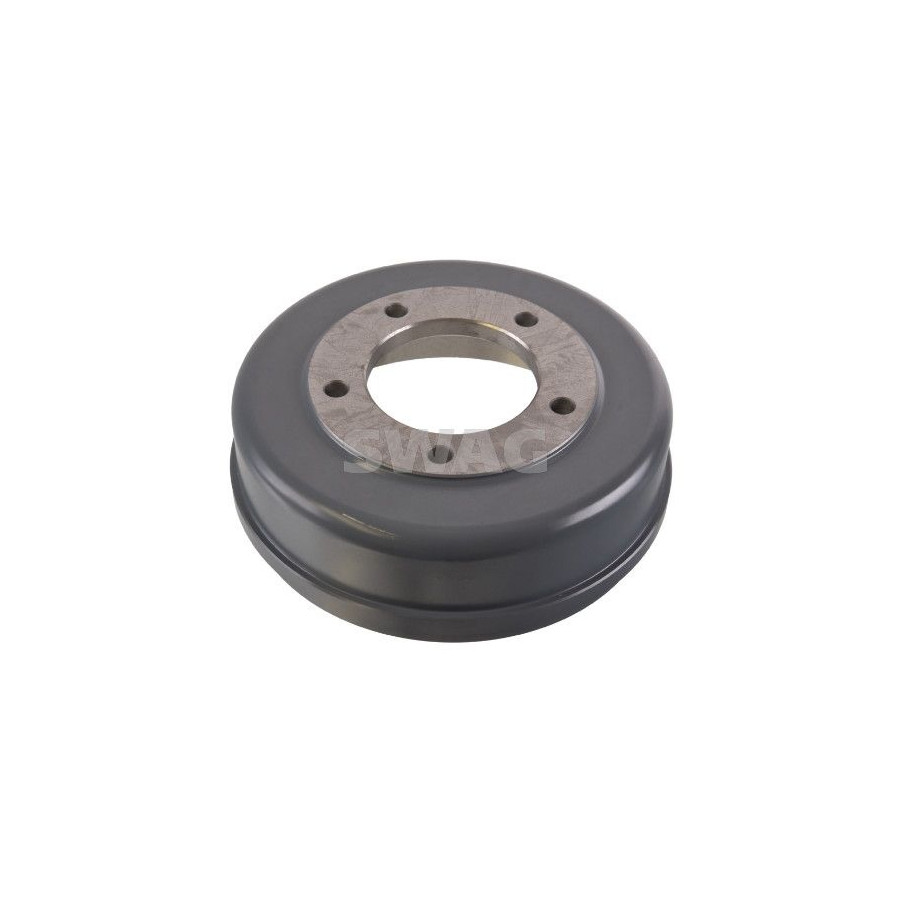

brake drum

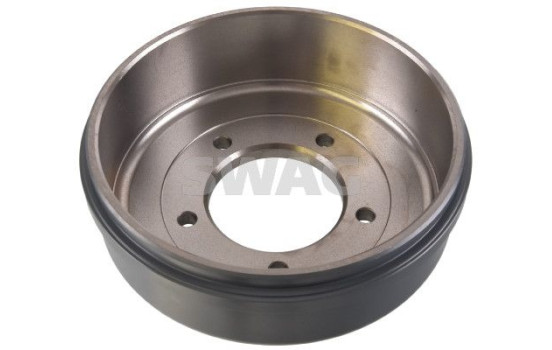

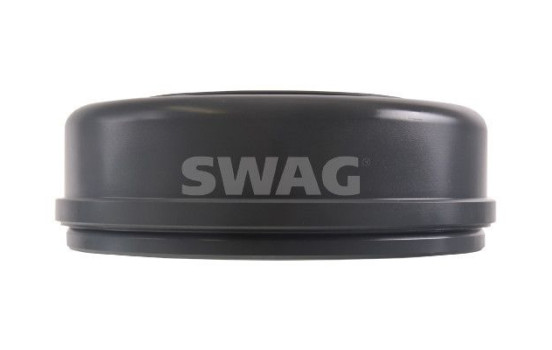

brake drum brake drum, Image 2 brake drum, Image 3
  • brake drum
  • brake drum, Thumbnail 2
  • brake drum, Thumbnail 3

Product number: 1716926

Manufacturer number: 33100698

EAN: 4054228710766

£ 60.09

Incl. VAT
View product specifications
In stock
Delivery 24-07-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]314,4
    Fitting PositionRear Axle
    Inner diameter [mm]280
    Rim Hole Number5
    Bolt Hole Circle Ø [mm]160
    Centering Diameter [mm]118
    Warranty2 years
    Width [mm]80,3
    Thickness [mm]105
    max. brake drum turn-out size [mm]282

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 2734-S
    £ 52.36
    A.Z. Meisterteile AZMT-44-028-1177
    BELACO BDM1062
    BLUE PRINT ADBP470007
    £ 60.09
    BRAXIS AD5020
    BREMSI CR5646
    FEBI BILSTEIN 171076
    £ 60.09
    MALÒ 1120091
    MINTEX MBD057
    Manufacturer Manufacturer number Price
    OPEN PARTS BAD9074.10
    OPTIMAL BT-1980
    RIDEX 123B0108
    ROTINGER RT 6408
    ROTINGER RT 6408-GL
    STARK SKBDM-0800107
    SWAG 33100698 (this product)
    TEXTAR 94024600
    TRW DB4316

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 100pk, 74kw - ABFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 75pk, 55kw - D3FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_, F_G_) - 1998ccm, 86pk, 63kw - F3FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.0 TDCi (F_F_, F_E_, F_G_) - 1998ccm, 125pk, 92kw - FIFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.3 16V RWD (F_B_, F_C_, F_A_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI (F_B_, F_C_, F_A_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_, F_A_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE (F_C_, F_B_, F_A_) - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 100pk, 74kw - ABFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 75pk, 55kw - D3FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 DI (F_E_, F_F_) - 1998ccm, 86pk, 63kw - F3FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.0 TDCi (F_E_, F_F_) - 1998ccm, 125pk, 92kw - FIFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 16V (F_A_, F_B_, F_C_, F_D_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 90pk, 66kw - D2FA, D2FB, D2FE
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 100pk, 74kw - ABFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 75pk, 55kw - D3FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 DI (FAE_, FAF_, FAG_) - 1998ccm, 86pk, 63kw - F3FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.0 TDCi - 1998ccm, 125pk, 92kw - FIFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 16V RWD (FAA_, FAB_, FAC_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA

  • Original part numbers

    4 446 218 FORD
    4 519 396 FORD
    4 078 769 FORD
    4 041 429 FORD
    3C11-1126-AA FORD MOTOR COMPANY
    YC1W-1126-DB FORD MOTOR COMPANY
    YC1W-1126-DC FORD MOTOR COMPANY
    YC1W-1126-DD FORD MOTOR COMPANY
