Bosch

Compressor, air conditioning

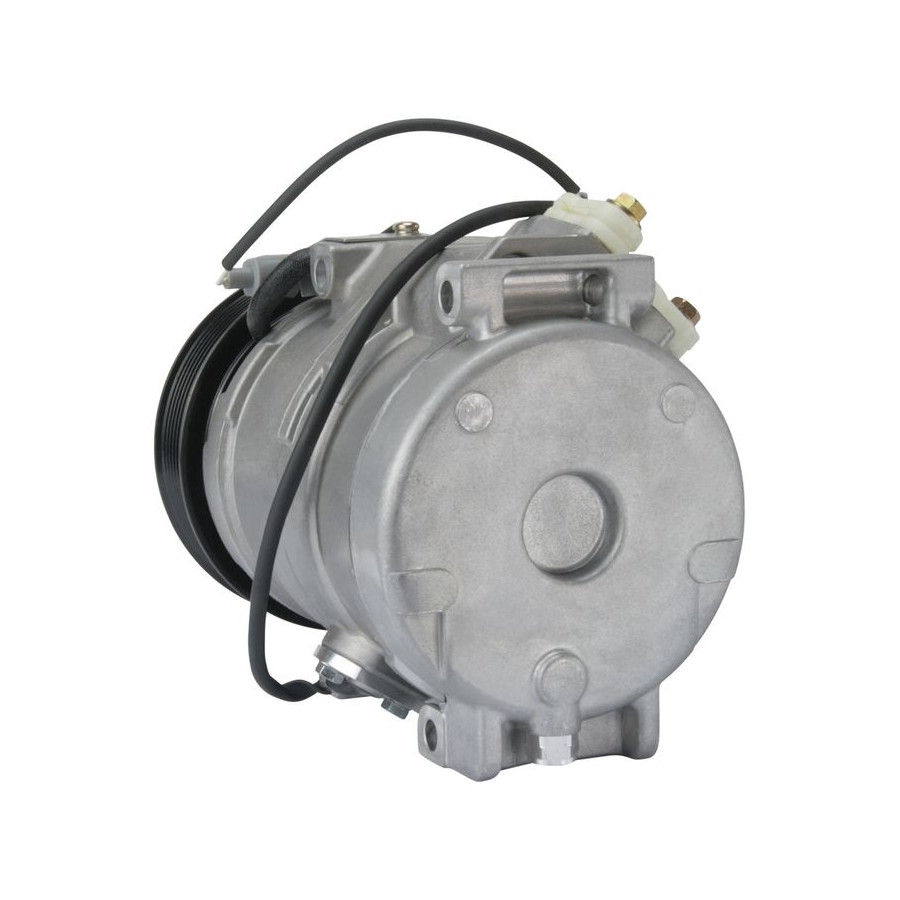

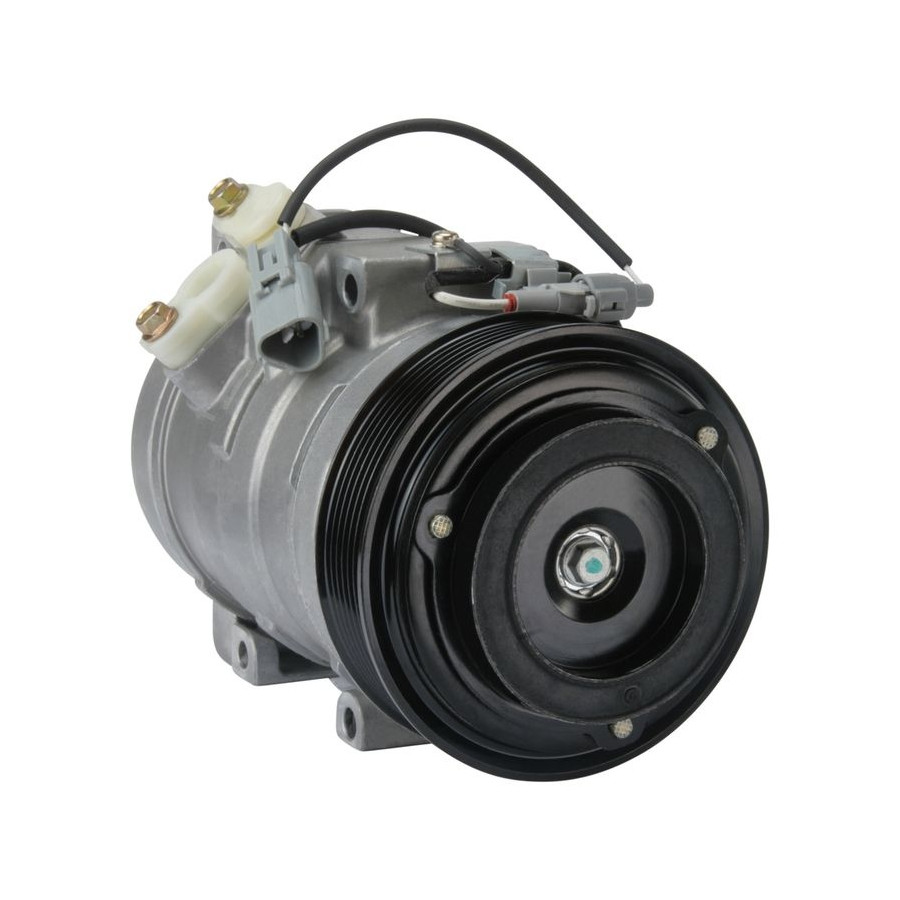

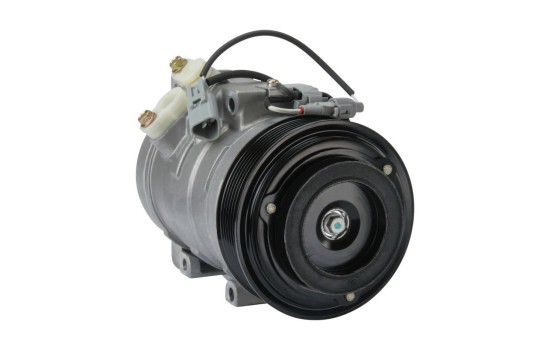

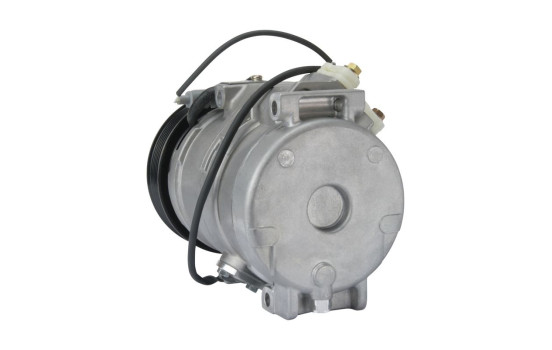

Compressor, air conditioning Compressor, air conditioning, Image 2
  • Compressor, air conditioning
  • Compressor, air conditioning, Thumbnail 2

Product number: 2000696

Manufacturer number: 1 986 AD1 157

EAN: 4047026857030

£ 268.94

Incl. VAT
View product specifications
In stock
Delivery 29-07-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    applicationAir conditioning pump
    Supplementary Article/Info 2With mounting manual
    Belt Pulley Ø [mm]120
    RefrigerantR 134a
    Compressor ID10S15
    Number of grooves7
    Warranty2 years
    Compressor oilPAG 46
    Additional Articles/Additional Information 3Pre-filled with the correct type of oil
    Exhaust diameter [mm]18,3
    Output diameter [mm]15,5
    Observe the oil quantity specified in the manual.
    Voltage [V]12
    Oil quantity [ml]180

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AES 090.195.037.050
    Airstal 10-0720
    BOSCH 1 986 AD1 157 (this product)
    CEVAM 8638796
    CV PSH 090.195.037.050
    £ 257.94
    DA SILVA FC0327
    DRI 700510216
    ELSTOCK 51-0216
    £ 235.59
    ERA 670337
    FISPA 1.5351A
    FRIESEN FRC38796
    Manufacturer Manufacturer number Price
    HOFFER K15351A
    KRIOS 1.5351A
    LUCAS ACP315
    MEAT & DORIA K15351A
    NRF 32896
    £ 178.37
    SIDAT 1.5351A
    TRISCAN 9020 13002
    TURBO MOTOR AC00218
    VAN WEZEL 5300K726
    WAI ACC11212
    WILMINK GROUP WG2159729

  • Applicability

    TOYOTA
    DYNA Platform/Chassis
    DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 07.2001-??? 2.5 D4d (KDY220_, KDY230_) - 2494ccm, 88pk, 65kw - 2KD-FTV
    DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 07.2001-??? 2.5 D4d (KDY230, KDY250, KDY220) - 2494ccm, 102pk, 75kw - 2KD-FTV
    DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 07.2001-??? 3.0 D4d (KDY221, KDY231) - 2982ccm, 136pk, 100kw - 1KD-FTV
    DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 07.2001-??? 3.0 D4d (KDY221, KDY231, KDY251, KDY261) - 2982ccm, 144pk, 106kw - 1KD-FTV
    DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 07.2001-??? 3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_, KDY221R,... - 2982ccm, 109pk, 80kw - 1KD-FTV
    HIACE /
    HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) | 01.2005-??? 2.5 D-4D (KDH202) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) | 01.2005-??? 3.0 D (KDH223) - 2982ccm, 136pk, 100kw - 1KD-FTV
    HIACE IV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 (RCH12, RCH22) - 2438ccm, 115pk, 85kw - 2RZ-E
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 4WD (RCH18) - 2438ccm, 116pk, 85kw - 2RZ-E
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 D (LXH12) - 2446ccm, 75pk, 55kw - 2L
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 D (LXH12, LXH22) - 2446ccm, 79pk, 58kw - 2L
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 TD (LXH12, LXH22) - 2446ccm, 90pk, 66kw - 2L-T
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.4 TD 4WD (LXH18, LXH28) - 2446ccm, 90pk, 66kw - 2L-T
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D (KLH12) - 2494ccm, 88pk, 65kw - 2KD-FTV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D (KLH12, KLH22) - 2494ccm, 95pk, 70kw - 2KD-FTV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D (KLH12, KLH22) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D (KLH12, KLH22) - 2494ccm, 117pk, 86kw - 2KD-FTV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D 4WD (KLH18) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE IV Bus (__H1_, __H2_) | 08.1995-05.2019 2.5 D-4D 4WD (KLH18) - 2494ccm, 117pk, 86kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 (RCH12, RCH22) - 2438ccm, 116pk, 85kw - 2RZ-E
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 (RZH10) - 2438ccm, 120pk, 88kw - 2RZ-E
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 4WD (RCH18, RCH28) - 2438ccm, 116pk, 85kw - 2RZ-E
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 D (LXH12, LXH22) - 2446ccm, 75pk, 55kw - 2L
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 D (LXH12, LXH22) - 2446ccm, 79pk, 58kw - 2L
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 TD (LXH12, LXH22) - 2446ccm, 90pk, 66kw - 2L-T
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.4 TD 4WD (LXH18, LXH28) - 2446ccm, 90pk, 66kw - 2L-T
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D (KLH12, KLH22) - 2494ccm, 88pk, 65kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D (KLH12, KLH22) - 2494ccm, 95pk, 70kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D (KLH12, KLH22) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D (KLH12, KLH22) - 2494ccm, 117pk, 86kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D 4WD (KLH18, KLH28) - 2494ccm, 88pk, 65kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D 4WD (KLH18, KLH28) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE IV Van (__H1_, __H2_) | 08.1995-12.2012 2.5 D-4D 4WD (KLH28, KLH18) - 2494ccm, 117pk, 86kw - 2KD-FTV
    HIACE IV Van (_H1_) | 08.1989-08.2004 2.4 (RZH103, RZH113) - 2438ccm, 116pk, 85kw - 2RZ
    HIACE V
    HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 06.2004-??? 2.5 D-4D - 2494ccm, 95pk, 70kw - 2KD-FTV
    HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 06.2004-??? 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) - 2494ccm, 102pk, 75kw - 2KD-FTV
    HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 06.2004-??? 2.5 D-4D (KDH200, KDH202, KDH212, KDH222) - 2494ccm, 117pk, 86kw - 2KD-FTV
    HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 06.2004-??? 3.0 D (KDH201, KDH203, KDH221) - 2982ccm, 144pk, 106kw - 1KD-FTV
    HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 06.2004-??? 3.0 D (KDH221, KDH201) - 2982ccm, 136pk, 100kw - 1KD-FTV
    LAND CRUISER
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 3.0 D-4D (KDJ120, KDJ125) - 2982ccm, 163pk, 120kw - 1KD-FTV
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 3.0 D-4D (KDJ120, KDJ125) - 2982ccm, 166pk, 122kw - 1KD-FTV
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 3.0 D-4D (KDJ120, KDJ125, KDJ121) - 2982ccm, 173pk, 127kw - 1KD-FTV
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 3.0 D-4D (KDJ120_) - 2982ccm, 204pk, 150kw - 1KD-FTV
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 4.0 (GRJ120, GRJ125) - 3956ccm, 243pk, 179kw - 1GR-FE
    LAND CRUISER PRADO (_J12_) | 09.2002-12.2010 4.0 (GRJ120, GRJ125, GRJ121) - 3956ccm, 249pk, 183kw - 1GR-FE

  • Original part numbers

    883106A141 TOYOTA
    883100K270 TOYOTA
    88320 25110 TOYOTA
    883106A140 TOYOTA
    88410 35400 TOYOTA
    88320 26600 TOYOTA
    883102F020 TOYOTA
    88310 25220 TOYOTA
    883206A081 TOYOTA
    88320 35730 TOYOTA
    883202F060 TOYOTA
