Wagner Tuning Comp. Intercooler Kit Audi S4 B9/S5 F5 EU model 200001120.PIPE

Wagner Tuning Comp. Intercooler Kit Audi S4 B9/S5 F5 EU model 200001120.PIPE Wagner Tuning Comp. Intercooler Kit Audi S4 B9/S5 F5 EU model 200001120.PIPE, Image 2 Wagner Tuning Comp. Intercooler Kit Audi S4 B9/S5 F5 EU model 200001120.PIPE, Image 3

Product number: 1439489

Manufacturer number: 200001120.PIPE

EAN: 04260719921089

£ 919.33

Incl. VAT
View product specifications
In stock
Delivery 02-07-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

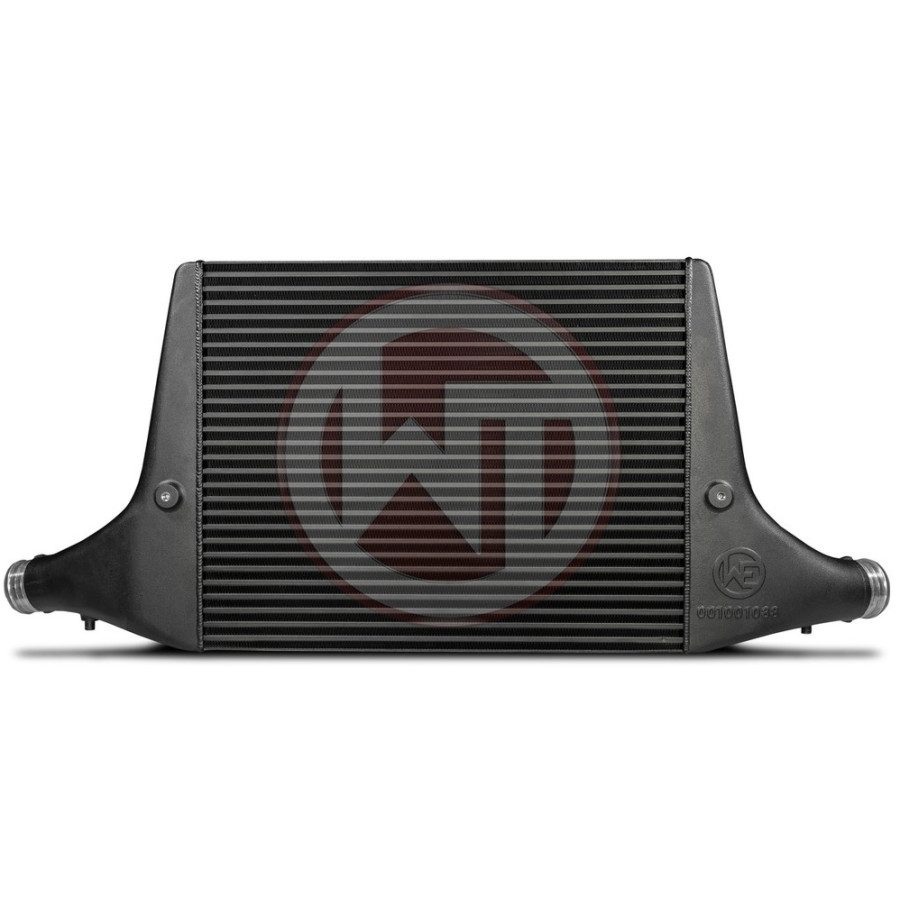

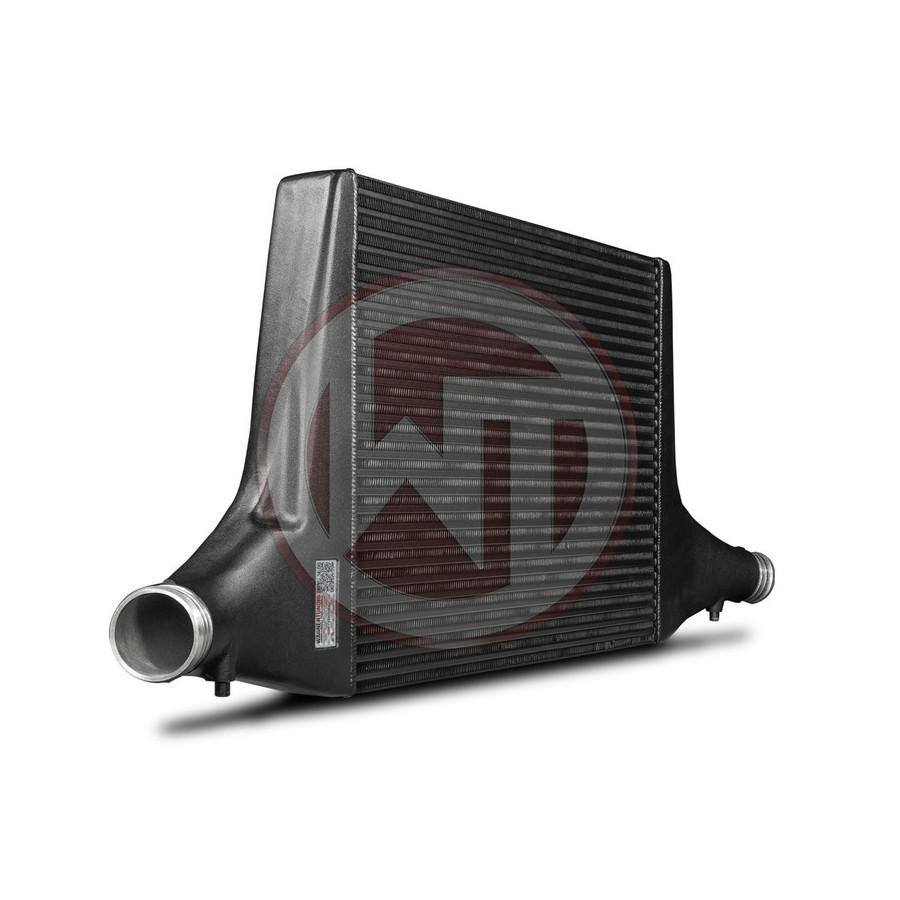

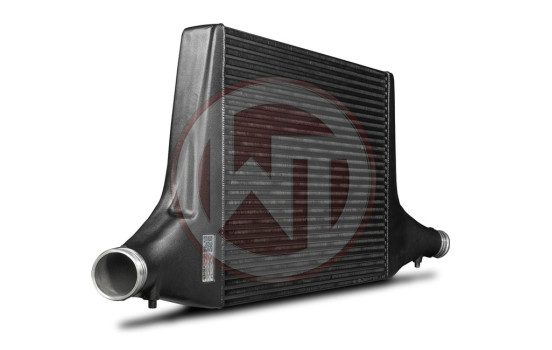

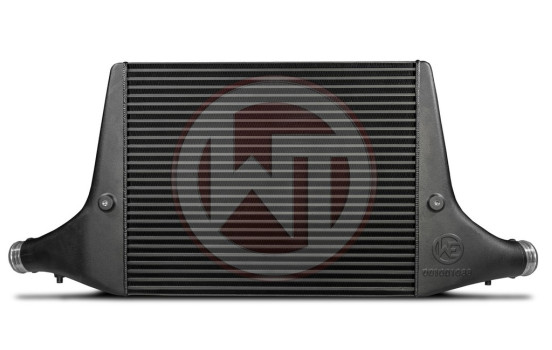

    Wagner Tuning Comp. Intercooler Kit Audi S4 B9/S5 F5 EU model

    The Competition high-performance intercooler has the following core dimensions (550 mm x 445 mm x 70 mm = 17,130 cm³) and offers 134% more airflow area and 105% more intake air volume compared to the original intercooler. The Competition high-performance core is a high-performance tube with internal turbulators. Despite its size, the intercooler weighs only 9.5 kg. The intercooler end casings are made of cast aluminum and have been optimized using CFD flow analysis.
    The connection diameters are Ø62 mm at the intercooler inlet and Ø67 mm at the intercooler outlet. This kit is optionally available with complete charge air lines. This includes three reinforced silicone hoses and one aluminum charge air line. The result is excellent cooling properties with minimal back pressure. Furthermore, all our intercoolers feature an anti-corrosion coating with heat-conducting properties. This guarantees long-lasting and optimal cooling with significantly higher performance. This complete, ready-to-install kit simply replaces the standard intercooler – plug and play. Tested to 6 bar and pressure-stable. All our products are subject to continuous quality control. Suitable for racing.

    Original intercooler dimensions:
    720mm x 145mm x 80mm
    V=8.35 Liter
    A=1044 cm²

    Dimensions WAGNER Intercooler:
    550mm x 445mm x 70mm
    V=17.13 Liter
    A=2447 cm²

    105% more volume and that at a weight of only 9.5 kg

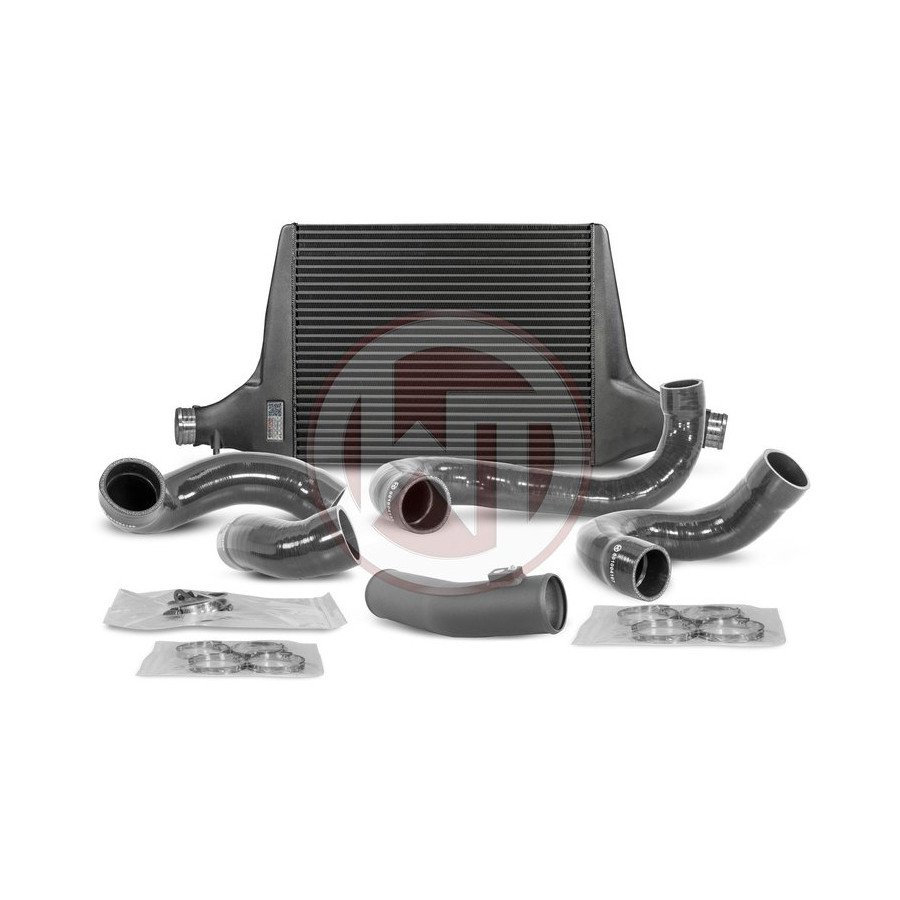

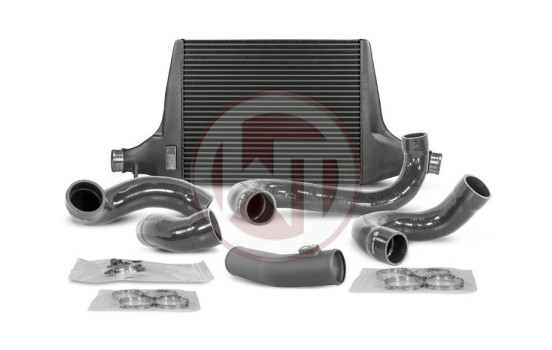

    Packaging:
    1 Intercooler (black jacket)
    1 Mounting material
    3 Reinforced silicone hoses

    applicationINTERCOOLER
    Warranty2 years

  • Applicability

    AUDI
    A4 B9
    A4 B9 (8W2, 8WC) | 05.2015-11.2019 S4 TFSi quattro - 2995ccm, 354pk, 260kw - CWGD
    A4 B9 Avant (8W5, 8WD) | 08.2015-12.2024 S4 TFSi quattro - 2995ccm, 354pk, 260kw - CWGD

  • Manufacturer

    Wagner Tuning
    The German Wagner Tuning offers a wide range of after-market performance parts, for many different brands.
    The products are characterized by very good quality and clear assembly instructions. The after-sales service is also excellent.

    Winparts supplies intercoolers and downpipes from Wagner Tuning.
    Wagner tuning distinguishes between 'Performance' and 'Competition'.
    The Performance parts are a (strong) improvement of original parts. The Competition products are a further development, with features that are also usable on the circuit. The Performance parts are plug-and-play in most cases, while at the Competition parts something needs to be adjusted. Instructions can be found in the manual.
