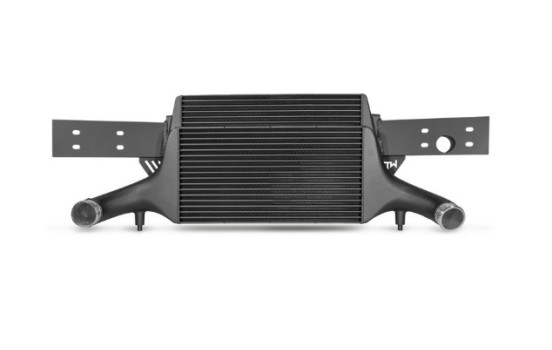

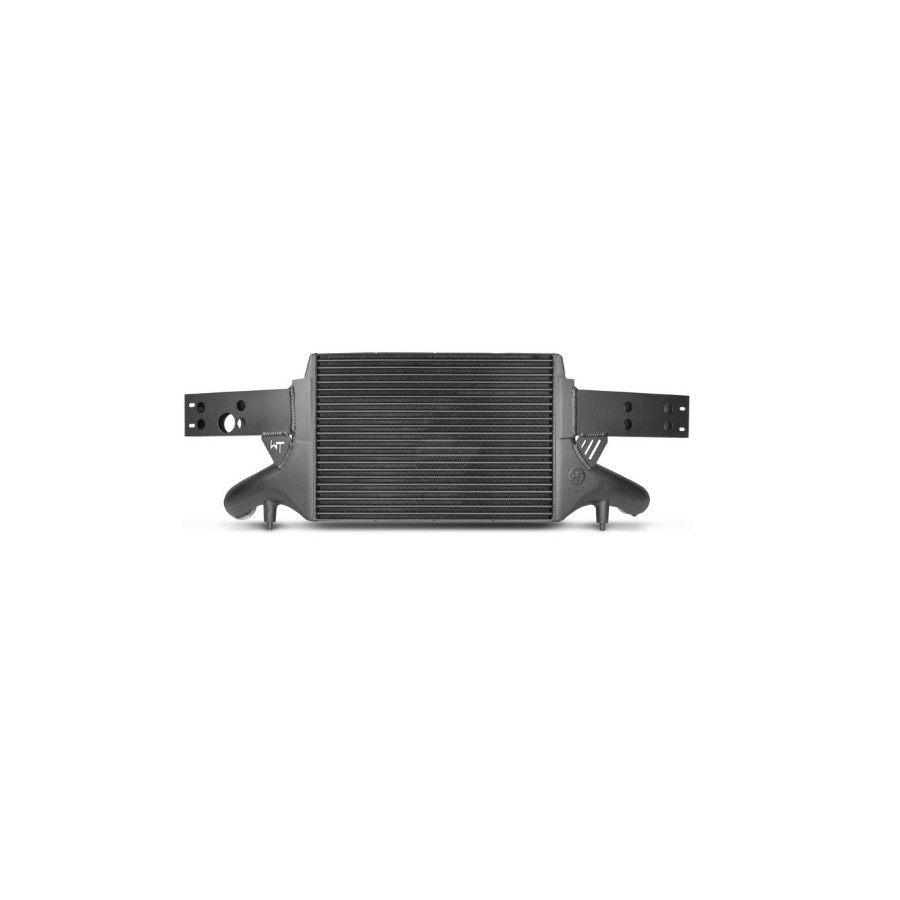

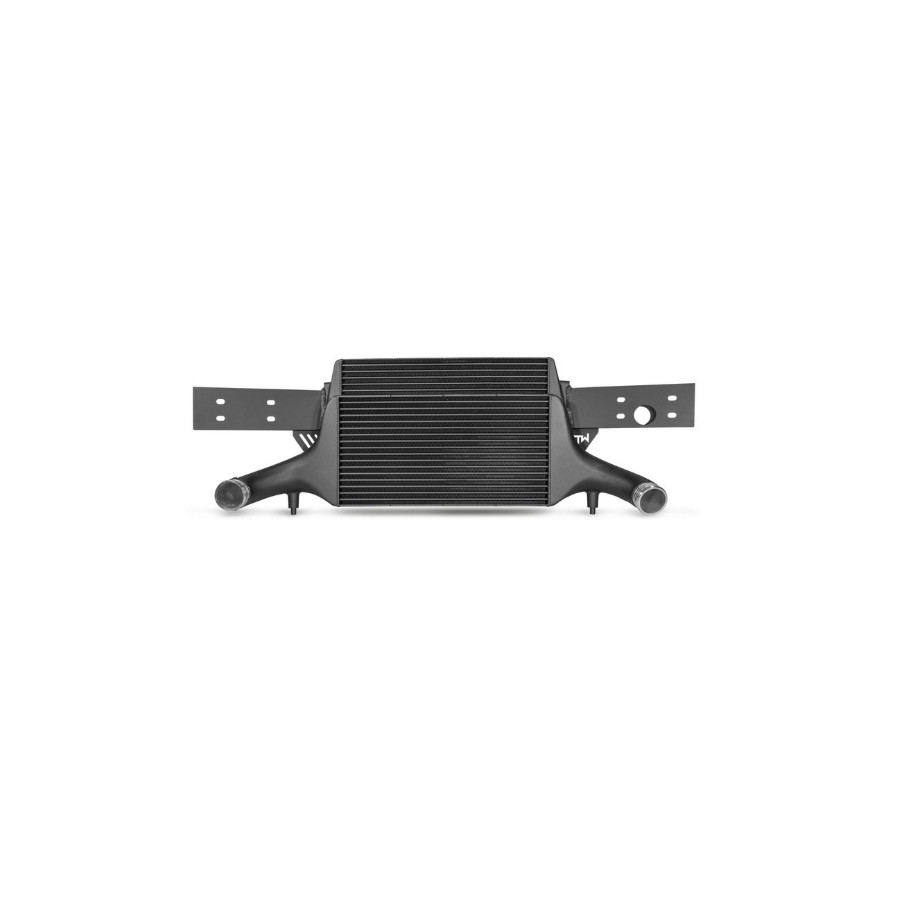

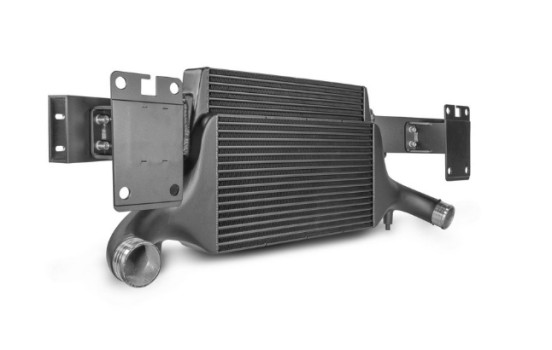

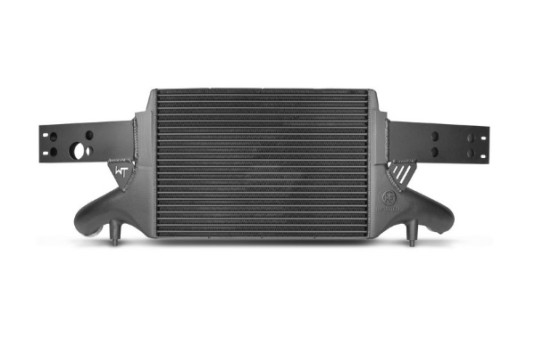

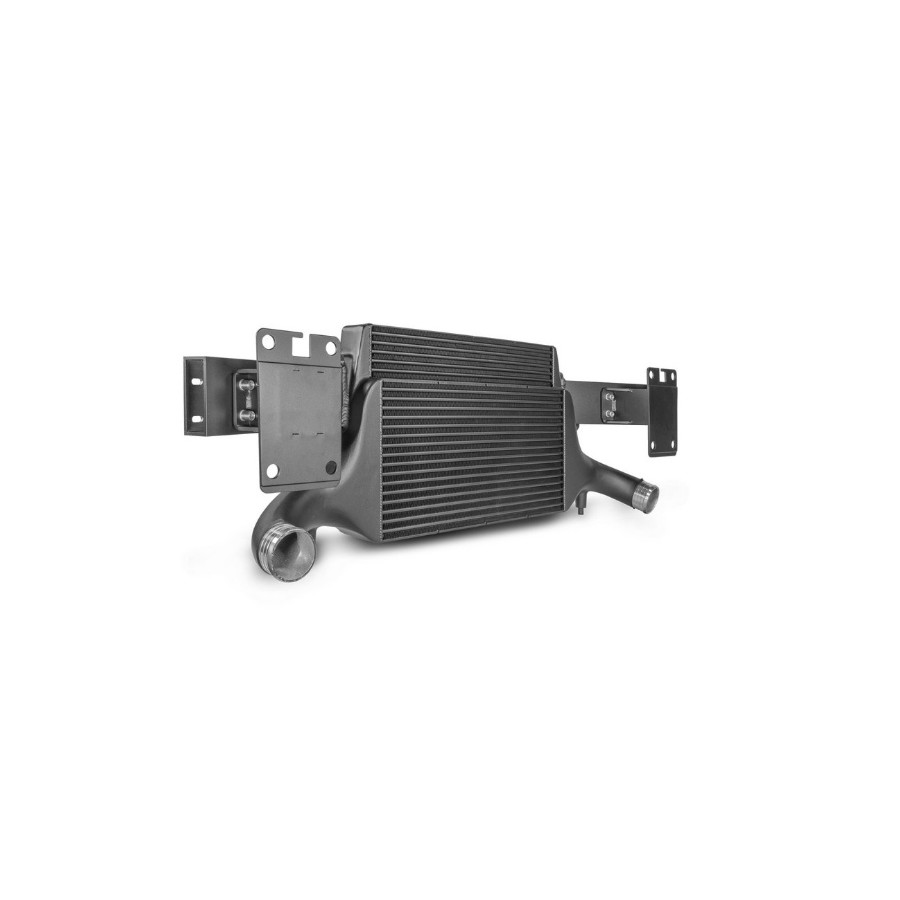

    Wagner Tuning Competition Intercooler EVO3 Audi TTRS 8S

    The high-performance intercooler has the following core dimensions (515 mm x 367 mm x 95 mm [stepped] = 16,500 cm³) and offers an 84% larger intake surface area and 101% more charge air volume compared to the original intercooler. The newly developed Competition high-performance core ensures sufficient airflow to adjacent components, such as the radiator. It is a high-quality finned tube with internal turbulators. The intercooler end casings are made of cast aluminum and have been optimized using CFD flow analysis. Integrated air guides in the inlet ensure even charging of the intercooler. The result is excellent cooling properties with minimal back pressure. This makes this kit suitable for racing. In addition, all our intercoolers are provided with an anti-corrosion coating with thermal conductivity. This guarantees long-lasting and optimal cooling with a significantly higher performance. The intercooler and the original cross member form a stable unit and weigh only 11.7 kg thanks to the new Competition high-performance core. Installation is done using the original mounting points and is easy to perform (see the installation instructions for minor adjustments). Tested and pressure-stable up to 6 bar. All our products are subject to continuous quality control.

    OEM intercooler:
    Cooling surface 1024 cm² / Intake air volume 8.2 l
    Inlet and outlet diameter 68 mm

    WT EVO 3 Competition:
    Cooling surface 1890 cm² / Intake air volume 16.5 l
    Inlet and outlet diameter 68 mm

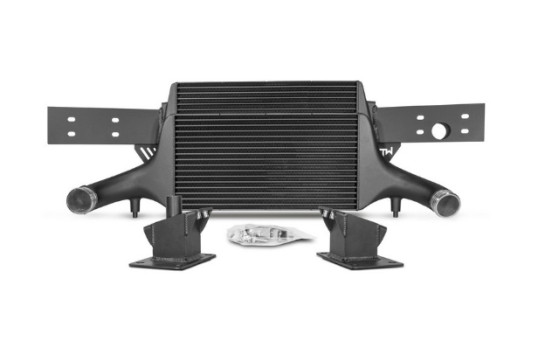

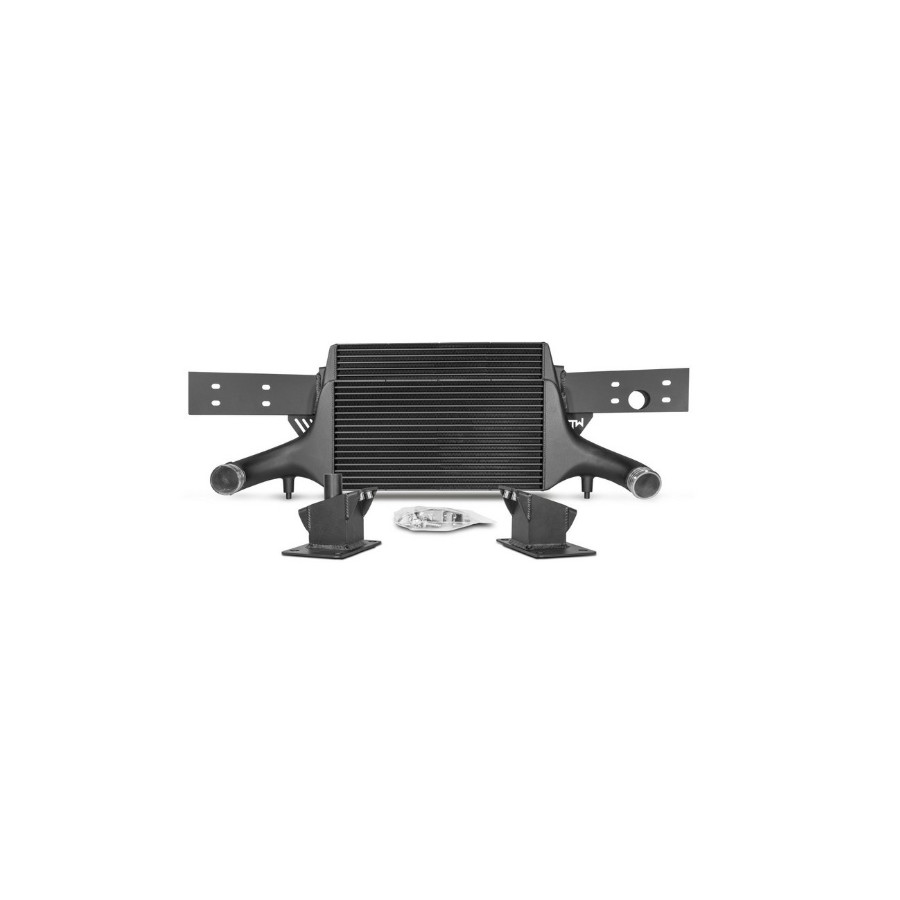

    Scope of delivery:
    1 intercooler with cross member
    1 mounting material
    1 assembly instructions
    1 TÜV parts certificate

    applicationINTERCOOLER
    Warranty2 years

  • Applicability

    AUDI
    TT
    TT (FV3, FVP) | 07.2014-08.2018 2.5 RS TFSI quattro - 2480ccm, 400pk, 294kw - DAZA, DNWA
    TT Roadster
    TT Roadster (FV9, FVR) | 11.2014-08.2018 2.5 RS TFSI quattro - 2480ccm, 400pk, 294kw - DAZA, DNWA

  • Manufacturer

    Wagner Tuning
    The German Wagner Tuning offers a wide range of after-market performance parts, for many different brands.
    The products are characterized by very good quality and clear assembly instructions. The after-sales service is also excellent.

    Winparts supplies intercoolers and downpipes from Wagner Tuning.
    Wagner tuning distinguishes between 'Performance' and 'Competition'.
    The Performance parts are a (strong) improvement of original parts. The Competition products are a further development, with features that are also usable on the circuit. The Performance parts are plug-and-play in most cases, while at the Competition parts something needs to be adjusted. Instructions can be found in the manual.
