Wagner Tuning Competition Intercooler Kit EVO3.X Audi RS3 8P 200001059.X

Video

Product number: 1439434

Manufacturer number: 200001059.X

EAN: 04260719920457

£ 1,610.⁹⁶

Incl. VAT

View product specifications

In stock

Delivery 15-07-2026

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

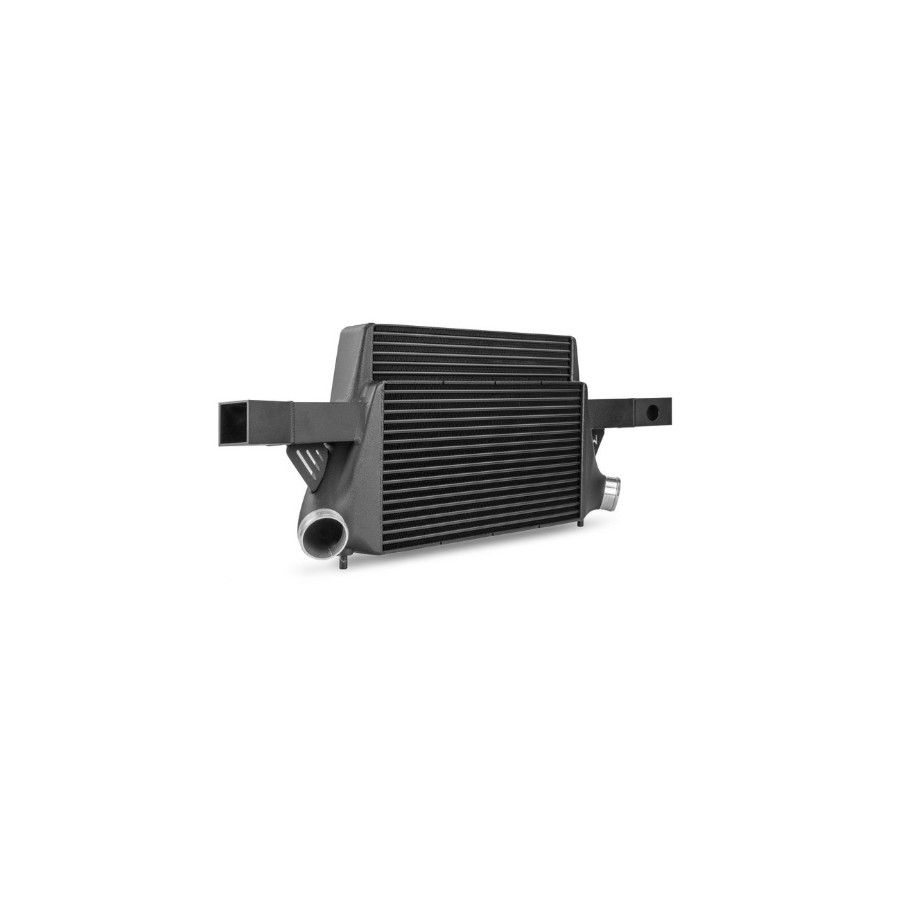

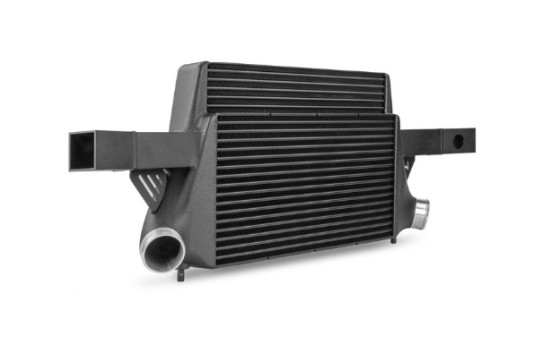

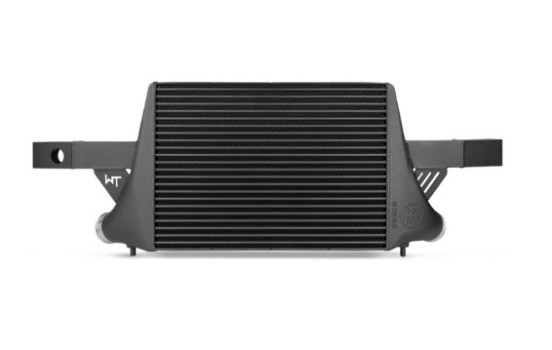

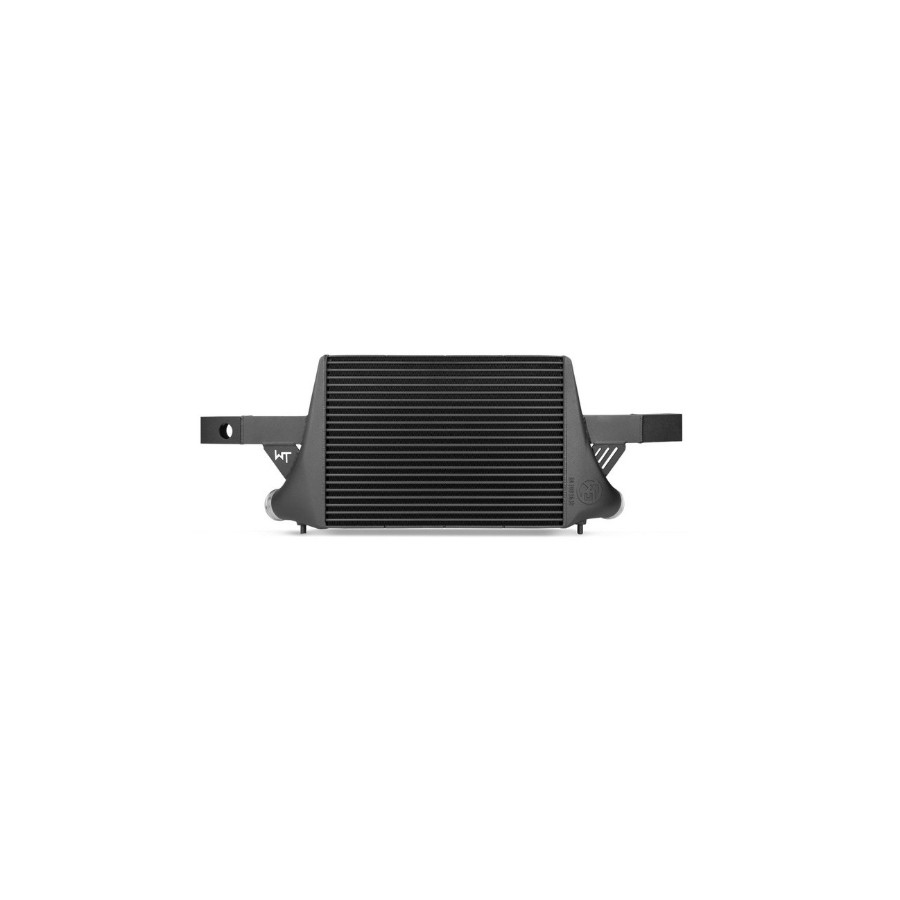

Wagner Tuning Competition Intercooler Kit EVO3.X Audi RS3 8P
For vehicles with over 600 HP!
The EVO3 intercooler kit for Audi RS3 8P is a further development of the EVO2 intercooler kit known to date.
The high-performance intercooler has the following dimensions (515 mm x 367 [274] mm x 95 mm), offering a 120% larger intake surface area and 142% more intercooler volume compared to the original intercooler. The newly developed Competition-quality grille ensures sufficient airflow to adjacent components, such as the water cooler, and is also very light. The intercooler end casings are made of cast aluminum and have been optimized using flow analyses in the CAD system. Integrated air guides in the inlet ensure even charging of the intercooler. The result is excellent cooling properties with minimal back pressure. This makes this kit ideal for racing. The intercooler and the original cross member form a stable unit and, thanks to the new Competition-quality net, weigh only 11.2 kg. Installation is carried out using the original mounting points and is easy to carry out (1:1 replacement). Optimal cooling of the charged air with a significant increase in performance! The connection diameter is 68 mm on both sides.
OEM intercooler: cooling surface 856 cm² / intercooler volume 6.8 l WT EVO 1 Performance: cooling surface 856 cm² / intercooler volume 9.4 l WT EVO 2 Competition: cooling surface 1391 cm² / intercooler volume 13.2 l WT EVO 3 Competition: cooling surface 1890 cm² / intercooler volume 16.5 l
OEM intercooler:
Cooling surface 102400 mm² L
Intercooler volume 8.2 L
Inlet and outlet Ø68 mm
WT EVO 3 Competition:
Cooling surface 189,000 mm²
Intercooler volume 16.5 l
Inlet and outlet Ø68 mm
Remark:
v - optional with additional holder for facelift models with Adaptive Cruise Control ACC (possible recalibration of the ACC necessary)
Scope of delivery:
1 intercooler together with the cross member
1 mounting material
1 assembly manual
1 TÜV parts certificate

application INTERCOOLER
Warranty 2 years

Applicability

AUDI

	A3 Sportback
	A3 Sportback (8PA) \| 09.2004-03.2013 RS3 quattro - 2480ccm, 340pk, 250kw - CEPA

Manufacturer

The German Wagner Tuning offers a wide range of after-market performance parts, for many different brands.
The products are characterized by very good quality and clear assembly instructions. The after-sales service is also excellent.

Winparts supplies intercoolers and downpipes from Wagner Tuning.
Wagner tuning distinguishes between 'Performance' and 'Competition'.
The Performance parts are a (strong) improvement of original parts. The Competition products are a further development, with features that are also usable on the circuit. The Performance parts are plug-and-play in most cases, while at the Competition parts something needs to be adjusted. Instructions can be found in the manual.
Delivery time

Expected delivery date:

15-07-2026
Manual
