Wagner Tuning Competition Intercooler Kit EVO3.X Audi TTRS 8J 200001056.X

Wagner Tuning Competition Intercooler Kit EVO3.X Audi TTRS 8J

TTRS 8J 250 kW/340 hp (2009-2014)
TTRS plus 8J 265 kW/360 hp (2009-2014)

Set consists of intercooler 200001056.X and downpipe: 500001003

The Competition package for the Audi TTRS 8J consists of the intercooler upgrade kit EVO 3 and the downpipe kit.

Intercooler upgrade kit 200001056

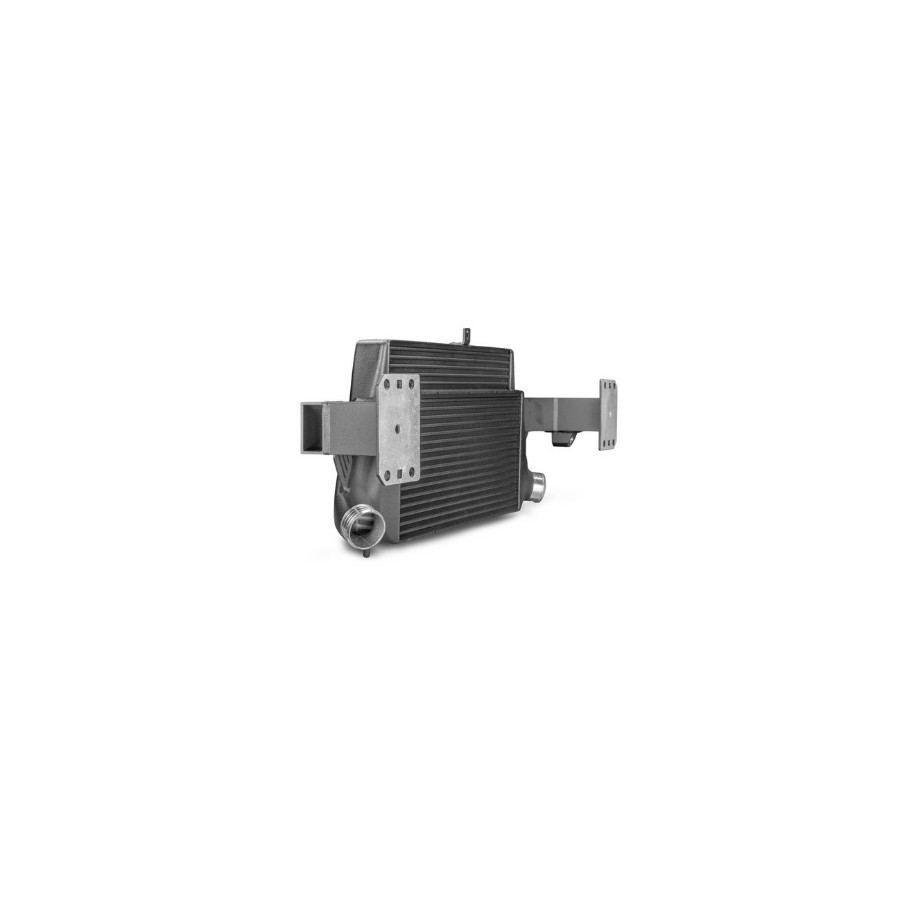

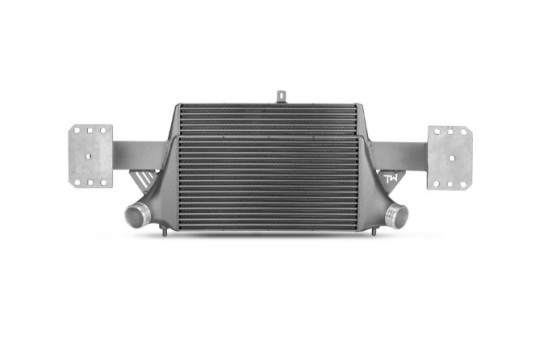

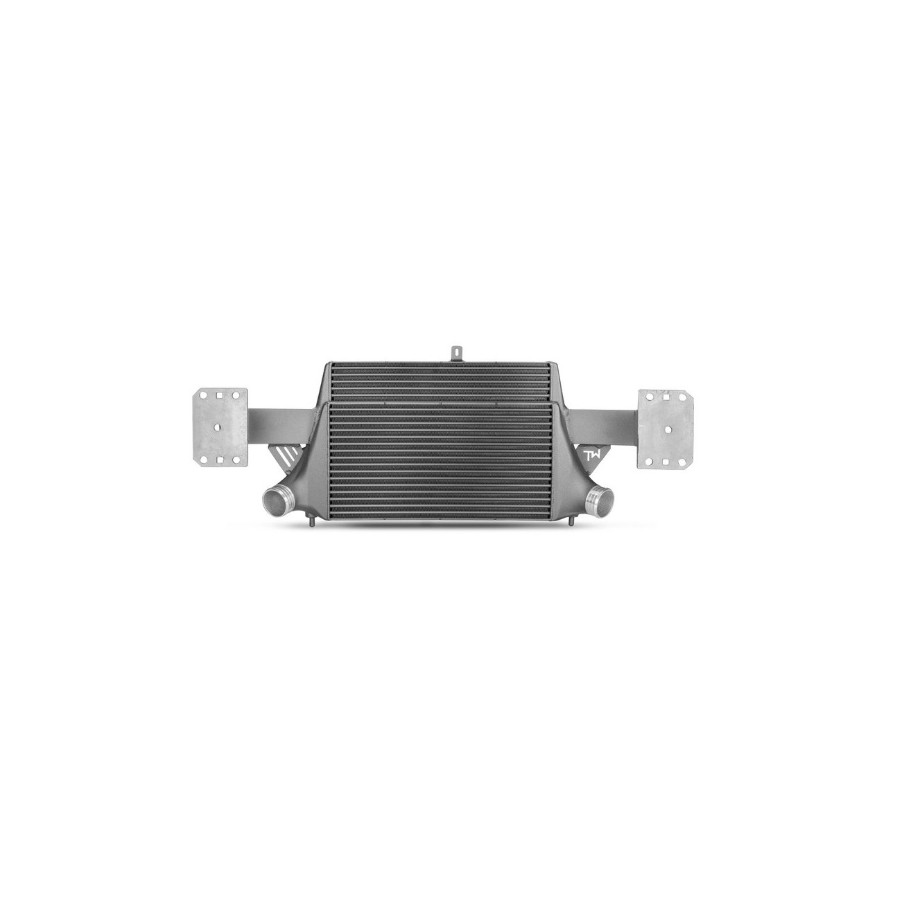

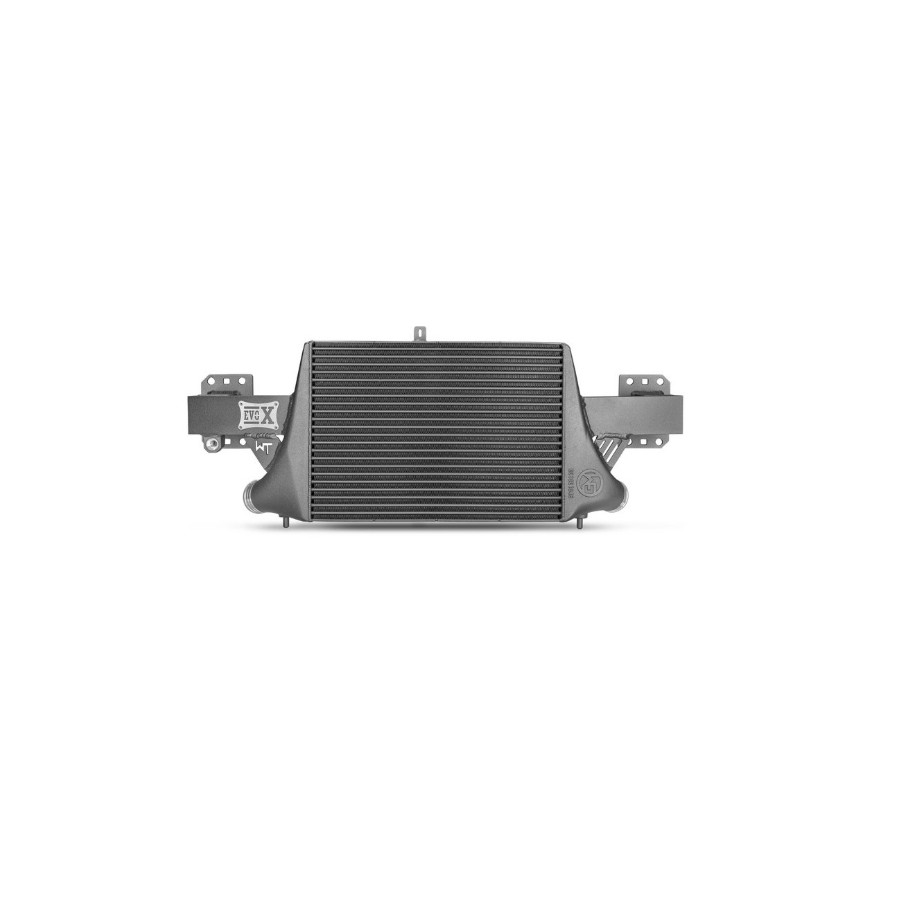

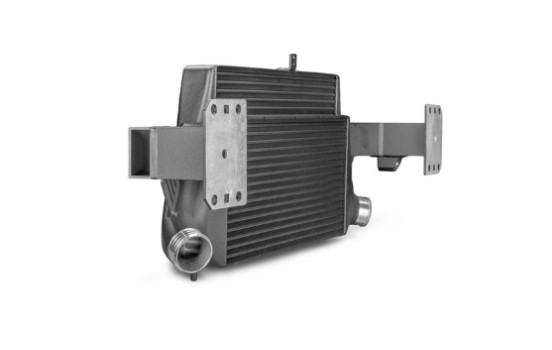

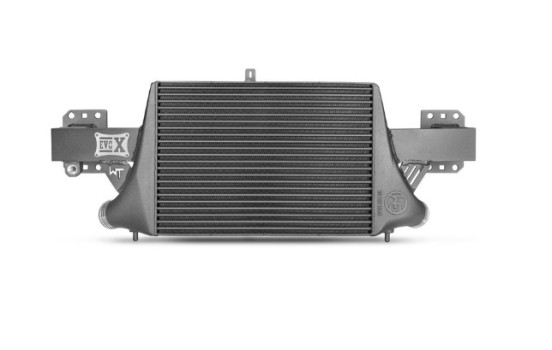

The intercooler kit EVO3 for Audi TTRS 8J is a further development of the previously known intercooler kit EVO 2.

The high-performance intercooler has the following dimensions (515 mm x 367 [274] mm x 95 mm), offering a 120% larger intake surface area and 142% more intercooler volume compared to the original intercooler. The newly developed Competition-quality grille ensures sufficient airflow to adjacent components, such as the water cooler, and is also very light. The intercooler end casings are made of cast aluminum and have been optimized using flow analyses in the CAD system. Integrated air guides in the inlet ensure even charging of the intercooler. The result is excellent cooling properties with minimal back pressure. This makes this kit ideal for racing. The intercooler and the original cross member form a stable unit and, thanks to the new Competition-quality net, weigh only 11.2 kg. Installation is carried out using the original mounting points and is easy to carry out (1:1 replacement). Optimal cooling of the charged air with a significant increase in performance!

OEM intercooler: cooling surface 856 cm² / intercooler volume 6.8 l
WT EVO 1 Performance: cooling surface 856 cm² / intercooler volume 9.4 l
WT EVO 2 Competition: cooling surface 1391 cm² / intercooler volume 13.2 l
WT EVO 3 Competition: cooling surface 1890 cm² / intercooler volume 16.5 l

All our products are continuously monitored for quality.

• 1 intercooler together with the cross member
• 1 mounting material
• 1 set of license plate holders
• 1 assembly manual

Note: For racing sports only

Y-pipe kit 500001003

The Y-pipe kit for Audi TTRS 8J/RS3 8P with catalytic converter

Diameter from 90 mm to 2 x 70 mm
Completely made of high-quality stainless steel 1.4301 (SS304)
Without pre-catalyst
1 lambda sensor connection
2 racing main catalytic converters (100 cells/inch)
100% fit, easy to replace with series parts
less thermal load on the turbocharger
more power by reducing thrust
significantly more torque suitable for Audi TTRS 8J and Audi RS3 8P
compatible with the original main catalytic converters
