Flywheel ADF123502 Blue Print

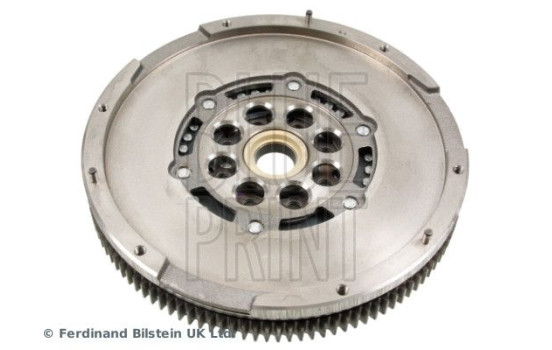

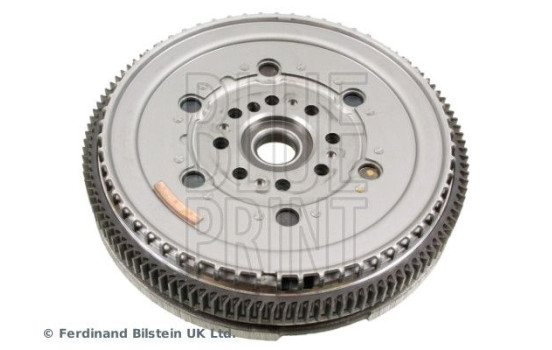

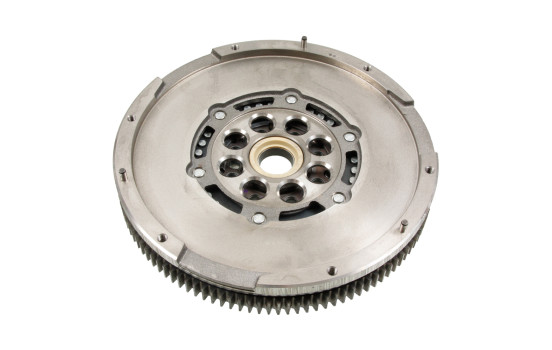

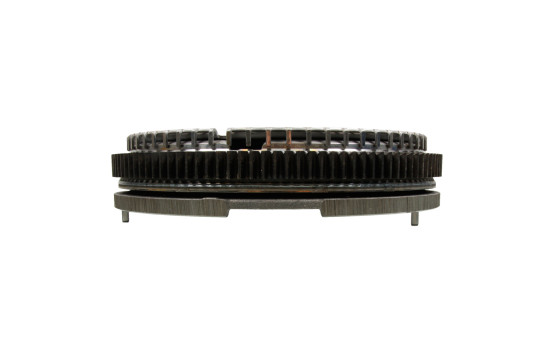

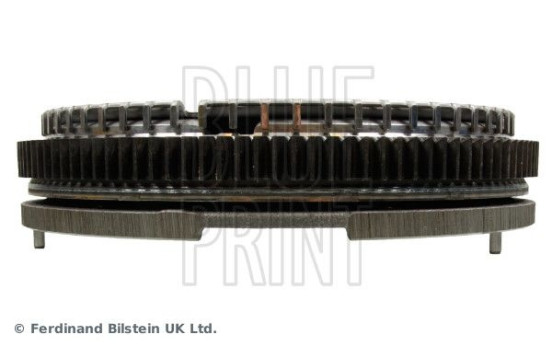

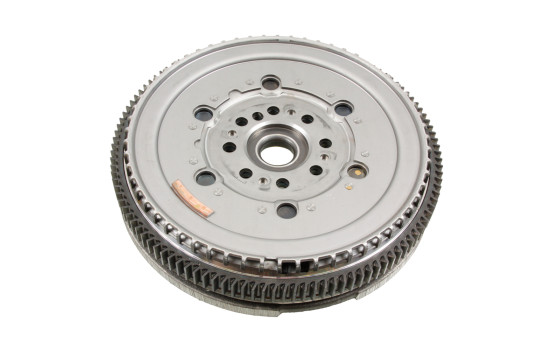

Flywheel ADF123502 Blue Print Flywheel ADF123502 Blue Print, Image 2 Flywheel ADF123502 Blue Print, Image 3 Flywheel ADF123502 Blue Print, Image 4 Flywheel ADF123502 Blue Print, Image 5 Flywheel ADF123502 Blue Print, Image 6
  • Flywheel ADF123502 Blue Print
  • Flywheel ADF123502 Blue Print, Thumbnail 2
  • Flywheel ADF123502 Blue Print, Thumbnail 3
  • Flywheel ADF123502 Blue Print, Thumbnail 4
  • Flywheel ADF123502 Blue Print, Thumbnail 5
  • Flywheel ADF123502 Blue Print, Thumbnail 6

Product number: 1079840

Manufacturer number: ADF123502

EAN: 5057746076108

£ 321.22

Incl. VAT
View product specifications
In stock
Delivery 29-01-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Number of Teeth116
    Observe service information
    Warranty3 years
    Hub internal diameter [mm]30
    Number of EDC bores/notches58
    Hub fastening hole diameter [mm]12
    Hub external diameter [mm]121
    Pitch circle diameter, hub [mm]87
    Pitch circle diameter, clutch pressure plate [mm]278
    External diameter, clutch pressure plate [mm]273
    Running surface internal diameter [mm]156
    Number of mounting holes in the hub8
    Number of mounting holes in the pressure group6

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AISIN FDE-FD33
    BLUE PRINT ADF123502 (this product)
    DT Spare Parts 13.47108SP
    Manufacturer Manufacturer number Price
    DT Spare Parts 13.47108
    WILMINK GROUP WG2308998
    WILMINK GROUP WG2308999

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 140pk, 103kw - H9FD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC

  • Original part numbers

    1 748 420 FORD
    1 858 770 FORD
    4 568 121 FORD
    4C116477BA FORD USA
    4C116477DA FORD USA
    4C116477DB FORD USA

  • Manufacturer

    Blue Print

    Blue Print has more than 25 years of experience in developing, importing and distributing auto parts for Asian cars. Due to the origin of the company, they have a very broad experience in the market and can therefore supply perfectly suitable quality products.


    Blueprint is one of the largest manufacturers in the Asian auto parts market. In addition to the Asian market, Blue Print is also busy conquering the British and American car parts market. As a result, there is always a Blueprint product available for your car. Every month Blueprint brings an average of 100 new products onto the market and thus keeps the offer up to date at all times.


    Blueprint car parts are manufactured and tested according to strict European guidelines. The products are made according to OE specifications, so you always buy a very durable replacement product for your car.


    Blueprint car parts distinguish themselves on the following points:


    • Large Asian fleet coverage

    • Very good parts availability for recent models

    • Products in more than 160 different product groups with more than 23,000 items

    • OE quality or superlative


    We currently have the following Blue Print products in our range:


    • Brake pads, brake discs & other brake parts

    • Filters

    • Wheel bearings

    • Clutch Kits

    • Multi Belts, Timing Belts, Tensioners & Water Pumps

    • Ignition, Spark Plugs & Ignition Coils

    • Chassis parts & wishbones

    • Springs & shock absorbers
