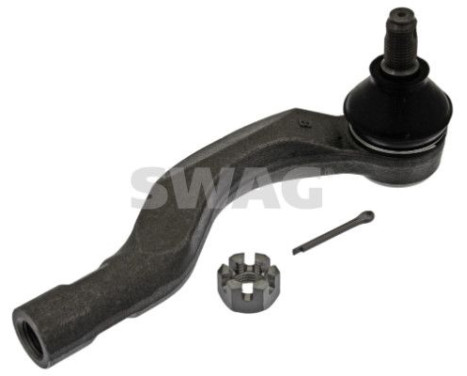

tie rod end piece

tie rod end piece

Product number: 1704287

Manufacturer number: 81943153

EAN: 4044688431530

£ 13.52

Incl. VAT
View product specifications
Not available

Free Shipping

  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Fitting PositionFront axle right (driver's side)
    Spanner Size19
    Supplementary Article/Supplementary InfoWith castle nut and cotter pin
    Warranty2 years
    Length [mm]184
    Thickness [mm]68
    External Thread SizeM12 x 1,25
    Size of internal threadM14 x 1,5

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    ASHIKA 111-02-2031R
    BLUE PRINT ADT387110
    £ 13.52
    BORG & BECK BTR5291
    DLZ TE1316R
    FEBI BILSTEIN 43153
    £ 13.52
    FIRST LINE FTR5291
    Manufacturer Manufacturer number Price
    JAPANPARTS TI-2031R
    £ 9.76
    JAPKO 1112031R
    LYNXauto C4399R
    NIPPARTS N4832107
    Oyodo 10K2037-OYO
    SWAG 81943153 (this product)

  • Applicability

    LEXUS
    GS
    GS (JZS147_) | 01.1993-08.1997 300 (JZS147_, JZS147R) - 2997ccm, 212pk, 156kw - 2JZ-GE
    TOYOTA
    ARISTO
    ARISTO (_S14_) | 10.1990-07.1997 3.0 (JZS147) - 2997ccm, 230pk, 169kw - 2JZ-GE
    ARISTO (_S14_) | 10.1990-07.1997 3.0 (JZS147) - 2997ccm, 279pk, 205kw - 2JZ-GTE
    ARISTO (_S14_) | 10.1990-07.1997 4.0 4WD (UZS143) - 3969ccm, 235pk, 173kw - 1UZ-FE
    CROWN
    CROWN (_S14_, _S13_) | 10.1991-12.1995 3.0 (JZS133, JZS147, JZS149) - 2997ccm, 220pk, 162kw - 2JZ-GE
    MARK II
    MARK II IX Saloon (_X11_) | 10.2000-11.2004 2.0 4WD (GX115) - 1988ccm, 160pk, 118kw - 1G-FE
    MARK II IX Saloon (_X11_) | 10.2000-11.2004 2.5 4WD (JZX115) - 2491ccm, 200pk, 147kw - 1JZ-GE
    MARK II VIII Saloon (_X10_) | 09.1996-09.2001 2.5 4WD (JZX105_, JZX105) - 2491ccm, 200pk, 147kw - 1JZ-GE

  • Original part numbers

    45460-39365 TOYOTA
    45460-39855 TOYOTA
    45460-39395 LEXUS
    45460-39455 LEXUS
    45460-39455 TOYOTA
    45460-39365 LEXUS
    45460-39395 TOYOTA
