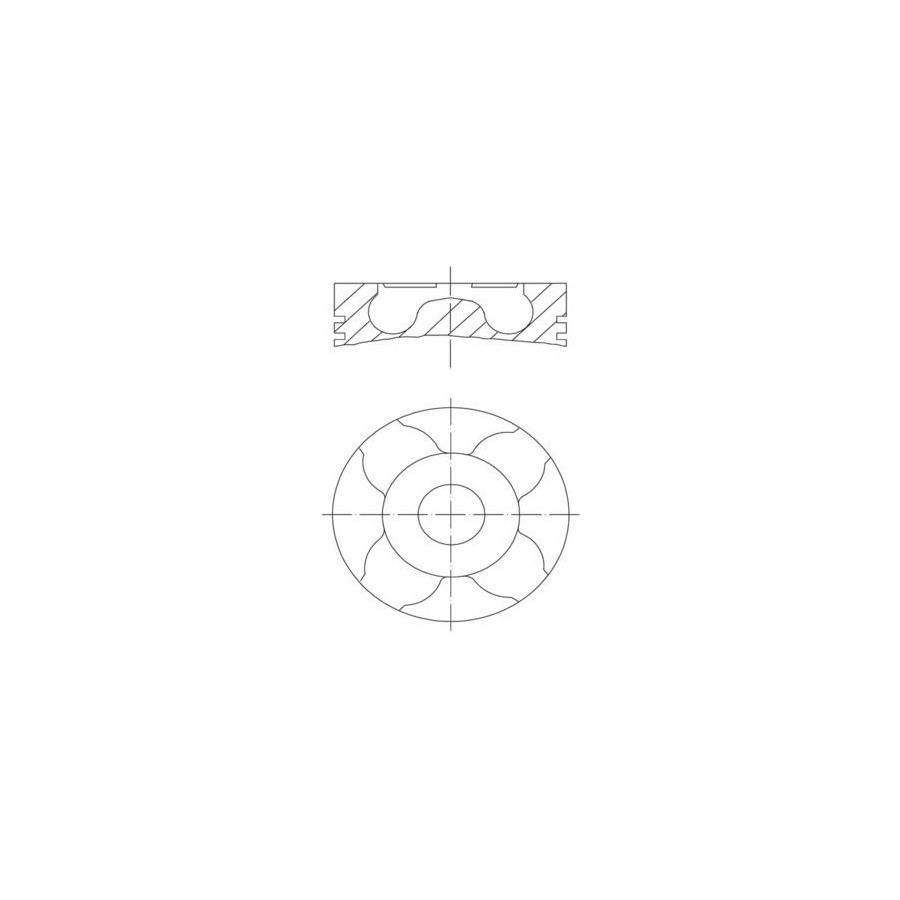

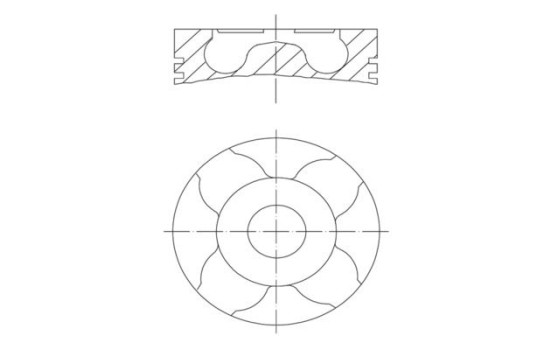

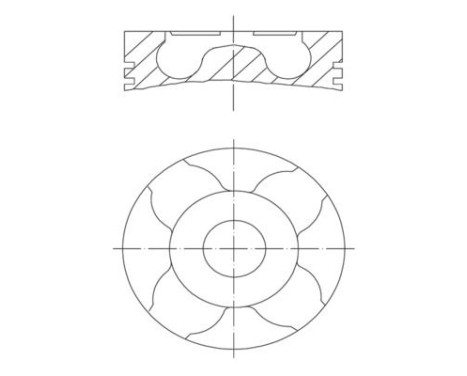

Piston
Product number: 1177581
Manufacturer number: 010 04 00
EAN: 4009026588161
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Supplementary Article/Info 2 With piston ring carrier Without cooling channel Surface Coated Mechanically processed With recess for oil sprayer Production Number 70 L 84 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 37 Recess Depth 1 [mm] 12,4 Warranty 2 years Bolt length [mm] 56,1 Component Number 1. R 2.0 CrK 2. M 1.5 IFU P 3. DSF 2.0 Cr Length [mm] 63,4 Standard Size [STD] Compression Height [mm] 40,43 Valve pocket depth 1 [mm] 1,17 Top land height [mm] 7,5 Connecting Rod Design Trapezoidal connecting rod Valve pocket depth 2 [mm] 0,97 Net Weight [g] 500 Piston clearance [mm] 0,07 Cylinder bore [mm] 69,6 Bolt diameter [mm] 23 Similar products of other manufacturers
Manufacturer Manufacturer number Price IPSA PI025300 MAHLE 010 04 00 (this product) NE 130035001723 NE 130035001720 NE 130035001700 NÜRAL 87-137600-00 Manufacturer Manufacturer number Price WILMINK GROUP WG1104194 WILMINK GROUP WG1094066 WILMINK GROUP WG1034096 WILMINK GROUP WG2022418 WILMINK GROUP WG2022417 -
Original part numbers
55180967 FIAT 55180966 FIAT 73502642 FIAT 55180968 FIAT 73502641 FIAT 55200302 FIAT 71729500 FIAT 55180972 FIAT 562 321 6 OPEL 93177293 OPEL -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
