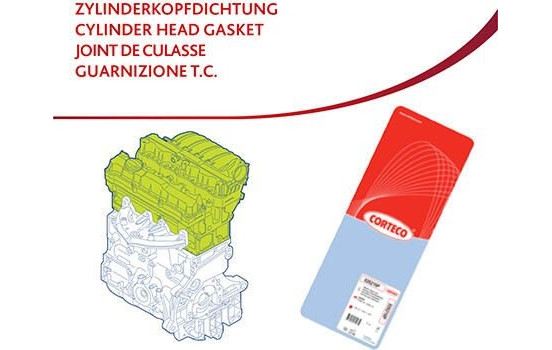

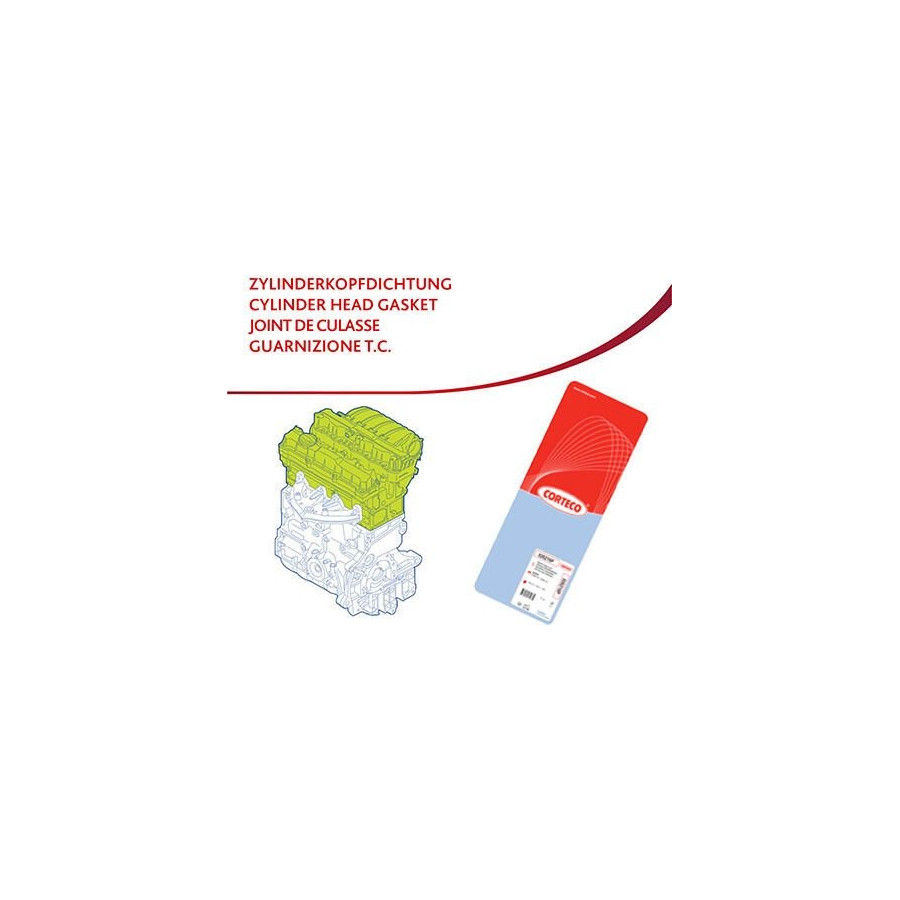

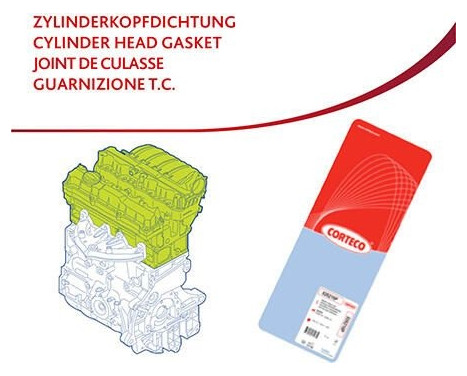

JOINTS DE CULASSE VAG CHZA MLS 0.6M

Name: JOINTS DE CULASSE VAG CHZA MLS 0.6M | Winparts.co.uk - Cylinder head gasket
Brand: Corteco
SKU: 2084232
Price: 27.83 GBP
Availability: InStock

Product number: 2084232

Manufacturer number: 83403286

EAN: 3358960897091

£ 27.⁸³

Incl. VAT

View product specifications

In stock

Delivery 19-02-2026

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Material	Metal
only in connection with	49134876
Warranty	2 years
Diameter [mm]	75,5
Length [mm]	277
Width [mm]	187
Thickness [mm]	0,6

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
CORTECO	83403286	(this product)
ELRING	397.150	£ 28.32

Manufacturer	Manufacturer number	Price
ELWIS ROYAL	0056035

Applicability

AUDI

	A1 Sportback
	A1 Sportback (GBA) \| 07.2018-??? 25 TFSI - 999ccm, 95pk, 70kw - DKLA, DLAC, DUSB
	A1 Sportback (GBA) \| 07.2018-??? 30 TFSI - 999ccm, 116pk, 85kw - DKJA, DKRF, DUSA
	A3
	A3 (8V1, 8VK) \| 04.2012-10.2020 1.0 TFSI - 999ccm, 115pk, 85kw - CHZD
	A3 Limousine
	A3 Limousine (8VS, 8VM) \| 05.2013-10.2020 1.0 TFSI - 999ccm, 115pk, 85kw - CHZD
	A3 Limousine (8VS, 8VM) \| 05.2013-10.2020 30 TFSI - 999ccm, 115pk, 85kw - DKRF
	A3 Sportback
	A3 Sportback (8VA, 8VF) \| 09.2012-10.2020 1.0 TFSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	A3 Sportback (8VA, 8VF) \| 09.2012-10.2020 30 TFSI - 999ccm, 116pk, 85kw - DKRF
	Q2
	Q2 (GAB, GAG) \| 06.2016-10.2020 1.0 TFSI - 999ccm, 115pk, 85kw - CHZJ
	Q2 (GAB, GAG) \| 06.2016-10.2020 30 TFSI - 999ccm, 116pk, 85kw - DKRF, DUSA

SEAT

	ARONA
	ARONA (KJ7, KJP) \| 07.2017-??? 1.0 TSI - 999ccm, 116pk, 85kw - CHZJ, DKJA, DKRF, DXUA, DUSA
	ARONA (KJ7, KJP) \| 07.2017-??? 1.0 TSI - 999ccm, 95pk, 70kw - CHZL, DKLA, DLAC, DUSB
	IBIZA Mk
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 MPi - 999ccm, 80pk, 59kw - DFNA, DSGB, DSGD
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 TGI - 999ccm, 90pk, 66kw - DBYA
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 TSI - 999ccm, 116pk, 85kw - CHZJ, DKJA, DKRF, DUSA
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 TSI - 999ccm, 95pk, 70kw - CHZL, DKLA, DLAC, DUSB
	LEON
	LEON (5F1) \| 09.2012-08.2020 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	LEON (5F1) \| 09.2012-08.2020 1.0 TSi - 999ccm, 86pk, 63kw - DKLB
	LEON SC
	LEON SC (5F5) \| 01.2013-08.2018 1.0 TSI - 999ccm, 115pk, 85kw - CHZD
	LEON ST
	LEON ST (5F8) \| 09.2012-08.2020 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	LEON ST (5F8) \| 09.2012-08.2020 1.0 TSi - 999ccm, 86pk, 63kw - DKLB
	TOLEDO IV
	TOLEDO IV (KG3) \| 07.2012-04.2019 1.0 TSI - 999ccm, 95pk, 70kw - CHZB, DKLD
	TOLEDO IV (KG3) \| 07.2012-04.2019 1.0 TSI - 999ccm, 110pk, 81kw - CHZC, DKRC

SKODA

	FABIA III
	FABIA III (NJ3) \| 08.2014-06.2021 1.0 TSI - 999ccm, 95pk, 70kw - CHZB, DKLD
	FABIA III (NJ3) \| 08.2014-06.2021 1.0 TSI - 999ccm, 110pk, 81kw - CHZC, DKRC
	FABIA III Estate (NJ5) \| 08.2014-12.2022 1.0 TSI - 999ccm, 95pk, 70kw - CHZB, DKLD
	FABIA III Estate (NJ5) \| 08.2014-12.2022 1.0 TSI - 999ccm, 110pk, 81kw - CHZC, DKRC
	KAMIQ
	KAMIQ (NW4) \| 07.2019-??? 1.0 TSI - 999ccm, 116pk, 85kw - DKJA, DKRF, DXUA, DUSA
	KAMIQ (NW4) \| 07.2019-??? 1.0 TSI - 999ccm, 95pk, 70kw - DKLA, DLAC, DUSB
	KAROQ
	KAROQ (NU7, ND7) \| 07.2017-??? 1.0 TSI - 999ccm, 116pk, 85kw - CHZJ, DKRF, DUSA
	OCTAVIA III
	OCTAVIA III (5E3, NL3, NR3) \| 11.2012-10.2020 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRA, DKRF
	OCTAVIA III Combi (5E5, 5E6) \| 11.2012-10.2020 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRA, DKRF
	RAPID
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.0 TSI - 999ccm, 95pk, 70kw - CHZB, DKLD
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.0 TSI - 999ccm, 110pk, 81kw - CHZC, DKRC
	RAPID Spaceback
	RAPID Spaceback (NH1) \| 07.2012-12.2019 1.0 TSI - 999ccm, 95pk, 70kw - CHZB, DKLD
	RAPID Spaceback (NH1) \| 07.2012-12.2019 1.0 TSI - 999ccm, 110pk, 81kw - CHZC, DKRC
	SCALA
	SCALA (NW1) \| 02.2019-??? 1.0 TSI - 999ccm, 116pk, 85kw - DKJA, DKRF, DXUA, DUSA
	SCALA (NW1) \| 02.2019-??? 1.0 TSI - 999ccm, 95pk, 70kw - DKLA, DLAC, DUSB

VOLKSWAGEN

	CADDY ALLTRACK
	CADDY ALLTRACK IV Box Body/MPV (SAA) \| 05.2015-09.2020 1.0 TSI - 999ccm, 102pk, 75kw - CHZG
	CADDY ALLTRACK IV Estate (SAB) \| 05.2015-09.2020 1.0 TSI - 999ccm, 102pk, 75kw - CHZG
	CADDY ALLTRACK IV Estate (SAB) \| 05.2015-09.2020 1.0 TSI - 999ccm, 84pk, 62kw - DKRD
	CADDY IV
	CADDY IV Box Body/MPV (SAA, SAH) \| 05.2015-12.2020 1.0 TSI - 999ccm, 102pk, 75kw - CHZG, DKRE
	CADDY IV Estate (SAB, SAJ) \| 05.2015-12.2020 1.0 TSI - 999ccm, 102pk, 75kw - CHZG, DKRE
	CADDY IV Estate (SAB, SAJ) \| 05.2015-12.2020 1.0 TSI - 999ccm, 84pk, 62kw - DKRD
	GOLF SPORTSVAN
	GOLF SPORTSVAN VII (AM1, AN1) \| 02.2014-08.2020 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	GOLF SPORTSVAN VII (AM1, AN1) \| 02.2014-08.2020 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	GOLF SPORTSVAN VII (AM1, AN1) \| 02.2014-08.2020 1.0 TSI - 999ccm, 86pk, 63kw - CHZK, DKLB
	GOLF VII
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 1.0 TSI - 999ccm, 86pk, 63kw - CHZK, DKLB
	GOLF VII Estate (BA5, BV5) \| 04.2013-03.2021 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	GOLF VII Estate (BA5, BV5) \| 04.2013-03.2021 1.0 TSI - 999ccm, 115pk, 85kw - CHZD, DKRF
	GOLF VII Estate (BA5, BV5) \| 04.2013-03.2021 1.0 TSI - 999ccm, 86pk, 63kw - CHZK, DKLB
	POLO VI
	POLO VI (AW1, BZ1, AE1) \| 06.2017-11.2021 1.0 MPi - 999ccm, 80pk, 59kw - DFNA, DSGB, DSGD
	POLO VI (AW1, BZ1, AE1) \| 06.2017-11.2021 1.0 TGI - 999ccm, 90pk, 66kw - DBYA
	POLO VI (AW1, BZ1, AE1) \| 06.2017-11.2021 1.0 TSI - 999ccm, 116pk, 85kw - CHZJ, DKJA, DKRF, DXUA, DUSA
	POLO VI (AW1, BZ1, AE1) \| 06.2017-11.2021 1.0 TSI - 999ccm, 95pk, 70kw - CHZL, DKLA, DLAC, DXTA, DUSB
	T-CROSS
	T-CROSS (C11, D31) \| 12.2018-??? 1.0 TSi - 999ccm, 95pk, 70kw - CHZL, DKLA, DLAC, DXTA, DUSB
	T-CROSS (C11, D31) \| 12.2018-??? 1.0 TSi - 999ccm, 116pk, 85kw - DKJA, DKRF, DXUA, DUSA
	TOURAN
	TOURAN (5T1) \| 05.2015-07.2022 1.0 TSI - 999ccm, 116pk, 85kw - DKRB
	T-ROC
	T-ROC (A11, D11) \| 07.2017-06.2021 1.0 TSI - 999ccm, 116pk, 85kw - CHZJ, DKRF, DUSA
	UP!
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 GTI - 999ccm, 115pk, 85kw - DKRA
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 TSI - 999ccm, 90pk, 66kw - CHZA, DKLC

Original part numbers

04C103383AB SKODA
Manufacturer

Corteco is one of the leading international suppliers to the independent automotive aftermarket. As a subsidiary of the worldwide Freudenberg Group, they supply more than 26,000 items in OEM quality. In the field of sealing and vibration technology as well as cabin filters, independent workshops and the spare parts trade benefit from the range of an original manufacturer.
