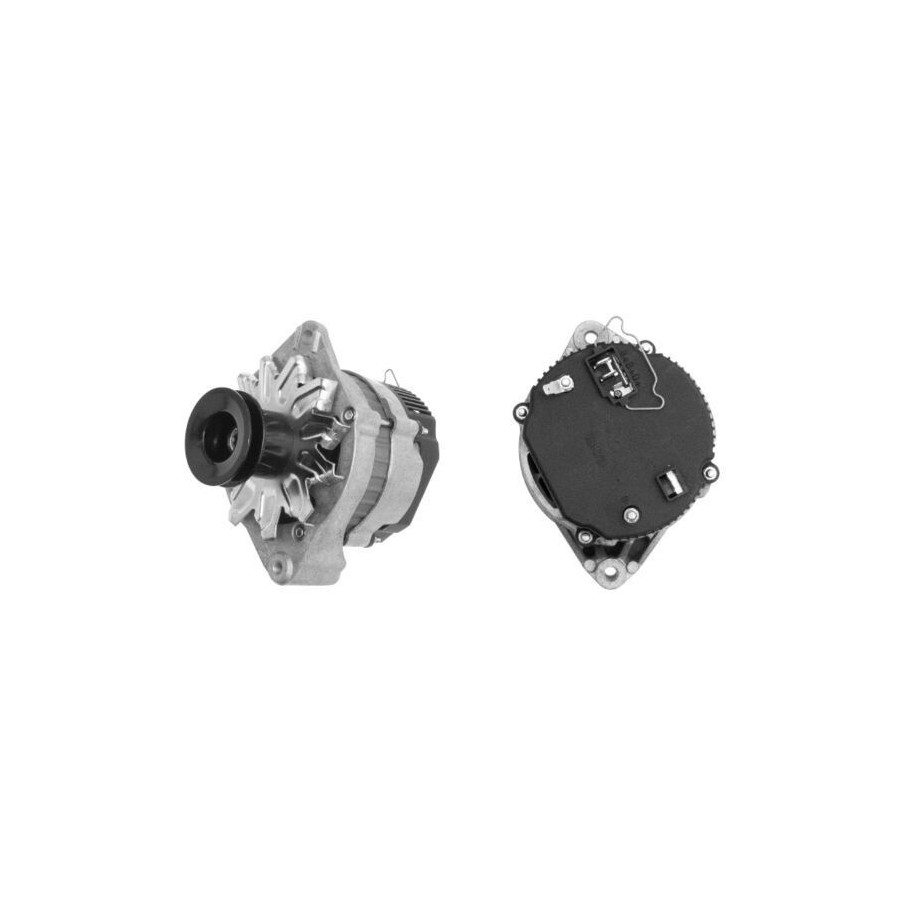

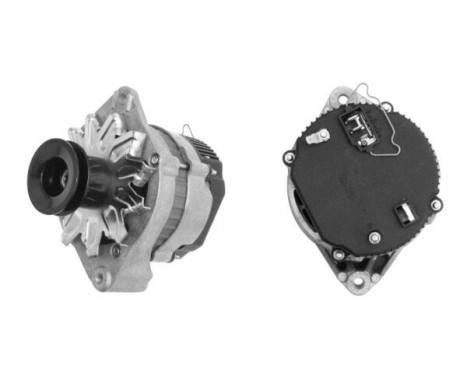

Dynamo / Alternator
Product number: 1782318
Manufacturer number: MG380
EAN: 3838922051599
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

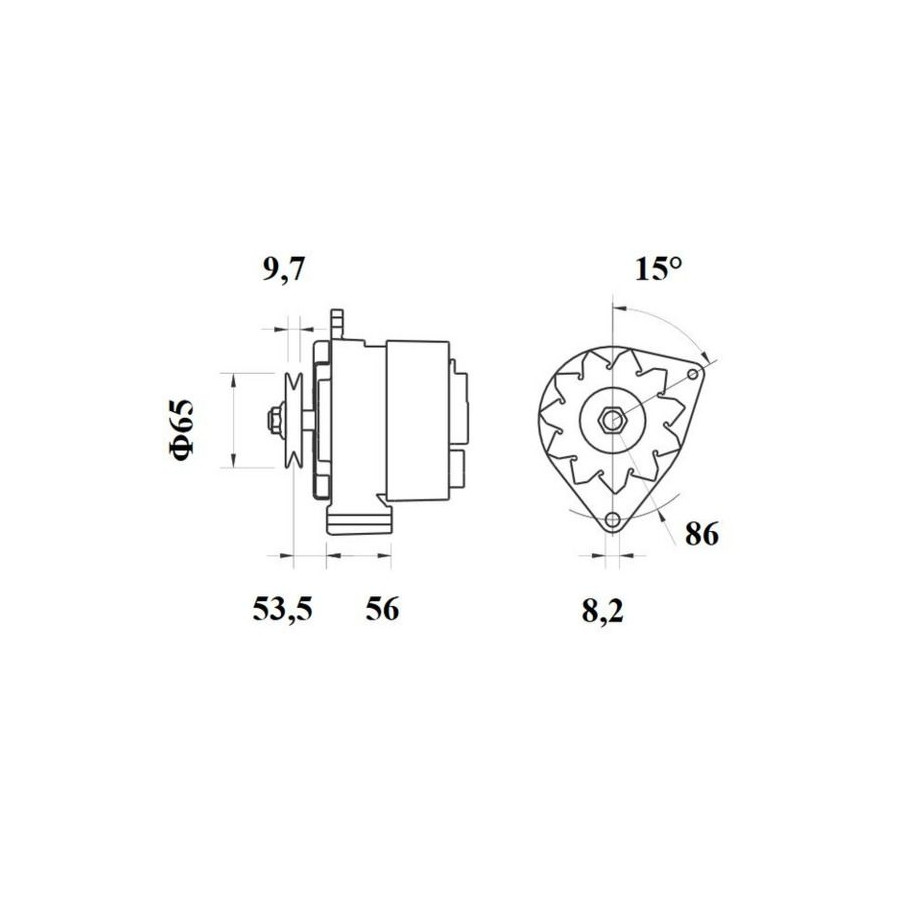

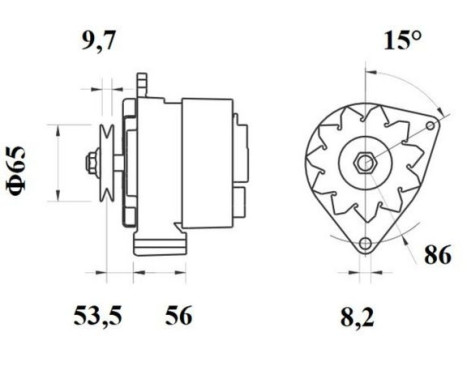

Voltage [V] 14 Number of Ribs 1 Alternator Charge Current [A] 45 Belt Pulley Ø [mm] 65 Pulleys With belt pulley Mounting points diameter [mm] 86,0 Mounting bores distance [mm] 56,0 Connector / Clamp W Distance from pulley to alternator [mm] 53,5 Number of belts 1 Rotation Direction Clockwise rotation Packaging length [cm] 24,8 Packaging width [cm] 18,60 Packaging height [cm] 17,50 Warranty 2 years Connecting Angle [Degree] 15,0 Net Weight [g] 4500 Hole diameter [mm] 8,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price AD KÜHNER 30136RIM AD KÜHNER 30136RI AES 305.005.045.090 BTS Turbo G104961 CV PSH 305.005.045.310 Manufacturer Manufacturer number Price CV PSH 305.005.045.090 HC-Cargo F 032 110 360 MAHLE MG380 (this product) WAI 22627N WILMINK GROUP WG2043661 -
Applicability
AUDI 50 50 (863) | 08.1974-07.1978 1.1 - 1093ccm, 50pk, 37kw - HB 50 (863) | 08.1974-07.1978 1.1 - 1093ccm, 60pk, 44kw - HC 50 (863) | 08.1974-07.1978 1.3 - 1272ccm, 60pk, 44kw - HH VOLKSWAGEN DERBY DERBY (86) | 02.1977-09.1981 0.9 - 895ccm, 40pk, 29kw - HA DERBY (86) | 02.1977-09.1981 1.1 - 1093ccm, 50pk, 37kw - HB DERBY (86) | 02.1977-09.1981 1.3 - 1272ccm, 60pk, 44kw - HH GOLF GOLF (17) | 04.1974-02.1984 1.5 D - 1471ccm, 50pk, 37kw - CK GOLF (17) | 04.1974-02.1984 1.6 D - 1588ccm, 54pk, 40kw - CR, JK GOLF (17) | 04.1974-02.1984 1.6 TD - 1588ccm, 70pk, 51kw - CY TRANSPORTER T3 TRANSPORTER T3 Platform/Chassis (24_) | 05.1979-07.1992 1.6 D - 1588ccm, 50pk, 37kw - CS TRANSPORTER T3 Van (24_, 25_) | 05.1979-07.1992 1.6 D - 1588ccm, 50pk, 37kw - CS -
Original part numbers
068903025Q AUDI 068903025J AUDI 036903017AX CUPRA 068903017A AUDI 068903017A CUPRA 068903025J CUPRA 068903025Q CUPRA 036903017AX AUDI 068 903 025 J VW 68903017AX AUDI 068 903 017 AX VW 068 903 025 Q VW 068903017AX CUPRA 68903017AX CUPRA 068903017AX AUDI 036 903 017 AX VW 068 903 017 A VW 68903017AX VW -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
