Mahle

Dynamo

  • Dynamo
  • Dynamo, Thumbnail 2
  • Dynamo, Thumbnail 3

Product number: 1449918

Manufacturer number: MG 481

EAN: 3838922070767

£ 527.48

Incl. VAT
View product specifications
In stock
Delivery 20-11-2026

Free Shipping

Secure payment

  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Shipment within 3 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

  • Specifications

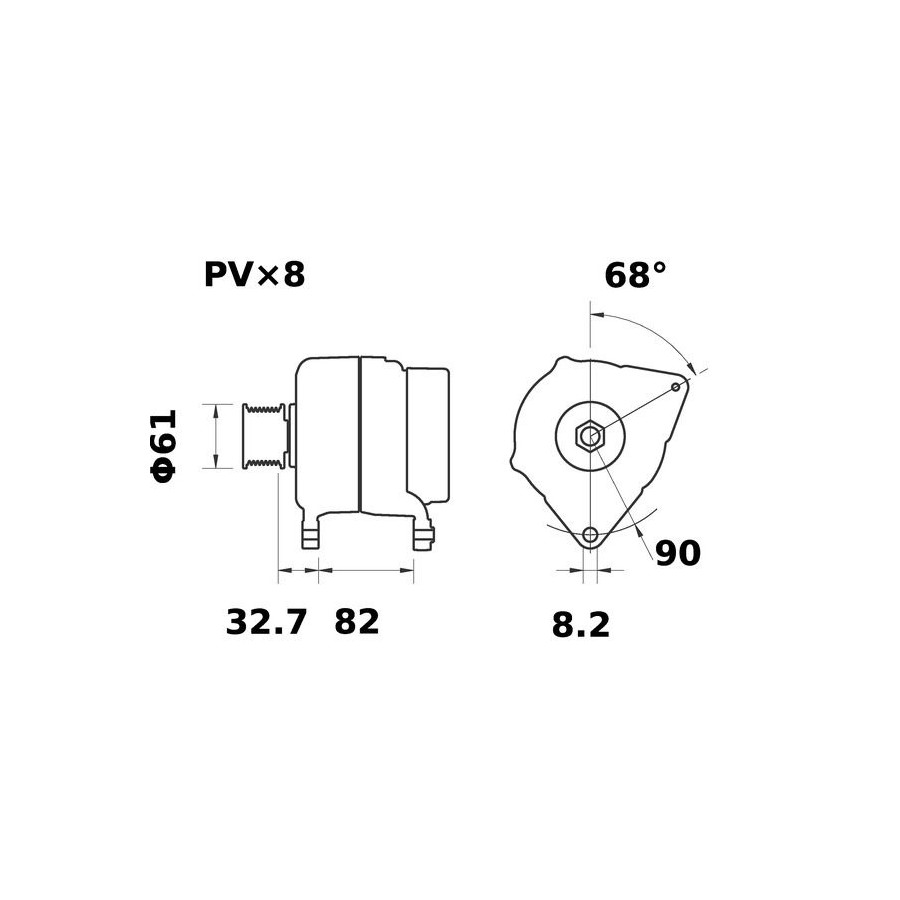

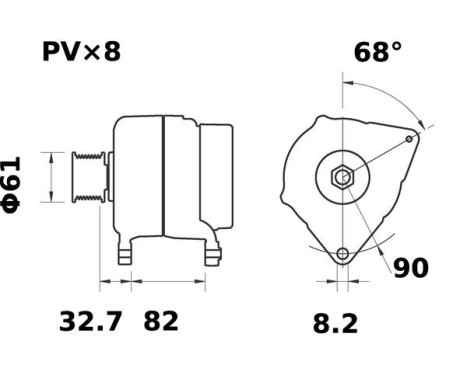

    Number of Ribs8
    Alternator Charge Current [A]200
    Belt Pulley Ø [mm]61
    PulleysWith v-ribbed belt pulley
    Mounting points diameter [mm]90,0
    Mounting bores distance [mm]82,0
    Distance from pulley to alternator [mm]32,7
    Rotation DirectionClockwise rotation
    Packaging length [cm]24,8
    Packaging width [cm]18,60
    Packaging height [cm]17,50
    Warranty2 years
    Dust CoverWith dust cover
    Connecting Angle [Degree]68,0
    Compact Alternator
    Net Weight [g]7835
    Hole diameter [mm]8,2
    Voltage [V]14

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AES 505.592.200.310
    AES 505.592.200.090
    AS-PL A9392(LETRIKA)
    AS-PL A9392S
    ATL Autotechnik L 50 730
    BTS Turbo G105038
    CV PSH 505.592.200.310
    CV PSH 505.592.200.090
    Manufacturer Manufacturer number Price
    DA SILVA 032670
    FEBI BILSTEIN 1003230
    MAHLE MG 481 (this product)
    SEG Automotive T002007037
    WAI 21973N
    WILMINK GROUP WG2043771
    WILMINK GROUP WG2690331
  • Applicability

    Universally applicable

  • Original part numbers

    84141450 CASE IH
    84141454 CASE IH
    87708178 CASE IH
  • Manufacturer

    Mahle

    Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment

    More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.

    At Winparts we offer the following products from Mahle, among others:
