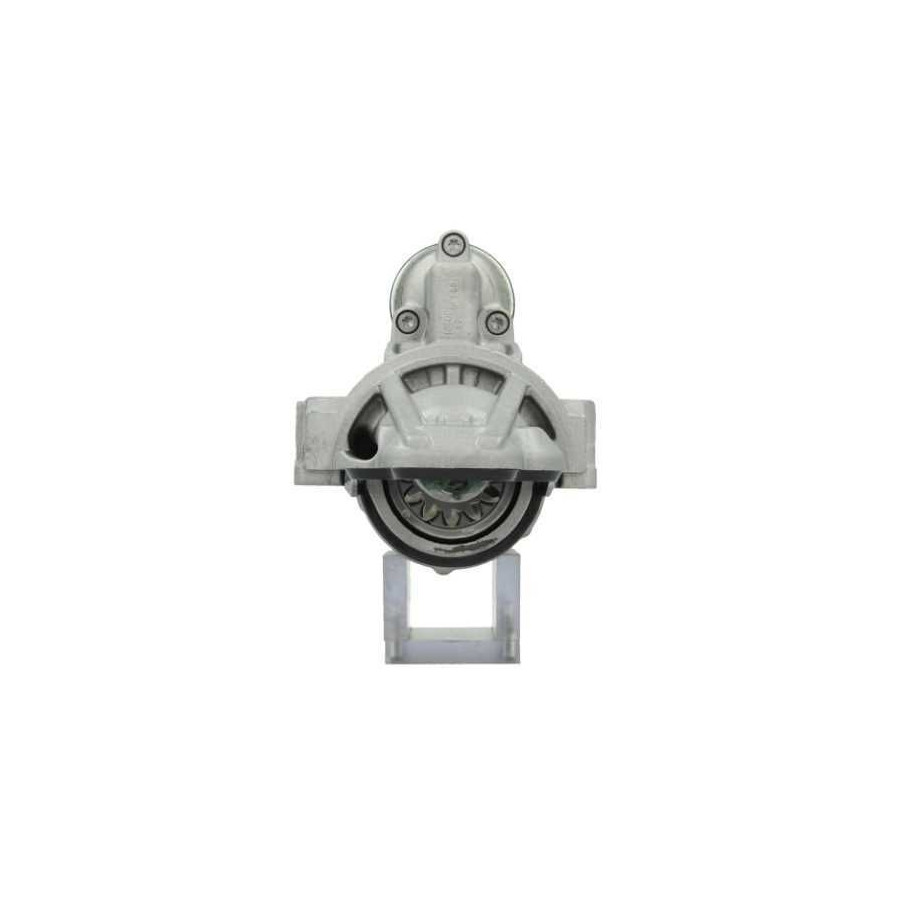

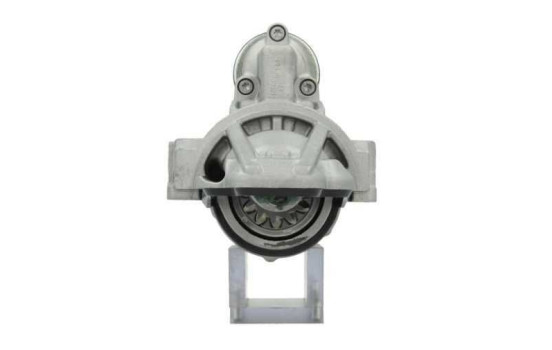

Starter Ford 1.7 kw 0.001.115.088-R Bosch

Name: Starter Ford 1.7 kw 0.001.115.088-R Bosch | Winparts.co.uk - Starter motor
Brand: Bosch
SKU: 0939388
Price: 68.36 GBP
Availability: InStock

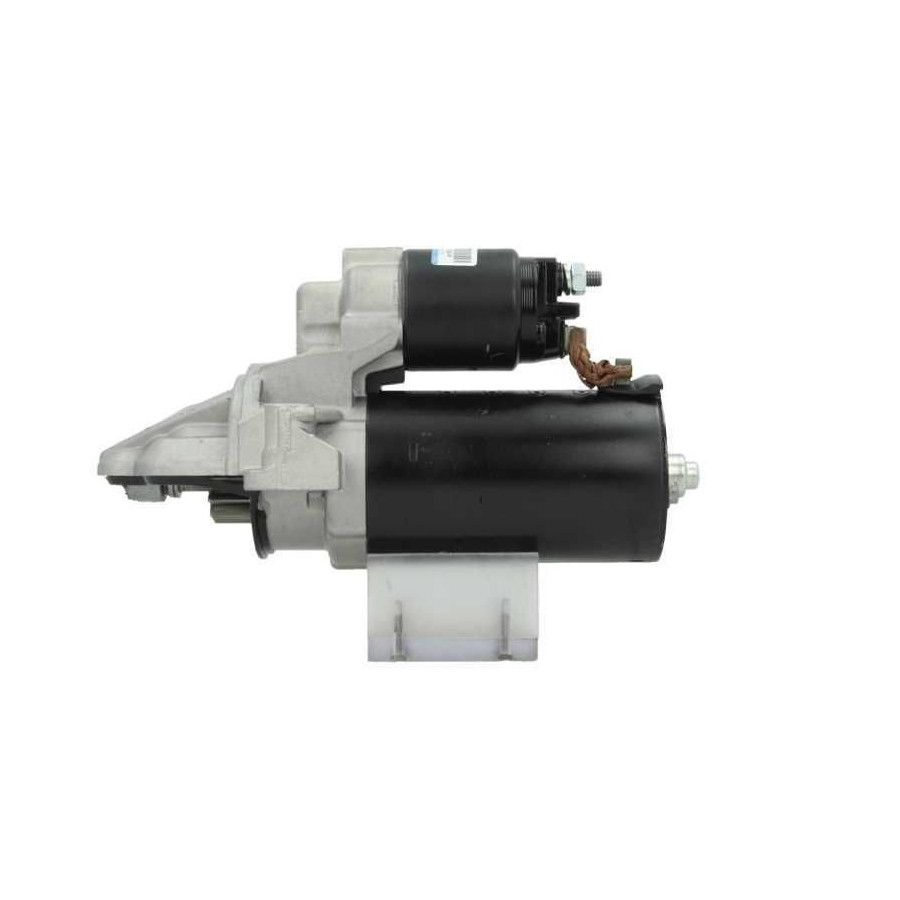

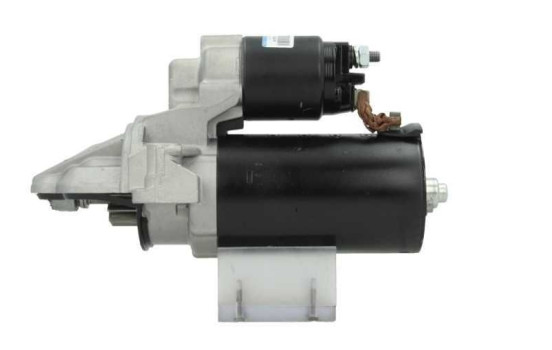

Starter Ford 1.7 kw 0.001.115.088-R Bosch, Image 2

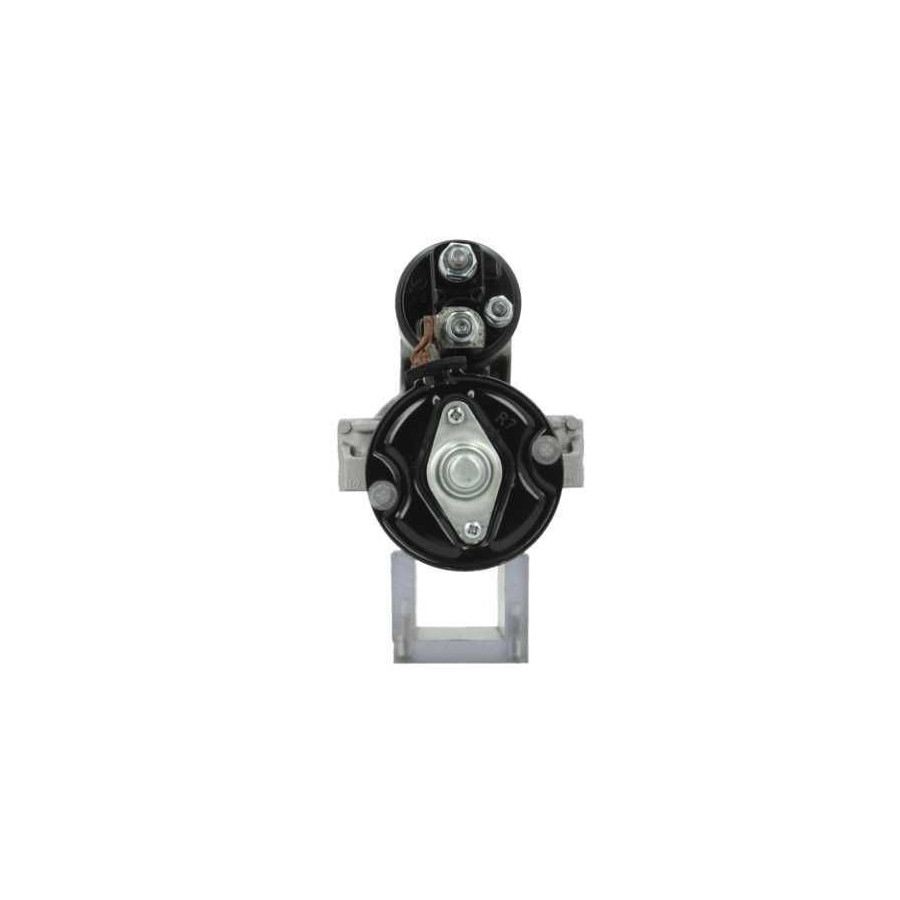

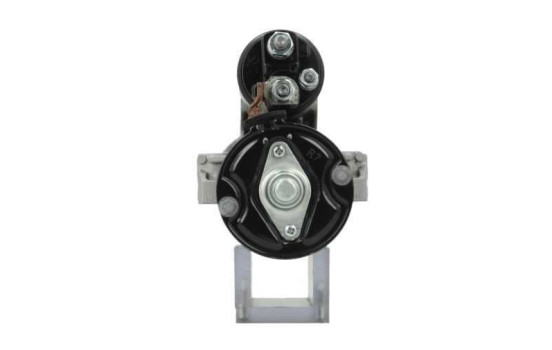

Starter Ford 1.7 kw 0.001.115.088-R Bosch, Image 3

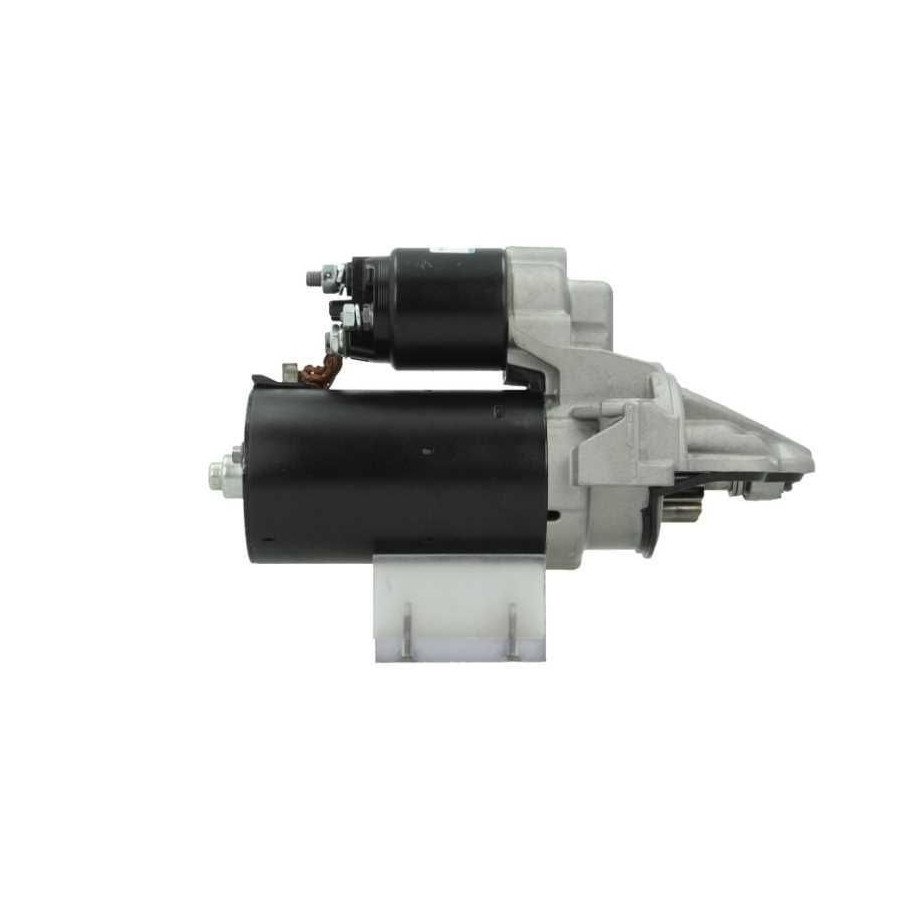

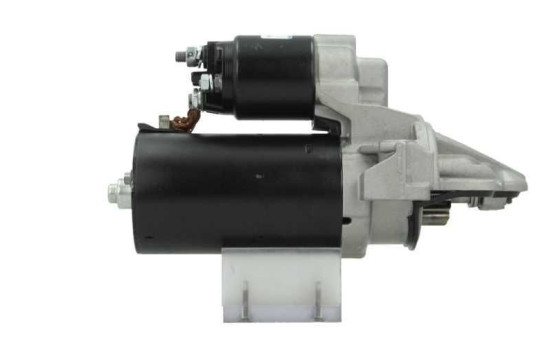

Starter Ford 1.7 kw 0.001.115.088-R Bosch, Image 4

Product number: 0939388

Manufacturer number: 0.001.115.088-R

EAN: 8720264356980

£ 68.³⁶

Incl. VAT

View product specifications

Not available

Free Shipping

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Number of Teeth	12
Rated Power [kW]	1,7
Number of mounting bores	2
Rotation Direction	Clockwise rotation
Voltage [V]	12
Quality	Bosch Reman
Flange Ø [mm]	85,4
Clamp	B+ (M8)
Warranty	2 years
Connecting Angle [Degree]	+90

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
BOSCH	0.001.115.088-R	(this product)

Manufacturer	Manufacturer number	Price
HELLA	8EA 011 612-391	£ 101.20

Applicability

FORD

	TRANSIT Bus
	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) \| 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
	TRANSIT Platform/Chassis
	TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) \| 04.2006-08.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
	TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) \| 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
	TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) \| 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
	TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) \| 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
	TRANSIT V363
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi All-wheel Drive - 2198ccm, 155pk, 114kw - CV24, CVR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2025 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2025 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2025 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5
	TRANSIT Van
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 136pk, 100kw - USRA, USRB
	TRANSIT Van (FA_ _) \| 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC

Original part numbers

CC1T11000BB	FORD
CC1T11000BA	FORD
1741087	FORD
