Brake Disc ADB114325 Blue Print
No specifications available yet
Back to category

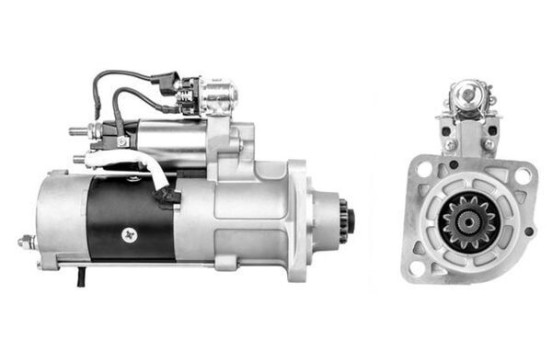

Starter motor / Starter
Product number: 1782853
Manufacturer number: MS939
EAN: 3838922812039
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

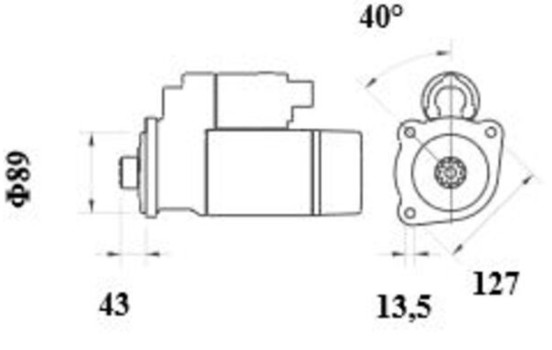

Number of Teeth 12 Rated Power [kW] 5,5 Number of mounting bores 3 Rotation Direction Clockwise rotation driving With reduction gear Voltage [V] 24 Mounting points diameter [mm] 127 Clamp 31 Packaging length [cm] 39,0 Packaging width [cm] 21,50 Packaging height [cm] 18,80 for flywheel depth [mm] 43 Warranty 2 years Tooth Pitch [mm] 15,35 Net Weight [g] 9300 Flange diameter [mm] 89 Hole diameter 1 [mm] 13,5 Similar products of other manufacturers
Manufacturer Manufacturer number Price AES 571.516.123.130 AES 571.516.123.370 ALANKO 10439960 AS-PL S5055 AS-PL S5055(MITSUBISHI) BTS Turbo S103941 BTS Turbo S103940 BTS Turbo S103983 BTS Turbo S103531 BTS Turbo S105946 CASCO CST35629AS CASCO CST35629GS CV PSH 571.516.123.375 CV PSH 571.516.123.382 Manufacturer Manufacturer number Price CV PSH 571.516.123.371 CV PSH 571.516.123.130 CV PSH 571.516.123.370 DRI 630024124 ELSTOCK 45-4397 FARCOM 105044 FEBI BILSTEIN 48994 FRIESEN 8880424 HELLA 8EA 012 586-361 MAHLE MS939 (this product) PRESTOLITE ELECTRIC M90R3539SE TURBO MOTOR ST02715 VALEO 203035 VALEO 438278 -
Applicability
Universally applicable
-
Original part numbers
5010306777 RENAULT TRUCKS 5010508384 RENAULT TRUCKS M009T60671 MITSUBISHI M9T60671 MITSUBISHI M009T60672 MITSUBISHI M9T60672 MITSUBISHI 5010508379 RENAULT TRUCKS 5010480434 RENAULT TRUCKS -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
