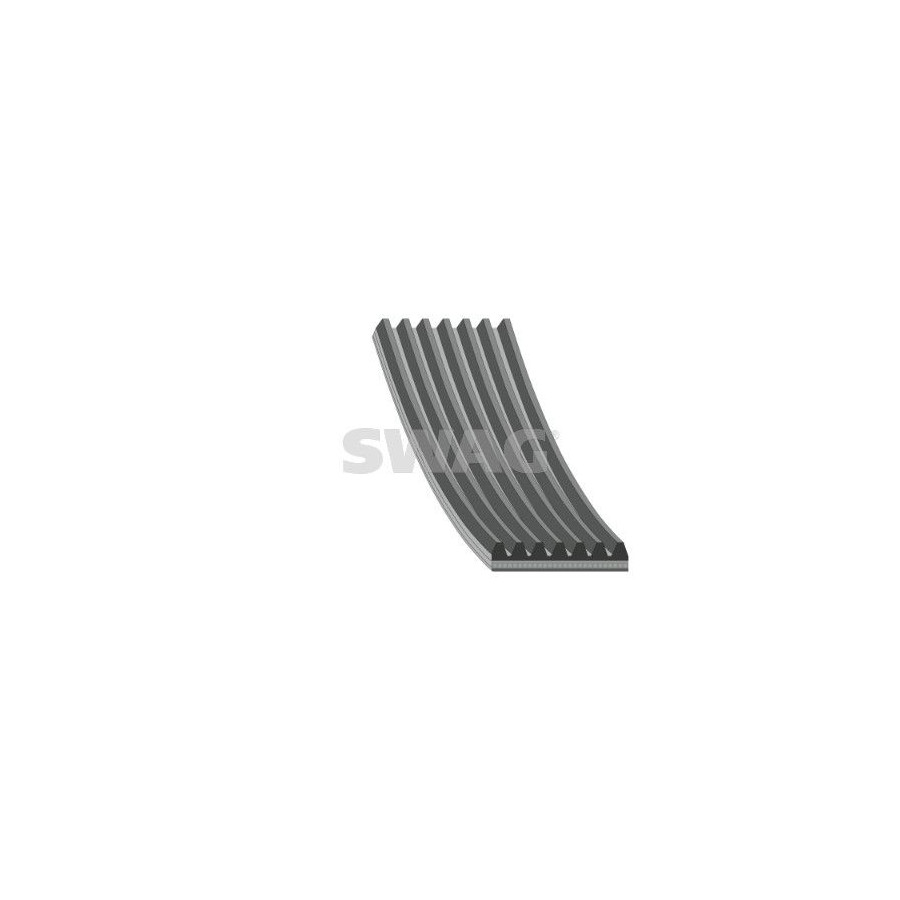

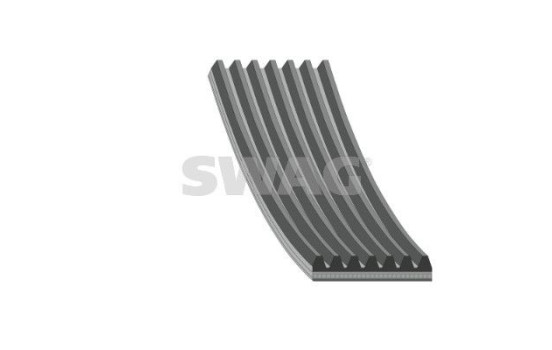

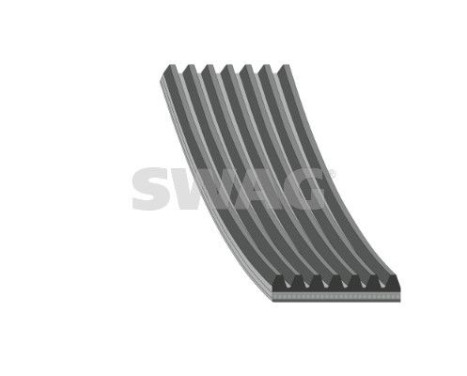

multi V-belt

Name: multi V-belt | Winparts.co.uk - Auxiliary belt
Brand: Swag
SKU: 1719304
Price: 11.79 GBP
Availability: InStock

Product number: 1719304

Manufacturer number: 33104240

EAN: 4054228776632

£ 11.⁷⁹

Incl. VAT

View product specifications

In stock

Delivery 04-04-2026

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Number of Ribs	7
application	V-ribbed belt
Material	EPDM (ethylene propylene diene Monomer (M-class) rubber)
Warranty	2 years
Length [mm]	1570
Drawstring material	Polyester

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.A	7PK1570
FEBI BILSTEIN	177663	£ 11.01
FISPA	7PK1570
GATES	7PK1570	£ 17.77
HERTH+BUSS JAKOPARTS	J1071570
INA	FB 7PK1570
KAMOKA	7017016

Manufacturer	Manufacturer number	Price
KAVO PARTS	DMV-10002
SIDAT	7PK1570
SKF	VKMV 7PK1569
SWAG	33104240	(this product)
TRISCAN	8640 701570
WILMINK GROUP	WG1781705

Applicability

DACIA

	DOKKER Box
	DOKKER Box Body/MPV \| 12.2012-12.2021 1.2 TCe 115 (FEAY) - 1197ccm, 116pk, 85kw - H5F 408
	DOKKER Box Body/MPV \| 12.2012-12.2021 1.2 TCe 115 (FEM0) - 1198ccm, 114pk, 84kw - H5F 402
	DOKKER MPV
	DOKKER MPV (KE_) \| 11.2012-12.2021 1.2 TCe (KEM0, KEAY) - 1197ccm, 115pk, 85kw - H5F 402, H5F 408
	DUSTER
	DUSTER (HM_) \| 10.2017-??? 1.2 TCe 125 (HMMA) - 1197ccm, 125pk, 92kw - H5F 408
	DUSTER (HM_) \| 10.2017-??? 1.2 TCe 125 4x4 (HMMA) - 1197ccm, 125pk, 92kw - H5F 410
	DUSTER (HS_) \| 04.2010-01.2018 1.2 TCe 125 - 1197ccm, 125pk, 92kw - H5F 404, H5F 408
	DUSTER SUV
	DUSTER SUV Van \| 04.2011-01.2018 1.2 TCe 125 4x4 (HSAU) - 1197ccm, 125pk, 92kw - H5F 410
	LODGY
	LODGY (JS_) \| 03.2012-??? 1.2 TCe (JSAY, JSM0) - 1197ccm, 115pk, 85kw - H5F 402, H5F 408
	LOGAN II
	LOGAN II \| 10.2012-??? TCe 90 (L8MA, L8M1, L8AC) - 898ccm, 90pk, 66kw - H4B 400, H4B 408, H4B 412
	LOGAN MCV
	LOGAN MCV II \| 02.2013-??? TCe 90 (K8M1, K8MA, K8AC) - 898ccm, 90pk, 66kw - H4B 400, H4B 408, H4B 412
	LOGAN MCV II \| 02.2013-??? TCe 90 LPG - 898ccm, 90pk, 66kw - H4B 405, H4B 410
	SANDERO II
	SANDERO II (B8_) \| 10.2012-09.2020 TCe 90 (B8M1, B8MA, B8AC) - 898ccm, 90pk, 66kw - H4B 400, H4B 408, H4B 410, H4B 412, H4B 411
	SANDERO II (B8_) \| 10.2012-09.2020 TCe 90 LPG (B8M1) - 898ccm, 90pk, 66kw - H4B 410

MERCEDES-BENZ

	CITAN Panel
	CITAN Panel Van (W415) \| 11.2012-08.2021 112 (415.603) - 1197ccm, 114pk, 84kw - M 200.711
	CITAN Traveliner
	CITAN Traveliner (W415) \| 11.2012-08.2021 112 (415.703) - 1197ccm, 114pk, 84kw - M 200.711

NISSAN

	JUKE
	JUKE (F15) \| 06.2010-12.2019 1.2 DIG-T - 1197ccm, 115pk, 85kw - HRA2DDT
	PULSAR Hatchback
	PULSAR Hatchback (C13) \| 10.2014-??? 1.2 DIG-T - 1197ccm, 115pk, 85kw - HRA2DDT
	QASHQAI II
	QASHQAI II (J11, J11_) \| 11.2013-??? 1.2 DIG-T - 1197ccm, 116pk, 85kw - HRA2DDT

RENAULT

	CAPTUR I
	CAPTUR I (J5_, H5_) \| 06.2013-12.2019 0.9 TCe 90 - 898ccm, 90pk, 66kw - H4B 400, H4B 408, H4B 412
	CAPTUR I (J5_, H5_) \| 06.2013-12.2019 1.2 T - 1197ccm, 113pk, 83kw - H5F 403
	CAPTUR I (J5_, H5_) \| 06.2013-12.2019 1.2 TCe (J5AU) - 1197ccm, 132pk, 97kw - H5F 408
	CAPTUR I (J5_, H5_) \| 06.2013-12.2019 1.2 TCe 120 - 1197ccm, 120pk, 88kw - H5F 403
	CAPTUR I (J5_, H5_) \| 06.2013-12.2019 1.2 TCe 120 - 1197ccm, 118pk, 87kw - H5F 408, H5F 412
	CLIO IV
	CLIO IV (BH_) \| 11.2012-08.2021 0.9 TCe 75 (BHNP) - 898ccm, 76pk, 56kw - H4B 408
	CLIO IV (BH_) \| 11.2012-08.2021 0.9 TCe 90 (BHNF, BHMA, BHMH, BHJK, BHJR) - 898ccm, 90pk, 66kw - H4B 400, H4B 408, H4B 412
	CLIO IV (BH_) \| 11.2012-08.2021 1.2 TCe 120 (BHAU) - 1197ccm, 118pk, 87kw - H5F 408, H5F 412
	CLIO IV (BH_) \| 11.2012-08.2021 1.2 TCe 120 (BHM0) - 1197ccm, 120pk, 88kw - H5F 403
	CLIO IV Grandtour (KH_) \| 11.2012-08.2021 0.9 TCe 75 (KHNP) - 898ccm, 76pk, 56kw - H4B 408
	CLIO IV Grandtour (KH_) \| 11.2012-08.2021 0.9 TCe 90 (KHJR, KHMA, KHM1) - 898ccm, 90pk, 66kw - H4B 400, H4B 408
	CLIO IV Grandtour (KH_) \| 11.2012-08.2021 1.2 TCe 120 (KHAU) - 1197ccm, 118pk, 87kw - H5F 408, H5F 412
	CLIO IV Grandtour (KH_) \| 11.2012-08.2021 1.2 TCe 120 (KHM0) - 1197ccm, 120pk, 88kw - H5F 403
	KADJAR
	KADJAR (HA_, HL_) \| 06.2015-??? 1.2 TCe 130 (HLMR) - 1197ccm, 130pk, 96kw - H5F 408
	KANGOO /
	KANGOO / GRAND KANGOO II (KW0/1_) \| 02.2008-??? 1.2 TCe 115 (KW02, KW14) - 1197ccm, 115pk, 84kw - H5F 400, H5F 408, H5F 412
	KANGOO Express
	KANGOO Express (FW0/1_) \| 02.2008-??? 1.2 TCe 115 (FW02, FW14) - 1197ccm, 115pk, 84kw - H5F 400, H5F 408, H5F 412
	MEGANE CC
	MEGANE CC (EZ0/1_) \| 06.2010-08.2015 1.2 TCe - 1198ccm, 116pk, 85kw - H5F 400
	MEGANE CC (EZ0/1_) \| 06.2010-08.2015 1.2 TCe (EZ16) - 1197ccm, 132pk, 97kw - H5F 404
	MEGANE III
	MEGANE III Coupe (DZ0/1_) \| 11.2008-09.2016 1.2 TCe (DZ16, DZ28) - 1197ccm, 132pk, 97kw - H5F 404, H5F 412, H5F 405
	MEGANE III Coupe (DZ0/1_) \| 11.2008-09.2016 1.2 TCe (DZ2B, DZ11) - 1198ccm, 116pk, 85kw - H5F 400, H5F 408
	MEGANE III Grandtour (KZ0/1) \| 11.2008-01.2016 1.2 TCe (KZ16, KZ28) - 1197ccm, 132pk, 97kw - H5F 404, H5F 412, H5F 405
	MEGANE III Grandtour (KZ0/1) \| 11.2008-01.2016 1.2 TCe (KZ2B, KZ11) - 1198ccm, 116pk, 85kw - H5F 400, H5F 408
	MEGANE III Hatchback (BZ0/1_, B3_) \| 11.2008-03.2017 1.2 TCe (BZ16, BZ28) - 1197ccm, 132pk, 97kw - H5F 404, H5F 412, H5F 405
	MEGANE III Hatchback (BZ0/1_, B3_) \| 11.2008-03.2017 1.2 TCe (BZ2B, BZ11) - 1198ccm, 116pk, 85kw - H5F 400, H5F 408
	MEGANE IV
	MEGANE IV Grand Coupe (LVA/M/N) \| 10.2016-??? 1.2 Tce 130 - 1197ccm, 130pk, 97kw - H5F 408
	MEGANE IV Grandtour (K9A/M/N_) \| 04.2016-??? 1.2 TCe 100 - 1197ccm, 101pk, 74kw - H5F 408
	MEGANE IV Grandtour (K9A/M/N_) \| 04.2016-??? 1.2 TCe 130 (K9MR) - 1197ccm, 130pk, 97kw - H5F 408
	MEGANE IV Hatchback (B9A/M/N_) \| 11.2015-??? 1.2 TCe 100 (B9MS) - 1197ccm, 101pk, 74kw - H5F 408
	MEGANE IV Hatchback (B9A/M/N_) \| 11.2015-??? 1.2 TCe 130 (B9MR) - 1197ccm, 130pk, 97kw - H5F 408
	SCÉNIC IV
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.2 TCe 115 - 1198ccm, 115pk, 85kw - H5F 408
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.2 TCe 130 - 1197ccm, 130pk, 96kw - H5F 408

Original part numbers

11 72 090 58R	RENAULT
11 72 090 58R	DACIA
200 993 01 96	MERCEDES-BENZ
A200 993 01 96	MERCEDES-BENZ
11720-00Q6F	NISSAN
11 72 075 04R	RENAULT
11 72 075 04R	DACIA
11 72 000 Q6F	RENAULT
