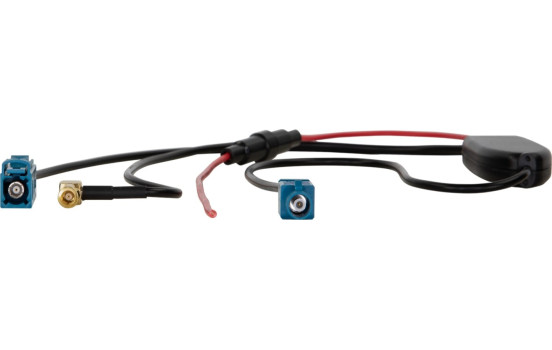

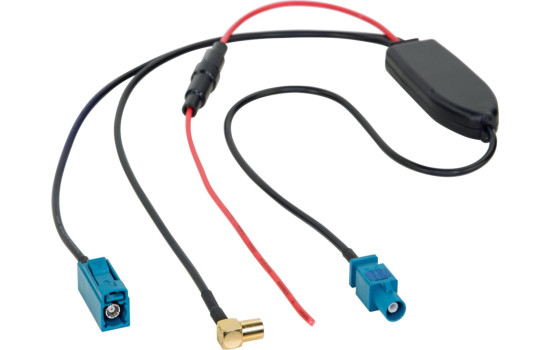

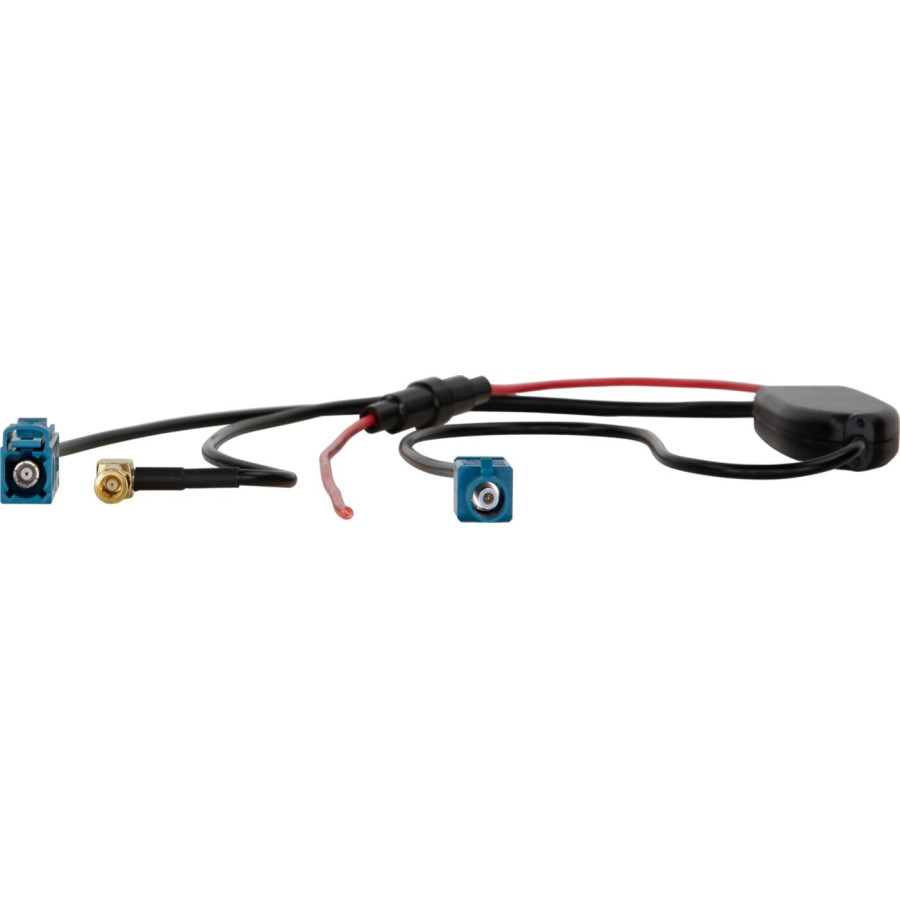

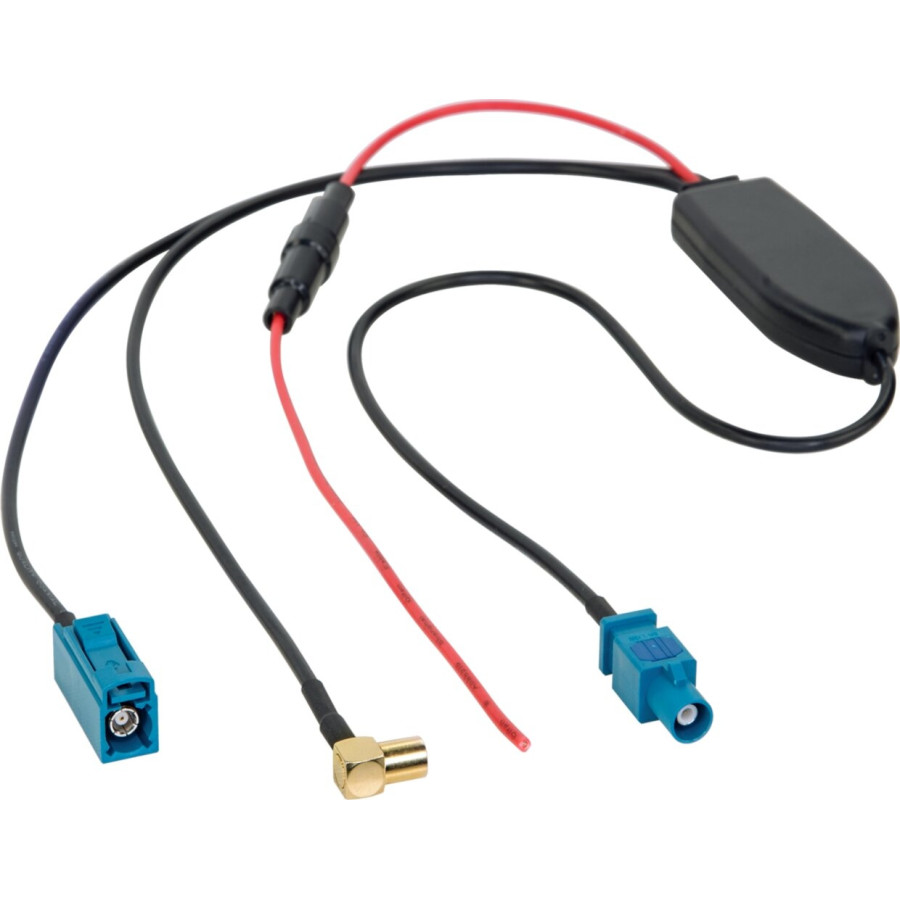

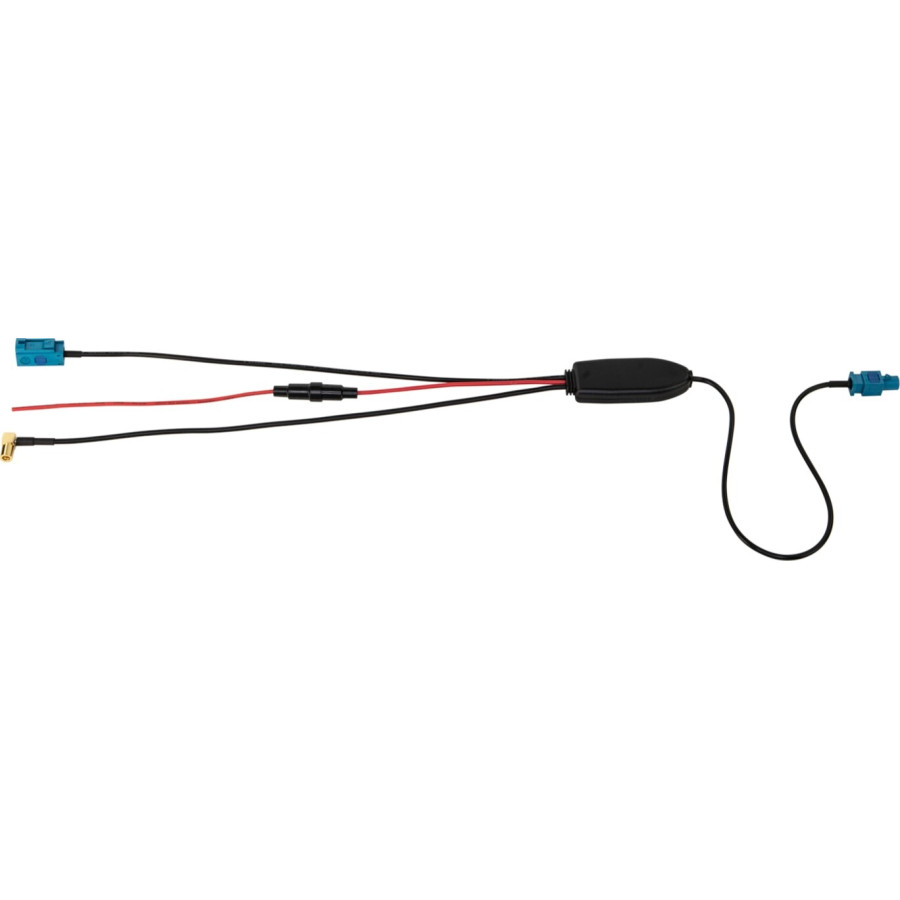

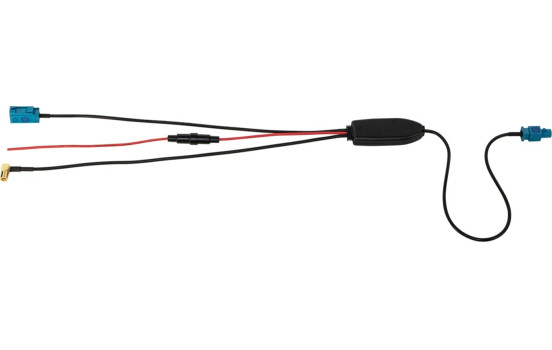

Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f)

Connection AM/FM: Fakra Z(m) > Fakra Z(f)
DAB+ connection: SMB(f)

red: +12V antenna remote control

In case of reception problems:

Check antenna cable and antenna adapter for continuity.
Check +12V antenna control

Check vehicle for errors using LED lighting afterward
Check vehicle for errors due to modified voltage converter/power adapter USB charging adapter
Checking the vehicle for errors using retrofitted digital output stages

Receiving modes:
AM/FM
DAB+

Installation:
Vehicle interior

Dimensions:
L = 6.96 cm / W = 2.49 cm / H = 1.04 cm

Connection:
AM/FM input: Fakra Z(m) / RG174 / L=30 cm
DAB+ connection: SMB(f) / RG174 / L=30 cm
AM/FM connection: Fakra Z(f) / RG174 / L=30 cm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz

Reinforcement:
AM/FM 10dB
DAB+: 20dB

Power supply:
AM/FM
DAB+: +12V external

Power consumption:
AM/FM
DAB+: 28mA max.

Fuse:
500mA

Optional:
Antenna adapter SMB(m)>SMA(m) > Article: 1502-29

Suitable for:
AM
FM
DAB

---

Warranty

2 years
