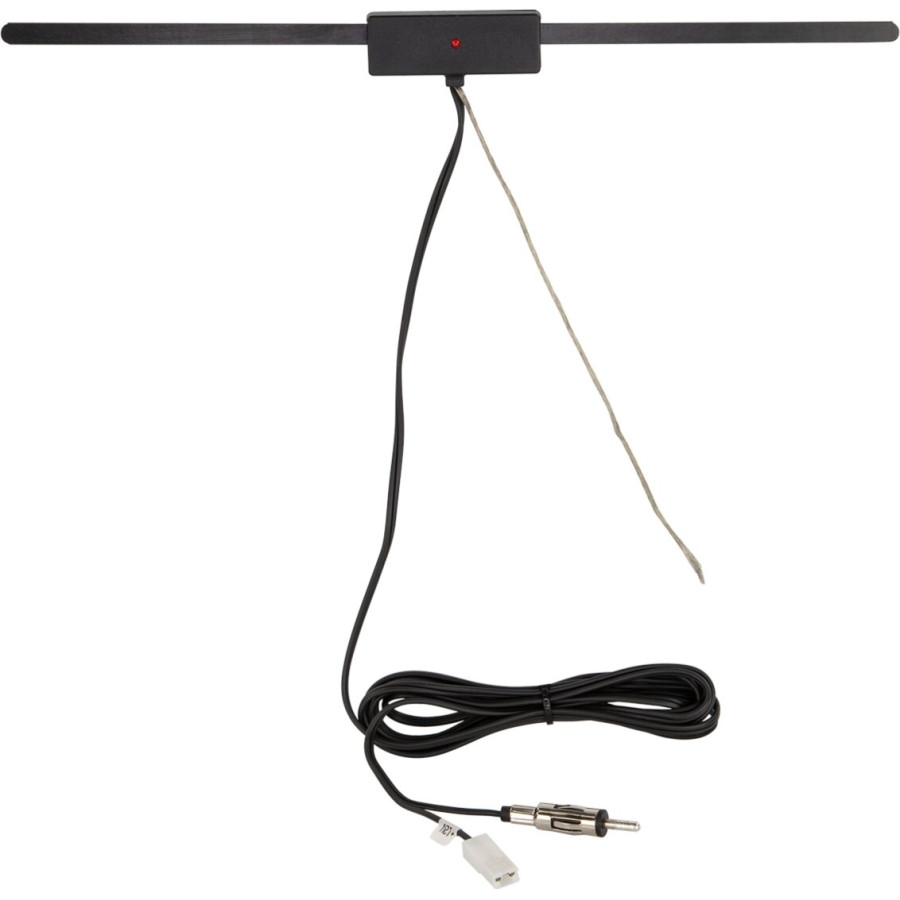

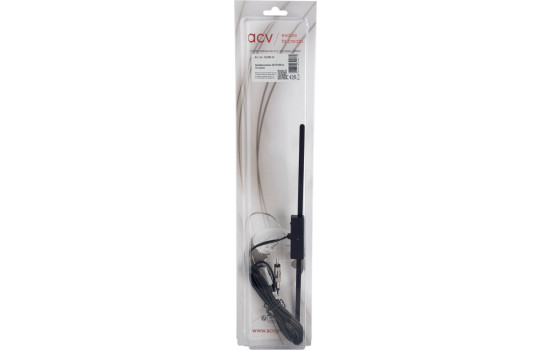

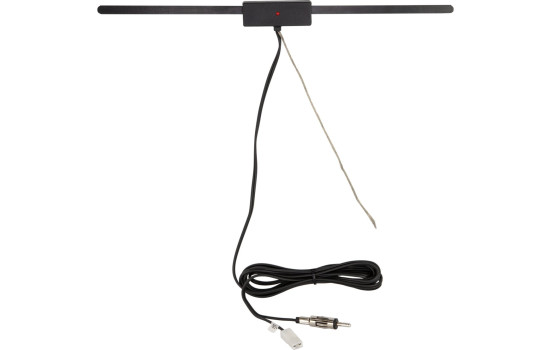

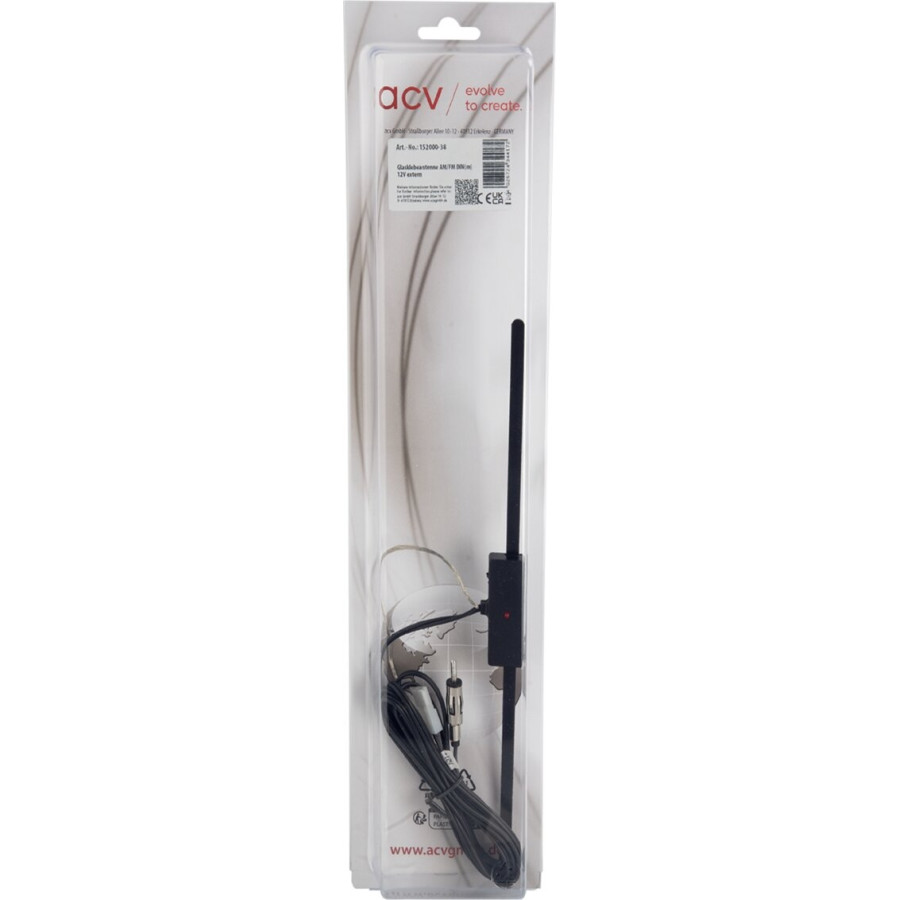

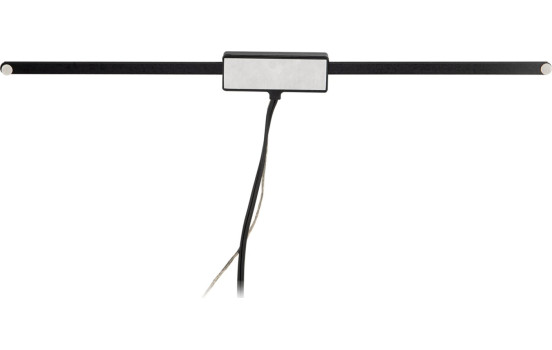

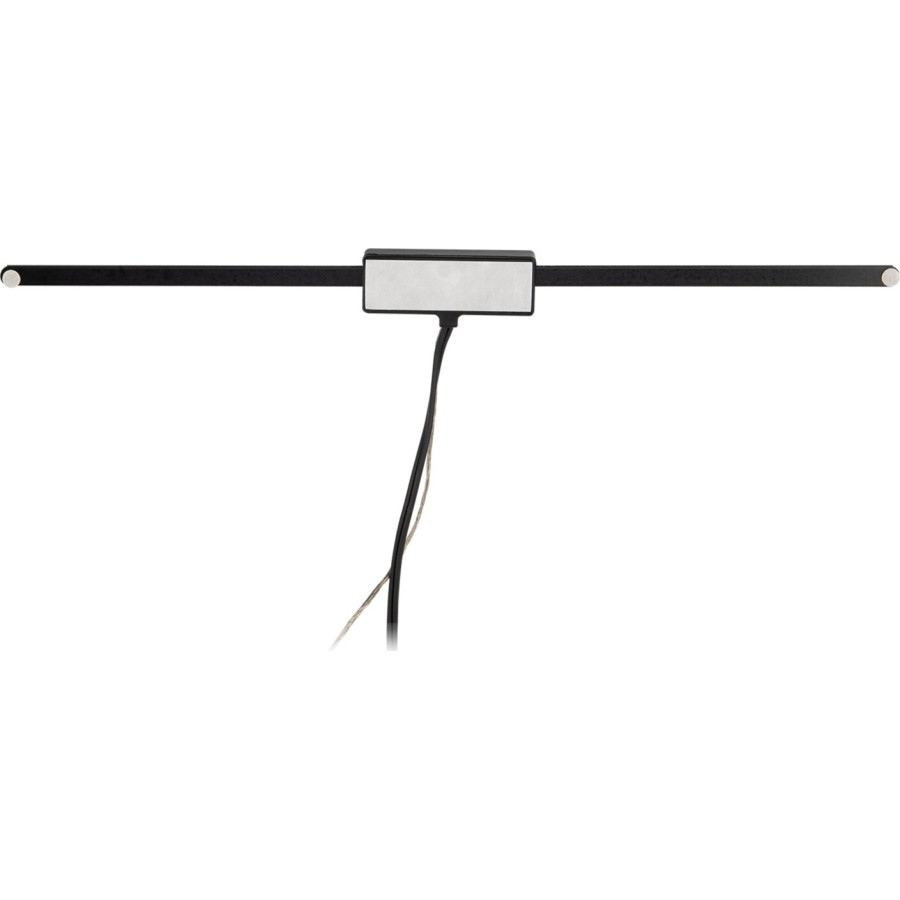

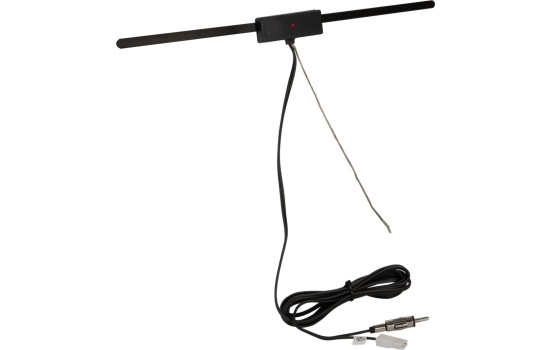

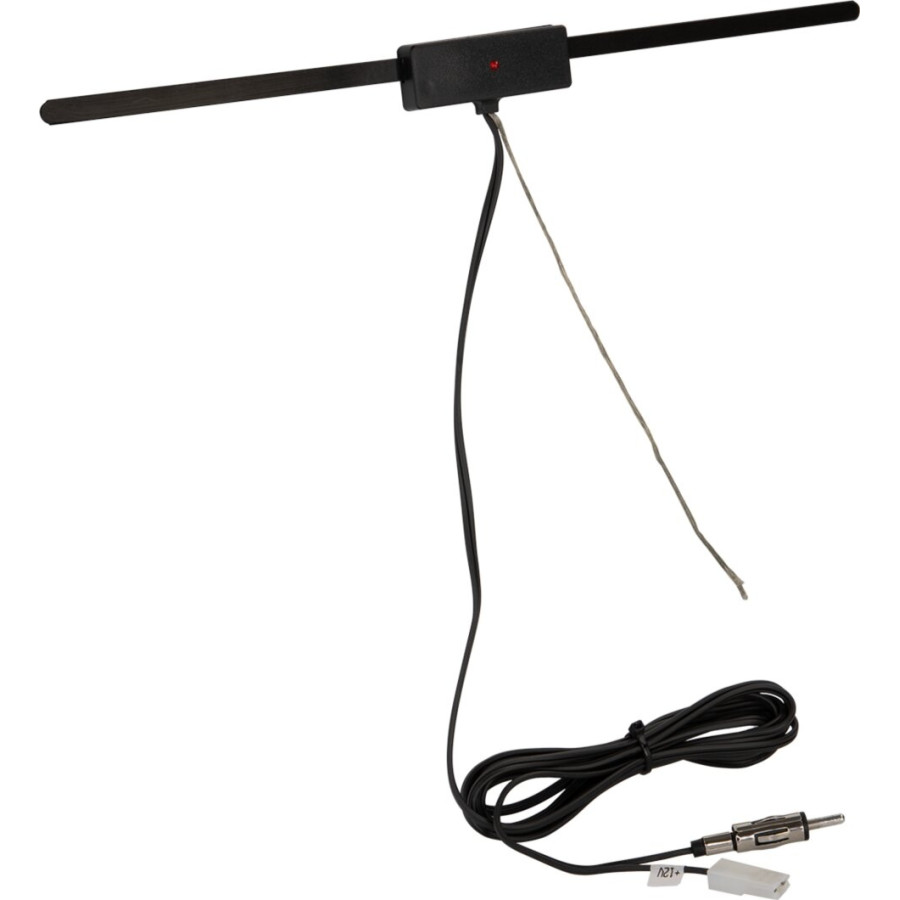

Indoor window stick-on antenna AM/FM

The ACV base antenna series offers good reception performance, even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, you must always ensure optimal grounding of the antenna base or ground band during installation.

Remove existing paint on the contact points with workshop tools and protect against corrosion with suitable contact paste, and also treat the wire of the antenna rod and the antenna base to optimize contact.

Remark:

black: +12V antenna remote control
GND ground band: GND terminal 31 body direct

status LED: red

GND grounding strap: installation with optimal ground connection
GND ground band: must not be extended or shortened

horizontal mounting
Clean the adhesive surface with suitable agents to remove dust and grease.

In case of reception problems

Check vehicle for faults due to retrofit LED lighting
Check vehicle for faults by retrofitting voltage converter / power supply units / USB charging adapter
Check vehicle for faults resulting from retrofit digital power amplifiers

Use case:

AM/FM antenna for mounting in all vehicles / campers / caravans / commercial vehicles on all smooth surfaces such as wood / glass / plastic / GRP internally

Reception mode:
AM/FM

Installation:
Self-adhesive antenna with GND cable

behind or on non-metallic internal trim
glass self-adhesive antenna internal

recommended:
windshield horizontal behind rearview mirror
distance min. 4 cm from bodywork

Dimensions:
L = 60 cm / 31 cm / W = 2.0 cm / H = 1.1 cm

Connections:
AM/FM: DIN(m) / L = 220 cm
Remote control antenna: blade connection(f) 6.3 mm
GND ground band: 19 mm

Immediacy:
150 Ohm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz

Reinforcement:
AM: +15 dB
FM: +15 dB

Power supply:
AM/FM: +12 V external

Power consumption:
AM/FM: 33mA max

Optional:
AM/FM

Antenna cable extension DIN(f) > DIN(m) 250cm > item: 1574-00
Antenna cable extension DIN(f) > DIN(m) 350cm > item: 1576-00
Antenna cable extension DIN(f) > DIN(m) 450cm > item 1578-00
Antenna cable extension DIN(f) > DIN(m) 500cm > article 1580-00

Suitable for:
AM
FM

---

Warranty

2 years
