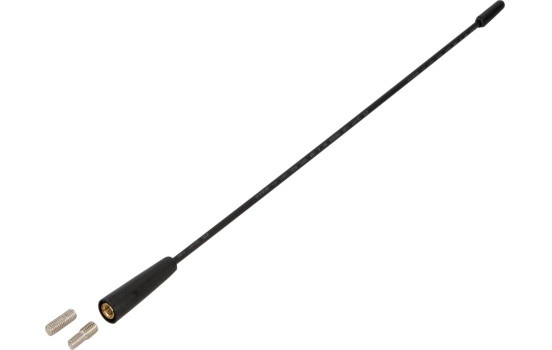

Antenna boom AM/FM 36cm fibre glass, with M5 and M6 adapters

Style: Flat Fiberglass

The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, always ensure optimum grounding of the antenna base or grounding strap during installation.

Remove existing paint on the contact points with workshop equipment and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

Remark:

In case of reception problems:

check antenna cable and antenna adapter

check the vehicle for defects by retrofitting LED lighting
check the vehicle for defects by retrofitting voltage converters / power supplies / USB charging adapters
Check the vehicle for defects due to digital power amplifiers installed aftermarket.

Receive mode:
AM/FM

Dimensions:
length: 34.5 cm
thread: 6 mm internal

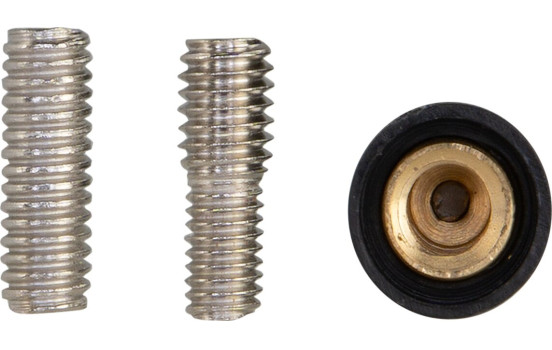

adapter: M6>M6 / M6>M5 external

Spare rod for the following antennas:

Roof antenna AM/FM OEM Renault DIN(m) 34.5cm > item: 152000-39
Roof antenna AM/FM 0°>90° slope DIN (m) 34.5cm > item: 152000-45
Roof antenna AM/FM OEM Alfa/Fiat/Lancia DIN(m) 34.5cm > item: 152000-51
Roof antenna AM/FM OEM Alfa/Fiat/Lancia DIN(m) 34.5cm > item: 152000-52
Roof antenna AM/FM OEM Peugeot/Renault DIN(m) 34.5cm > item: 152000-53

Suitable for:
AM
FM

---

Material	Elastomer
Colour	Black
Foot	Exclusive
application	Sprite
Cable	Exclusive
Warranty	2 years
Length	34,5 cm
